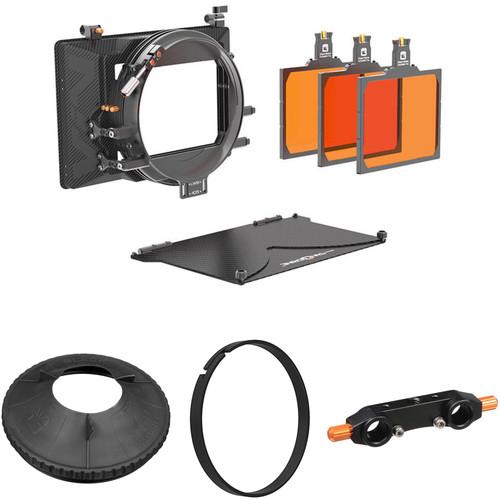

Product description The B&H kit consists of a Bright Tangerine Viv Matte Box Kit 2, Bright Tangerine 143mm Black Hole Donut, Bright Tangerine 150 to 143mm Clamp-On Ring Adapter, and a Bright Tangerine 15mm LWS Rod Bracket. The Viv Kit 2 features the Viv core, which has two removable rotating and one fixed filter stage, three 4 x 5.65" filter trays, and a carbon fiber top flag (or "eyebrow"). The matte box is suitable for widescreen production, and the rotating stages enable precise positioning of ND grads or polarizers. The included carbon fiber top flag allows you to precisely block flare from the top edge of the frame.
The included Black Hole Donut supports 138mm filters and incorporates a black elasto polymer that stretches to accommodate a variety of lens diameters while protecting your image from degradation caused by light behind the camera reflecting off your filters. The 150 to 143mm clamp-on ring adapter enables the matte box to clamp onto lenses with a 143mm front diameter, and the 15mm LWS Rod Bracket enables you to mount the Viv matte box onto 15mm LWS rods. - Bright Tangerine Viv Matte Box Kit 2
- Bright Tangerine VIV Matte Box Overview
Bright Tangerine's Viv Kit 2 is a three-stage 150mm clamp-on matte box solution. Constructed around the Viv core, this kit includes a carbon fiber top flag for controlling lens flare and three 4x5.65" filter trays, two of which sit in rotatable stages. Carbon fiber construction in the shade and top flag ensures a light weight and durable build that will last through heavy use on set. See below for more information on the individual items included in this kit. UPC: 755899002801 - Bright Tangerine 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA
- Bright Tangerine VIV Matte Box Overview
Bright Tangerine's 143mm Black Hole Donut works with lenses with a front outer diameter between 62 and 143mm. It is compatible with Bright Tangerine Viv, Viv 5", Misfit, and Strummer DNA matte boxes as well as select ARRI matte boxes. The black elasto polymer stretches to fit on your lens, and features a conical shape that allows for two inches of lens travel.
The Black Hole Donut is fitted with a 138mm filter ring and threaded retaining ring. This allows you to mount your 138mm filters into the front of the donut, which is then attached to the front of your matte box. - The Black Hole Donut expands to fit lenses with diameters between 62 and 143mm.
- With two inches of travel, you can use this lens donut with lenses that change size as you change focus.
UPC: 755899001347 - Bright Tangerine 150 to 143mm Clamp-On Ring for Viv & Viv 5" Matte Box
- Bright Tangerine VIV Matte Box Overview
This is a 150 to 143mm Bright Tangerine Clamp-On Ring for Bright Tangerine Viv and Viv 5" matte boxes, it allows you to clamp your matte box to the front of your lens with a 143mm front outer diameter. The ring features a split design allowing for gentle compression that holds your matte box securely on your lens. This allows you to mount your matte box on your lens without needing to use support rods. - The ring features Z-cuts, which allow it to compress and grip the lens securely, so your matte box does not fall off. The Z-cuts also prevent light from behind the lens from reflecting of any filter and degrading your image.
UPC: 755899001767 - Bright Tangerine 15mm LWS Rod Bracket
- Bright Tangerine VIV Matte Box Overview
The Bright Tangerine 15mm LWS Rod Bracket can be used for multiple purposes within different setups of Bright Tangerine gear. In some cases additional accessories are required.
On its own, the 15mm LWS Rod Bracket allows you to attach Bright Tangerine Misfit 143mm Clamp-On matte boxes and Viv and Viv 5" matte boxes to 15 LWS rods (MFR #s B1230.0016, B1230.0017, B1210.1010, B1210.1011, B1210.0010, B1210.0011, B1210.1010, B1210.1011, B1210.0012, B1210.0013).
If you incorporate the optional 15mm LWS Bracket Adapter (MFR # B1230.1005), the Rod Bracket can be used to secure Misfit 114mm Clamp-On and Misfit Atom matte boxes to 15mm LWS rods (MFR #s B1230.0014, B1230.0015, B1230.1007, B1230.0011, B1230.0012, B1230.0013).
The 15mm LWS Rod Bracket is also a required accessory when using the Strummer 19mm and Strummer 15mm Studio Brackets (MFR # B1200.1017 and B1200.1018). - Key Features
-
- Convert Misfit, Misfit Atom, and Viv/Viv 5" matte boxes from clip-on or swing-away mount to rod-mount (additional accessories required in some cases)
- Also compatible with 15mm and 19mm Strummer Studio Brackets
UPC: 755899001675 In the Box - Viv Matte Box Kit 2 atbdttvwybecfrxsqztcfyryzxuabrtwc
- Viv Core 2
- 3 x 4x5.65" Horizontal Filter Tray for Viv
- Top Flag for Viv, Viv 5", or Misfit Matte Boxes
- 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA
- 150 to 143mm Clamp-On Ring for Viv & Viv 5" Matte Box
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine Viv Matte Matte Box Kit 2 with Accessories in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bright Tangerine Viv Core 2
| Diameter | 150 mm max | | Material | Carbon fiber and hard anodized aluminum | | Weight | In 3-stage configuration: 1.3 lb (591 g) (inc. filter trays) | - Bright Tangerine 4x5.65" Horizontal Filter Tray for Viv
| Material | Hard anodized aluminium | | | | Box Dimensions (LxWxH) | 6.1 x 5.8 x 0.2" | - Bright Tangerine Top Flag for Viv, Viv 5", or Misfit Matte Boxes
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 11.1 x 6.3 x 0.2" | - Bright Tangerine 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA
| Material of Construction | Elasto polymer
Anodized aluminum
Silicon nitride
Delrin | | Lens Diameter | 62 to 143 mm | | Filter Attachment | 138 mm | | Dimensions | 6.3 x 1.0" / 160.0 x 25.0 mm | | Weight | 3.6 oz / 103.0 g | | | | Box Dimensions (LxWxH) | 6.55 x 6.1 x 1.3" | - Bright Tangerine 150 to 143mm Clamp-On Ring for Viv & Viv 5" Matte Box
| Material of Construction | Delrin | | Dimensions | Ø 5.9 x 0.6" / Ø 150.0 x 15.0 mm | | Weight | 1.1 oz / 32.0 g | | | | Box Dimensions (LxWxH) | 6.6 x 5.9 x 1.35" | - Bright Tangerine 15mm LWS Rod Bracket
| Material of Construction | Hard-anodized aluminum | | Dimensions | 4.8 x 0.9 x 0.8" (12.3 x 2.2 x 2 cm) | | Weight | 2.1 oz (60 g) | | | | Box Dimensions (LxWxH) | 6.3 x 2.1 x 1.35" |
