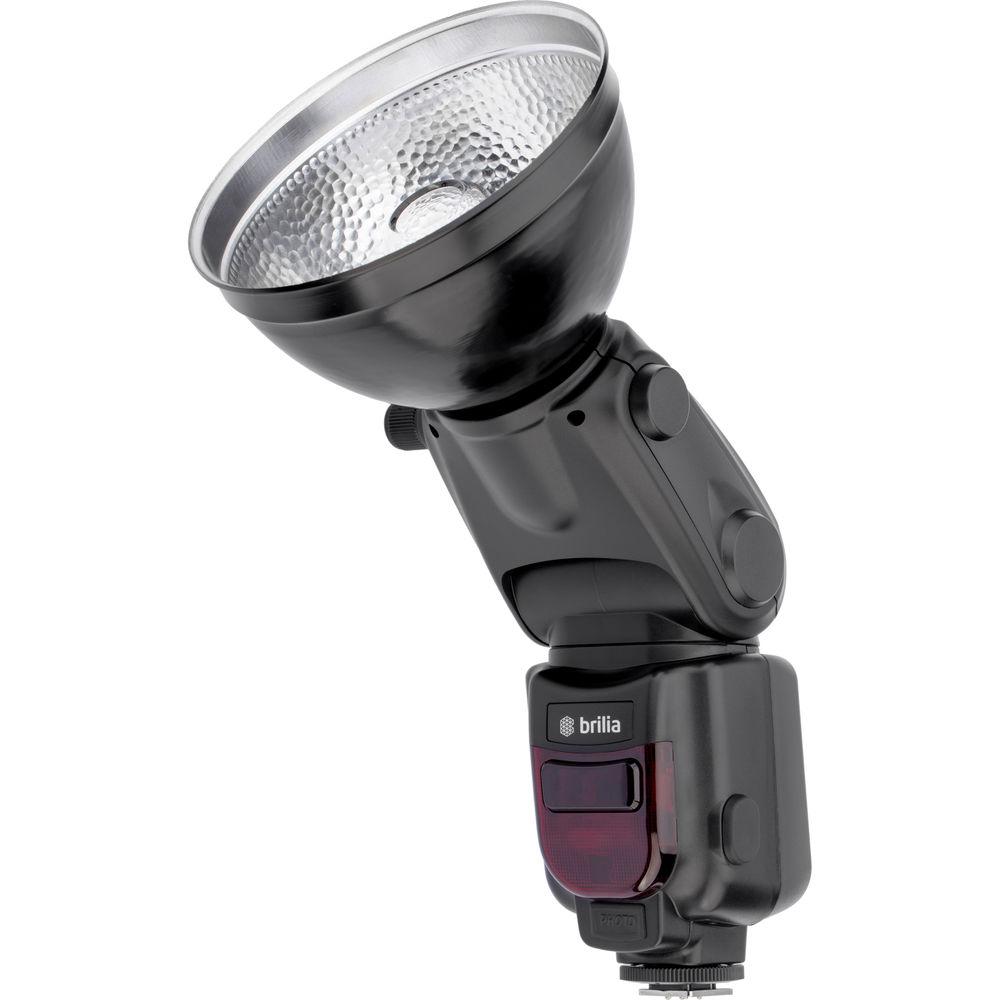

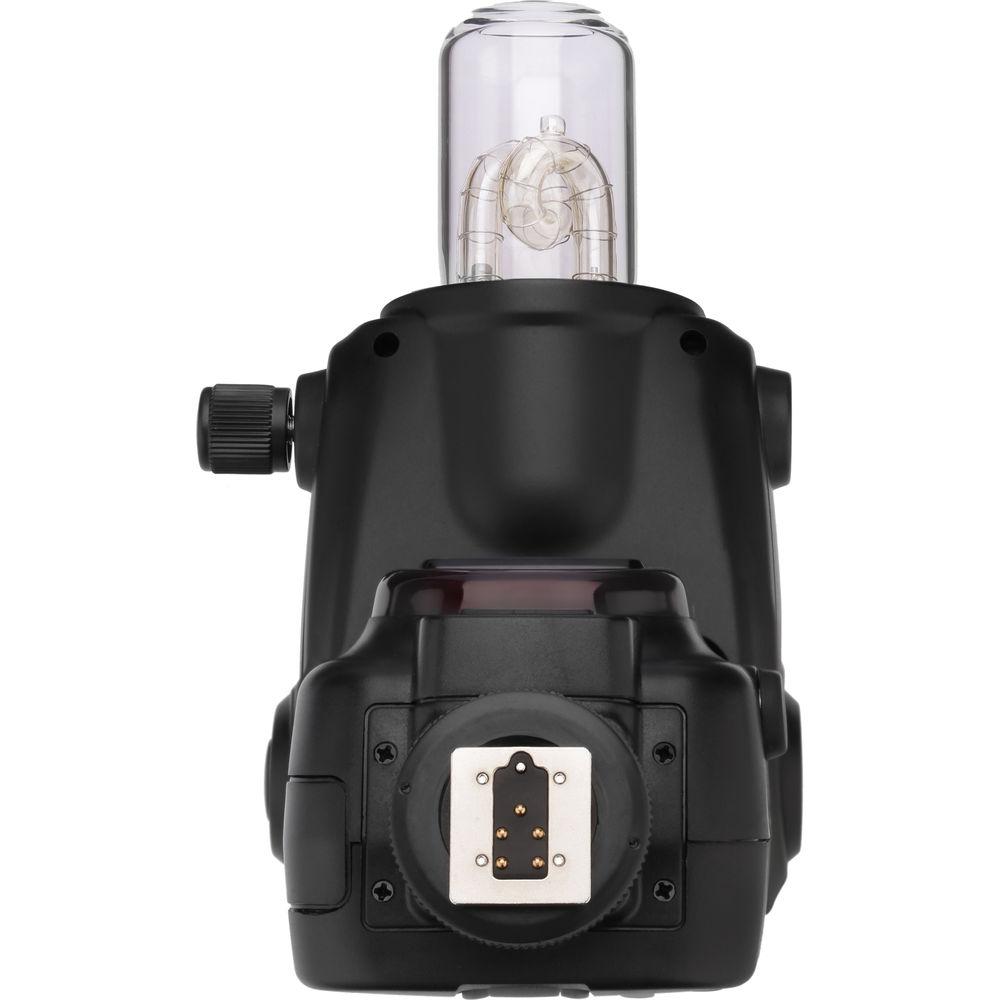

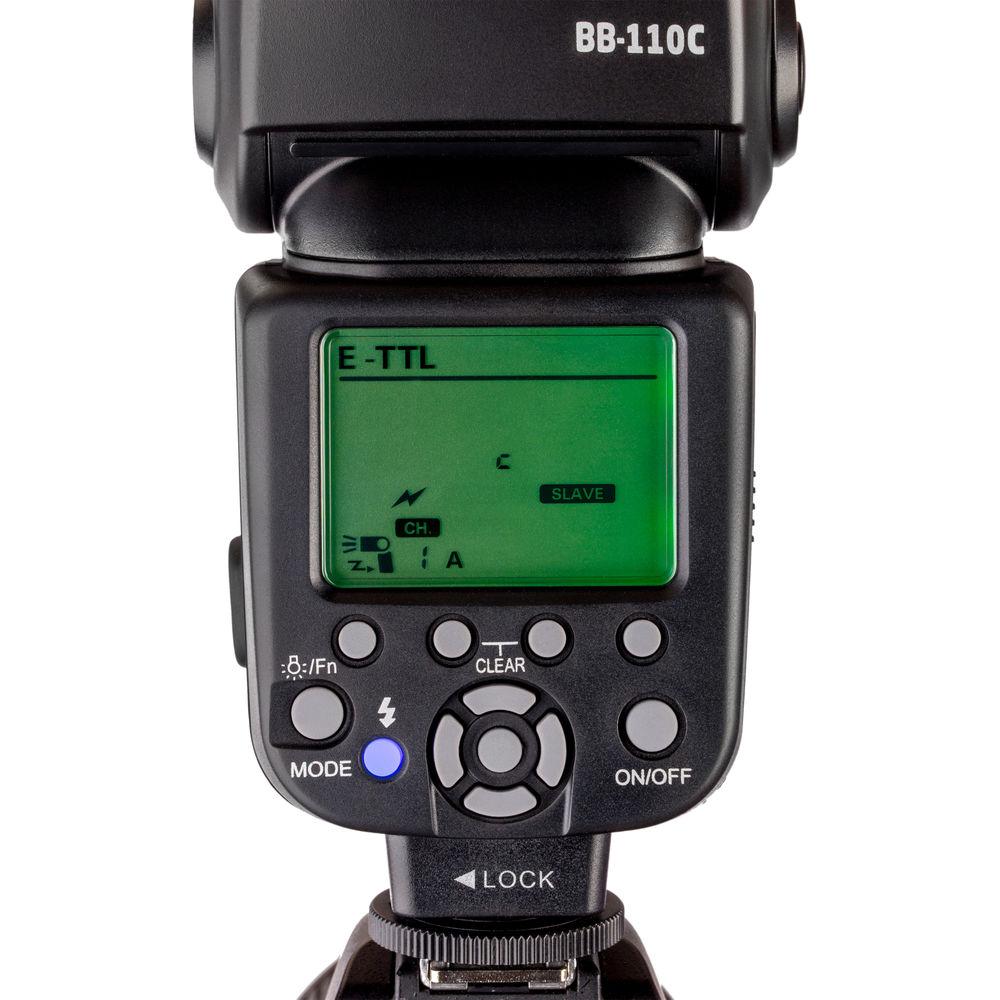

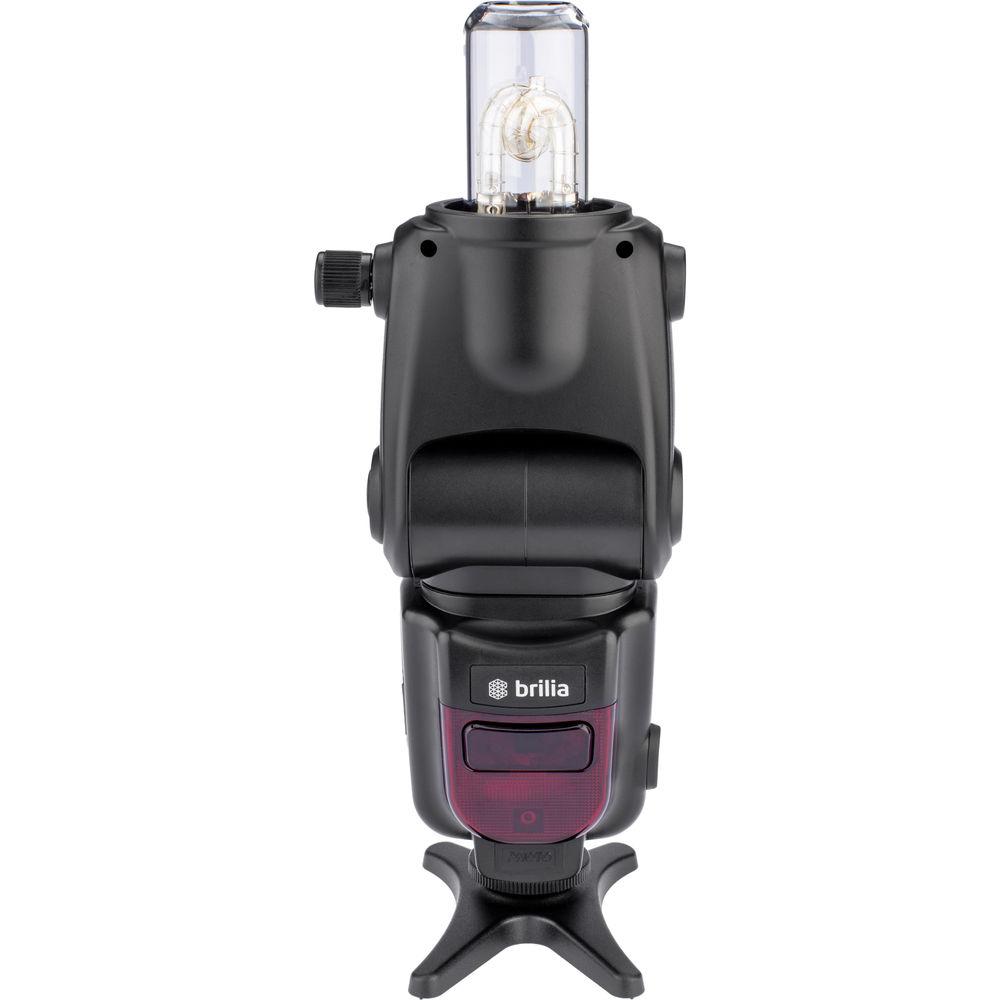

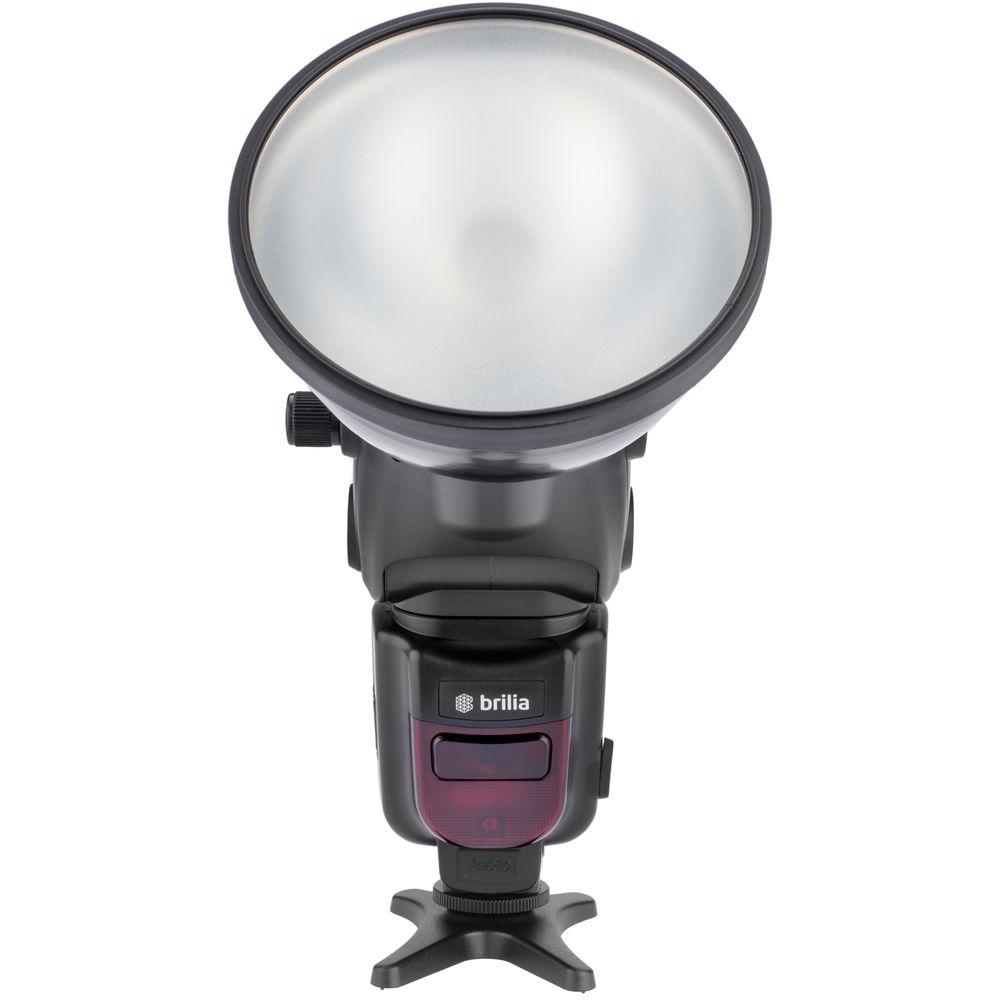

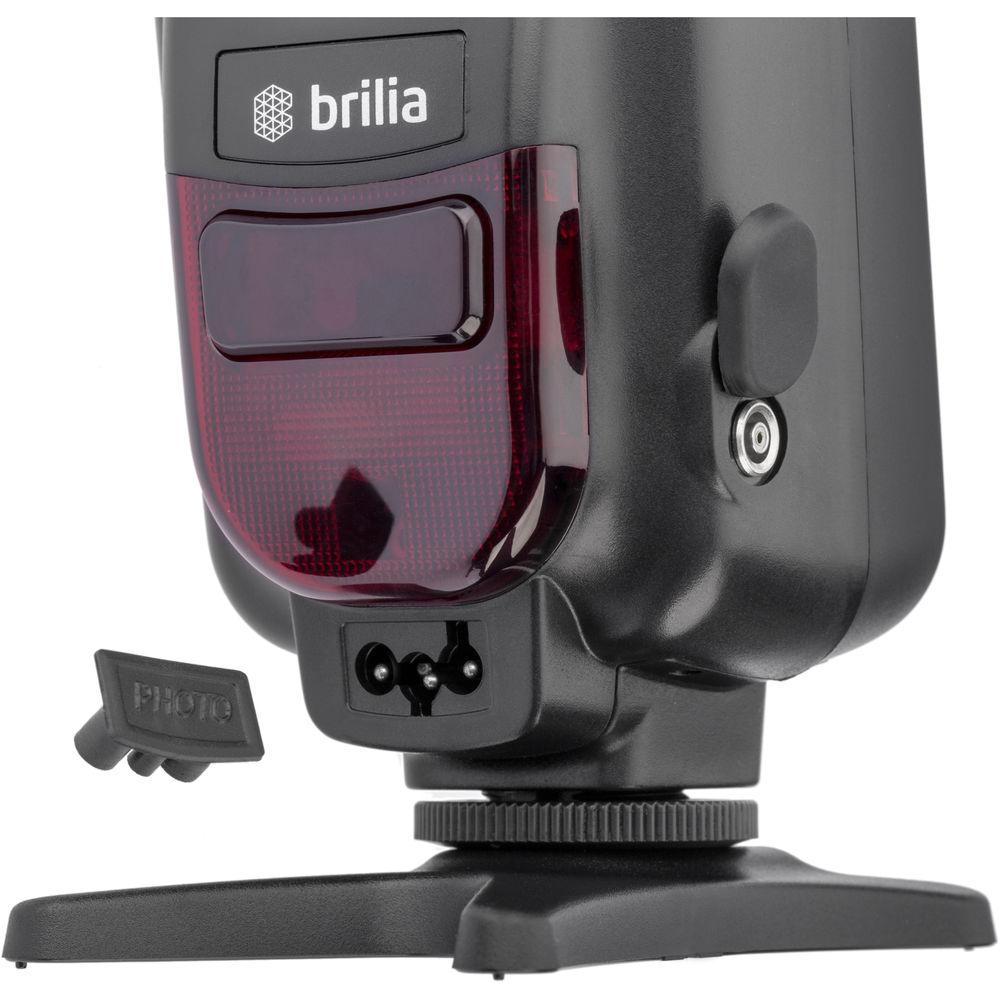

Product description Embrace beautifully even, omnidirectional lighting with the bare-bulb design of the BB-110C Bare-Bulb TTL Flash from Brilia. Available here with full compatibility with the Canon E-TTL / E-TTL II automatic exposure system, users will be able to get started quickly and easily while also having full access to manual power from 1/1 to 1/28 and flash exposure compensation settings for dialing in a more exact exposure setting for their particular needs. This shoe-mounted unit is rated with a guide number of 56' at ISO 100 and 28mm (80Ws), and it comes with a reflector that offers coverage for 28mm on full-frame cameras or 18mm on APS-C sensors.
For normal flash operation it has a locking tilt position from -7 to 90° and can rotate left and right 180° for full bounce capabilities. It has wireless optical slave functionality with support for groups and channels via the TTL system. Pure manual optical slave operation is available as well, for more basic remote triggering. An automatic power-saving function is packed into the flash to save battery when not in use.
Advanced capabilities of the BB-110C include a programmable stroboscopic mode for multiple flash during a single exposure and synchronization options. The highlight feature is high-speed sync for working with faster shutter speeds than previously possible plus both 1st and 2nd curtain sync. Along with this, the flash is equipped with an HV power port, a PC sync terminal, and runs on 4 AA batteries. Note: Not compatible with PocketWizard FlexTT5 and MiniTT1 TTL systems. - Bare-bulb design provides bright, even illumination
- Guide number of 56' at ISO 100 and 28mm angle

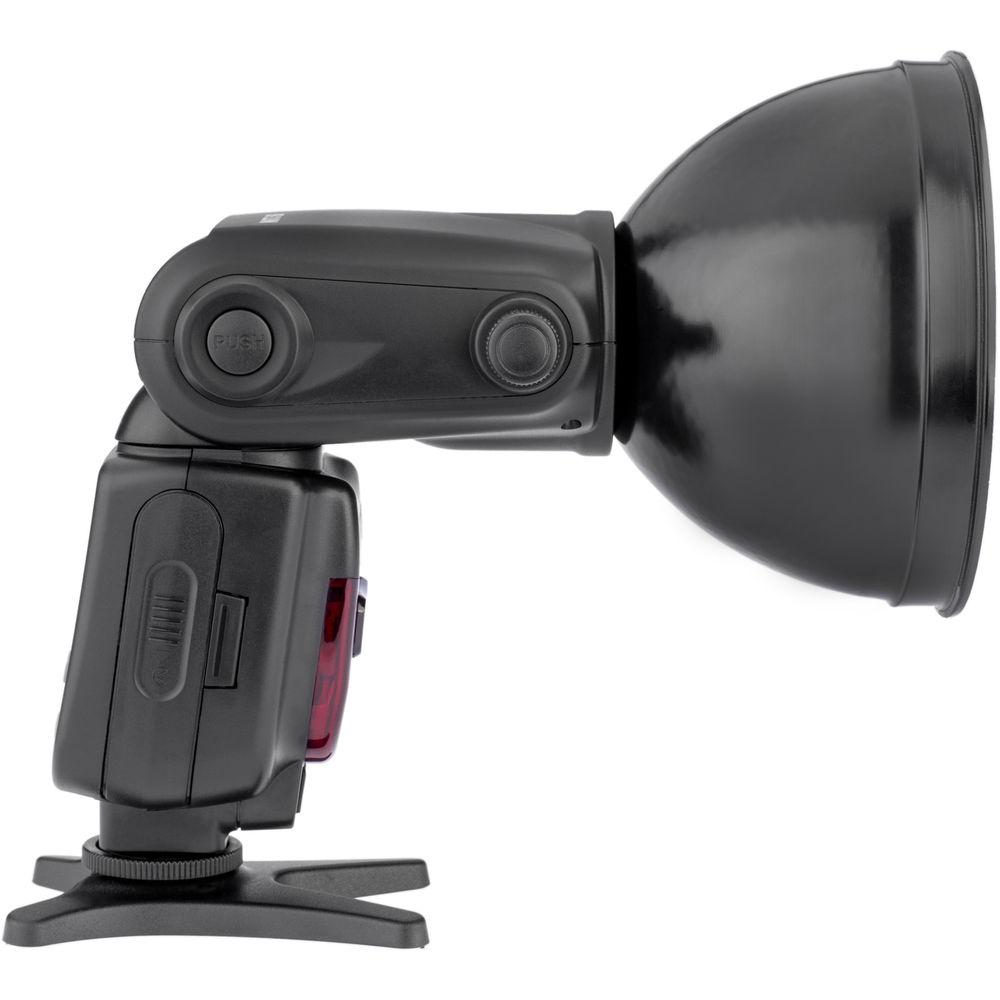

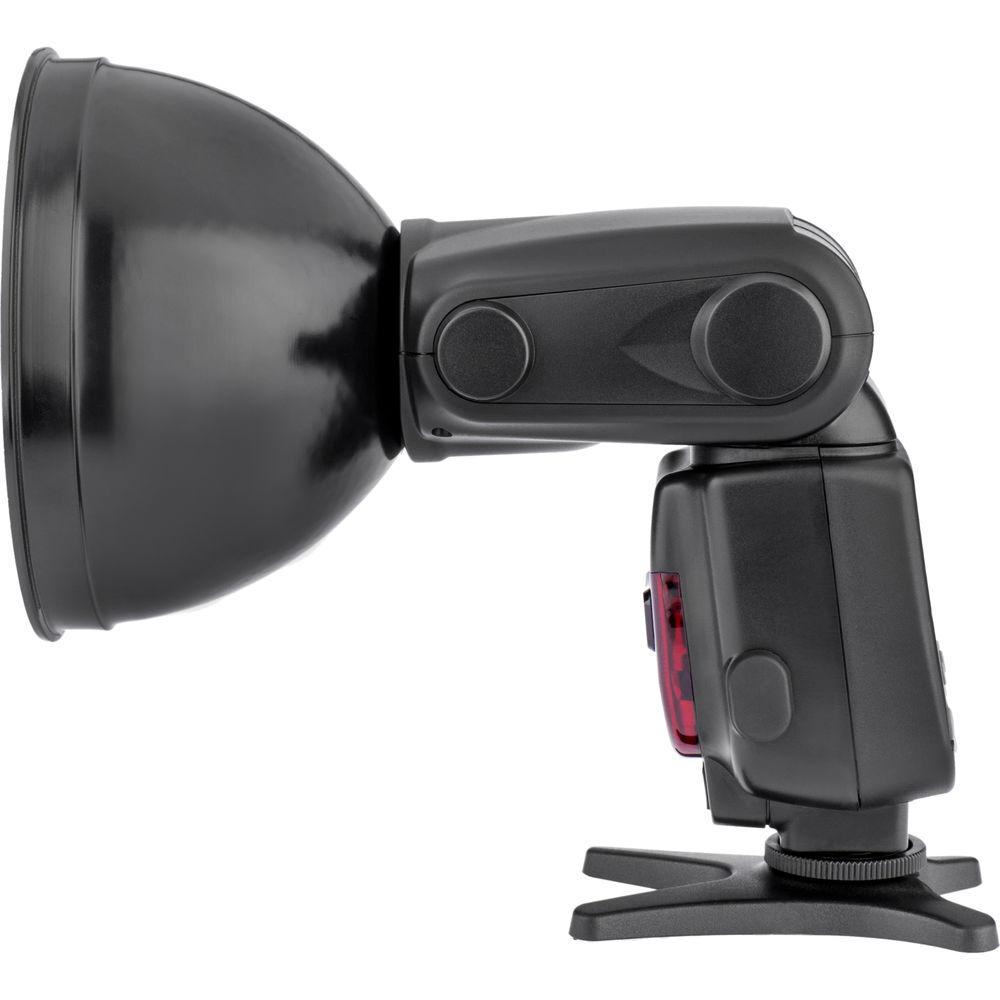

- Reflector provides coverage for 28mm on a full-frame sensor or 18mm on an APS-C sensor
- Locking tilt function from -7 to 90°
- Rotates left and right 180°
- Stroboscopic mode allows for up to 99 continuous shots with a frequency of 1-99 Hz
- Full manual control from 1/1 to 1/128 power
- High-speed sync setting for using faster shutter speeds
- Wireless optical slave compatibility allows for setting between 4 channels and 3 groups for compatibility with Canon E-TTL / E-TTL II systems from a range of up to 33'
- Manual slave triggering features instant sync and skip pre-flash settings for ensuring flash is triggered at appropriate time
- Flash exposure compensation is available from -3 to +3 EV in 1/3 or full EV steps
- Flash exposure bracketing is available from -3 to +3 EV in 1/3 EV steps
- AF assist light for single-shot mode
- Automatic power-saving function puts flash in power-saving mode after 60 seconds of inactivity and shuts down after 30 minutes
- PC sync terminal for wired remote triggering
- HV power port (accepts CKE type flash cables) for external battery packs

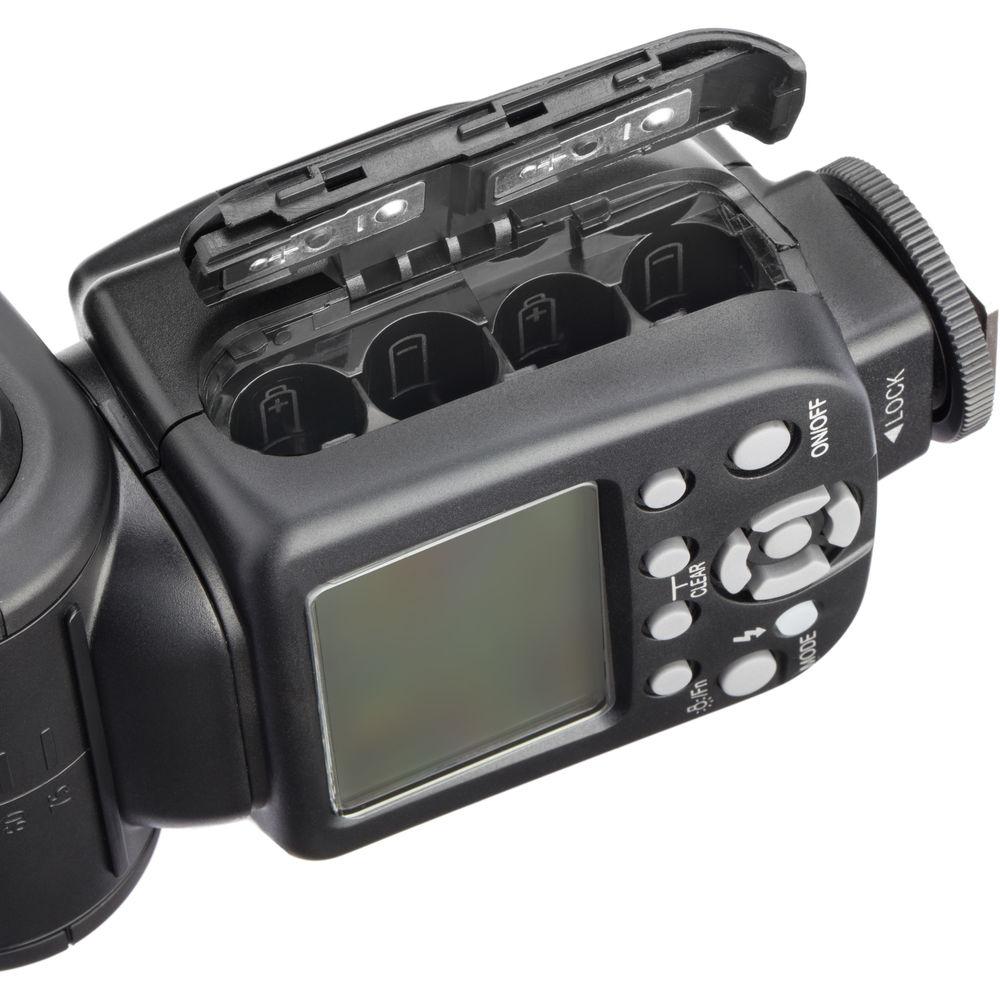

- Recycle time of 2.9 seconds with 4 AA batteries which can be improved to 0.05-2.6 seconds with optional power pack
UPC: 847628591714 In the Box Brilia BB-110C Bare-Bulb TTL Flash for Canon Cameras Flashtube Reflector Diffuser Diffuser Ring Flash Stand Soft Case for Flash Shoulder Strap System Carrying Case Limited 1-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Brilia BB-110C Bare-Bulb TTL Flash for Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrilia BB-110C Specs | Mount | Shoe | | Guide No. | 56' / 17.07 m ISO 100 at 28 mm Position | | Exposure Control | E-TTL / E-TTL II, Manual | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | - mm (Full Frame) | | Zoom Head | None | | Off-Camera Terminal | PC | | Recycle Time | Approximately 0.05 to 2.9 Seconds | | Flash Duration | 1/200 to 1/10000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 and 1 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: Optical Pulse
Distance: Up to 32.81' / 10 m
Mode: Slave | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 11.0 x 3.0 x 2.2" / 28.0 x 7.5 x 5.7 cm | | Weight | 1.1 lb / .5 kg | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 9.5 x 9.2 x 5.6" |
