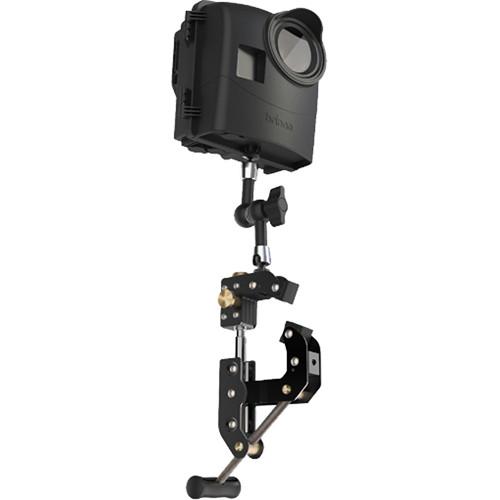

Product description The BCC2000 Construction Trio Bundle Pack from Brinno includes an EMPOWER TLC2000 time lapse camera, ATH2000 housing, and ACC1000 clamp mount kit.

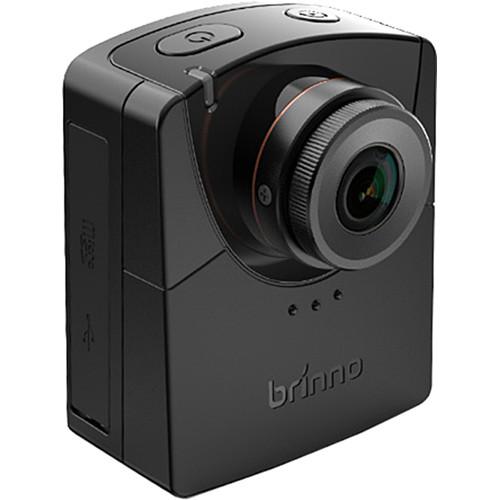

The TLC2000 uses HDR and FHD sensors to capture 1920 x 1080 resolution video in a 118° field of view. The camera's CS mount provides compatibility with Brinno BSC zoom lenses (available separately). A 2" TFT LCD screen enables users to frame their subject from the desired angle. Capture modes for the camera include time lapse, step video, stop motion, and still photo. The two included AA batteries provide battery life of up to 25 days. This device supports microSD/SDHC/SDXC cards up to 128GB. An 8GB microSD card is included.

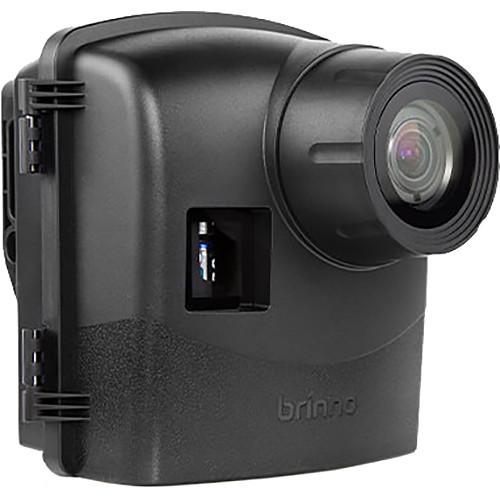

The ATH2000 housing is designed to be used with TLC cameras from Brinno. Interchangeable lens covers lets you choose between long- and short-range shots. An included extension lens cover fits the BSC lens for close-up shots, enabling you to choose your ideal angle. This housing accepts up to 16 AA batteries (available separately), delivering months of uninterrupted recording from the camera housed in it. An IPX5 rating for protection against water makes this housing suitable for outdoor use.

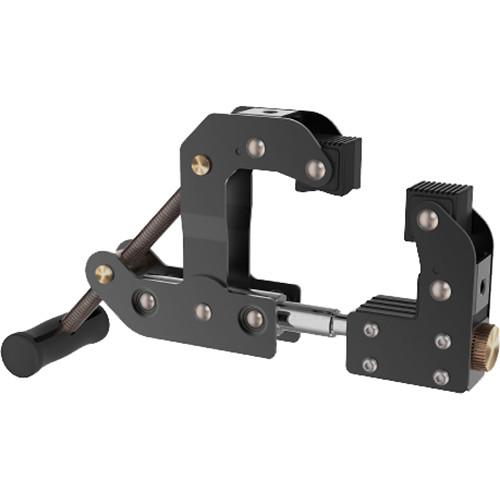

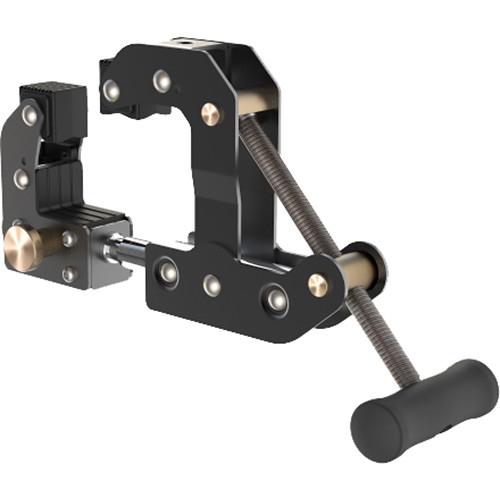

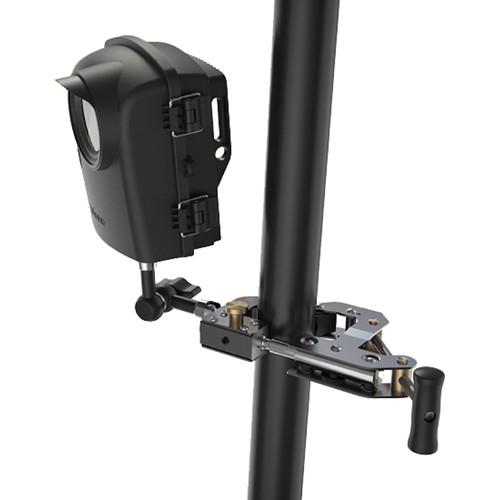

The ACC1000 clamp mount kit provides a versatile mounting solution for the camera via a clamp with a 110 lb load capacity and an arm with a 6.6 lb load capacity. The arm has a 360° rotating tripod ball joint with 90° tilting that enables flexible positioning of the camera. - Time Lapse Camera Features
-
- HDR and FHD sensors
- Compatible with Brinno BSC zoom lenses (available separately)
- Capture modes include time lapse, step video, stop motion, and still photo
- Flexible schedule setup enables users to set video shooting schedules
- Reset button
- LED status indicator
- 0.25" tripod mount
- Construction Power Housing Features
-
- Compatible with Brinno TLC cameras
- Switch between lens covers for long and close-up shots
- Padlock eyelets
- Cord hole for easy access to external devices
- Micro-USB connector
- Add up to four times more battery power via 16 AA batteries (available separately) to deliver months of uninterrupted video recording
- IPX5 rated for protection against water
- Clamp Mount Kit Features
-
- 360° rotating tripod ball joint with 90° tilting enables flexible positioning of the camera
- Can be clamped on tubes and flat surfaces up to 3.5"
- 6.6 lb load capacity for arm
- 110 lb load capacity for clamp
In the Box Brinno BCC2000 Construction Trio Bundle Pack EMPOWER TLC2000 Time Lapse Camera (4th Generation) USB Type-C Cable 2 x AA Batteries Lens Cover Screwdriver 8GB microSD Card ATH2000 Construction Power Housing Camera Mounting Adapter Extension Lens Cover for Brinno BCS Lens Battery Cover Micro-USB Type C Adapter Screwdriver 2 x Straps Desiccant Bag ACC1000 Clamp Mount Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Brinno BCC2000 Construction Trio Bundle Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrinno BCC2000 Specs | | | Resolution | 1920 x 1080 | | Mount Interface | CS | | Aperture | f/2.0 | | Field of View | 118° | | Capture Modes | Time Lapse, Step Video, Stop Motion, Still Photo | | LCD Screen | 2" / 50.8 mm TFT LCD | | Storage | Supports microSD/SDHC/SDXC Cards up to 128 GB (Minimum of Class 10 Cards Recommended, 8 GB microSD Card Included) | | Power Source | 2 x AA Batteries (Included)
5 VDC, 1 A (USB Type-C Connector, Cable Included) | | Battery Life | Up to 18 Hours at Intervals of 3 Seconds
Up to 25 Days at Intervals of 5 Minutes | | Tripod Mount | 0.25" / 6.35 mm | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions (W x H x D) | 2.4 x 2.8 x 1.7" / 60 x 70.6 x 42.4 mm | | Weight | 3 oz / 87.5 g (Without Battery) | | | | Compatible Cameras | TLC200, TLC200Pro, TLC120, TLC130, TLC2000 | | Battery Slot | Room for up to 16 Additional AA Batteries
Micro-USB Connector (5 V, 2 A Output) | | Lens Cover | Exchangeable Lens Covers
Kit Lens Cover
Extension Lens Cover for Brinno BCS Lens | | IP Rating | IPX5 | | Dimensions | 6.6 x 6.1 x 4.5" / 167 x 156 x 115.5 mm | | Weight | 14 oz / 393 g | | | | Camera Mount Screw | 0.25" / 6.35 mm | | Clamping Range | Tube: 0.4 to 3.5" / 10 to 90 mm
Flat Surface: 0.04 to 3.5" / 1 to 90 mm | | Load Capacity | Magic Arm: 6.6 lb / 3 kg
Clamp: 110 lb / 50 kg (Without Extension Pole) | | Material of Construction | Clamp: Stainless Steel, Aluminum
Magic Arm: Stainless Steel, Metal, Aluminum | | Dimensions (L x W x H) | Folded: 8.2 x 3.7 x 1.5" / 209 x 94 x 39 mm
Extended: 6.9 x 7.1 x 2.4" / 176 x 180 x 60 mm | | Weight | 26.5 oz / 750 g (Magic Arm Included) | | | | Package Weight | 4.955 lb | | Box Dimensions (LxWxH) | 10.2 x 10.1 x 5.3" |
