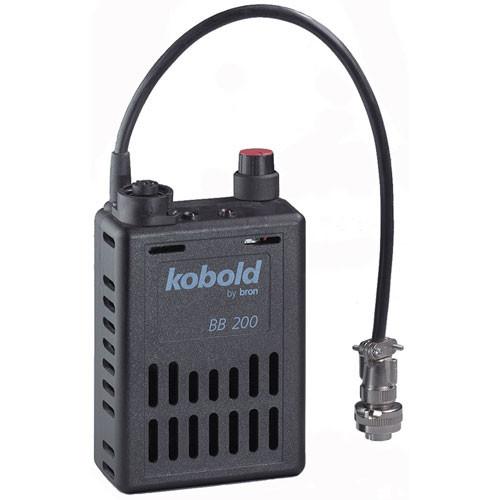

User Manual for Bron Kobold BB200 C Battery Ballast for DW200 Click to enlarge the picture
Contents of the user manual for the Bron Kobold BB200 C Battery Ballast
- Product category: Ballasts Bron Kobold
- Brand: Bron Kobold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bron Kobold Ballasts
|
User manual for the Bron Kobold BB200 C Battery Ballast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bron Kobold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bron Kobold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bron Kobold product will considerably shorten its lifespan!
|
Product description The Kobold BB200/C DC Ballast is for the DW200 HMI fixture. When connected to your 26-34 Volt Battery source, it will provide dimmable power to your fixture, in areas where AC current is not available. - Dimmable
-
- The required light output can be set (100 - 60% adjustment range) with the power regulator.
- Color temperature can change with the power output depending on the type of lamp used.
- XLR Four-Pin Connection
- To connect the ballast unit to the battery just plug in the corresponding connection.
- To disconnect, press the security mechanism on the socket, before pulling out the plug.
- LED Display
-
- Green LED is lit continuously: normal operating mode
- Green LED is flashing: the battery voltage has dropped to 26V - 22V.
- Red LED is blinking: the battery voltage has dropped to 22V - 19V
- Red LED is lit continuously: the unit has stopped operating
- Safety
-
- IP 20, insulation class II
- 10A Fuse
- Ignition overload protection
- Temperature monitor
In the Box Bron Kobold BB200/C Battery Ballast for DW200 (26-34VDC) One Year Manufacturer's Warranty Note: Battery not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold BB200 C Battery Ballast for DW200 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold BB 200 Specs | Lamp Power | 200 watts | | Input Voltage | Voltage range 30V battery: 26 - 34VDC
Voltage range 24V battery: 22 - 25VDC (output limited to 170W) | | Dimmer | 100 - 60% | | Weight | 1.6 lbs (750 g) | | Dimensions | 2.6 x 4.1 x 6.5" (6.5 x 10.5 x 16.5cm) |
