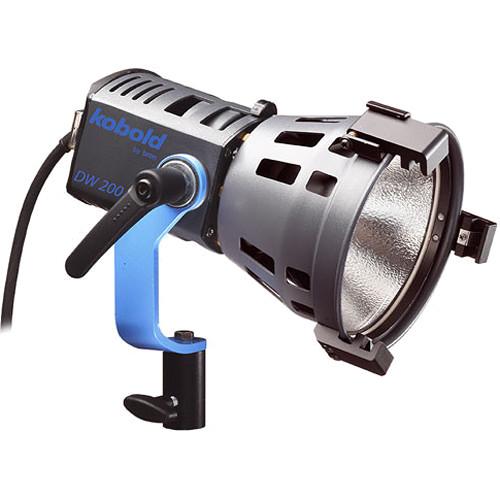

Product description The Kobold DW 200 AC/DC PAR 200 Watt HMI Production Kit is built around the IP54 rated, weather-proof DW 200 lamp base which withstands water splashing on it from any direction without harmful effect. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 14-51°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. When the Kobold EWB-200 AC Ballast is connected to a 90-265VAC source, this weather-resistant ballast will provide dimmable power to your fixture via its included head-to-ballast cable. The BB200/C DC Ballast, when connected to your 26-34 Volt Battery source, will provide dimmable power to your fixture in areas where AC current is not available. Completing this kit are four lenses, which alter the intensity and spread of the light, two wire scrims, a four leaf barn door set, stand mount, 200 Watt HMI Hot Restrike Bulb, and a Production Kit Case. A 16.4' (5m) head extension cable and a softbox adapter which accepts 5" speed rings are also included. DW200 Fixture - Focus
- Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.

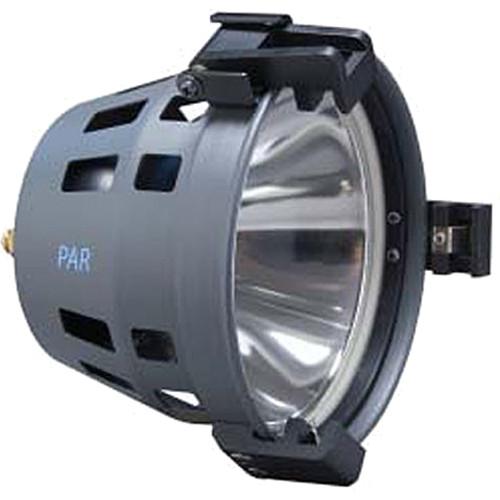

- PAR Reflector
-
- Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.
- Light output: Spot: 44940 lux / 4175 fc @ 9.8' (3 m) with no lens

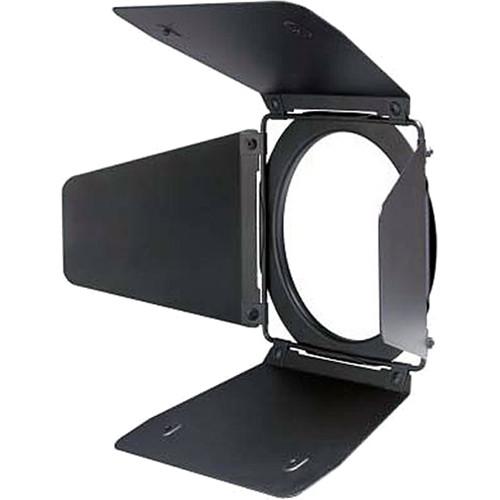

- Barn Door Set
- To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barn door.
- Hot Restrike
- Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.
Ballasts - Dimmable
-
- The required light output can be set (100 - 60% adjustment range) with the power regulator.
- Color temperature can change with the power output depending on the type of lamp used.
- Easy Connection
- To connect the ballast unit to the fixture just plug in the corresponding connection.
- To disconnect, press the security mechanism on the socket before pulling out the plug.
- LED Display
-
- Red and Green LEDs continuously monitor operation, indicate voltage changes and employ thermo protection, power reduction and even shut-down if necessary.
- Safety
-
- Water-resistant IP rated components: IP 54 (Lamphead), IP 43 (EWB 200), IP 20 (BB 200), with strengthened insulation for additional protection.
- Ignition overload protection
- Temperature monitor
- Convection cooling
- Meets CE Standards

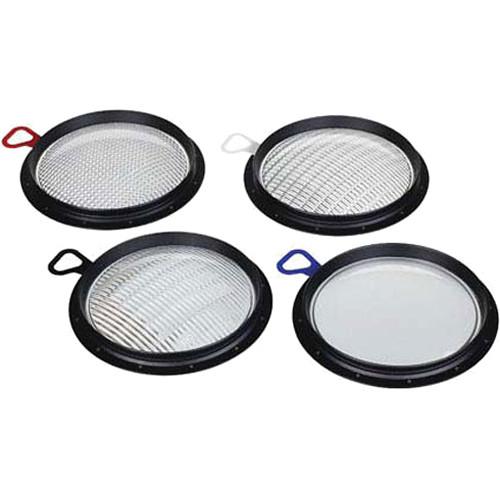

Accessories - Lens Set with Bag
-
- Narrow Spot (NSP), Medium Flood (MFL), Wide Flood (WFL), and Very Wide Flood (VWFL)
- Each lens has a color-coded handle for easy identification.
- Output @ 9.8' (3m):
NSP Lens: 15,040 Lux, 1397 fc MFL Lens: 11,800 Lux, 1096 fc
WFL Lens: 2780 Lux, 258 fc
VWF Lens: 1080 Lux, 100 fc - Other Light Shapers
-
- Four leaf barn door set helps shape the light

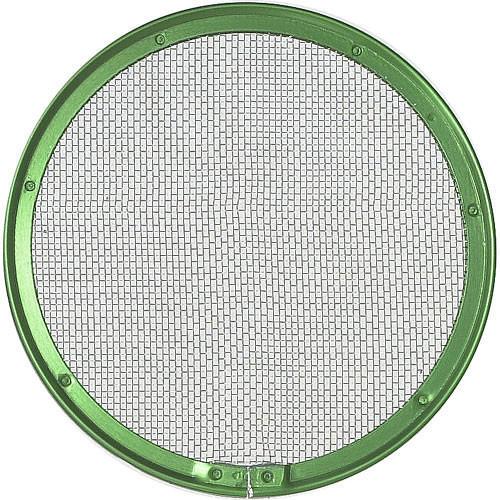

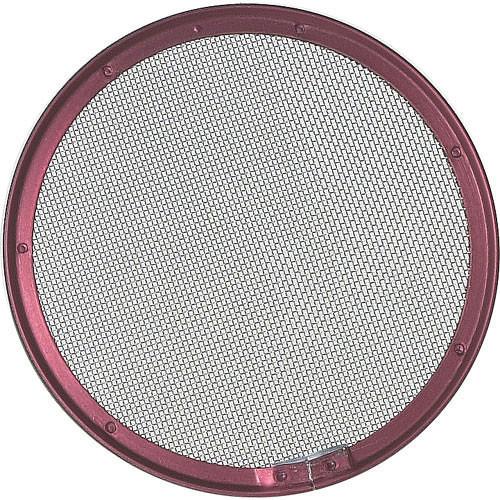

- Full and double scrim help control the intensity

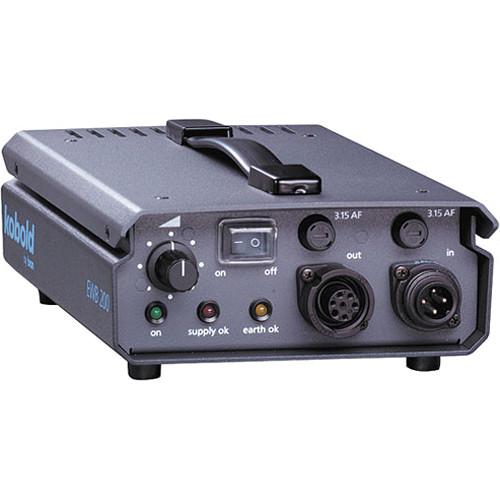

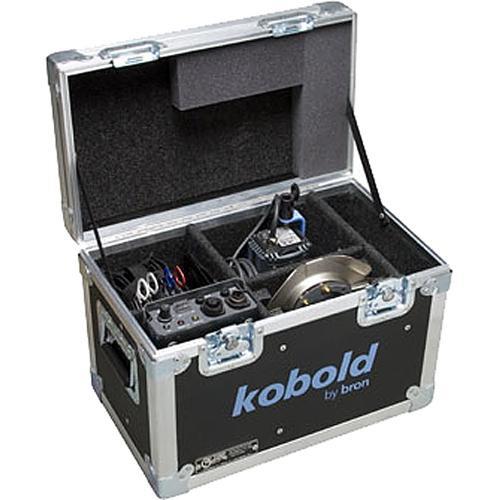

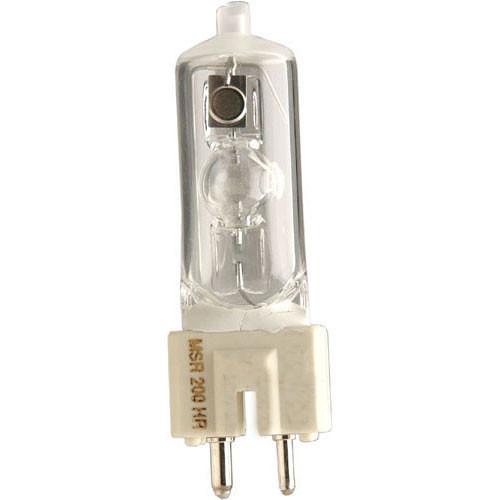

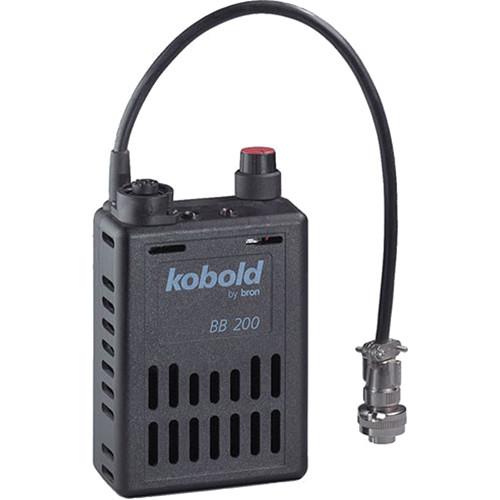

In the Box Bron Kobold DW 200 AC/DC PAR 200 Watt HMI Production Kit DW200 HMI Lamphead - 200 Watts vztyuyqffuevertwwq PAR Reflector for DW200 EWB-200 AC Ballast for DW200 vztyuyqffuevertwwq BB200/C Battery Ballast for DW200 (26-34VDC) Four Lens Set for DW200 HMI PAR 4-Leaf Barndoor Set for DW200 HMI Full Single Scrim for DW200 (5") Scrim, Full Double for DW200 - 5" HMI Lamp for DW200 - 200 Watts/70 Volts Production Case KOLHCDW200 KOSBADW200 Storage Bag for Five Lenses for DW200 HMI PAR One Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold DW 200 AC DC PAR 200 Watt HMI Production Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold DW 200 Specs | | | Rating | 200 watts | | Socket (Lampholder) | GZY 9.5 for 200W SE HR lamp | | Lens (Condenser) | 4 Lens Set with Bag: Narrow, Medium Spots, Wide, Very Wide Floods | | Mounting | Baby (5/8") | | Weight | 2.6 lbs (1.2kg) | | Dimensions | 6.75 x 5.85 x 4.3" (17.1 x 14.9 x 11cm) | | | | Rating | AC: 200 watts, 90-265VAC
DC: 200 watts
Voltage range 30V battery: 26 - 34VDC
Voltage range 24V battery: 22 - 25VDC (output limited to 170W) | | Cable | 13' (4m) with fixture | | Weight | AC: 3.74 lbs (1.7kg)
DC: 1.75 lbs (750g) | | Dimensions | 9.25 x 6.3 x 3.3" (23.5 x 16 x 8.5cm)
DC: 1.75 lbs (750g) | | Kit Weight | 35.25 lbs (16 kg) | | Kit Dimensions | 16 x 11.5 x 14" (40.64 x 29.21 x 35.56cm) |
