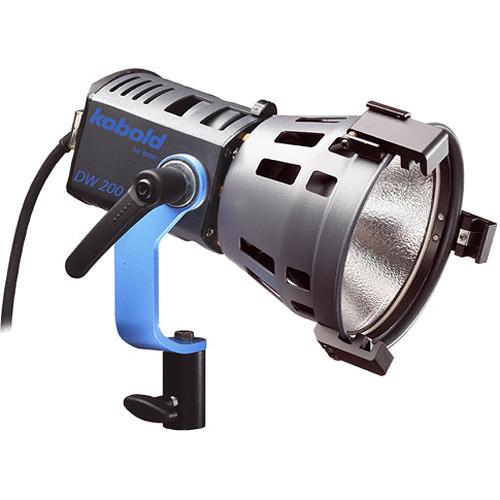

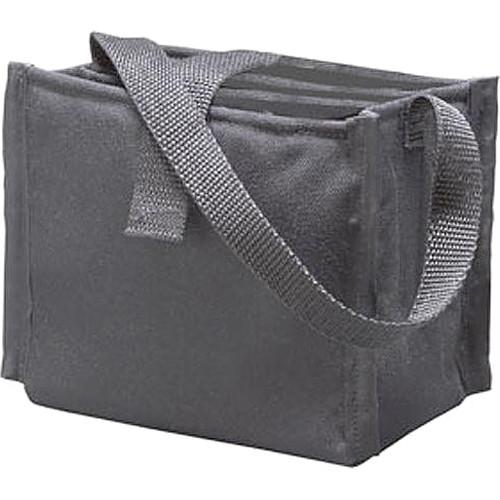

Product description The Kobold DW 200 AC PAR 200-Watt HMI Production Kit is built around the IP54 rated, weather-proof DW 200 lamp base which withstands water splashing on it from any direction without harmful effect. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 14-51°. This daylight fixture has a solid design, compact dimensions, and maximum reliability for all applications in the studio and on location. When the Kobold EWB-200 AC Ballast is connected to a 90-265 VAC source, this weather-resistant ballast will provide dimmable power to your fixture via its included head-to-ballast cable. Completing this kit are a glass diffusion filter, a glass (CTO) conversion filter, a 4-leaf barndoor set, a stand mount, 200-Watt HMI Hot Restrike Bulb,, and a production kit case. A lens bag is included to protect the filters. DW200 Fixture - Focus
- Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.

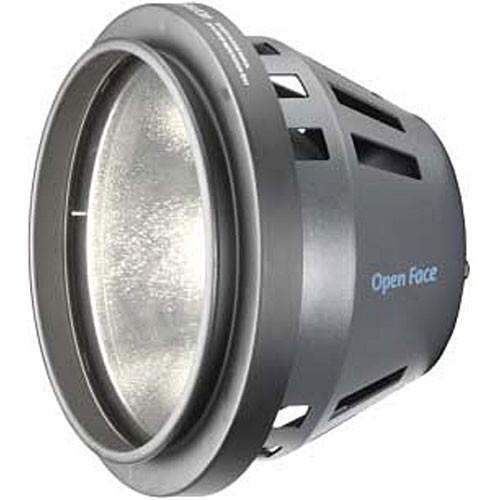

- Open Face Reflector
-
- Installation is quick and without any tools due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.
- Light Output:
Spot: 8100 lux / 753 fc
Flood: 1675 lux / 156 fc - Barndoor Set
- To place the barndoors on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place, then tighten it to secure the barndoor.
- Hot Restrike
- Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.
Ballasts - Dimmable
-
- The required light output can be set (100-60% adjustment range) with the power regulator.
- Color temperature can change with the power output depending on the type of lamp used.
- Easy Connection
- To connect the ballast unit to the fixture just plug in the corresponding connection.
- To disconnect, press the security mechanism on the socket before pulling out the plug.
- LED Display
-
- Red and Green LEDs continuously monitor operation, indicate voltage changes and employ thermo-protection, power reduction, and even shut down if necessary.
- Safety
-
- Water-resistant IP-Rated Components: IP 54 (Lamphead), IP 43 (EWB 200), IP 20 (BB 200), with strengthened insulation for additional protection.
- Ignition overload protection.
- Temperature monitor.
- Convection cooling.
- Meets CE standards.
Accessories - Filters
-

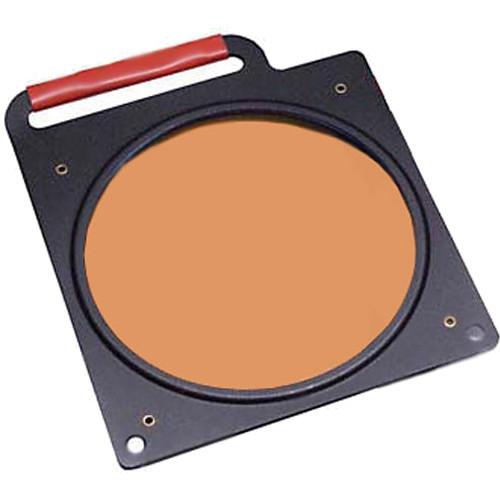

- Glass Diffusion Filter: Softens and diminishes light output.
- Glass CTO Conversion Filter: Converts 5600K output of the HMI lamp to match 3200K tungsten sources.
- Other Light Shapers
-

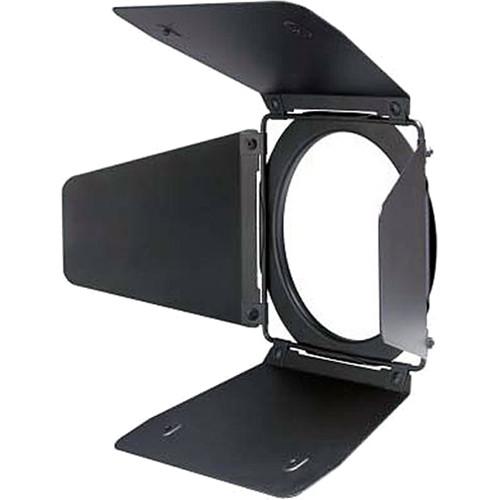

- 4-leaf barndoor set helps shape the light.
- Full and double scrim help control the intensity.

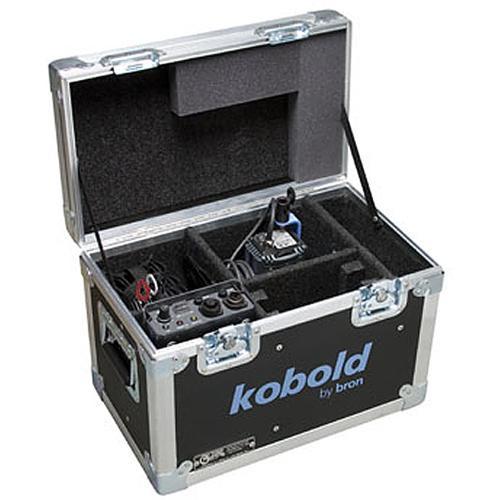

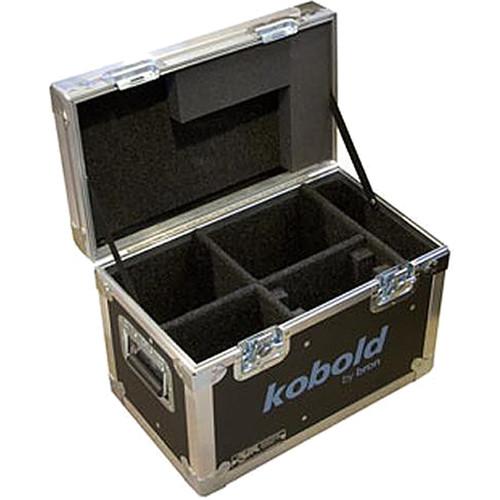

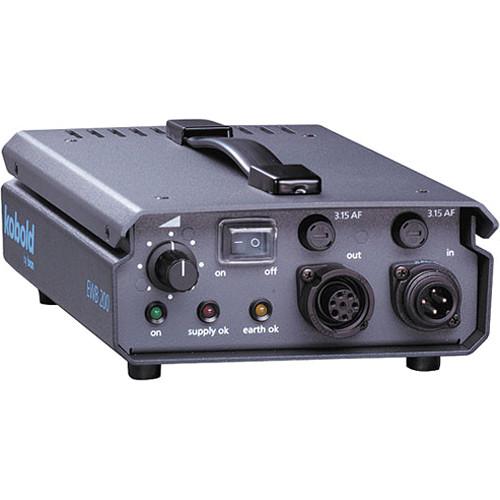

In the Box Bron Kobold DW 200 AC Open Face 200-Watt HMI Production Kit DW200 HMI Lamphead - 200 Watts Open Face Reflector for DW200 EWB-200 AC Ballast for DW200 4-Leaf Barndoor Set for DW200 HMI Glass Diffusion Filter for DW200 Open Face HMI Glass Conversion Filter for DW200 Open Face HMI 200-Watt HMI SE hr Lamp Production Case Lens Bag for DW200 HMI PAR Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold DW 200 AC Open Face 200-Watt HMI Production Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold DW 200 Specs | | | Rating | 200 W | | Socket (Lampholder) | GZY 9.5 for 200 W SE HR lamp | | Lens (Condenser) | Open Face:
Spot: 8100 lux / 753 fc
Flood: 1675 lux / 156 fc | | Mounting | Baby (5/8") | | Weight | 2.6 lb / 1.2 kg | | Dimensions | 6.75 x 5.85 x 4.3" / 17.1 x 14.9 x 11 cm | | | | Rating | AC: 200 W, 90-265 VAC | | Cable | 13' / 4 m, with fixture | | Weight | AC: 3.74 lb / 1.7 kg | | Dimensions | Not Supplied by Manufacturer | | Kit Dimensions | 16 x 11.5 x 14" / 40.64 x 29.21 x 35.56 cm | | Kit Weight | 31.75 lb / 14.4 kg |
