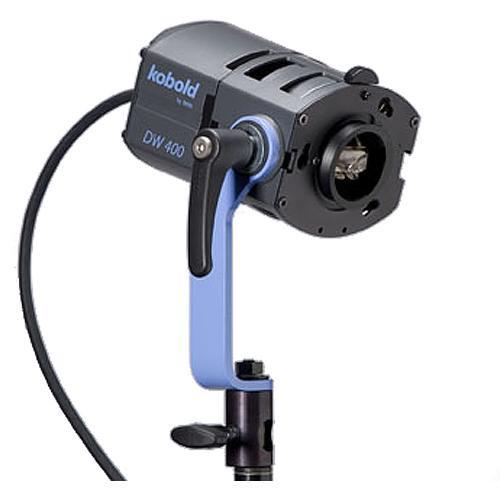

User Manual for Bron Kobold DW 400 400W HMI Lamp Head with Stand Mount Click to enlarge the picture
Contents of the user manual for the Bron Kobold DW 400 400W HMI
- Product category: HMI & Plasma Lights Bron Kobold
- Brand: Bron Kobold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bron Kobold HMI & Plasma Lights
|
User manual for the Bron Kobold DW 400 400W HMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bron Kobold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bron Kobold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bron Kobold product will considerably shorten its lifespan!
|
Product description The Kobold DW 400 HMI 400W Lamphead is IP54 weather-proof rated, meaning it can withstand water splashing on the housing without harmful effect. When coupled with the (optional) PAR reflector, it achieves high light output and evenness of illumination. The ergonomically positioned focusing knob enables focusing of 15-45°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. - Focus
- Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.
- Reflector
- Installation is quick and without any tools, due to a locking mechanism. The optimized design of the (optional) reflector achieves a high light output and evenness of illumination.
- Hot Restrike
- Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.
- Dimmable
- The required light output can be set (100 - 60% adjustment range) with the optional ballast's power regulator.
Color temperature can change with the power output depending on the type of lamp used. Optional Accessories - High Light Output
-
- Narrow Spot (NSP), Medium Flood (MFL), Wide Flood (WFL), and Very Wide Flood (VWFL)
- Each lens has a color-coded handle for easy identification.
- Output @ 9.8' (3m):
NSP Lens: 15,040 Lux, 1397 fc MFL Lens: 11,800 Lux, 1096 fc
WFL Lens: 2780 Lux, 258 fc
VWF Lens: 1080 Lux, 100 fc - Other Light Shapers
-
- Four-leaf barn door set helps shape the light
- Full and double scrim help control the intensity
In the Box Bron Kobold DW 400 400W HMI Lamp Head with Stand Mount 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold DW 400 400W HMI Lamp Head with Stand Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold DW 400 Specs | Rating | 400 watts | | Socket (Lampholder) | GZY 9.5 for 400W SE hr lamp | | Lens (Condenser) | (Optional) 4-Lens Set with Bag: Narrow, Medium Spots, Wide, Very Wide Floods (Requires reflector) | | Mounting | Baby (5/8") | | Weight | 3 lbs (1.3 kg) | | Dimensions | 6.6 x 5.6 x 5.4" (16.8 x 14.2 x 14 cm) |
