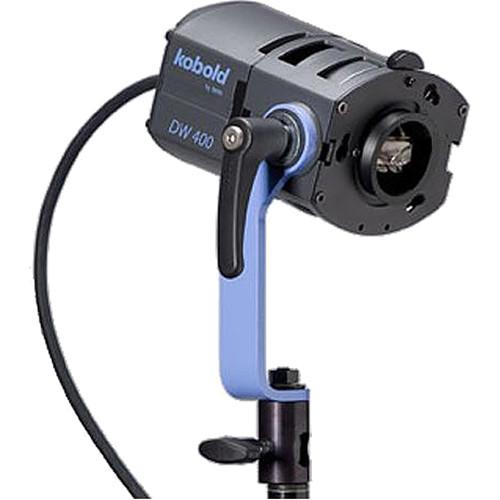

Product description The Kobold DW 400 Open Face 400-Watt HMI Production Kit 458 is built around the IP54-rated, weather-proof DW 400 lamp base which can withstand water splashing on the housing without harmful effect. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing from 15-45°. This daylight fixture has a solid design, compact dimensions, and maximum reliability for all applications in the studio and on location. When the Kobold AC EWB 400.575.800 Ballast is connected to a 90-265 VAC source, this weather-resistant unit will provide dimmable power to your fixture via its included head-to-ballast cable. The kit includes an Open Face reflector, a glass diffusion filter and a glass CTO conversion filter, 4-leaf barndoors, 400 Watt HMI lamp, and a production case. DW 400 Fixture - Focus
- Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.

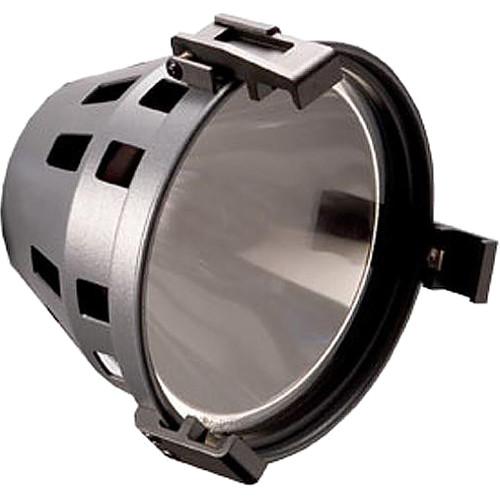

- Reflector
- Installation is quick and without any tools due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.

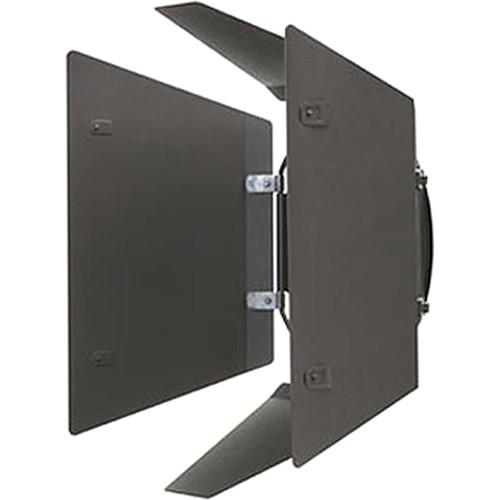

- Barndoor Set
- To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barndoors.
- Hot Restrike
- Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.

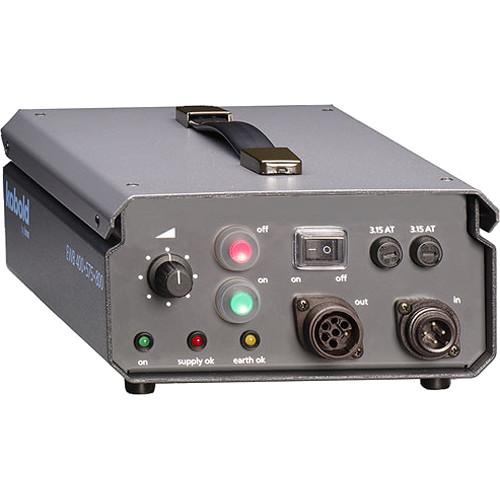

Ballast - Dimmable
-
- The required light output can be set (100-60% adjustment range) with the power regulator.
- Color temperature can change with the power output depending on the type of lamp used.
- Easy Connection
-
- To connect the ballast unit to the fixture just plug in the corresponding connection.
- To disconnect, press the security mechanism on the socket before pulling out the plug.
- LED Display
-
- Red and Green LEDs continuously monitor operation, indicate voltage changes and employ thermo protection, power reduction, and even shut down if necessary.
- Safety
-
- Water-resistant IP54-rated ballast with strengthened insulation for additional protection.
- Ignition overload protection.
- Temperature monitor.
- Convection cooling.
- Meets CE standards.
Accessories - High Light Output
-
- Output @ 9.8' (3m):
Spot: 19,200 Lux, 1784 fc
Flood: 3400 Lux, 316 fc
- Other Light Shapers
-
- 4-leaf barndoor set helps shape the light.
- Full and double scrim help control the intensity.

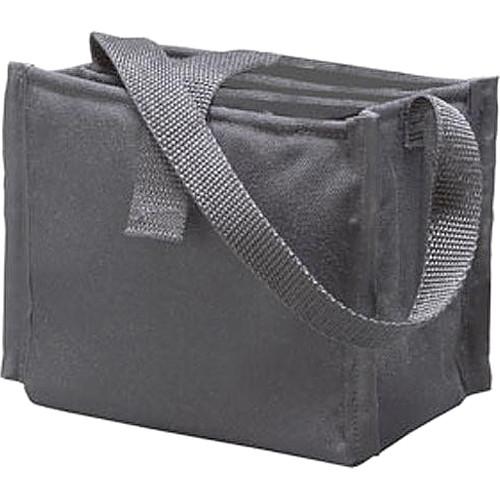

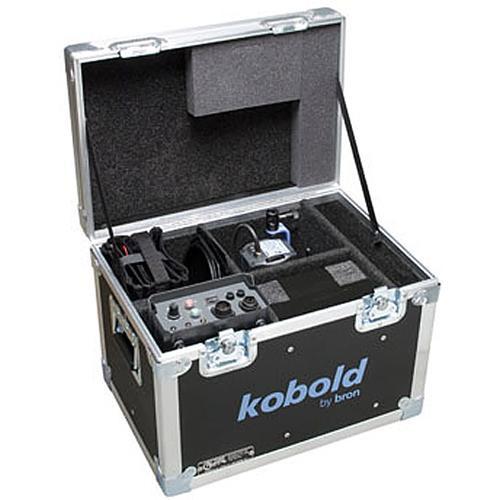

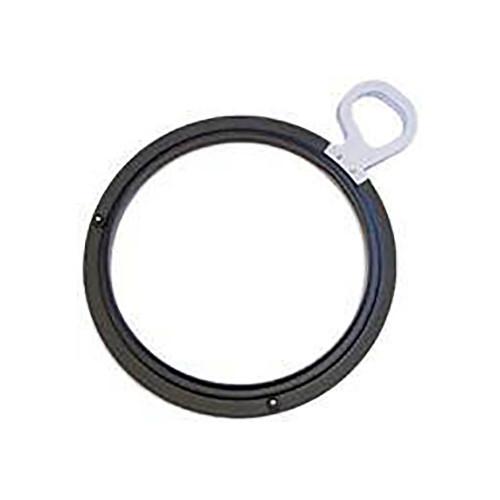

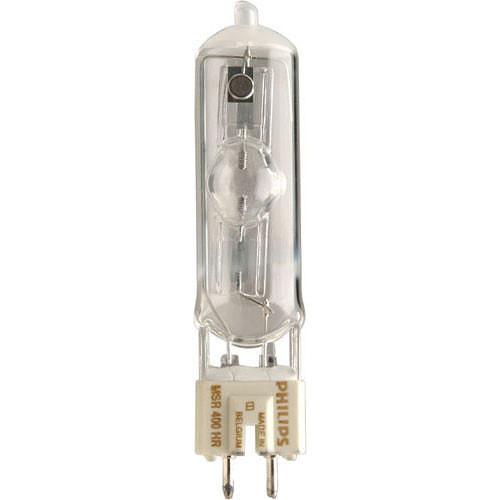

In the Box Bron Kobold DW 400 Open Face AC 400-Watt HMI Production Kit 458 DW 400 400W HMI Lamp Head with Stand Mount vsvezbevzyvfar Open Face Reflector for DW 400 HMI EWB-400.575.800 AC Ballast for DW 400, DW 575, DW 800 (85-265 VAC) 4-Leaf Barndoor for DWP400 Par/Open Face (Black) Lens Bag for DW 400 HMI PAR 713-0746 Glass Diffusion Filter HMI Lamp for DW 400 - 400 Watts/70 Volts KOCPDW400 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold DW 400 Open Face AC 400-Watt HMI Production Kit 458 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold DW 400 Specs | | | Rating | 400 W | | Socket (Lampholder) | GZY 9.5 for 400 W SE hr lamp | | Mounting | Baby (5/8") | | Weight | 3 lb / 1.3 kg | | Dimensions | 6.6 x 5.6 x 5.4" / 16.8 x 14.2 x 14 cm | | | | Rating | AC: 400/575/800, 90-265 VAC | | Cable | 13' / 4 m with fixture | | Weight | AC: 3.74 lb / 1.7 kg | | Dimensions | 9.25 x 6.3 x 3.3" / 23.5 x 16 x 8.5 cm | | Kit Weight | 39 lb / 17.7 kg | | Kit Dimensions | 17 x 15 x 14" / 43.2 x 38 x 35.6 cm |
