User Manual for Bron Kobold DW200 Open Face HMI AC Kit with Flight Case Click to enlarge the picture
Contents of the user manual for the Bron Kobold DW200 Open Face HMI
- Product category: HMI & Plasma Lights Bron Kobold
- Brand: Bron Kobold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bron Kobold HMI & Plasma Lights
 |
User manual for the Bron Kobold DW200 Open Face HMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bron Kobold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bron Kobold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bron Kobold product will considerably shorten its lifespan!
|

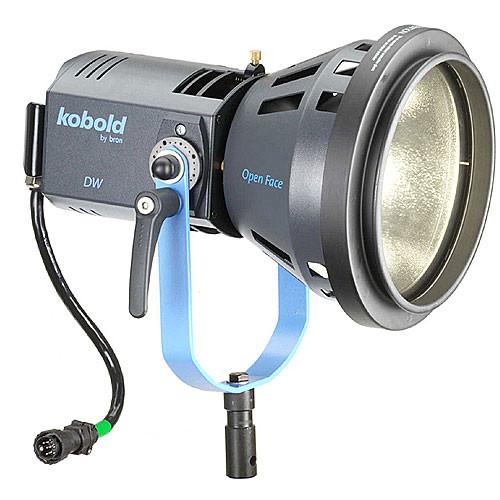

Product description This Kobold DW200 Open Face HMI Kit is based on the extremely compact Kobold DW200 focusable 200 Watt Daylight Focus Flood light. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 14-51°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. When the Kobold EWB-200 AC Ballast is connected to a 90-265 VAC source, this weather-resistant ballast will provide dimmable power to your fixture via its included head-to-ballast cable. DW200 Fixture - Focus
- Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.
- Reflector
-
- Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.
- Light output: Spot: 8100 lux / 753 fc Flood: 1675 lux / 156 fc

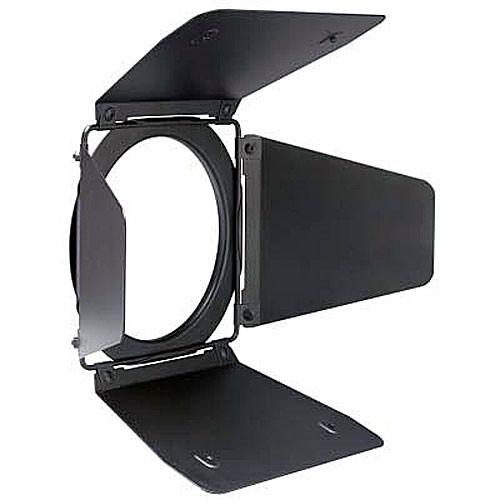

- Barndoor Set
- To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barn door.
- Hot Restrike
- Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.

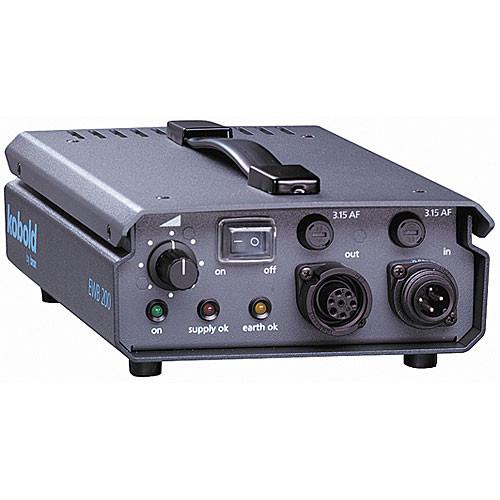

Ballast - Dimmable
-
- The required light output can be set (100-60% adjustment range) with the power regulator.
- Color temperature can change with the power output depending on the type of lamp used.
- Easy Connection
-
- To connect the ballast unit to the fixture just plug in the corresponding connection.
- To disconnect, press the security mechanism on the socket before pulling out the plug.
- LED Display
-
- Green LED is lit continuously: normal operating mode.
- Green LED is flashing: the thermo protection is activated reducing the power continuously down to 60%.
- Red LED Blinking: the mains voltage has dropped below 85 V. If this LED is flashing, the lamp will be switched off automatically.
- Yellow LED has not lit up: the ballast is not grounded, or connected correctly.
- Safety
-
- IP43, with strengthened insulation for additional protection; can take splashed water at a 60° angle from vertical.
- 2 x 3.15A Fuses
- Ignition overload protection
- Temperature monitor
- Convection cooling
- Meets CE Standards

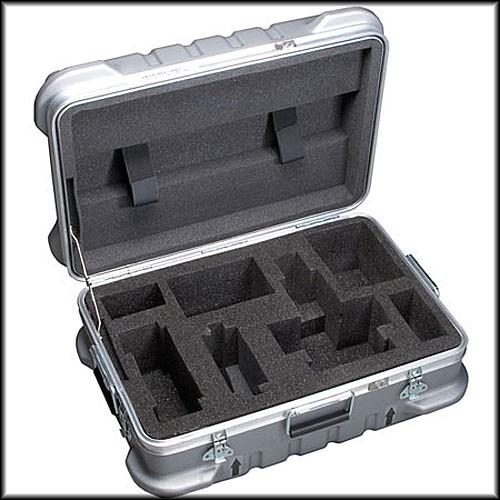

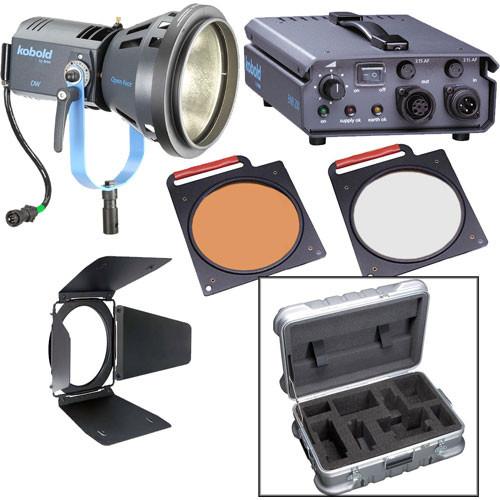

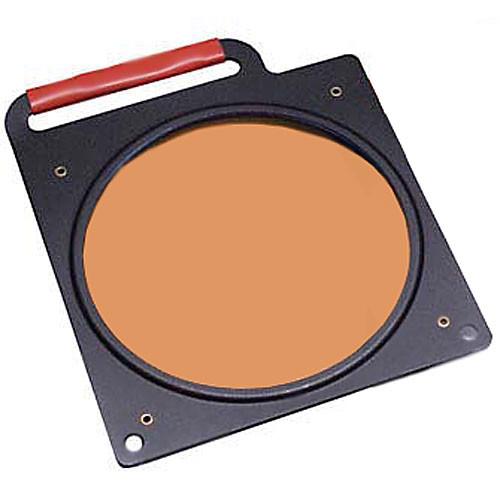

In the Box Bron Kobold DW200 Open Face HMI AC Kit with Flight Case (90-265 VAC) DW200 HMI Lamphead - 200 Watts Open Face Reflector for DW200 EWB-200 AC Ballast for DW200 4-Leaf Barndoor Set for DW200 HMI Glass Diffusion Filter for DW200 Open Face HMI Glass Conversion Filter for DW200 Open Face HMI HMI Lamp for DW200 - 200 Watts/70 Volts Airline Case - for DW200 Flight Kits Lens Bag (743U017) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold DW200 Open Face HMI AC Kit with Flight Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold DW 200 Specs | | | Rating | 200 W | | Socket (Lampholder) | GZY 9.5 for 200 W SE HR lamp | | Lens (Condenser) | Filters: CTO conversion, diffusion | | Mounting | Baby (5/8") | | Weight | 2.6 lb / 1.2 kg | | Dimensions | 6.75 x 5.85 x 4.3" / 17.1 x 14.9 x 11 cm | | | | Rating | 200 W, 90-265 VAC | | Cable | 13' / 4 m with fixture | | Weight | 3.74 lb / 1.7 kg | | Dimensions | 9.25 x 6.3 x 3.3" / 23.5 x 16 x 8.5 cm | | Kit Weight | 13 lb / 6 kg | | | | Package Weight | 31.1 lb | | Box Dimensions (LxWxH) | 28.5 x 17.5 x 13.5" |
