Product description This Kobold DW200 Open Face HMI Kit is based on the extremely compact Kobold DW200 focusable 200-Watt Daylight Focus Flood light. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 14-51°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. The Kobold DC ballast in this kit will work with your choice of a 2-pin, 26-34 VDC source, available separately. Completing this kit are glass diffusion, a CTO conversion filter, four-leaf barndoor set, stand mount, flight kit case, and a 200-watt HMI hot restrike bulb. DW200 Fixture - Focus
- Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.
- Reflector
-
- Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.
- Light Output:
Spot: 8100 lux / 753 fc Flood: 1675 lux / 156 fc - Barndoor Set
- To place the barndoor on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barndoor.
- Hot Restrike
- Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.

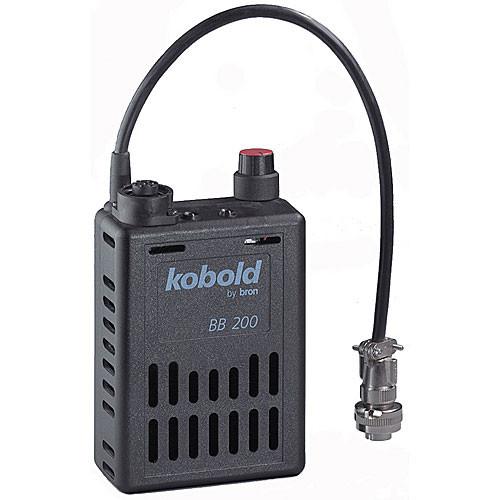

Ballast - Dimmable
-
- The required light output can be set (100-60% adjustment range) with the power regulator.
- Color temperature can change with the power output depending on the type of lamp used.
- Easy Connection
-
- To connect the ballast unit to the fixture just plug in the corresponding connection.
- To disconnect, press the security mechanism on the socket, before pulling out the plug.
- LED Display
-
- Green LED is lit continuously: normal operating mode.
- Green LED is flashing: the thermo-protection is activated reducing the power continuously down to 60%.
- Red LED Blinking: the mains voltage has dropped below 85 V. If this LED is flashing, the lamp will be switched off automatically.
- Yellow LED has not lit up: the ballast is not grounded, or connected correctly.
- Safety
-
- IP43 with strengthened insulation for additional protection; can take splashed water at a 60° angle from vertical.
- 2 x 3.15A Fuses
- Ignition overload protection
- Temperature monitor
- Convection cooling
- Meets CE Standards

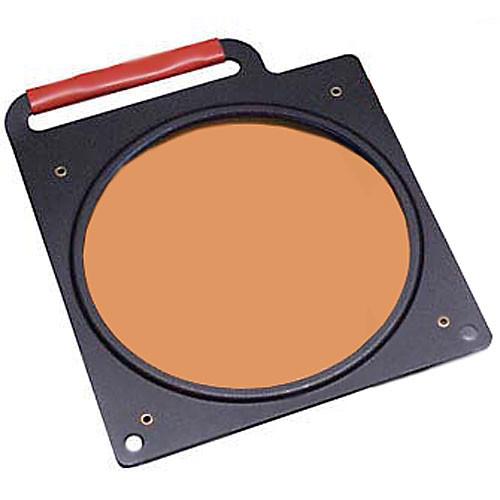

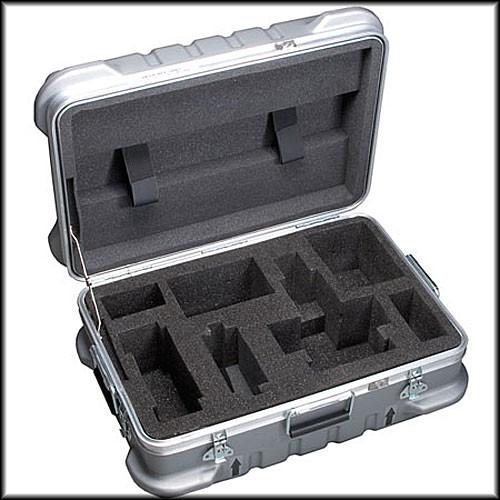

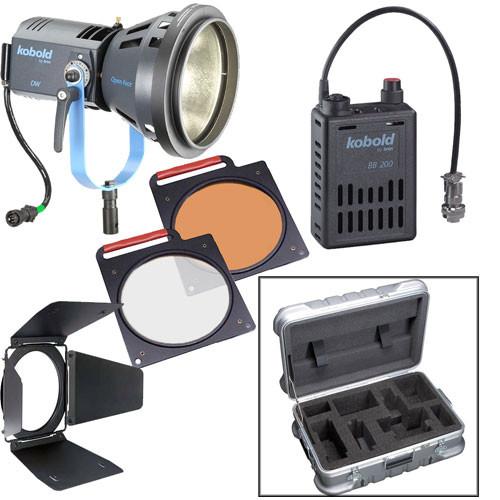

In the Box Bron Kobold DW200 Open Face HMI DC Flight Kit (90-265 VAC/26-34 VDC) DW200 HMI Lamphead - 200 Watts Open Face Reflector for DW200 BB200/C Battery Ballast for DW200 (26-34VDC) 4-Leaf Barndoor Set for DW200 HMI Glass Diffusion Filter for DW200 Open Face HMI Glass Conversion Filter for DW200 Open Face HMI HMI Lamp for DW200 - 200 Watts/70 Volts Airline Case - for DW200 Flight Kits Lens Bag (743U017) Limited 1-Year Warranty Note: DC Power Source not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold DW200 Open Face HMI DC Flight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold DW 200 Specs | | | Rating | 200 W | | Socket (Lampholder) | GZY 9.5 for 200 W SE HR lamp | | Lens (Condenser) | Filters: CTO conversion, diffusion | | Mounting | Baby (5/8") | | Weight | 2.6 lb / 1.2 kg | | Dimensions | 6.75 x 5.85 x 4.3" / 17.1 x 14.9 x 11 cm | | | | Rating | Voltage range 30 V battery: 26-34 VDC
Voltage range 24 V battery: 22-25 VDC (output limited to 170 W) | | Cable | 13' / 4 m with fixture | | Weight | 1.6 lb / 750 g | | Dimensions | 2.6 x 4.1 x 6.5" / 6.5 x 10.5 x 16.5 cm | | Kit Weight | 26 lb / 11.8 kg |
