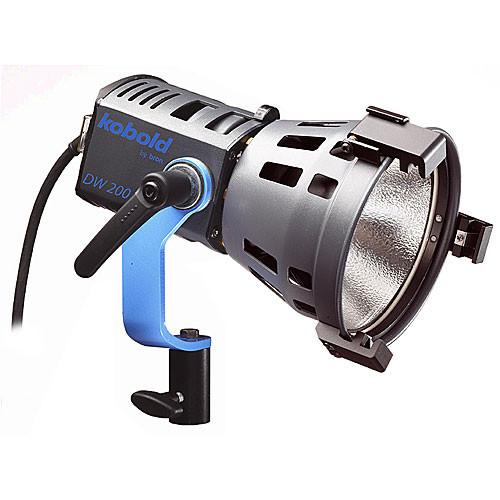

Product description This Kobold DW200 DC PAR HMI Kit is based on the extremely compact Kobold DW200 focusable 200 Watt Daylight Focus Flood Light. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 14-51°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. The Kobold BB200/C DC Ballast is for the DW200 HMI fixture. When connected to your 26-34 Volt Battery source, it will provide dimmable power to your fixture, in areas where AC current is not available. Completing this kit are four lenses which alter the intensity and spread of the light, two wire scrims, a 4-leaf barndoor set, stand mount, 200-watt HMI hot restrike bulb, and flight kit case. DW200 Fixture - Focus
- Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.
- PAR Reflector
-
- Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.
- Light output: Spot: 44940 lux / 4175 fc at 9.8' (3 m) with no lens
- Barndoor Set
- To place the barndoors on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barndoors.
- Hot Restrike
- Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.

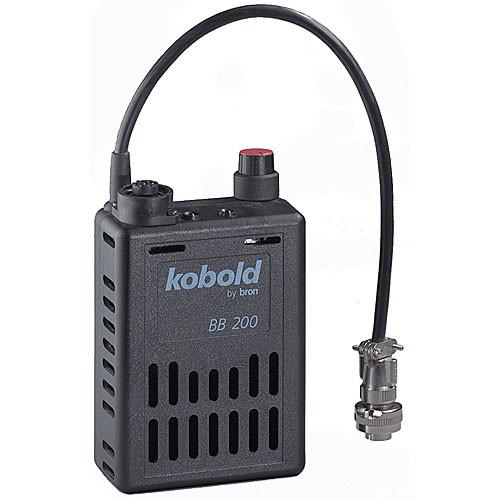

Ballast - Dimmable
-
- The required light output can be set (100-60% adjustment range) with the power regulator.
- Color temperature can change with the power output. depending on the type of lamp used.
- Easy Connection
- To connect the ballast unit to the fixture just plug in the corresponding connection.
- To disconnect, press the security mechanism on the socket before pulling out the plug.
- LED Display
-
- Green LED is lit continuously: normal operating mode.
- Green LED is flashing: the thermo protection is activated reducing the power continuously down to 60%.
- Red LED Blinking: the mains voltage has dropped below 85 V. If this LED is flashing, the lamp will be switched off automatically.
- Yellow LED has not lit up: the ballast is not grounded, or connected correctly.
- Safety
-
- IP43 with strengthened insulation for additional protection; can take splashed water at a 60° angle from vertical.
- 2 x 3.15A Fuses
- Ignition overload protection
- Temperature monitor
- Convection cooling
- Meets CE Standards
Accessories - Lens Set with Bag
-

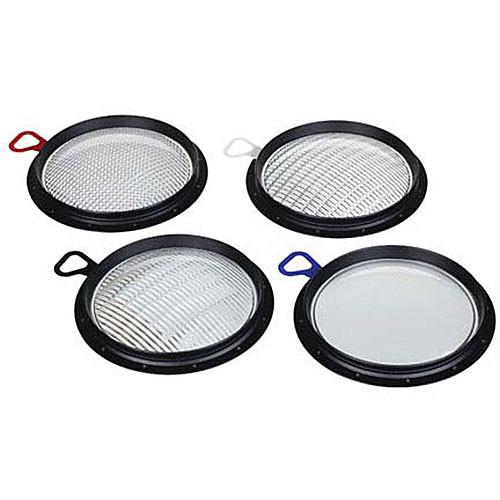

- Narrow Spot (NSP), Medium Flood (MFL), Wide Flood (WFL), and Very Wide Flood (VWFL)
- Each lens has a color-coded handle for easy identification.
- Output at 9.8' (3m):
NSP Lens: 15,040 Lux, 1397 fc MFL Lens: 11,800 Lux, 1096 fc
WFL Lens: 2780 Lux, 258 fc
VWF Lens: 1080 Lux, 100 fc - Other Light Shapers
-
- 4-leaf barndoor set helps shape the light.

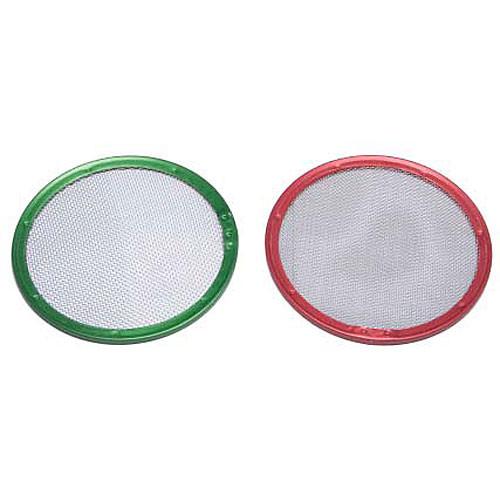

- Full and double scrim help control the intensity.

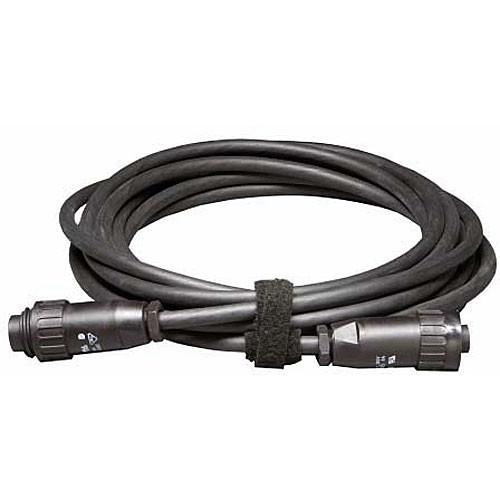

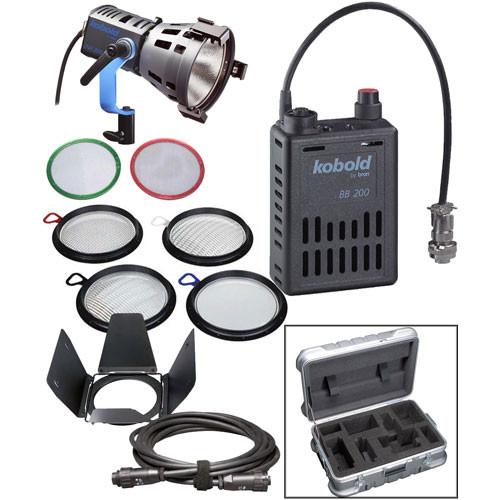

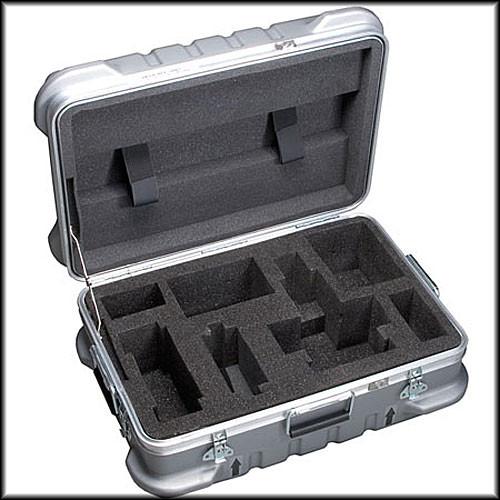

In the Box Bron Kobold DW200 PAR HMI DC Kit with Flight Case (26-34 VDC) DW200 HMI Lamphead - 200 Watts PAR Reflector for DW200 BB200/C Battery Ballast for DW200 (26-34VDC) Four Lens Set for DW200 HMI PAR 4-Leaf Barndoor Set for DW200 HMI Full Single Scrim for DW200 (5") Scrim, Full Double for DW200 - 5" HMI Lamp for DW200 - 200 Watts/70 Volts azwytvefttutrv KOALCDW200 Storage Bag for Five Lenses for DW200 HMI PAR Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold DW200 PAR HMI DC Kit with Flight Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold DW 200 Specs | | | Rating | 200 W | | Socket (Lampholder) | GZY 9.5 for 200 W SE HR lamp | | Lens (Condenser) | 4-Lens Set with Bag: Narrow, Medium Spots, Wide, Very Wide Floods | | Mounting | Baby (5/8") | | Weight | 2.6 lb / 1.2 kg | | Dimensions | 6.75 x 5.85 x 4.3" / 17.1 x 14.9 x 11 cm | | | | Rating | 200 W
Voltage range 30 V battery: 26-34 VDC
Voltage range 24 V battery: 22-25 VDC (output limited to 170 W) | | Cable | 13' / 4 m with fixture | | Weight | 1.75 lb / 750 g | | Dimensions | 2.6 x 4.1 x 6.5" / 6.5 x 10.5 x 16.5 cm | | Kit Weight | 25.25 lb / 11.5 kg |
