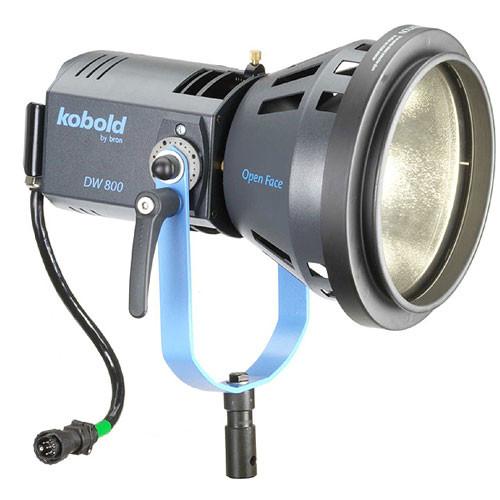

User Manual for Bron Kobold DW800 HMI Lamphead - 800 Watts Click to enlarge the picture
Contents of the user manual for the Bron Kobold DW800 HMI Lamphead -
- Product category: HMI & Plasma Lights Bron Kobold
- Brand: Bron Kobold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bron Kobold HMI & Plasma Lights
|
User manual for the Bron Kobold DW800 HMI Lamphead - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bron Kobold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bron Kobold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bron Kobold product will considerably shorten its lifespan!
|
Product description The extremely compact Kobold DW800 focusable 800 Watt Daylight Spotlight may be equipped, according to requirements, with an optional Open Face reflector, a PAR reflector or an adapter for softboxes with 5" rings. The chosen attachment transforms this lamp base into a full-fledged Open Face, PAR or area light with softbox or lantern. The conversion is quick and without any tools, due to an integral locking mechanism. The optimized design of the reflectors achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 12-70°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. - Fine Design
-
- Lightweight and compact
- No stray light, heat-resistant
- Optional ceramic safety glass, wide range of accessories
- Rugged
-
- Housing is made of high strength aluminium and is equipped with a mount for single-ended HMI/MSR lamps with a high degree of efficiency.
- The ignition unit is air-tight and allows cold and hot starts even in a humid environment.
- Versatile
- May be used as an Open Face, PAR, or Lantern fixture, with the appropriate reflectors, available separately.
In the Box Bron Kobold DW800 HMI Lamphead - 800 Watts Integral 2' (0.6m) Cable 28mm (1-1/8") spigot with 16mm (5/8") hole One Year Manufacturer's Warranty Note: HMI bulb and reflector not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold DW800 HMI Lamphead - 800 Watts in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold DW 800 Specs | Rating | 800 watts | | Socket (Lampholder) | G22, hot restrike | | Lens (Condenser) | Optional, for use with optional PAR Reflector | | Mounting | 28mm (1-1/8") spigot with 16mm (5/8") hole | | Weight | 4.5 lbs (3.9kg) | | Dimensions | 9 x 12 x 16" (22.6 x 30 x 41.5cm) | | | | Package Weight | 10.95 lb | | Box Dimensions (LxWxH) | 16.7 x 12.6 x 8.4" |
