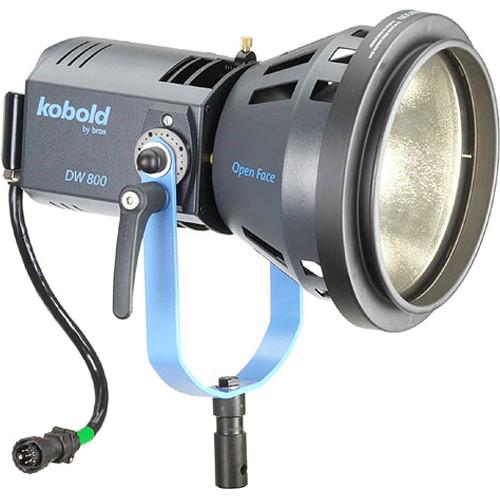

Product description This is a Kobold 800 Watt HMI Open Face Production Kit. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 12-70°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. The weather-impervious DW800 has an IP54 rating, meaning it is highly resistant to water splashed on the housing. The Kobold EWB-400.575.800 IP43 rated, weather-resistant AC Ballast is for the DW400, DW575, or DW800 HMI fixture. When connected to an 85-265 VAC source, this ballast will provide dimmable power to your fixture via its included head-to-ballast cable.The kit also includes an Open Face reflector, glass diffusion filter, glass CTO conversion filter, 4-leaf barn door, 25' lamp cable, 800-watt HMI lamp and a production case. Fixture - Fine Design
-
- Lightweight and compact.
- No stray light, heat-resistant.
- Optional ceramic safety glass, wide range of accessories.
- Rugged
-
- Housing is made of high strength aluminum and is equipped with a mount for single-ended HMI/MSR lamps with a high degree of efficiency.
- The ignition unit is air-tight and allows cold and hot starts even in a humid environment.
- IP54 rated weather resistance makes housing impervious to splashed water.
- Versatile
-

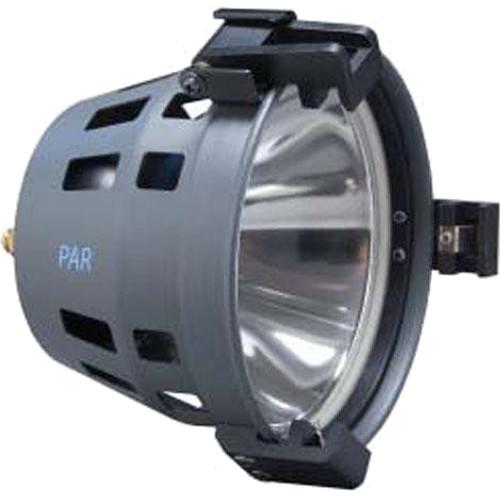

- May also be used as a PAR, or lantern fixture, with the appropriate reflectors, available separately.

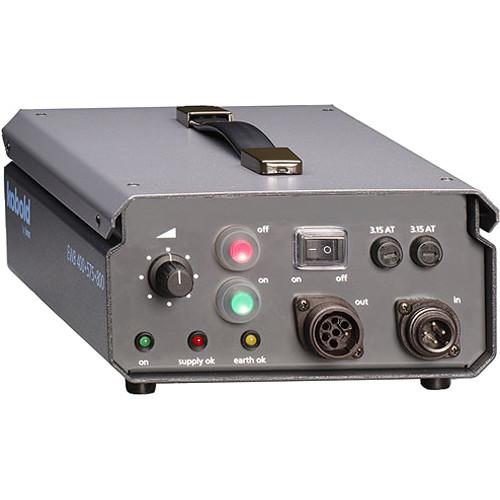

Ballast - Dimmable
-
- The required light output can be set (100-60% adjustment range) with the power regulator.
- Color temperature can change with the power output depending on the type of lamp used.
- Less than 5% flicker.
- LED Display
-
- Green LED is lit continuously: normal operating mode.
- Green LED is Flashing: The thermo-protection is activated reducing the power continuously down to 60%.
- Red LED Blinking: The mains voltage has dropped below 85V. If this LED is flashing, the lamp will be switched off automatically.
- Yellow LED has Not Lit Up: The ballast is not grounded, or connected correctly.
- Hot Restrike
-
- Permits rapid on-off switching of included HMI bulb.

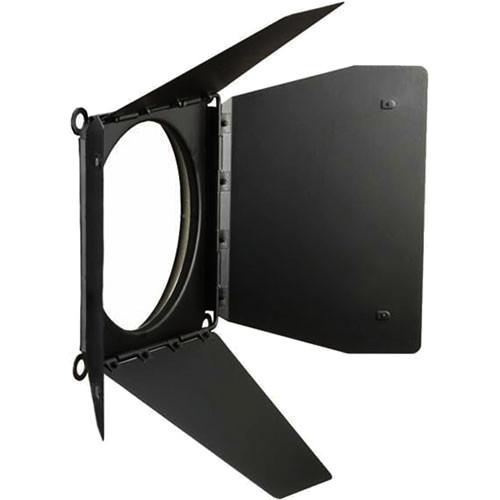

Accessories - Barndoors
-
- Help to shape the light output.

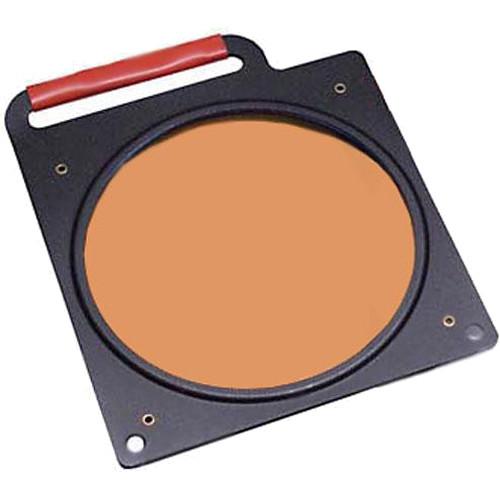

- Filters
-
- CTO converts to 3400°K tungsten.

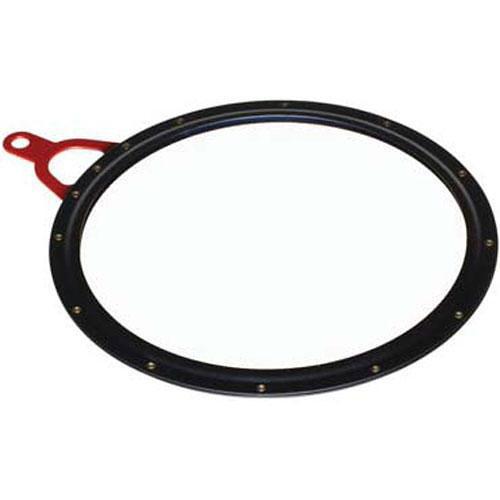

- Diffusion slightly softens and diminishes output.

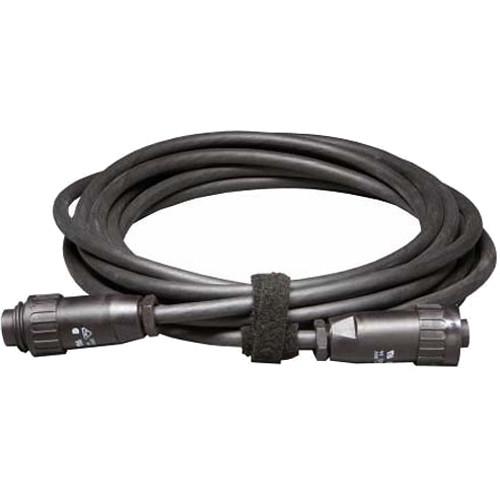

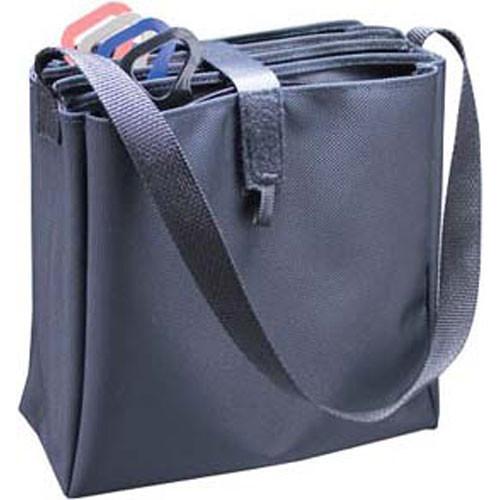

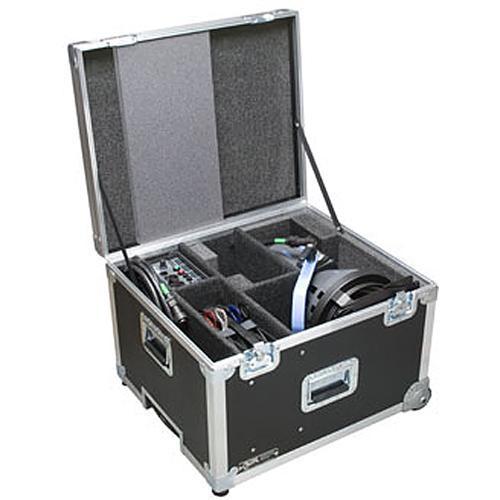

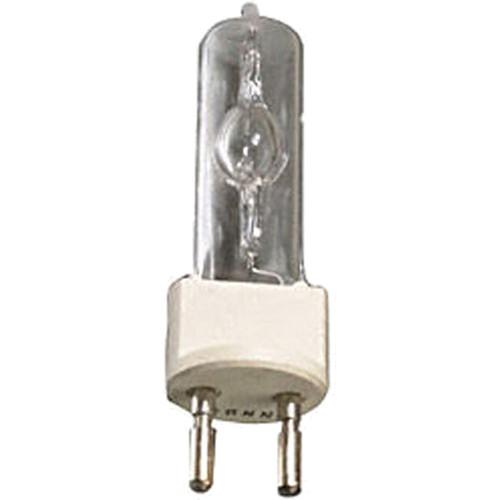

In the Box Bron Kobold DW800 HMI Open Face Production Kit (85-265 VAC) DW800 HMI Lamphead - 800 Watts Open Face Reflector with Barndoor Ears for the DW800 4-Leaf Barndoor Set for DW800 EWB-400.575.800 AC Ballast for DW 400, DW 575, DW 800 (85-265 VAC) Nylon Lens Bag for DW800 Airline Case KODFDW800Q KOCFDW800Q Lamp Head Cable for DW575/DW800 HMI Fixtures 25' (7.75 m) HMI Lamp for DW800 - 800 Watts/100 Volts xeqxfqbaxvzfysdqdsdzfvuwwzecsaer Production Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold DW800 HMI Open Face Production Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold DW 800 Specs | | | Rating | 800 W | | Socket (Lampholder) | G22, hot restrike | | Mounting | 1 1/8" / 28 mm spigot with 5/8" / 16 mm hole | | Weight | 4.5 lb / 3.9 kg | | Dimensions | 9 x 12 x 16" / 22.6 x 30 x 41.5 cm | | | | Rating | 400/575/800 W
85-265 VAC | | Cable | included | | Weight | 5.7 lb / 2.6 kg | | Dimensions | 10.5 x 7.2 x 4.4" / 26.7 x 18.3 x 11.2 cm | | Kit Weight | 74.5 lb / 33.8 kg |
