User Manual for Bron Kobold DW800 HMI PAR Production Kit Click to enlarge the picture
Contents of the user manual for the Bron Kobold DW800 HMI PAR Production
- Product category: HMI & Plasma Lights Bron Kobold
- Brand: Bron Kobold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bron Kobold HMI & Plasma Lights
 |
User manual for the Bron Kobold DW800 HMI PAR Production contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bron Kobold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bron Kobold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bron Kobold product will considerably shorten its lifespan!
|

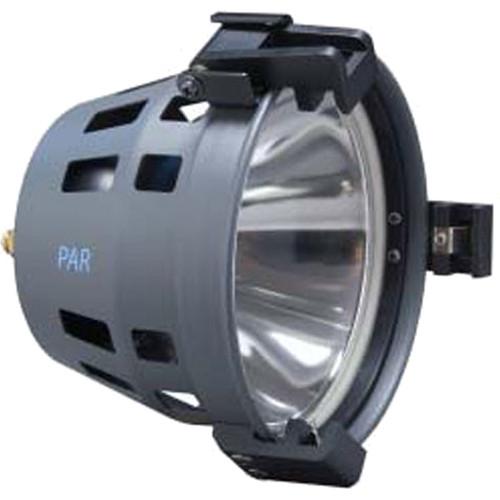

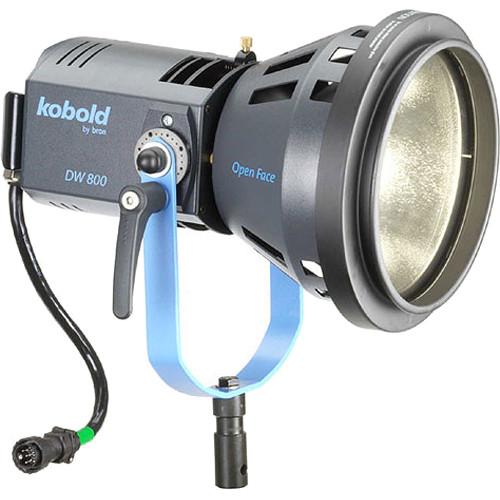

Product description This is a Kobold 800 Watt HMI PAR Production Kit. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 12-70°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. The weather-impervious DW800 has an IP54 rating, meaning it is highly resistant to water splashed on the housing. The Kobold EWB-400.575.800 IP43 rated, weather-resistant AC Ballast is for the DW400, DW575, or DW800 HMI fixture. When connected to an 85-265 VAC source, this ballast will provide dimmable power to your fixture via its included head-to-ballast cable.The kit also includes a PAR reflector, 4-lens set, 4-leaf barn door, 2-25' lamp cables, scrims, 800-watt HMI lamp and a production case. Fixture - Fine Design
-
- Lightweight and compact.
- No stray light, heat-resistant.
- Optional ceramic safety glass, wide range of accessories.
- Rugged
-
- Housing is made of high strength aluminum and is equipped with a mount for single-ended HMI/MSR lamps with a high degree of efficiency.
- The ignition unit is air-tight and allows cold and hot starts even in a humid environment.
- IP54 rated weather resistance makes housing impervious to splashed water.
- Versatile
-
- May also be used as a PAR, or lantern fixture, with the appropriate reflectors, available separately.

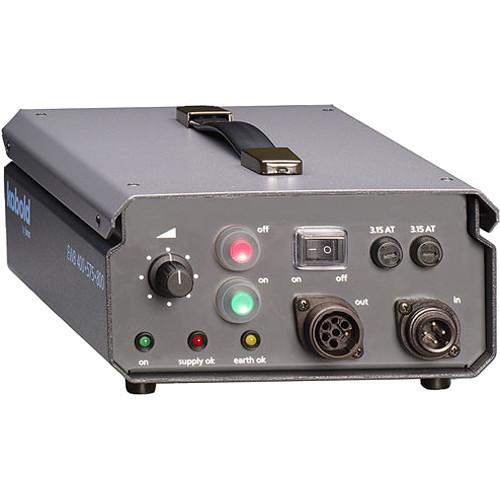

Ballast - Dimmable
-
- The required light output can be set (100-60% adjustment range) with the power regulator.
- Color temperature can change with the power output depending on the type of lamp used.
- Less than 5% flicker.
- LED Display
-
- Green LED is lit continuously: normal operating mode.
- Green LED is Flashing: The thermo-protection is activated reducing the power continuously down to 60%.
- Red LED Blinking: The mains voltage has dropped below 85V. If this LED is flashing, the lamp will be switched off automatically.
- Yellow LED has Not Lit Up: The ballast is not grounded, or connected correctly.
- Hot Restrike
-
- Permits rapid on-off switching of included HMI bulb.

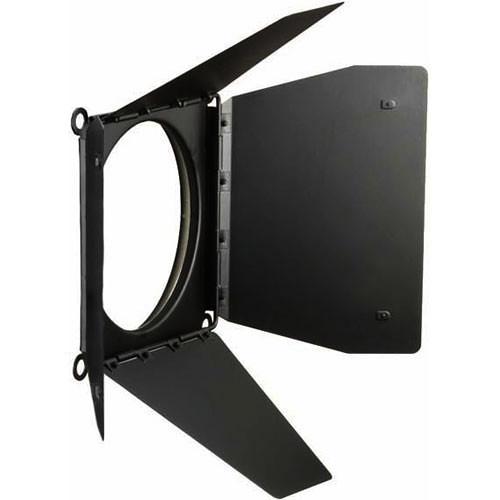

Accessories - Barndoors
-
- Help to shape the light output.

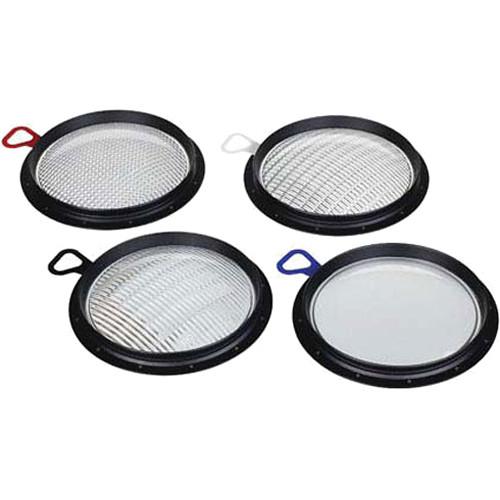

- 4-Lens Set
-
- Super Spot: 75,993 Lux, 7060 fc
- Medium Spot: 28,395 Lux, 2638 fc
- Medium Flood: 6749 Lux,627 fc
- Super Wide Flood: 2583 Lux, 240 fc

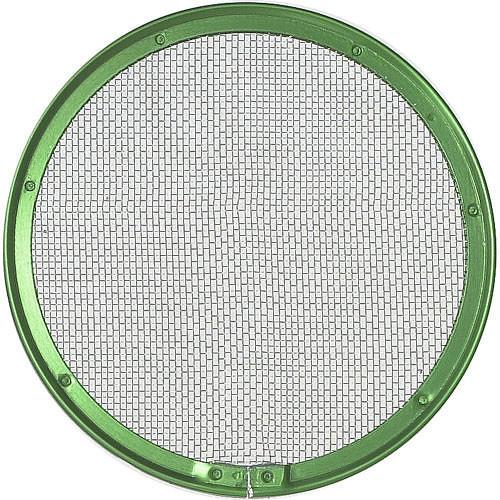

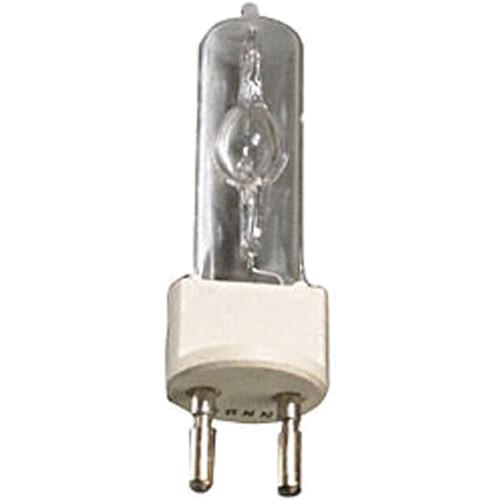

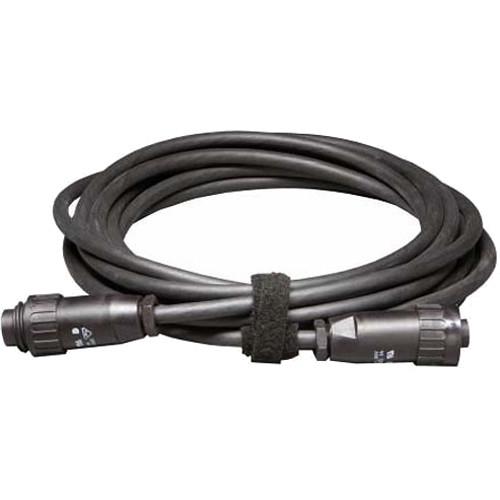

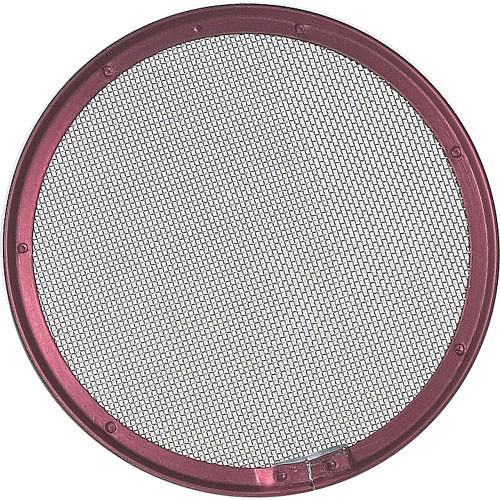

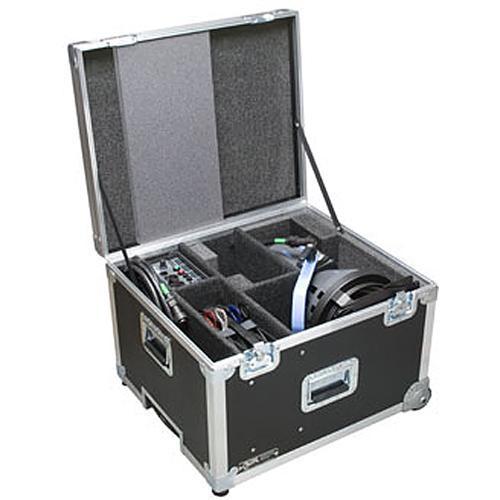

In the Box Bron Kobold DW800 HMI PAR Production Kit (85-265 VAC) DW800 HMI Lamphead - 800 Watts xeqxfqbaxvzfysdqdsdzfvuwwzecsaer PAR Reflector for DW800 4-Leaf Barndoor Set for DW800 EWB-400.575.800 AC Ballast for DW 400, DW 575, DW 800 (85-265 VAC) Four Lens Set for DW800 HMI PAR Nylon Lens Bag for DW800 Airline Case 2 x Lamp Head Cable for DW575/DW800 HMI Fixtures 25' (7.75 m) xeqxfqbaxvzfysdqdsdzfvuwwzecsaer Full Single Scrim for DW800 (9") 2 x Full Double Scrim for DW800 (9") HMI Lamp for DW800 - 800 Watts/100 Volts Production Case xeqxfqbaxvzfysdqdsdzfvuwwzecsaer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold DW800 HMI PAR Production Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold DW 800 Specs | | | Rating | 800 W | | Socket (Lampholder) | G22, hot restrike | | Lens (Condenser) | Super Spot: 75,993 Lux, 7060 fcMedium Spot: 28,395 Lux, 2638 fcMedium Flood: 6749 Lux, 627 fcSuper Wide Flood: 2583 Lux, 240 fc | | Mounting | 1 1/8" / 28 mm spigot with 5/8" / 16 mm hole | | Weight | 4.5 lb / 3.9 kg | | Dimensions | 9 x 12 x 16" / 22.6 x 30 x 41.5 cm | | | | Rating | 400/575/800 W
85-265 VAC | | Cable | included | | Weight | 5.7 lb / 2.6 kg | | Dimensions | 10.5 x 7.2 x 4.4" / 26.7 x 18.3 x 11.2 cm | | Kit Weight | 81 lb / 36.7 kg |
