User Manual for Bron Kobold EWB 200 AC Ballast for DW200 HMI Light Click to enlarge the picture
Contents of the user manual for the Bron Kobold EWB 200 AC Ballast
- Product category: Ballasts Bron Kobold
- Brand: Bron Kobold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bron Kobold Ballasts
|
User manual for the Bron Kobold EWB 200 AC Ballast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bron Kobold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bron Kobold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bron Kobold product will considerably shorten its lifespan!
|

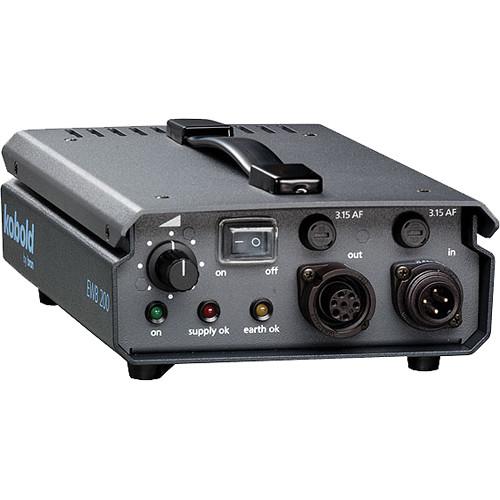

Product description The Bron Kobold EWB 200 AC Ballast for DW200 HMI Light is a multi-voltage power supply with 60-100% dimming, flicker-free output and a water-resistant IP43 rating. The ballast offers automatic voltage and lamp detection as well a built-in heater that ensures 1 minute ready time. The unit is dead quiet thanks to its convection cooling system.An electronic monitoring system keeps you appraised of the ballast's status which is displayed on corresponding LEDs on the front panel. Safety features include reinforced insulation, protective earth mains line, two 3.15A fuses, ignition overload protection and a temperature monitor. - EWB 200 Attributes
-
- Flicker-free operation
- Controlled, constant output for consistent light quality
- High reliability due to electronic monitoring system
- Light weight and compact design
- High efficiency rating: 89%
- Power Factor Control (PFC)
- Automatic voltage recognition 85-265 VAC Automatic lamp detection Quiet convection cooling
- LED Display
-
- Green LED is lit continuously: normal operating mode
- Green LED is flashing: the thermo protection is activated reducing the power continuously down to 60%
- Red LED Blinking: the mains voltage has dropped below 85 VAC. If this LED is flashing, the lamp will be switched off automatically
- Yellow LED has not lit up: the ballast is not grounded, or connected correctly
- Safety
-
- IP 43, I, with strengthened insulation for additional protection; can take splashed water at a 60° angle from vertical
- 2x 3.15A fuses
- Ignition overload protection
- Temperature monitor
- Meets CE standards
In the Box Bron Kobold EWB 200 AC Ballast for DW200 HMI Light (90-265 VAC) Mains Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold EWB 200 AC Ballast for DW200 HMI Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold EWB 200 Specs | Lamp Power | 200 W | | Voltage | 85-265 VAC, 50/60 Hz auto-sensing
Frequency: 45-400 Hz cutoff at <85 v
Ignition possible at 90 V | | Dimming Range | 100 - 60% | | Power Factor | 99% @ 110 V, 95% @ 230 V | | Power Input Connection | 4-Pin, Locking | | IP Rating | IP43 | | Safety Class | I | | Efficiency | 89% | | Temperature Ranges | Ambient: 23 to 113°F (-5 to 45°C)
Max operating temperature: 113 to 140°F (45 to 60°C) (auto power reduction to 60%)
Storage: -4 to 176° (-20° to 80°C) | | Cooling | Convection | | Frequency | Lamp: 400 Hz | | Stabilization | Power stabilizer with automatic heat-up device achieving lamp operating temperature in 1.0 minute | | Flicker Rate | < 5% | | Monitoring | Low mains voltage
Ignition overload protection
Overheating in the ballast unit
Lamp shorted
Technical fault | | Display | LED
Green: operating indicator of the lamp
Red: warning or operating indicator
Yellow: earth connected | | Fuse | 3.15AT x2 | | Standards | EN60922, EN60529, EN61000-3-2/A14 grade C
EN55011 grade B, 72/23/CEE, 89/336/CEE | | Dimensions | 9.25 x 6.3 x 3.3" (235 x 160 x 85 mm) | | Weight | 3.74 lb (1.7 kg) | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 11.8 x 7.9 x 5.8" |
