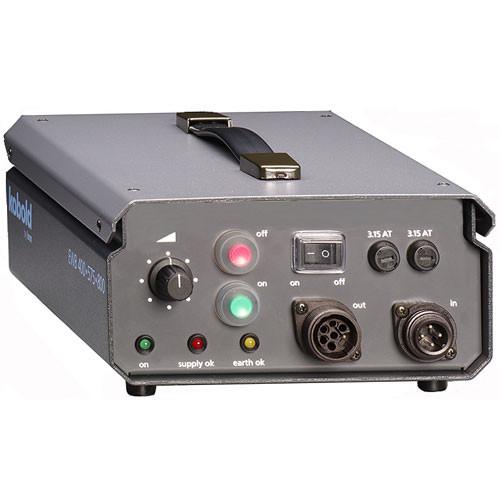

User Manual for Bron Kobold EWB-400.575.800 AC Ballast for DW 400, DW 575, DW 800 Click to enlarge the picture
Contents of the user manual for the Bron Kobold EWB-400.575.800 AC Ballast for
- Product category: Ballasts Bron Kobold
- Brand: Bron Kobold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bron Kobold Ballasts
|
User manual for the Bron Kobold EWB-400.575.800 AC Ballast for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bron Kobold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bron Kobold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bron Kobold product will considerably shorten its lifespan!
|
Product description The Kobold EWB-400.575.800 AC Ballast is for the DW 400, DW 575 or DW 800 HMI fixture. When connected to a 85-265 VAC source, this ballast will provide dimmable power to your fixture via its included head-to-ballast cable. - Dimmable
-
- The required light output can be set (100 - 60% adjustment range) with the power regulator.
- Color temperature can change with the power output depending on the type of lamp used.
- Less than 5% flicker
- Easy Connection
-
- To connect the ballast unit to the fixture just plug in the corresponding connection.
- To disconnect, press the security mechanism on the socket, before pulling out the plug.
- LED Display
-
- Green LED is lit continuously: normal operating mode
- Green LED is flashing: the thermo protection is activated reducing the power continuously down to 60%
- Red LED Blinking: the mains voltage has dropped below 85V. If this LED is flashing, the lamp will be switched off automatically.
- Yellow LED has not lit up: the ballast is not grounded, or connected correctly
- Safety
-
- IP43, I with strengthened insulation for additional protection
- 2 x 10A Fuses
- Ignition overload protection
- Temperature monitor
- Convection cooling
- Meets CE Standards
In the Box Bron Kobold EWB-400.575.800 AC Ballast for DW 400, DW 575, DW 800 (85-265 VAC) Head-to-Ballast Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold EWB-400.575.800 AC Ballast for DW 400, DW 575, DW 800 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold EWB 400.575.800 Specs | Lamp Power | 400, 575 or 800 W | | Input Voltage | 85-265 VAC, auto-sensing | | Dimmer | 100 - 60% | | Weight | 5.7 lb (2.6 kg) | | Dimensions | 10.5 x 7.2 x 4.4" (26.7 x 18.3 x 11.2 cm) | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 16.7 x 12.6 x 8.6" |
