User Manual for Bron Kobold SUB 50-1 Open Face 200 400 AC HMI All-Weather Kit Click to enlarge the picture
Contents of the user manual for the Bron Kobold SUB 50-1 Open Face
- Product category: HMI & Plasma Lights Bron Kobold
- Brand: Bron Kobold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bron Kobold HMI & Plasma Lights
 |
User manual for the Bron Kobold SUB 50-1 Open Face contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bron Kobold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bron Kobold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bron Kobold product will considerably shorten its lifespan!
|

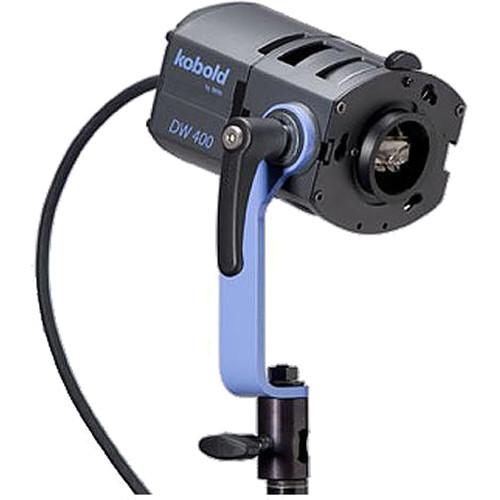

Product description The Kobold SUB 50-1 200/400 AC Open Face HMI All Weather Kit is built around the IP54 rated, weather-proof DW200 and DW400 lamp bases which withstand water splashing on their housings from any direction without harmful effect. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 14-51° and 15-45° respectively. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location.When the Kobold EWB-200 or EWB 400/575 AC Ballast is connected to a 85-265 VAC source, this weather-resistant ballast will provide dimmable power to your 200 or 400W fixture via its included head-to-ballast cable. Completing this kit are an open face reflector and 4-leaf barndoors for each head, 200-Watt HMI lamp, 400-Watt HMI lamp, and an airline case. DW200 and DW400 Fixtures - Focus
- Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.

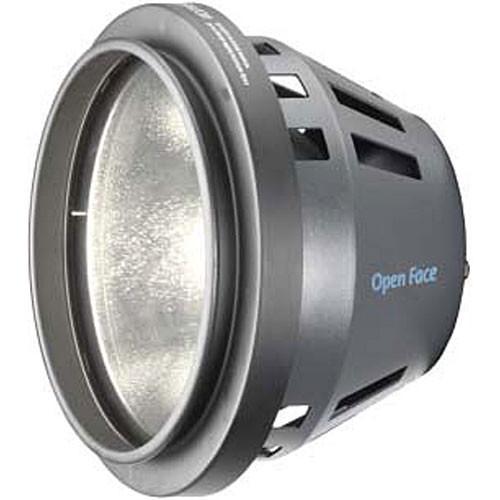

- Open Face Reflector
-
- Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.

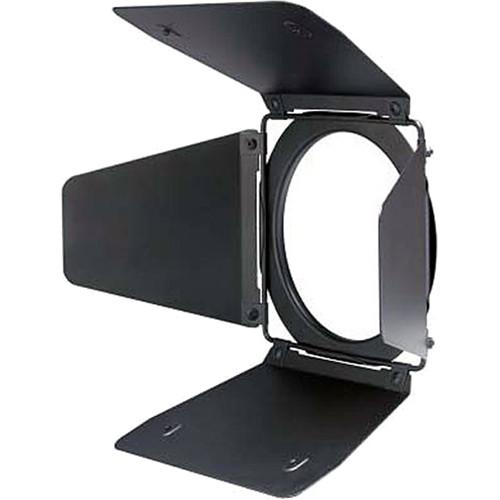

- Barn Door Set
- To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barn door.
- Hot Restrike
- Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.

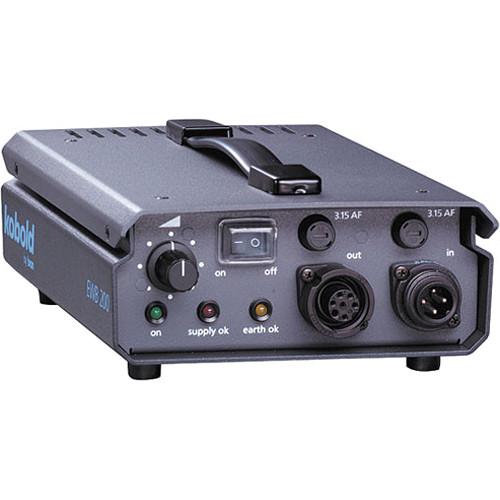

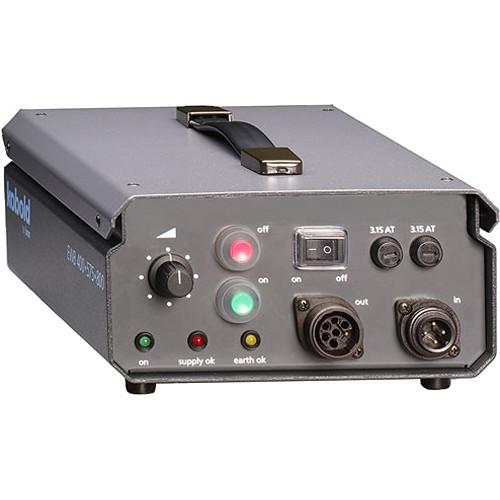

Ballasts - Dimmable
-
- The required light output can be set (100-60% adjustment range) with the power regulator.
- Color temperature can change with the power output depending on the type of lamp used.
- Easy Connection
- To connect the ballast unit to the fixture just plug in the corresponding connection.
- To disconnect, press the security mechanism on the socket before pulling out the plug.
- LED Display
-
- Red and Green LEDs continuously monitor operation, indicate voltage changes and employ thermo protection, power reduction, and even shut down if necessary.
- Safety
-
- Water-resistant IP-Rated Components: IP54 (lampheads), IP43 (ballasts) with strengthened insulation for additional protection.
- Ignition overload protection.
- Temperature monitor.
- Convection cooling.
- Meets CE standards.
Accessories - Light Shapers
-
- 4-leaf barndoor set helps shape the light.
- Optional Full and double scrim help control the intensity.
- Optional diffusion or CTO conversion filters.

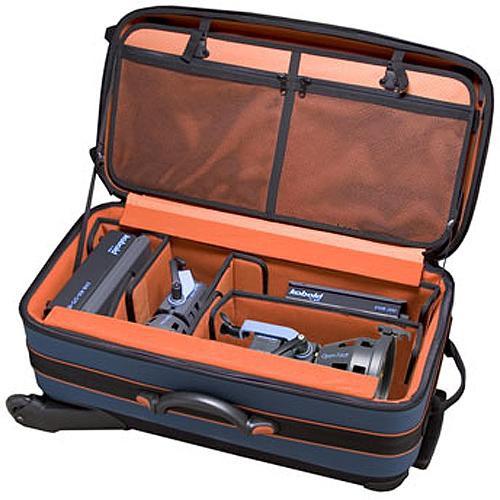

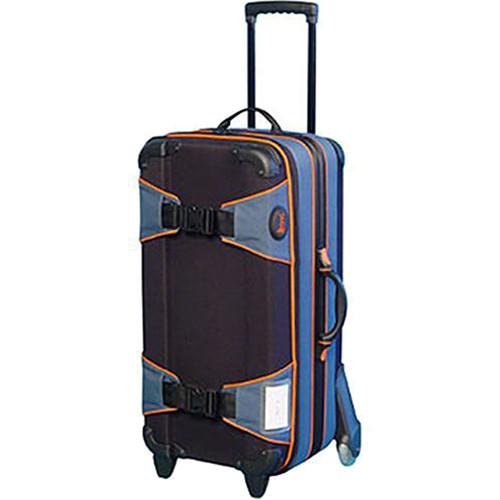

In the Box Bron Kobold SUB 50-1 Open Face 200/400 AC HMI All-Weather Kit DW200 HMI Lamphead - 200 Watts Open Face Reflector for DW200 EWB-200 AC Ballast for DW200 4-Leaf Barndoor Set for DW200 HMI DW 400 400W HMI Lamp Head with Stand Mount vztyuyqffuevertwwq Open Face Reflector for DW 400 HMI EWB-400.575.800 AC Ballast for DW 400, DW 575, DW 800 (85-265 VAC) 4-Leaf Barndoor for DWP400 Par/Open Face (Black) HMI Lamp for DW200 - 200 Watts/70 Volts vztyuyqffuevertwwq HMI Lamp for DW 400 - 400 Watts/70 Volts Airline Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bron Kobold SUB 50-1 Open Face 200 400 AC HMI All-Weather Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBron Kobold K-332-U136 Specs | | | Rating | DW200: 200 WDW400: 400 WDW200 Output at 9.8' / 3 m: Spot: 8100 lux / 752 fc, Flood: 1675 lux / 156 fc400 Output at 9.8' / 3 m: Spot: 19,200 lux / 1784 fc, Flood: 3400 lux / 316 fc | | Socket (Lampholder) | GZY 9.5 for 200 W lamp GZZ 9.5 for 400 W lamp | | Mounting | Baby (5/8") | | Weight | DW200 Fixture: 2.7 lb / 1.2 kg, Reflector: .75 lb / .34 kg DW400 Fixture: 3 lb / 1.3 kg, Reflector: 1.4 lb / .64 kg | | Dimensions | DW200 w/ OF Reflector: 9.6 x 5.6 x 5.6" / 24.4 x 14.2 x 14.2 cmDW400 w/ OF Reflector: 11.6 x 7.3 x 6.6" / 29.5 x 18.5 x 16.8 cm | | | | Rating | EWB 200: 200 W, EWB 400.575: 400/575 W, 85-265 VAC | | Cable | 16.4' / 5 m with fixture | | Weight | EWB 200: 3.74 lbs (1.7)kgEWB 400.575: 5.7 lbs (2.6 kg) | | Dimensions | EWB 200: 9.25 x 6.3 x 3.3" (23.5 x 16 x 8.5cm)EWB 400.575: 10.5 x 7.2 x 4.4" (26.7 x 18.4 x 11.2cm) | | Kit Dimensions | 26.7 x 12.6 x 10.03" / 68 x 32 x 25.5 cm | | Kit Weight | 44.5 lb / 20.2 kg |
