User Manual for Broncolor F160 LED Monolight Click to enlarge the picture
Contents of the user manual for the Broncolor F160 LED Monolight
- Product category: LED Lights Broncolor
- Brand: Broncolor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Broncolor LED Lights
 |
User manual for the Broncolor F160 LED Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Broncolor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Broncolor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Broncolor product will considerably shorten its lifespan!
|

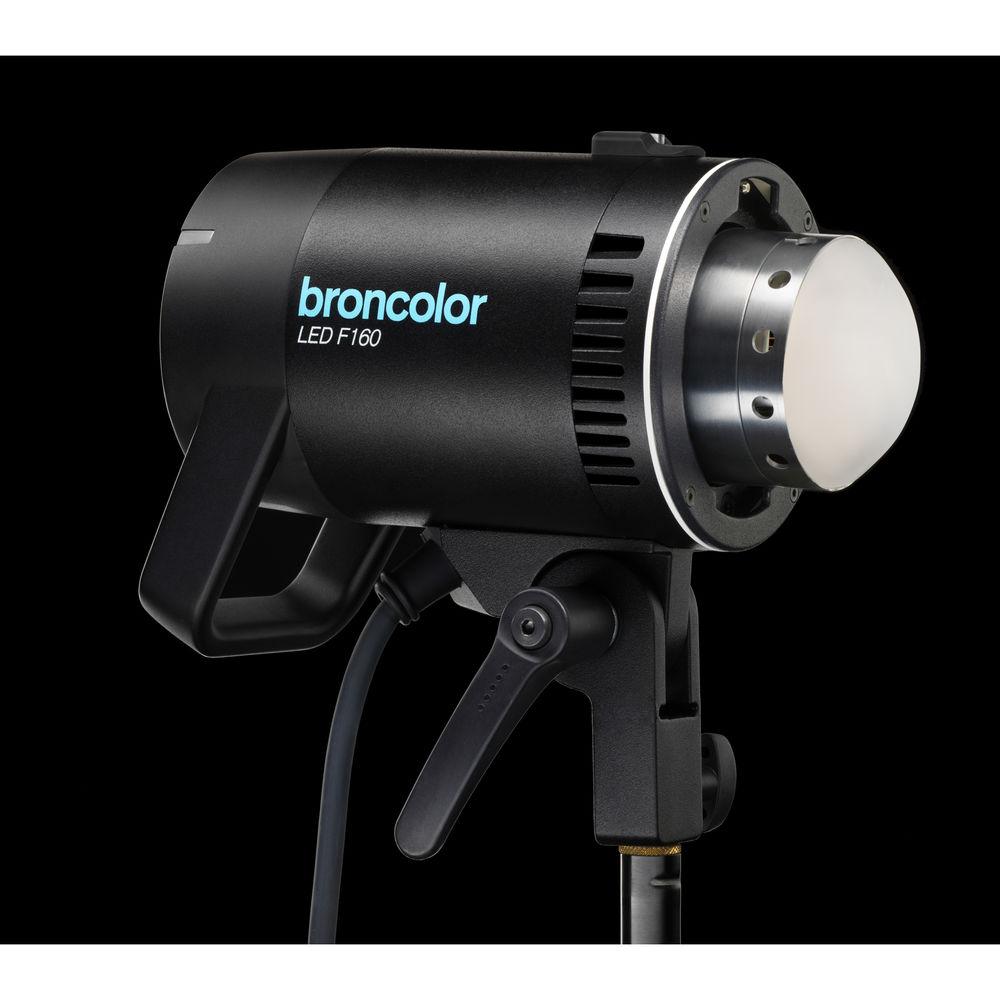

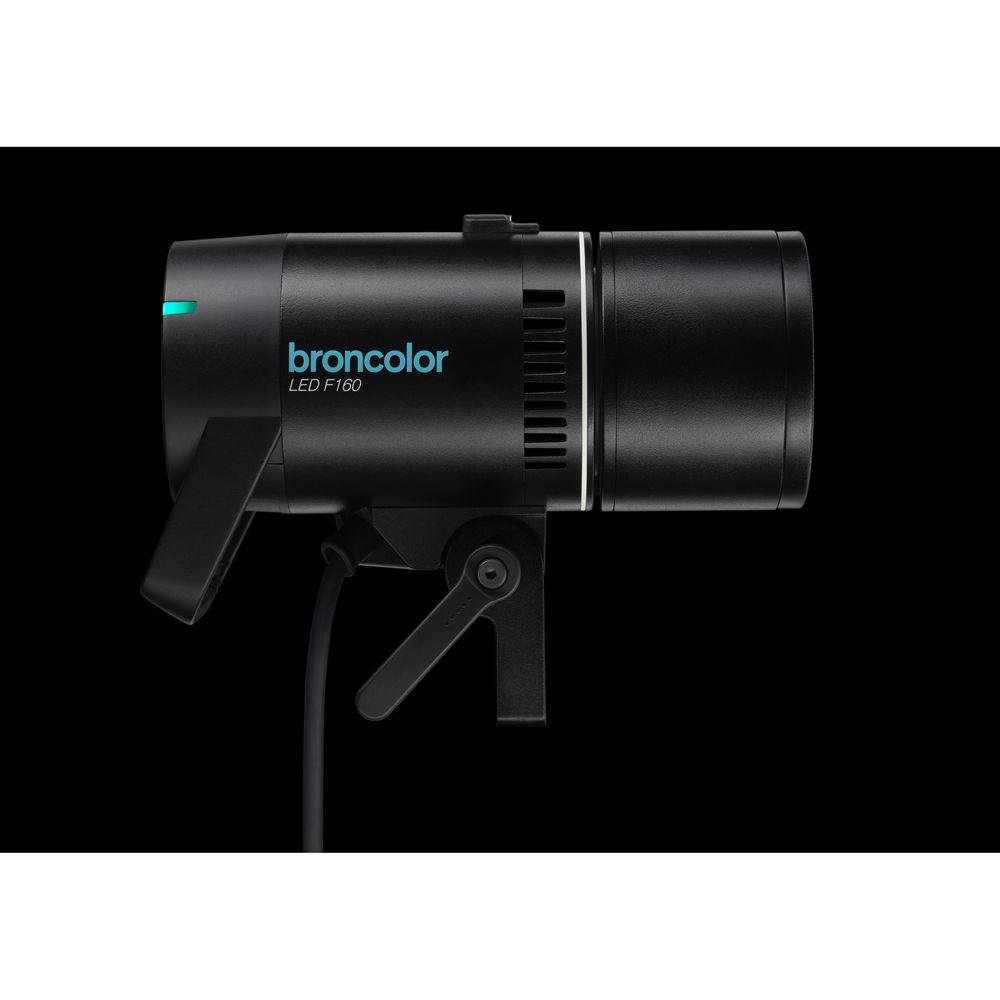

Product description With the features and specs that you would expect from a company of Broncolor's repute, the F160 LED Monolight is a compact light source that outputs the rough tungsten equivalent of 600W. You expect precise and accurate color control from Broncolor but they've really pushed the envelope with a CRI rating of 97 throughout its variable color range of 2800 to 6800K and a very impressive 98.6 rating at 5500K. There's also Magenta / Green control and dimming from 0 to 100%. While you can make these adjustments locally on the fixture, you can also make them remotely via onboard Wi-Fi, or with DMX with the purchase of an optional module. Other convenience features include a daylight / tungsten shift key, easily readable OLED display, and a 100 to 240 VAC power supply for worldwide use. The F160 is also compatible with the full line of Broncolor light shapers. - Broncolor's Vision in Light

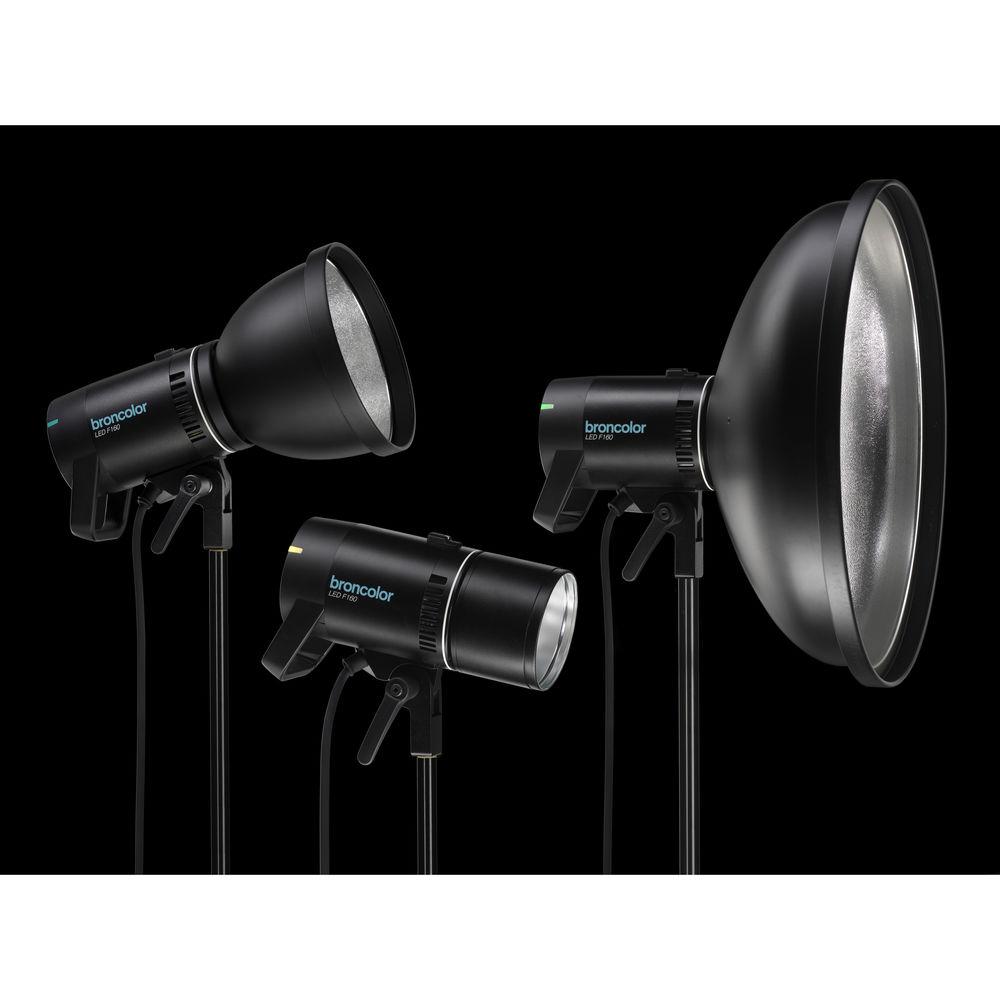

- Designed as a point light source, the LED F160 features a groundbreaking diffusion element that allows it to match the light characteristics of Broncolor flash heads as well as compatibility with all Broncolor light shapers.
- Broncolor's Vision in Experience
- With a robust housing and thoughtfully designed ergonomics, the LED F160 has been built to naturally integrate into the photographer's workflow. Remote adjustment is available over its integrated Wi-Fi and the bronControl app or an optional DMX module.
- Vision in Color
- The color rendition of the LED F160 is held to the same high specifications that have established Broncolor as the trusted standard in photographic lighting. At 5500K it produces as CRI of 98.6 and throughout its color range of 2800 to 6800K, average CRI ratings are above 97.
- Other Benefits
-
- 12,000 lumen output
- Constant power over the whole color temperature range
- Shift-key daylight / tungsten
- Green / magenta setting (tint)
- Manual focusing device
- Compact housing
- Focusable
- DMX (Digital Multiplex) and RDM (Remote Device Management) function with optional DMX module
- Cognition lights

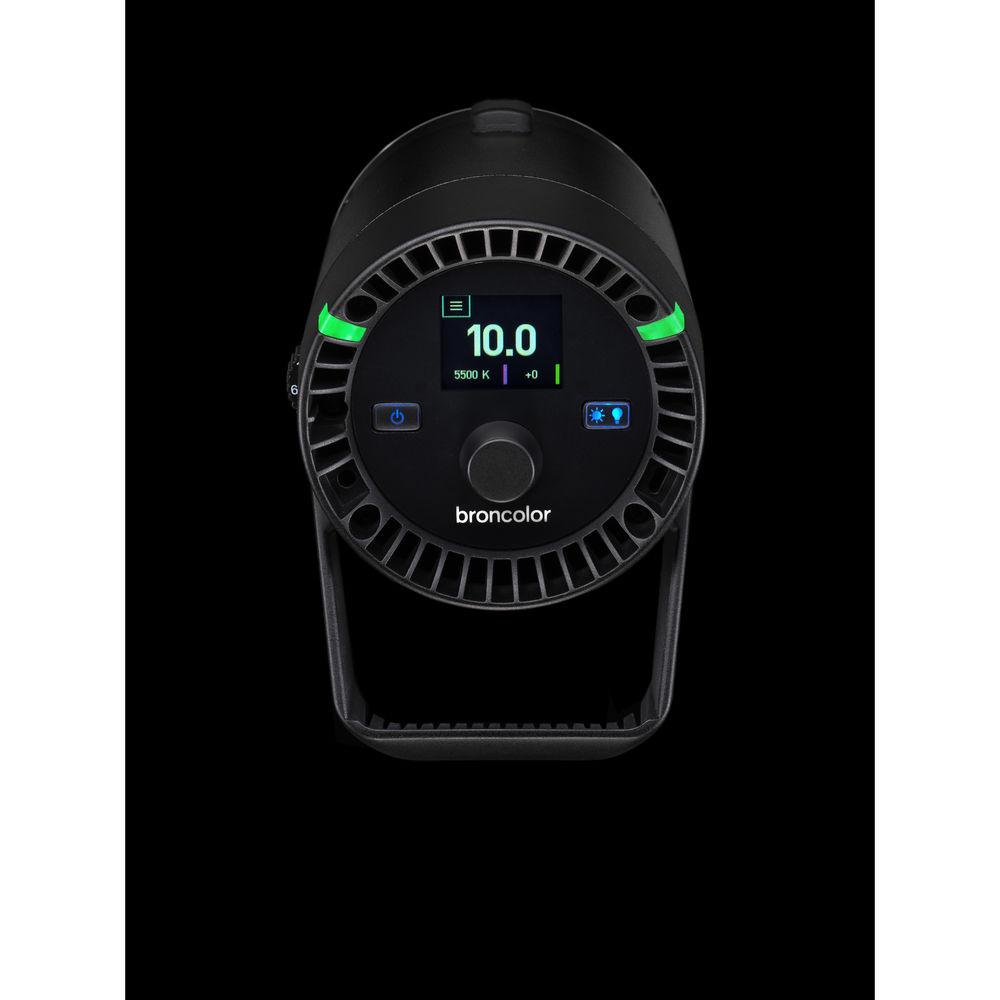

- OLED display with high contrast and superior readability
In the Box Broncolor F160 LED Monolight Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Broncolor F160 LED Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBroncolor LED F160 Specs | | | Color Temperature | 2800 to 6800K | | Color Accuracy Standard | CRI 98.6 at 5500K | | Dimming | Yes, 0 to 100% (Stepped) | | Display | OLED | | Lumens | 12000 | | | | Yoke Mount | None | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Wi-Fi With Optional App and Adapter | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter |
