Product description

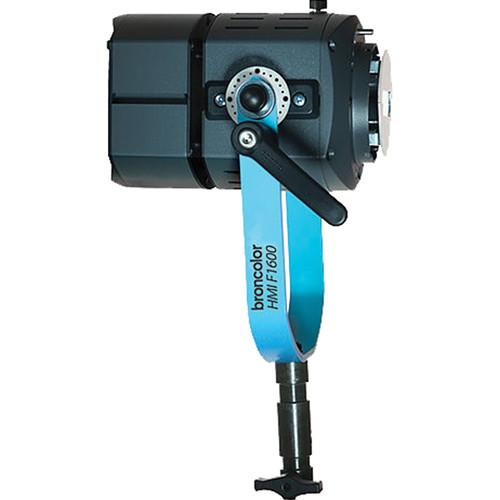

• HMI F1600 Head Light up your scene with this powerful, continuous light HMI F1600 Head from Broncolor. It features a high 1600W output and works with G22 HMI lamps to provide an extremely useful daylight-balanced color. It is also rated to f/22.7 at 6' with ISO 100 and 1/60 second with an open-faced reflector. The light can also be focused for more control over light placement and features a bayonet system for mounting modifiers and accessories. Additionally, it features a head cable with a length of 1.6'.
• 1600W CSR/SE Hot Restrike Lamp for HMI F1600 This 1600W CSR/SE Hot Restrike Lamp from Broncolor is dedicated to their HMI F1600 light. It has a G22 base, single-ended design, and a daylight-balanced color temperature.
• Electronic Ballast HMI 800.1600 The Broncolor Electronic Ballast HMI 800.1600 has an LED-display for operational control of High Speed, Optimal and Low Noise modes, mains control and earth conductor monitoring. The flicker-free, hot re-strikable ballast is 85-265 VAC auto-sensing of mains voltage, as well as the HMI lamp in use. It's also dimmable from 50-100%.
  Attributes
  • Power output: 800/1600W
  • Compatible with daylight lamps: HMI 575.800, 1600
  • Dimming: 100-50%
  • Flicker-free operation and thermal protection
  • Auto-sensing 85-265 VAC
• Reflector Open Face for HMI F1600 Dedicated to the Broncolor HMI F1600, this Reflector Open Face features a structured form to produce even and rotationally symmetrical illumination. Its design also permits the use of optional conversion and diffusion filters for further light control.
• 4-Leaf Barndoor Set for Open Face Reflector for HMI F1600 Dedicated to use with the Open Face Reflector on the Broncolor HMI F1600, this 4-Leaf Barndoor Set provides even greater control over the shape of the light's output. Its four trapezoidal leaves can be positioned to affect the beam's shape, which can then be further manipulated by rotating the barndoors or placing the light closer or further from the subject.
• Diffusion Filter for Open Face Reflector for HMI F1600 This Broncolor Diffusion Filter is designed to soften light and is meant for use with the Open Face Reflector for the HMI F1600 light.
• Conversion Filter for Open Face Reflector for HMI F1600 (3400K) Dedicated to use with the open face reflector for the Broncolor HMI F1600, this Conversion Filter adjusts the light's daylight color balance to a tungsten-balanced 3400K temperature in order to pair with other tungsten light sources.
• Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6') This 24.6'-long Lamp Extension Cable from Broncolor extends the distance you can place an HMI light from its ballast. It is compatible with the Broncolor HMI F400, F575.800, F800, F1600, and FT800.1600 lights.

• Head Cable

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

• Bag for 5 Lenses or Filters
• Trolley Transport Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HMI F1600 Head

  Rating	1600 W
  Socket (Lampholder)	G22
  Mounting	Yoke
  Dimensions	9.8 x 11.9 x 16.1" (25.0 x 30.2 x 40.8 cm)
  Weight	9.5 lb (4.3 kg)

• 1600W CSR/SE Hot Restrike Lamp for HMI F1600

  Application	For HMI F1600
  Watts	1600 W
  Color Temperature	Not specified by manufacturer; daylight-balanced
  Average Life Hours	Not specified by manufacturer
  Base Type	G22

• Electronic Ballast HMI 800.1600

  Power Output	800 W and 1,600 W
  Dimming	100-50%
  Compatibility	HMI F575.800 and HMI F1600 lamps
  Thermal Protection	Yes
  Power Requirements	85-265 VAC, 1,800 VA
  Dimensions	14.2 x 9.4 x 4.7" (360 x 240 x 120 mm)
  Weight	15.2 lb (6.9 kg)

• Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6')

  Length

  24.6' (7.5 m)

• Reflector Open Face for HMI F1600
• 4-Leaf Barndoor Set for Open Face Reflector for HMI F1600
• Diffusion Filter for Open Face Reflector for HMI F1600
• Conversion Filter for Open Face Reflector for HMI F1600 (3400K)
