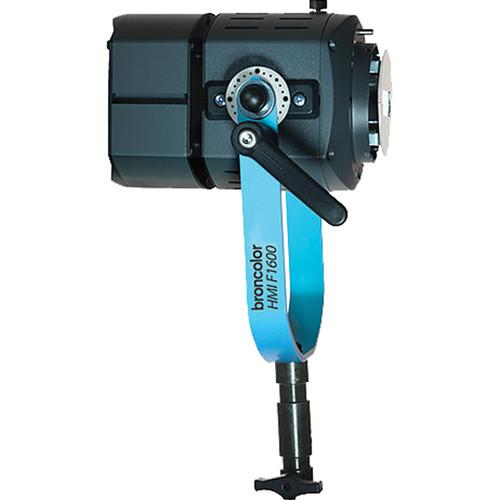

User Manual for Broncolor HMI F1600 PAR Kit Click to enlarge the picture
Contents of the user manual for the Broncolor HMI F1600 PAR Kit
- Product category: HMI & Plasma Lights Broncolor
- Brand: Broncolor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Broncolor HMI & Plasma Lights
|
User manual for the Broncolor HMI F1600 PAR Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Broncolor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Broncolor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Broncolor product will considerably shorten its lifespan!
|
Product description The HMI F1600 PAR Kit from Broncolor includes the 1600W light head with daylight-balanced bulb along with an 85-265 VAC ballast unit, which provides 100-50% dimming control and flicker-free illumination. The HMI F1600 features a unique bayonet system for the seamless attachment of optional reflectors, and the included PAR reflector permits the use of the four included PAR lenses for extensive control over the shape of the light output.
Also included in the kit is a four-leaf barndoor set and a scrim ring for greater control over the shape and quality of the light; one 24.6'-long lamp cable for extending the distance between the light head and ballast; a bag for carrying the PAR lenses or optional filters; and a trolley transport case for protecting the entire kit during storage or travel. - HMI F1600 Head Light up your scene with this powerful, continuous light HMI F1600 Head from Broncolor. It features a high 1600W output and works with G22 HMI lamps to provide an extremely useful daylight-balanced color. It is also rated to f/22.7 at 6' with ISO 100 and 1/60 second with an open-faced reflector. The light can also be focused for more control over light placement and features a bayonet system for mounting modifiers and accessories. Additionally, it features a head cable with a length of 1.6'.
- 1600W CSR/SE Hot Restrike Lamp for HMI F1600 This 1600W CSR/SE Hot Restrike Lamp from Broncolor is dedicated to their HMI F1600 light. It has a G22 base, single-ended design, and a daylight-balanced color temperature.
- Electronic Ballast HMI 800.1600 The Broncolor Electronic Ballast HMI 800.1600 has an LED-display for operational control of High Speed, Optimal and Low Noise modes, mains control and earth conductor monitoring. The flicker-free, hot re-strikable ballast is 85-265 VAC auto-sensing of mains voltage, as well as the HMI lamp in use. It's also dimmable from 50-100%.
- Attributes
-
- Power output: 800/1600W
- Compatible with daylight lamps: HMI 575.800, 1600
- Dimming: 100-50%
- Flicker-free operation and thermal protection
- Auto-sensing 85-265 VAC
- Reflector PAR for HMI F1600 Dedicated to the Broncolor HMI F1600, this Reflector PAR maintains a high light output with a narrow beam angle that is well-suited to direct or bounce lighting techniques. Its design is also compatible with optional PAR lenses for further advanced control over the shape, intensity, and quality of light.
- 4-Leaf Barndoor Set for F800 PAR/Open Face Reflector and F1600 PAR Reflector Dedicated for use with the Broncolor HMI F800 PAR/Open Face Reflector and the F1600 PAR Reflector, this 4-Leaf Barndoor Set provides even greater control over the shape of the light's output. Its four trapezoidal leaves can be positioned to affect the beam's shape, which can then be further manipulated by rotating the barndoors or placing the light closer or further from the subject.
- Set of Four PAR Lenses for PAR Reflector for HMI F1600 This Set of Four PAR Lenses from Broncolor is designed for use with the PAR Reflector for the HMI F1600 light. The lenses each provide a different beam angle with options for narrow spot, medium flood, wide flood, and very wide flood.
- Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6') This 24.6'-long Lamp Extension Cable from Broncolor extends the distance you can place an HMI light from its ballast. It is compatible with the Broncolor HMI F400, F575.800, F800, F1600, and FT800.1600 lights.
In the Box Bundle Items HMI F1600 Head rveeeqdedd 1600W CSR/SE Hot Restrike Lamp for HMI F1600 Electronic Ballast HMI 800.1600 Reflector PAR for HMI F1600 4-Leaf Barndoor Set for F800 PAR/Open Face Reflector and F1600 PAR Reflector Set of Four PAR Lenses for PAR Reflector for HMI F1600 Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6') rveeeqdedd
Also Includes - Scrim Ring
- Bag for 5 Lenses or Filters
- Trolley Transport Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Broncolor HMI F1600 PAR Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HMI F1600 Head
| Rating | 1600 W | | Socket (Lampholder) | G22 | | Mounting | Yoke | | Dimensions | 9.8 x 11.9 x 16.1" (25.0 x 30.2 x 40.8 cm) | | Weight | 9.5 lb (4.3 kg) | - 1600W CSR/SE Hot Restrike Lamp for HMI F1600
| Application | For HMI F1600 | | Watts | 1600 W | | Color Temperature | Not specified by manufacturer; daylight-balanced | | Average Life Hours | Not specified by manufacturer | | Base Type | G22 | - Electronic Ballast HMI 800.1600
| Power Output | 800 W and 1,600 W | | Dimming | 100-50% | | Compatibility | HMI F575.800 and HMI F1600 lamps | | Thermal Protection | Yes | | Power Requirements | 85-265 VAC, 1,800 VA | | Dimensions | 14.2 x 9.4 x 4.7" (360 x 240 x 120 mm) | | Weight | 15.2 lb (6.9 kg) | - Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6')
- Reflector PAR for HMI F1600
- 4-Leaf Barndoor Set for F800 PAR/Open Face Reflector and F1600 PAR Reflector
- Set of Four PAR Lenses for PAR Reflector for HMI F1600
