Product description A versatile and high-light-output kit, the HMI F800 Open-Face Kit from Broncolor pairs an HMI F800 lamphead with a focusable daylight bulb, an HMI ballast unit, an open-face reflector, a 4-leaf barndoor set, a conversion filter, and a diffusion filter. This kit also comes with a 24.6' lamp extension cable and a trolley transport case. The F800 is designed for use in the studio or on location. The 800W HMI F800 lamphead with its open-face reflector features ingress protection to IP 54. The bayonet system guarantees seamless mounting of the reflectors. The included flicker-free ballast unit is equipped with an automatic voltage detection circuit rated for 90V to 265V at 50/60 Hz, is 100-60% dimmable, and is protected against water splashes. The open-face reflector creates homogeneous and evenly focused light. - HMI F800 Lamphead Optimized for use with Broncolor's HMI F800 lighting systems, this HMI F800 Lamphead offers 800W of output and can be used with an open-face or PAR reflector with a range of lenses, a Fresnel lens, a softbox or a Para. The lamphead complies with protection class IP54, so it can be used outdoors in any weather without any additional protection.
- Connection to Broncolor Para with 33.489.07 Para adapter
- Compatible with:
44.202.00 24.6' Lamp extension cable
44.203.00 32.8' Lamp extension cable
44.204.00, 65.6' Lamp extension cable
44.104.00 Bulb 800W BA 800/UVC/SE/HR
44.110.00 Bulb 800W CSR 800/UVC/SE/HR - 575-800 Watt HMI Ballast (90-265VAC) The Broncolor 575-800 watt electronic ballast has an LED-display for operation control, mains control as well as earth conductor monitoring. It has auto-sensing of the mains voltage from 90 to 265 Volt, as well as auto-recognition of what HMI bulb is in use. It is flicker-free, is hot-restrike capable, and has dimming control down to 60% of full power.
- Lightweight aluminum shell is rugged.
- Fuses protect from overheating.
- Reflector Open Face for HMI F800 Dedicated to the Broncolor HMI F800, this Reflector Open Face features a structured form to produce even and rotationally symmetrical illumination. Its design also permits the use of optional conversion and diffusion filters for further light control.
- 4-Leaf Barndoor Set for F800 PAR/Open Face Reflector and F1600 PAR Reflector Dedicated for use with the Broncolor HMI F800 PAR/Open Face Reflector and the F1600 PAR Reflector, this 4-Leaf Barndoor Set provides even greater control over the shape of the light's output. Its four trapezoidal leaves can be positioned to affect the beam's shape, which can then be further manipulated by rotating the barndoors or placing the light closer or further from the subject.
- Diffusion Filter for PAR Reflector for HMI F1600 This Broncolor Diffusion Filter is designed to soften light and is meant for use with the PAR Reflector for the HMI F1600 light.
- Conversion Filter for PAR Reflector for HMI F1600 (3400K) Dedicated to use with the PAR reflector for the Broncolor HMI F1600, this Conversion Filter adjusts the light's daylight color balance to a tungsten-balanced 3400K temperature in order to pair with other tungsten light sources.
- Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6') This 24.6'-long Lamp Extension Cable from Broncolor extends the distance you can place an HMI light from its ballast. It is compatible with the Broncolor HMI F400, F575.800, F800, F1600, and FT800.1600 lights.
- Daylight Bulb 800W CSR 800/UVC/SE/HR (G.E.)
- Transport Case for HMI F800 Open Face and PAR Kit

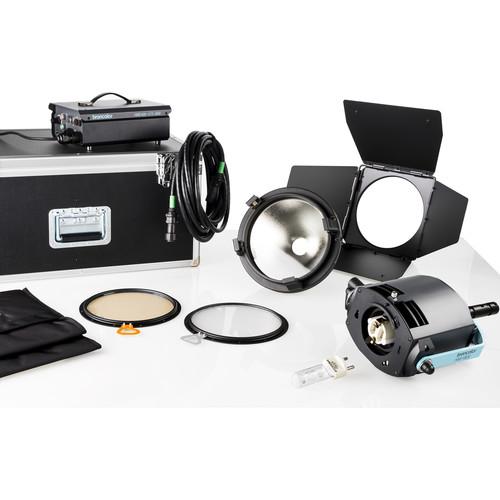

In the Box Bundle Items HMI F800 Lamphead sxeceuzuacttztcqyvuayy Daylight Bulb 800W CSR 800/UVC/SE/HR (G.E.) 575-800 Watt HMI Ballast (90-265VAC) - 2 Year Manufacturer's Warranty
Reflector Open Face for HMI F800 4-Leaf Barndoor Set for F800 PAR/Open Face Reflector and F1600 PAR Reflector sxeceuzuacttztcqyvuayy Diffusion Filter for PAR Reflector for HMI F1600 Conversion Filter for PAR Reflector for HMI F1600 (3400K) Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6') Transport Case for HMI F800 Open Face and PAR Kit
