User Manual for Broncolor HMI F800 PAR Kit Click to enlarge the picture
Contents of the user manual for the Broncolor HMI F800 PAR Kit
- Product category: HMI & Plasma Lights Broncolor
- Brand: Broncolor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Broncolor HMI & Plasma Lights
|
User manual for the Broncolor HMI F800 PAR Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Broncolor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Broncolor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Broncolor product will considerably shorten its lifespan!
|

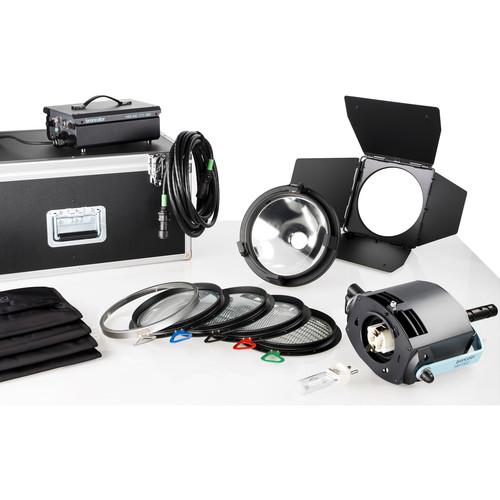

Product description The HMI F800 PAR Kit from Broncolor pairs an HMI F800 lamphead with a focusable daylight bulb, an HMI ballast unit, a PAR reflector with four lenses, and a 4-leaf barndoor set. This kit also comes with a 24.6' lamp extension cable and a trolley transport case. The F800 is designed for use in the studio or on location.
The 800W HMI F800 lamphead with its PAR reflector features ingress protection to IP 54. The bayonet system guarantees seamless mounting of the reflectors. The included flicker-free ballast unit is equipped with an automatic voltage-detection circuit rated for 90V to 265V at 50/60 Hz, is 100-60% dimmable, and is protected against water splashes. The PAR reflector provides a high-light-output and narrow light angle for direct or bounce lighting off ceilings, walls, and sails. It can also be used in conjunction with a PAR or Fresnel lens for different light characteristics and forms. Four PAR lenses are included for optimum control of yield and light forming. - HMI F800 Lamphead Optimized for use with Broncolor's HMI F800 lighting systems, this HMI F800 Lamphead offers 800W of output and can be used with an open-face or PAR reflector with a range of lenses, a Fresnel lens, a softbox or a Para. The lamphead complies with protection class IP54, so it can be used outdoors in any weather without any additional protection.
- Connection to Broncolor Para with 33.489.07 Para adapter
- Compatible with:
44.202.00 24.6' Lamp extension cable
44.203.00 32.8' Lamp extension cable
44.204.00, 65.6' Lamp extension cable
44.104.00 Bulb 800W BA 800/UVC/SE/HR
44.110.00 Bulb 800W CSR 800/UVC/SE/HR - 575-800 Watt HMI Ballast (90-265VAC) The Broncolor 575-800 watt electronic ballast has an LED-display for operation control, mains control as well as earth conductor monitoring. It has auto-sensing of the mains voltage from 90 to 265 Volt, as well as auto-recognition of what HMI bulb is in use. It is flicker-free, is hot-restrike capable, and has dimming control down to 60% of full power.
- Lightweight aluminum shell is rugged.
- Fuses protect from overheating.
- Reflector PAR for HMI F800 Dedicated to the Broncolor HMI F800, this Reflector PAR maintains a high light output with a narrow beam angle that is well-suited to direct or bounce lighting techniques. Its design is also compatible with optional PAR lenses for further advanced control over the shape, intensity, and quality of light.
- Set of Four PAR Lenses for PAR Reflector for HMI F1600 This Set of Four PAR Lenses from Broncolor is designed for use with the PAR Reflector for the HMI F1600 light. The lenses each provide a different beam angle with options for narrow spot, medium flood, wide flood, and very wide flood.
- 4-Leaf Barndoor Set for F800 PAR/Open Face Reflector and F1600 PAR Reflector Dedicated for use with the Broncolor HMI F800 PAR/Open Face Reflector and the F1600 PAR Reflector, this 4-Leaf Barndoor Set provides even greater control over the shape of the light's output. Its four trapezoidal leaves can be positioned to affect the beam's shape, which can then be further manipulated by rotating the barndoors or placing the light closer or further from the subject.
- Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6') This 24.6'-long Lamp Extension Cable from Broncolor extends the distance you can place an HMI light from its ballast. It is compatible with the Broncolor HMI F400, F575.800, F800, F1600, and FT800.1600 lights.
- Daylight Bulb 800W CSR 800/UVC/SE/HR (G.E.)
- Transport Case for HMI F800 Open Face and PAR Kit
In the Box Bundle Items HMI F800 Lamphead bswssudesbxuxxffdf Daylight Bulb 800W CSR 800/UVC/SE/HR (G.E.) 575-800 Watt HMI Ballast (90-265VAC) - 2 Year Manufacturer's Warranty
Reflector PAR for HMI F800 Set of Four PAR Lenses for PAR Reflector for HMI F1600 4-Leaf Barndoor Set for F800 PAR/Open Face Reflector and F1600 PAR Reflector bswssudesbxuxxffdf Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6') Transport Case for HMI F800 Open Face and PAR Kit
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Broncolor HMI F800 PAR Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HMI F800 Lamphead
| Output | 800 W | | Protection | IP54 (weatherproof with Open Face and PAR reflector) | | Cable Length | 23.6" (0.6 m) | | Dimensions | 4.8 x 11.8 x 16.3" (12.1 x 30 x 41.5 cm) | | Weight | 8.6 lb (3.9 kg) (without reflector) | - Daylight Bulb 800W CSR 800/UVC/SE/HR (G.E.)
| | | Box Dimensions (LxWxH) | 6.8 x 2.2 x 2.1" | - 575-800 Watt HMI Ballast (90-265VAC)
| Lamp Power | 575 - 800 watts | | Input Voltage | 90 - 265VAC 6-10A | | Dimmer | Switch to 60% of full | | Weight | 7.5 lb (3.4 kg) | | Dimensions | 10.5 x 7.25 x 4.4" (26.7 x 18.4 x 11.25 cm) | - Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6')
- Transport Case for HMI F800 Open Face and PAR Kit
| | | Type | Hard case | | Recommended Use | For lighting kit | - Reflector PAR for HMI F800
- Set of Four PAR Lenses for PAR Reflector for HMI F1600
- 4-Leaf Barndoor Set for F800 PAR/Open Face Reflector and F1600 PAR Reflector
