User Manual for Broncolor HMI FT800 Kit Click to enlarge the picture
Contents of the user manual for the Broncolor HMI FT800 Kit
- Product category: HMI & Plasma Lights Broncolor
- Brand: Broncolor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Broncolor HMI & Plasma Lights
|
User manual for the Broncolor HMI FT800 Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Broncolor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Broncolor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Broncolor product will considerably shorten its lifespan!
|

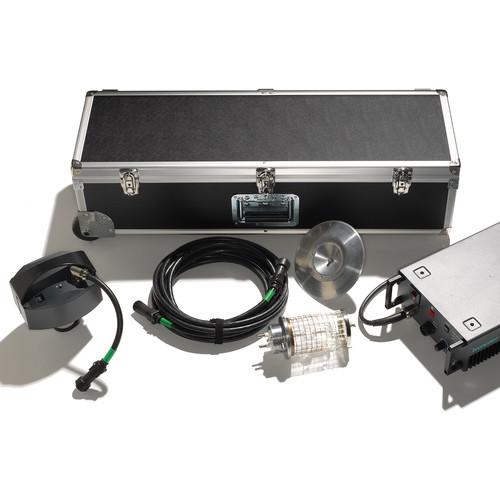

Product description Incorporating the base components of the modular FT system, the HMI FT800 Kit from Broncolor includes the 800W lamp head, a lamp module with a daylight-balanced bulb and counter reflector, a 90-265 VAC ballast unit, a 24.6'-long cable, and a hard-sided transport case to protect the kit components during travel or storage.
The FT System revolves around the ability to pair a continuous light source with Para parabolic reflectors, using dedicated focusing rods for adjusting the light output. The included HMI FT800 Lamp Head, along with the connected ballast, attaches to the rear of the optional focusing rod while the Lamp Device with bulb and counter reflector attach to the front of the rod. The HMI FT800 also permits 100-50% dimming control with consistent color, is flicker-free to suit video and high-speed shooting applications, and has a CRI of 95+. - HMI FT800 Lamp Device with Bulb & Counter-Reflector This 800W HMI FT800 Lamp Device with Bulb & Counter-Reflector from Broncolor is designed for use with the HMI FT800 Lamphead in the FT system. It features a unique design that makes it ideal for focusing using parabolic reflectors.
- HMI FT1600 Lamphead Optimized for use with Broncolor's FT lighting system, this HMI FT1600 Lamphead offers 800W or 1600W of output along with a daylight balance and CRI of 95+ for exceptional color fidelity. This unit is dimmable with a compatible ballast and it offers an 11.8" cable and G22 lamp base.
- Electronic Ballast HMI 800.1600 The Broncolor Electronic Ballast HMI 800.1600 has an LED-display for operational control of High Speed, Optimal and Low Noise modes, mains control and earth conductor monitoring. The flicker-free, hot re-strikable ballast is 85-265 VAC auto-sensing of mains voltage, as well as the HMI lamp in use. It's also dimmable from 50-100%.
- Attributes
-
- Power output: 800/1600W
- Compatible with daylight lamps: HMI 575.800, 1600
- Dimming: 100-50%
- Flicker-free operation and thermal protection
- Auto-sensing 85-265 VAC
- Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6') This 24.6'-long Lamp Extension Cable from Broncolor extends the distance you can place an HMI light from its ballast. It is compatible with the Broncolor HMI F400, F575.800, F800, F1600, and FT800.1600 lights.
- Transport Case for FT Lamp System
In the Box Bundle Items HMI FT800 Lamp Device with Bulb & Counter-Reflector sszczfvvvcbudsbzxfyzcbwwwfszxyss HMI FT1600 Lamphead Electronic Ballast HMI 800.1600 Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6') Transport Case for FT Lamp System Table of Contents
|
Upload User Manual
Have you got an user manual for the Broncolor HMI FT800 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HMI FT800 Lamp Device with Bulb & Counter-Reflector
| | | Box Dimensions (LxWxH) | 11.8 x 8.0 x 6.0" | - HMI FT1600 Lamphead
| Power Output | 800 W / 1600 W | | CRI | 95+ | | Color Balance | Daylight | | Dimming | Yes | | Base | G22 | | Cable Length | 11.8" (300 mm) | | Dimensions | 6.7 x 5.7 x 5.9" (170 x 145 x 150 mm) | | Weight | 3.5 lb (1.6 kg) | - Electronic Ballast HMI 800.1600
| Power Output | 800 W and 1,600 W | | Dimming | 100-50% | | Compatibility | HMI F575.800 and HMI F1600 lamps | | Thermal Protection | Yes | | Power Requirements | 85-265 VAC, 1,800 VA | | Dimensions | 14.2 x 9.4 x 4.7" (360 x 240 x 120 mm) | | Weight | 15.2 lb (6.9 kg) | - Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6')
- Transport Case for FT Lamp System
| | | Type | Case | | Recommended Use | For lighting kit |
