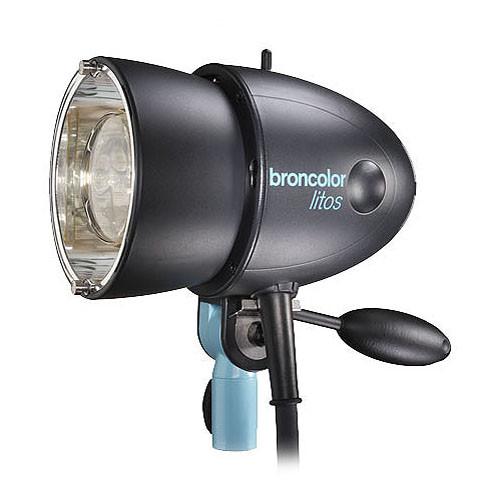

User Manual for Broncolor Litos Lamphead Click to enlarge the picture
Contents of the user manual for the Broncolor Litos Lamphead
- Product category: Power Pack Heads Broncolor
- Brand: Broncolor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Broncolor Power Pack Heads
|
User manual for the Broncolor Litos Lamphead contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Broncolor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Broncolor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Broncolor product will considerably shorten its lifespan!
|
Product description The Broncolor Litos Lamphead was created specifically for use with Broncolor Senso power packs.Rated at 2,400W/s, the head easily handles the 1,200W/s A2 Senso and accommodates the 2,400W/s A4 pack as well. We are all used to cleanly-designed Broncolor products, but the Litos is really a form-follows-function thing of beauty. The ovoid head comes with its own unique reflector with 5500K protective glass which bayonets on in reverse for storage and transport, giving the appearance of a closed pod. It is compatible with most other metal reflectors in the Broncolor line. Flash duration (230V) at t 0.1 / t 0.5 is 1/180 sec. / 1/600 sec. at full power with the Senso A2 and 1/90 sec. / 1/300 sec. at full power with the Senso A4 Note: Compatible only with Senso power packs. - The Litos flash head features a pan/tilt head for one-hand operation and an integrated umbrella holder.
- Intelligent cooling system only switches on when the service temperature of the power pack reaches a threshold level
- The bayonet mount is compatible with other Broncolor lamps and gives the user access to a comprehensive range of lamps, light shapers, and accessories
- The lamp is equipped with a release button that allows quick reflector changes and 360° rotation
- Thanks to its innovative design, the Litos lamp stows away compactly for transport and storage
In the Box Broncolor Litos Lamphead Integral Litos Reflector Spare Fuse Tilt Head 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Broncolor Litos Lamphead in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBroncolor Litos Specs | Maximum Watt/Seconds | 2,400W/s maximum | | User Replaceable Flashtube | Yes | | Photometrics | F-stop @ 6.5' (2 m) ISO 100:
32 1/10 (Senso A2 with Litos + Litos refl.) 45 8/10 (Senso A2 with Litos + refl. P70)
45 1/10 (Senso A4 with Litos + Litos refl.) 64 8/10 (Senso A4 with Litos + refl. P70) | | Flash Duration | t 0.1 / t 0.5 at 230V:
1/180 sec. / 1/600 sec. at full power with the Senso A2
1/90 sec. / 1/300 sec. at full power with the Senso A4 | | Changeable Reflector | Yes | | Circuit Protection | 3.15A fuse | | Cable Length | 14.8' (4.5 m) | | Modeling Light Wattage | 300W | | Modeling Light On/Off Switch | Yes | | Protective Glass Dome | Dome and glass 5500K protective glass | | Mount | 0.47" (12 mm) bolt, 3/8" (9.52 mm) thread and Manfrotto 0.63" (16 mm) bolt | | Fan Cooled | Yes | | Dimensions | 4.7 x 6.8 x 9.6" (120 x 172 x 243 mm) | | Weight | 5.1 lb (2.3 kg) | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 15.5 x 11.9 x 7.7" |
