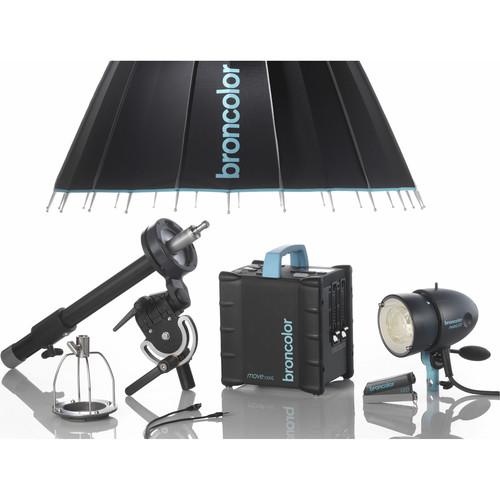

Broncolor Move Outdoor 1-Head Para Kit

User Manual for Broncolor Move Outdoor 1-Head Para Kit

• Product category: Battery Powered Heads Broncolor
• Brand: Broncolor
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Broncolor Battery Powered Heads

Product description

• Move 1200 L Battery Power Pack with Lithium Battery and Charger The Broncolor Move 1200 L Battery Power Pack with Lithium Battery and Charger continues to raise the bar that Broncolor itself has set so high as an industry leader. The familiar blue handle and modern design are about all that has remained from previous incarnations. Two outlets distribute 1,200Ws of flash power either symmetrically or asymmetrically over 9.0 full stops and is variable in either 1/10 stop or 1 stop increments. It gets it there fast too, in every photographic sense of the word. Recycling time is a super-fast 0.02 to 0.9 sec (min/max) with action-stopping flash durations of 1/1000 / 1/350 sec (t0.5 /t0.1) at full power and as short as 1/20,000 / 1/8500 at minimum power. That means fleeting gestures and water droplets among other subjects frozen in mid air if desired. It's great for sports and dance in the field as well.Speaking of the field, the Move is aptly named. At only 13.7 lb it's lighter than its predecessor and uses an Li-FePo4 Lithium battery that gives you up to 230 full power flashes at full power and up to 50,000 pops at minimum power. You can even run the modeling light on your selected head for up to 2.0 hours thanks to the inclusion of a Continuous Light Adapter. You won't wear out this battery anytime soon either: it's rated for 4000 recharge cycles.The Move 1200L power packs are compatible with Broncolor HS via firmware version 48.07 or later. Broncolor HS, when combined with an optional RFS2.2 transmitter, enables the Move 1200L to sync at shutter speeds up to 1/8000s on Canon, Nikon, and Sony camera systems with a flash head on Channel 1. For existing move 1200L owners, firmware updates are available via an Authorized Broncolor Service Center.Granted the Move is a great performer, but in the end it's what you see that count's isn't it? The Move clocks in at an ideal 5500K color temperature, maintained by proprietary Enhanced Color Temperature Control technology. With quality like this, tripping over sync cords is just not an option; The Move 1200 L's triggering options include optical, IR and radio slaves built into the unit. The Move has a radio range of at least 164' and depending on the circumstances, a possible 984'. The Move 1200 L comes with the pack, battery and charger.

  Power Pack

  Panel Display
  • Fully illuminated LCD and LED control panel and display
  • Illuminated silicone keyboard, resistant to dust and scratches
  Power Distribution
  • Symmetrical or Asymmetrical, over two head outlets
  Smart Battery Conservation
  • Easy to plug in, battery charges within the unit
  • Automatic switch-off of the power pack after a selectable delay time
  • Select the Eco charging method to increase the number of flashes of each charge
• MobiLED Lamphead Made to match up with the A2L power pack, the Broncolor MobiLED Flash Head has a 1,600W/s rating and a unique 30W LED modeling lamp which outputs the equivalent of 100W of tungsten light but at a perfect 5,500K. The head features temperature activated fan cooling to increase the life of the flash tube and modeling light. By purchasing the optional Continuous Light Adapter, multi-tasking photographers can take advantage of the A2L's Continuous Video Light Mode to use the modeling light on its own for video productions. The head's innovative design allows you to reverse its protective cap and use it as an umbrella reflector. A built in Broncolor bayonet mount enables use of the comprehensive array of Broncolor light shapers and accessories. The MobiLED is compatible with both the A2L and A2R with the modeling light and all orher Bron packs without the LED modeling light functioning.

  MobiLED Lamphead

  LED Modeling Light, Innovative Design
  • The head's 30W LED modeling light corresponds approximately to a 100W halogen lamp and is unique on the market in this form. The LED technology promises a longer service life as well as energy conservation for mobile applications. Also the color temperature of 5,500 K (daylight) opens up completely new horizons for the production of video sequences.
  Optional Continuous Light Adapter
  • With the combination of MobiLED lamp, Mobil A2L charger, and the optional continuous light adapter, it is possible to use the modeling light independently of the power pack. Just the solution to fulfill the increased demands of the customers.
  Additional Features
  • Corresponding output characteristics of flash tube and modeling light
  • Equipped with 1,600W/s flash tube - plug-in flash tube and protecting glass (with mechanical safety device)
  • Protective cap can be used as standard and umbrella reflector
  • Quick release bracket
  • Automatic locking mechanism of the light shaper (rotatable 360°)
  • Integrated pan/tilt head with locking lever for one-hand operation
  • Integrated umbrella holder
  • Cooling fan and thermal protection
  • MobiLED works on all other power packs than Mobil A2R/A2L (without modeling light)
• MobiLed Continuous Light Adapter (CLA) Great for video-capable DSLRs, the Broncolor MobiLed Continuous Light Adapter (CLA) allows the MobiLed's 30W (100W tungsten equivalent) LED modeling lamp to be used as a continuous 5500K light source independently of the A2L or A2r power pack. Just plug the adapter into the head's outlet cable then into the A2's charger and plug the charger into an AC source.
• Outdoor Trolley Backpack The Outdoor Trolley Backpack from Broncolor is specifically designed to carry all camera equipment and accessories.
• Para 88 FB Reflector The Para 88 FB Reflector is a 34" parabolic reflector built like an umbrella with 24 braces and specular silver coating on the inside. The precise front-focusing device is optimized for operation with Pulso G, Unilite, Litos, MobiLED, Pulso Twin and Pulso 8 and PulsoF2/F4 flash heads. It may also be used with the Broncolor F200/F400/F575 daylight lamp heads as well as Kobold DW200 and DW400 HMI heads. The Primo flash head may also be used with restrictions. The design of the Para 88 FB yields very high light efficiency, wrapping the subject in brilliant light which emphasizes detail. Due to the calculated parabolic form of the reflector, light fall-off only occurs at the Para's extreme edge. The base Para 88 FB system consists of the Para 88 FB reflector with a bracket to mount Pulso lamp heads facing forward. Optional focusing systems are available to allow mounting of the head in a rear-facing position for a softer effect.
  • Wraps a subject in soft bounce light with specular highlights
  • Variable focus allows adjustment of softening and dispersion of light from Broncolor flash or HMI head
• Para Adapter This Para Adapter from Broncolor allows lights with the Broncolor bayonet mount to attach to Focusing Rod F on all Paras. This item fits Pulso, Unilite, Litos, MobiLED, Siros, and any other lamp heads that utilize the Broncolor Pulso-style bayonet mount.

• Move 1200 L Battery Pack

• Power Cord

• Lithium Battery

• MobiLed Continuous Light Adapter (CLA)

• Multi-voltage Charger

• Two Year Manufacturer's Warranty

• Reflector/Protective Cap

• Flash Tube

• LED modeling Light

• Two Year Manufacturer's Warranty

• 2 Year Manufacturer's Warranty

• Limited 2-Year Factory Warranty

• Carrying Bag

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

• Weatherproof Power Pack Soft Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Move 1200 L Battery Power Pack with Lithium Battery and Charger

  Maximum Watt/Seconds	1,200
  Guide Number	f/64.1 6.5' (2.0 m) @ ISO 100 with optional MobiLED flash head, P70 reflector
  Flash Duration	Minimum energy t0.5 / t0.1: 1/20,000 sec. / 1/8,500 sec. Maximum energy t0.5 / t0.1: 1/1,000 sec. / 1/350 sec.
  Recycle Time	Normal mode: 0.02 - 1.9 sec. Speed mode: 0.02 - 0.9 sec.
  Flashes per Charge	~50,000 at 4.0W/s ~170 / 230 at 1200W/s Normal Mode / Eco Mode
  Outlets	2
  Distribution	Symmetrical / Asymmetrical
  Flash Variability	9.0 f/stops in 1/10th f/stop or full f/stop increments 4.5 - 1,200W/s
  Display	Illuminated silicone keyboard Dust, scratch resistant LCD display
  Voltage Stabilization	Yes
  Modeling Light	100W x2 or 30W x2 or 30W depending on optional flash head in use Charge selectable switch-off time setting (10/30/60 sec.) Operates in continuous light mode for over 2.0 hours
  Color Temperature	5,500K: via ECTC technology (Enhanced Color Temperature Control)
  Triggering	Manual release button, photocell, RFS 2, sync cable Radio release: Outdoors: up to 164' (50 m) (possible range up to 984' (300 m) Indoors: up to 98' (30 m) (possible range up to 984' (300 m)
  Flash Ready Indicator	Switchable visual and audible indication
  Operating Voltage	Battery operation: 14.4VDC, 6.6 AH Li-FeP04 battery with integrated battery status Charging: 110 - 240VAC, 50/60Hz
  Circuit Protection	Yes
  Fan Cooled	Yes
  Auto Dump	Yes
  Battery Charge Time	Not specified by manufacturer
  Battery Life	4,000 Charges
  Dimensions	Power Pack: 8.3 x 6.7 x 9.0" (21 x 17 x 23 cm)
  Weight	Power Pack: 13.7 lb (6.2 kg)

• MobiLED Lamphead

  Modeling Light	30W LED, 12V
  Flash Tube (CC)	1,600W/s
  Output	At 1,200W/s @ 6.5' (2.0) m, 100 ISO: 64 1/10 at lighting angle 130° (with reflector P70)
  Color Temperature	5,500K
  Cable	11.5' (3.5 m)
  Circuit Protection	Yes
  Fan Cooled	Yes, 12V, switches on only when necessary
  Reflector	Included
  Mount	5/8" (16 mm)
  Dimensions	9.5 x 6.8 x 4.7" (24 x 17.3 x 12 cm)
  Weight	3.7 lb (1.67 kg)

  Box Dimensions (LxWxH)	15.5 x 11.9 x 7.8"

• MobiLed Continuous Light Adapter (CLA)

  Box Dimensions (LxWxH)	4.0 x 2.0 x 1.0"

• Outdoor Trolley Backpack

  Box Dimensions (LxWxH)	21.5 x 13.2 x 9.8"

• Para 88 FB Reflector

  Size	34.0" / 86.4 cm
  Interior	Silver
  Exterior	Black
