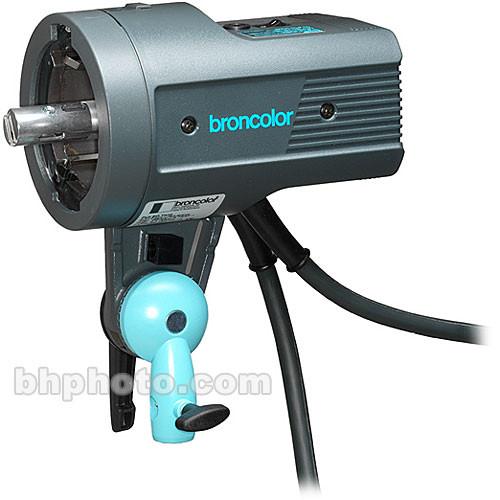

User Manual for Broncolor Pulso Twin 4 - 2 X 3200 Watt Second Lamphead Click to enlarge the picture
Contents of the user manual for the Broncolor Pulso Twin 4 - 2
- Product category: Power Pack Heads Broncolor
- Brand: Broncolor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Broncolor Power Pack Heads
|
User manual for the Broncolor Pulso Twin 4 - 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Broncolor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Broncolor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Broncolor product will considerably shorten its lifespan!
|
Product description Broncolor Pulso Twin 4 lamp heads and reflectors give clean, even, and consistent lighting every time. Long-life capacitors, extra-high capacity components and solid state design provide trouble-free operation for years under heavy use. There is a large selection of reflectors and accessories ideally suited to every photographer's needs. The heads are compatible with many older Broncolor packs, ensuring that equipment will hold its value over many years. The Pulso Twin 2 X 3200 is Broncolor's top of the line lamp head. It can deliver as much as 6400 w/s of power, when each cable is plugged into its own 3200 w/s power pack. It is constructed of a sturdy Noryl housing that features the Broncolor Bayonet Mount with an automatic lock for interchangeable reflectors and various soft boxes. The head accepts plug-in flash tubes, with ceramic bases and springs for a secure hold that are shielded by a protective glass dome. For additional protection and convenience, the Pulso Series lamp heads have a separate fuse and a switch for the modeling lights. An integrated tilt mechanism provides for continuous tilting, stand or suspension mounting, adjusted by a lever fitted to the side of the light head. A power supply for this flash head is required. - Compact Design
- Sleek, and exactly balanced for ease of handling and transport.
Sturdy Noryl Housing. - Easy to Control
- The Pulso's light angle may be adjusted by a rotary knob fitted on the side of the lamp base. It utilizes an integrated tilt mechanism for continuous tilting for stand or suspension mounting. Focus is possible within a 26mm range, resulting in illumination angle adjustment from 60-90° with a P70 reflector.
- Easily Replaceable Flashtubes
- No tools are required to replace these "plug & play" flashtubes.
Protective glass dome that surrounds the flashtubes and modeling light is included. There are also many optional glass domes that come in a variey of coatings for added control over the color temperature. - Removeable Reflector
- The Pulso series heads feature the Broncolor Bayonet Mount that accepts all Broncolor reflectors and accessories.
- Fan Cooled
- The lampbase is fan cooled for increased protection under the most demanding applications.
- Modeling Light
- The Pulso lampbase features halogen modeling lights that burn brighter and last significantly longer than a non-halogen incandescent bulb.
- Long-Reaching Cables
- 2 16' (4.8M) cables are included. Additional 16 or 32' cables may be used for light heads that are in use at greater distances from the power pack.
In the Box Broncolor Pulso Twin 4 - 2 X 3200 Watt/Second Lamphead Focusable Lamp Base with 2 16.4' (5M) cables Halogen Modeling Light 2 x Flashtubes Protective Glass Dome Protective Cover 2 Year Manufacturer's Warranty Note: Reflector not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Broncolor Pulso Twin 4 - 2 X 3200 Watt Second Lamphead in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBroncolor Pulso Twin 4 Specs | Maximum Watt/Seconds | 2 x 3200 | | User Replaceable Flashtube | Yes | | Changeable Reflector | Yes, Broncolor Standard Bayonet Mount | | Circuit Protection | Fuse | | Cable Length | 2 16.4' (5M) cables | | Modeling Light Wattage | 250W, 120V, included
650W, 240V available | | Modeling Light On/Off Switch | Yes | | Protective Glass Dome | Yes | | Fan Cooled | Yes | | Dimensions | 10.5 x 4.75 x 5" (26.7 x 12.1 x 12.7 cm) | | Weight | 9 lb (4.1 kg) | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 15.7 x 11.7 x 7.6" |
