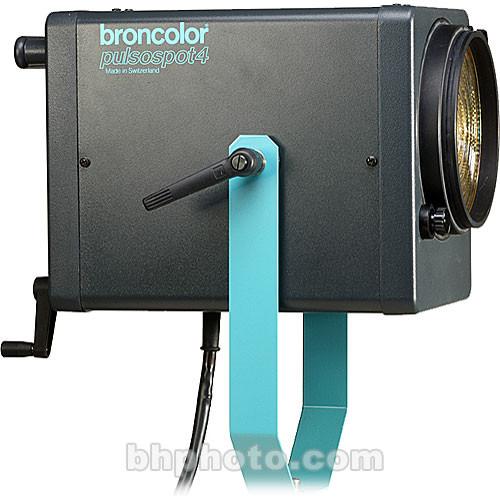

User Manual for Broncolor Pulsospot 4 - 3200 W S Fresnel Flash Head Click to enlarge the picture
Contents of the user manual for the Broncolor Pulsospot 4 - 3200 W
- Product category: Power Pack Heads Broncolor
- Brand: Broncolor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Broncolor Power Pack Heads
|
User manual for the Broncolor Pulsospot 4 - 3200 W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Broncolor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Broncolor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Broncolor product will considerably shorten its lifespan!
|
Product description The design of the Pulso Spot 4 corresponds to the familiar structure of a fresnel light. For those photographers who want hard-edged stagelight quality of light, without the intense heat of a continuous light source. The light angle is adjustable from 15 to 40°.The Pulso Spot 4 lamphead may be operated with Grafit, Pulso, Opus, and Primo Power Supplies with a maximum of 3200 w/s. A power supply for this flash head is required. - Modular Construction
- Accepts a variety of accessories, including barndoors, lenses, and pattern templates.
- Easy to Control
- Tilt control lever and focusing crank built in.
- Easily Replaceable Flashtube
- No tools are required to replace its "plug & play" flashtube.
- Removeable Reflector
- Barndoors are available.
Optional attachment lenses available in 100 and 150mm lengths. These project hard edged circles with no color fringing.
An adapter is also available for projecting masks or transparencies. - Halogen Modeling Light
- Burns brighter and lasts significantly longer than a non-halogen incandescent bulb.
- Fan Cooled
- Has increased protection under the most demanding applications.
In the Box Broncolor Pulsospot 4 - 3200 W/S Fresnel Flash Head Flashtube Modeling Lamp Replacement Fuse 16.4' (5M) Cable U-Shaped Yoke with 3/8" Stand Thread 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Broncolor Pulsospot 4 - 3200 W S Fresnel Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBroncolor Pulsospot 4 Specs | Maximum Watt/Seconds | 3200 w/s | | User Replaceable Flashtube | Yes | | Changeable Reflector | No, (can use attachment lenses) | | Circuit Protection | Fuse | | Cable Length | 16.4' (5M) | | Modeling Light Wattage | 300W | | Modeling Light On/Off Switch | Yes | | Protective Glass Dome | No, Fresnel Lens is built in | | Fan Cooled | Yes | | Dimensions | 14.5 x 11.4 x 9.6" (37 x 29 x 24.5cm) | | Weight | 19lbs (8.6kg) | | | | Package Weight | 20.42 lb | | Box Dimensions (LxWxH) | 22.1 x 16.0 x 10.9" |
