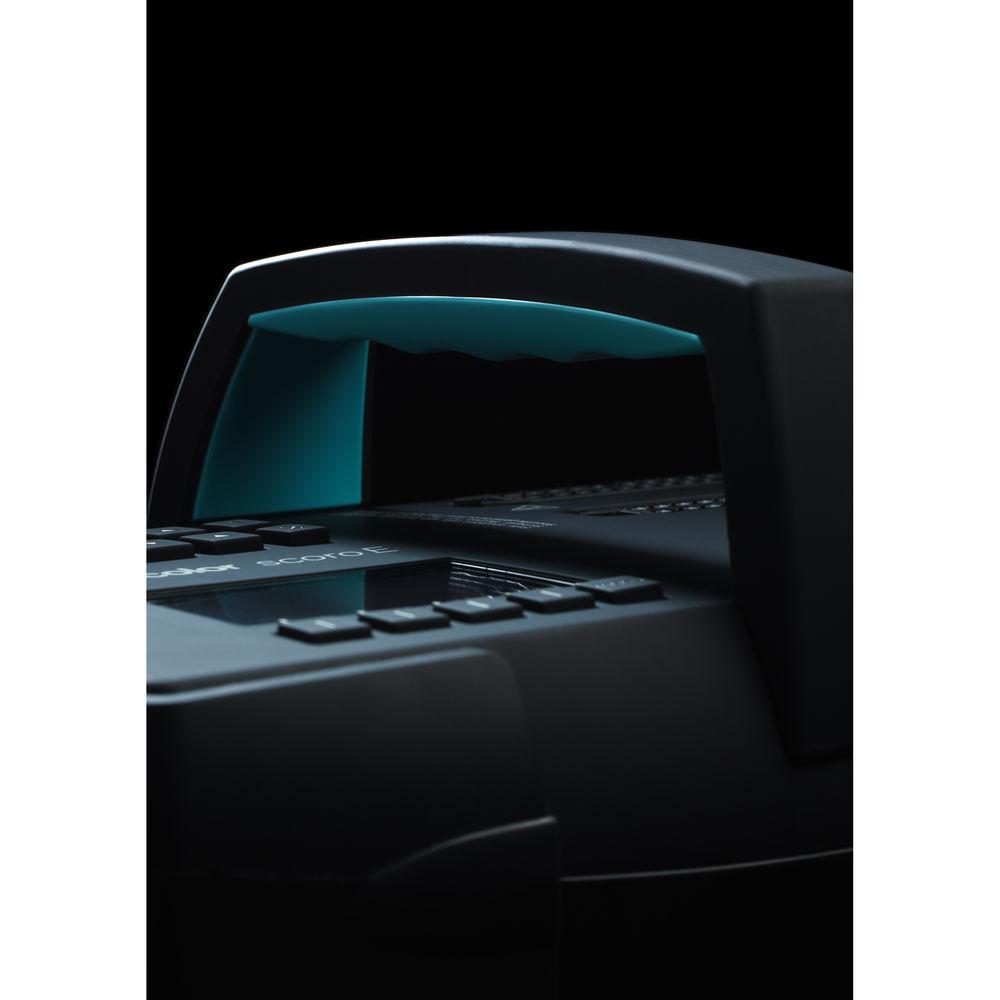

User Manual for Broncolor Scoro 3200 E Wi-Fi RFS 2 Power Pack Click to enlarge the picture
Contents of the user manual for the Broncolor Scoro 3200 E Wi-Fi RFS
- Product category: Power Packs Broncolor
- Brand: Broncolor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Broncolor Power Packs
 |
User manual for the Broncolor Scoro 3200 E Wi-Fi RFS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Broncolor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Broncolor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Broncolor product will considerably shorten its lifespan!
|
Product description A company already known for creating benchmark products, Broncolor continues the tradition with the Scoro E 3200 Wi-Fi RFS 2 Power Pack. Due to revised hardware and software, Bron users can now control the functions of the pack with mobile devices such as smartphones, tablets, and computers.The Scoro E boasts advanced features photographers have come to expect from this industry leader. Bron provides independent control of the 2 flash outlets' power in 1/10 or 1-stop increments over a range of 8 stops. Settings can be viewed on the highly visible illuminated LCD display. ECTC technology (Enhanced Color Temperature Control), aimed at preventing color shift over the entire output range is onboard. You can also use it to select your own color temperature in 200K increments.Recycling is an impressive 0.06 to 2.4 seconds at 120 VAC. Known for very fast flash durations, the Scoro E doesn't disappoint with the shortest flash durations being 1/8000 at t0.1 and 1/12,000 at t0.5. The Scoro E 3200 Wi-Fi RFS 2 has a 100 to 240 VAC power supply for worldwide use and can accept up to 650W modeling lamps at 200 to 240V and 300W halogen lamps at 100 to 120V. - Cut-Off Technology
- Flash duration and light output are the two decisive factors in light control. A microprocessor in Scoro and Move power packs will calculate for you the shortest or longest flash duration for a given output. This enables rapid flash sequences with up to 50 flashes per second.
- Constant Color Temperature - ECTC
- Scoro S, Scoro E, and Move are the only studio flash systems that can maintain color temperature over the entire power range at all outputs or when needed, can be changed to calibrated steps of +/- 200K at constant power. The second generation of the patented ECTC (Enhanced Color Temperature Control) technology, which adapts flash voltage and flash duration to each other, achieves a constant color temperature over the entire variation range.
- Individual Power Distribution

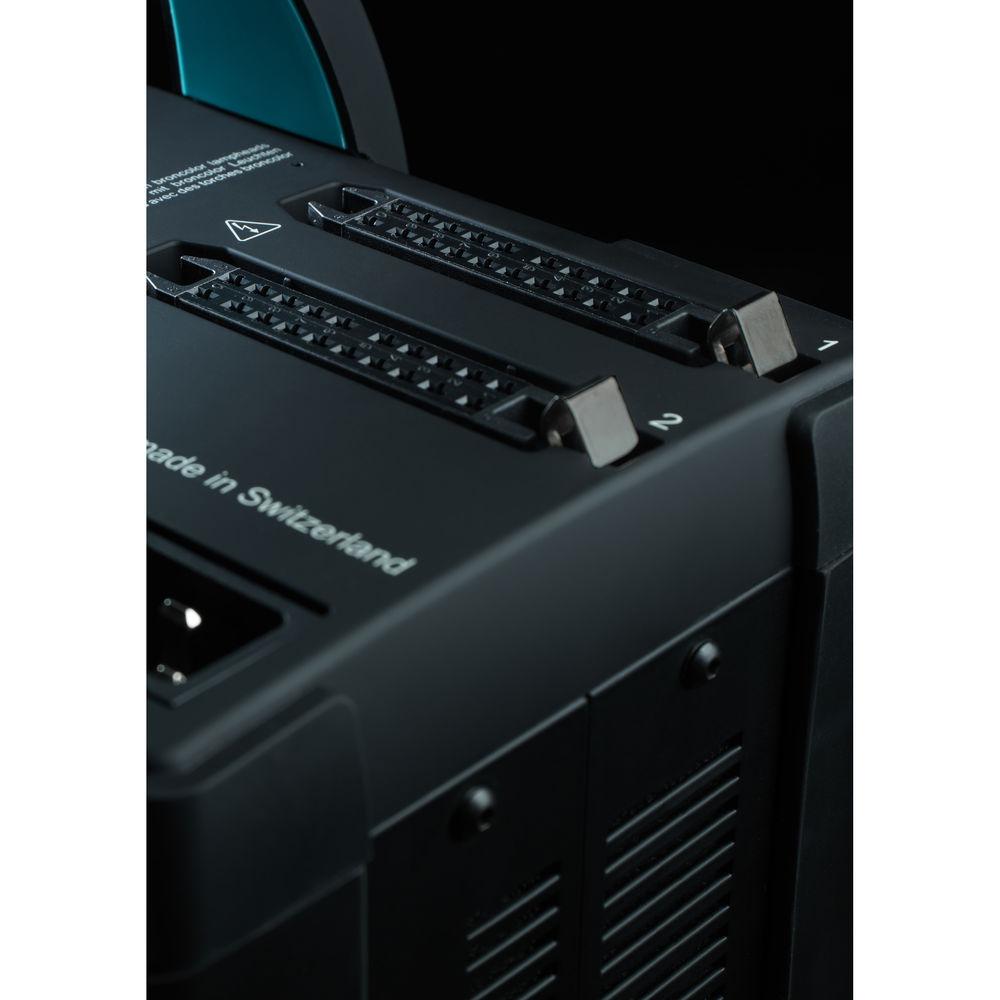

- The Scoro E has two lamp outlets. Each lamp outlet has an individual power controller with LED display, which is adjustable independently of the other outlets. The unit therefore behaves like three independent power packs. You have a choice of up to 8 stops to set the flash output you need.
- Radio Remote Control
- All Scoro 3200 E Wi-Fi RFS 2 functions can be radio-controlled using an optional transmitter or thanks to revised hard and software can be conveniently controlled by the bronControl app. Using a Wi-Fi connection, mobile devices (smartphones and tablets) as well as desktop computers are able to communicate with this high-end power pack.
- Multi-Voltage 100-240 VAC
- Adjusts automatically to the line voltage.
In the Box Broncolor Scoro 3200 E Wi-Fi RFS 2 Power Pack Dust Protection Cover Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Broncolor Scoro 3200 E Wi-Fi RFS 2 Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBroncolor 3200 E WiFI/RFS 2 Specs | Maximum Watt/Seconds | 3200 Ws | | Guide Number | 90 2/10 at 6.5' (2.0 m), ISO 100 with P70 reflector | | Recycle Time | 0.06 - 1.7 sec @ 230 VAC
0.06 - 2.4 sec @ 120 VAC
0.06 - 2.6 sec @ 100 VAC
Switchable to Slow Charge | | Flash Duration | t0.1: 1/132 sec to 1/8000 sec
t0.5: 1/390 sec / 1/12,000 sec | | Flash Variability | Over 8 stops in 1/10 or full stop intervals
Choice of Ws or percent for LCD display | | Color Temperature | ECTC technology (Enhanced Color Temperature Control) for constant or specifically adjustable (200 K increments) color temperature | | Voltage Stabilization | Yes, +/- 0.5% | | Inputs | 1 x sync socket
1 x computer connection for remote control | | Flash Ready Indicator | Visual and audible (can be switched off), activated when 100 % of the selected energy is reached | | Distribution | Symmetrical and asymmetrical | | Head Outlets | 2 | | Modeling Light | Accepts 2 x 650 W (200 - 240 V) in optional flash heads
Accepts 2 x 300 W (100 - 120 V) in optional flash heads

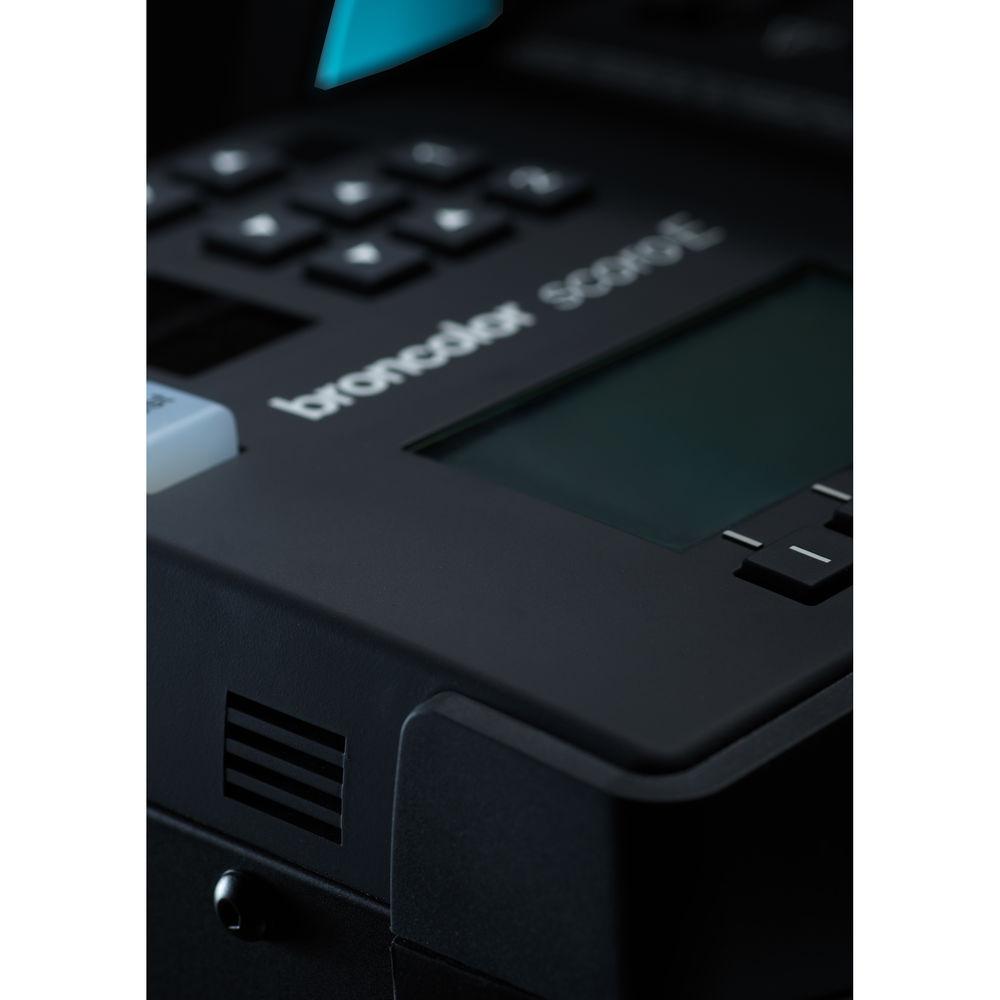

Proportional to flash energy, Full and Low settings. | | Control | Silicone keypad, illuminated LCD display
Radio remote control, computer control, Wi-Fi app | | Wi-Fi | 802.11 b/g/n
Encryption: Open/WPA/WPA2 | | Triggering | Manual release button, photocell
RFS or RFS 2 receiver (may be switched off), sync cable | | Operating Voltage | 100-240 VAC 50/60 Hz, 16 A @ 230 V
100-240 VAC 50/60 Hz, 15 A @ 100 V | | Built-in Slave Cell | Built-in RF 2 receiver, optical slave | | Additional Functions | t0.1 min., sequence | | Dimensions | Without Handle:
11.3 x 15.7 x 7.5" (28.8 x 40 x 19 cm) | | Weight | 27.8 lb (12.6 kg) | | | | Package Weight | 31.75 lb | | Box Dimensions (LxWxH) | 22.0 x 13.0 x 9.75" |
