Product description A company already known for creating benchmark products, Broncolor raises the bar to even loftier heights with the introduction of the Scoro S 3200 Wi-Fi RFS 2 Power Pack. Due to revised hardware and software, Bron users can now control the functions of the pack with mobile devices such as smartphones, tablets, and computers. The Scoro S boasts advanced features photographers have come to expect from this industry leader. Bron provides independent control of the 3 flash outlets' power in 1/10 or 1 stop increments over a range of 11 stops. Settings can be viewed on the highly visible illuminated LCD display. ECTC technology (Enhanced Color Temperature Control), aimed at preventing color shift over the entire output range, is onboard. You can also use it to select your own color temperature in 200K increments. Bron has introduced Speed Mode into the Scoro S which reduces the recycle time and flash duration by up to 50%, while the maximum output is reduced by 25%. This allows you to trigger up to 10 flashes per second at full power and up to 50 exposures at reduced settings. Fan cooling prevents overheating the pack. Recycling is stunningly fast - 0.02 to 2 seconds in Normal Mode and a lightning fast 0.02 to 1.2 seconds in Speed Mode at 120 VAC. Known for very fast flash durations, the Scoro S doesn't disappoint. The shortest flash durations are 1/10,000 at t0.1 and 1/14,000 at t0.5 in both Normal and Speed Modes. The Broncolor Scoro S 3200 Wi-Fi RFS 2 has a 100 to 240 VAC power supply for worldwide use. - Cut-Off Technology
- Flash duration and light output are the two decisive factors in light control. A microprocessor in Scoro and Move power packs will calculate for you the shortest or longest flash duration for a given output. This enables rapid flash sequences with up to 50 flashes per second.
- Constant Color Temperature - ECTC
- Scoro S, Scoro E, and Move are the only studio flash systems that can maintain color temperature over the entire power range at all outputs or when needed, can be changed to calibrated steps of +/- 200K at constant power. The second generation of the patented ECTC (Enhanced Color Temperature Control) technology, which adapts flash voltage and flash duration to each other, achieves a constant color temperature over the entire variation range. When multiple lamp heads are connected, constant color temperature is guaranteed on all channels up to an asymmetry of two f-stops.
- Individual Power Distribution

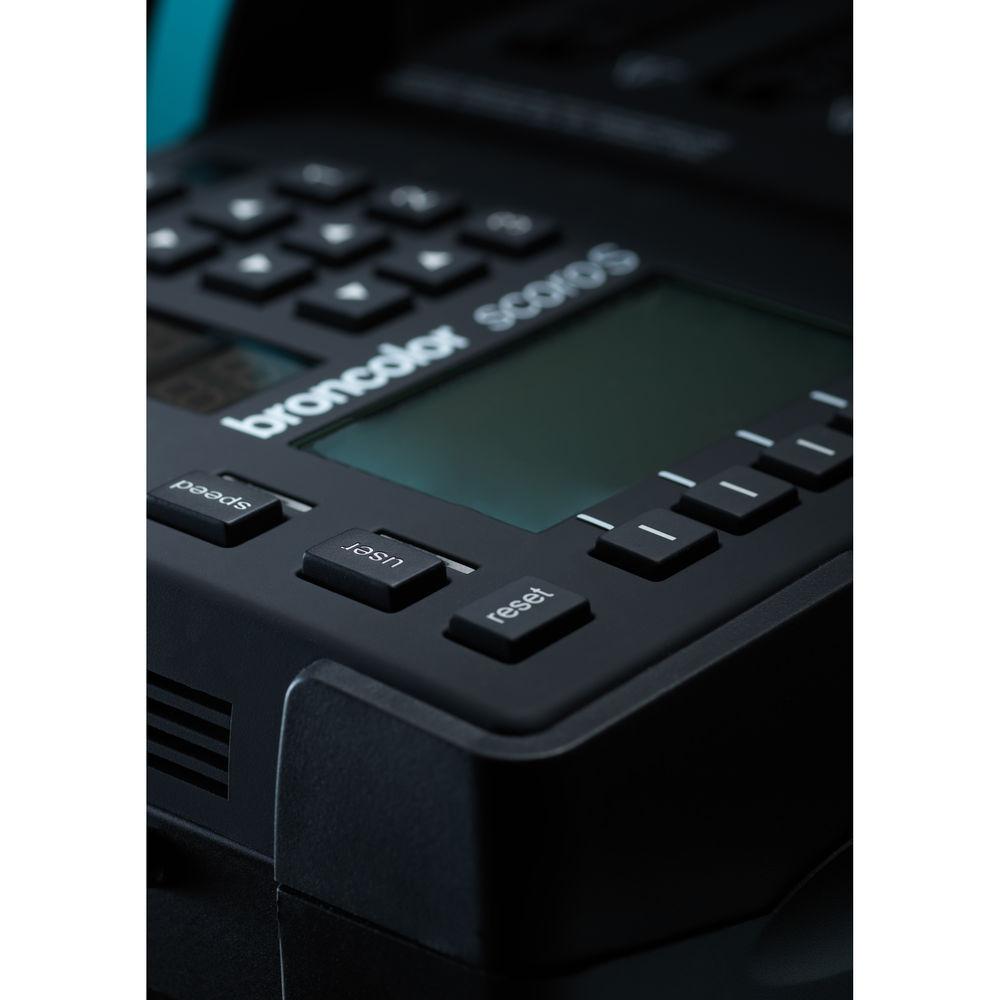

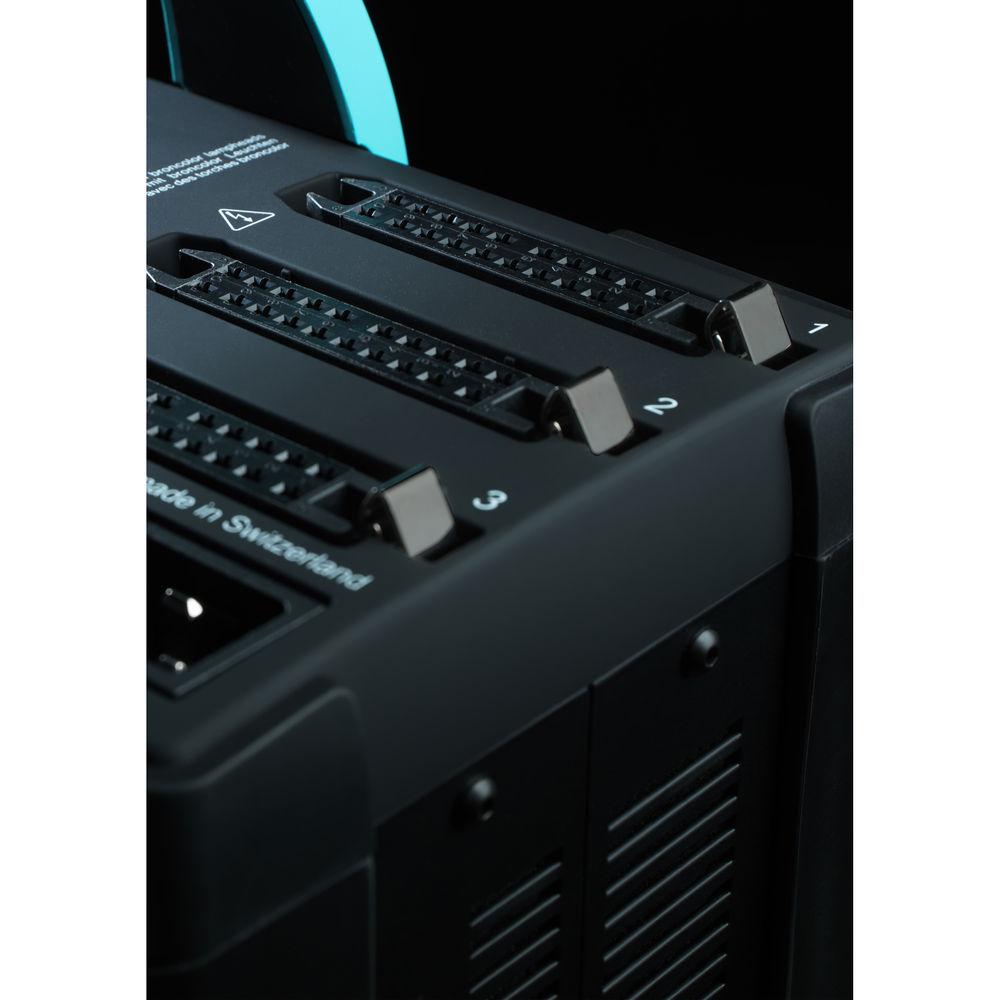

- The Scoro S has three lamp outlets. Each lamp outlet has an individual power controller with LED display, which is adjustable independently of the other outlets. The unit therefore behaves like three independent power packs. You have a choice of up to 11 f-stops to set the flash output you need.
- Speed Mode
- In Speed Mode, the charging time and flash duration are reduced by up to 50% while the power is reduced by 25%. In this way, you can achieve up to ten shots per second at full output, or up to 50 at reduced power. This makes the Scoro S 3200 Wi-Fi RFS 2 a top-class flash unit for fashion shoots, and with its fan cooling, even long flash series are no problem.
- Radio Remote Control
- All Scoro S 3200 Wi-Fi RFS 2 functions can be radio-controlled using an optional transmitter or thanks to revised hard and software can be conveniently controlled by the bronControl app. Using a Wi-Fi connection, mobile devices (smartphones and tablets) as well as desktop computers are able to communicate with this high-end power pack.
- Multi-Voltage 100-240 VAC
- Adjusts automatically to the line voltage.
In the Box Broncolor Scoro 3200 S Wi-Fi RFS 2 Power Pack Dust Protection Cover Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Broncolor Scoro 3200 S Wi-Fi RFS 2 Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBroncolor 3200 S WiFi/RFS 2 Specs | Maximum Watt/Seconds | Normal Mode: 3200 Ws
Speed Mode: 2400 Ws | | Guide Number | Normal Mode: 90 2/10 at 6.5' (2.0 m), ISO 100 with P70 reflector
Speed Mode: 64 9/10 at 6.5' (2.0 m), ISO 100 with P70 reflector | | Recycle Time | Normal Mode:
0.02 - 1.3 sec @ 230 VAC
0.02 - 2.0 sec @ 120 VAC
0.02 - 2.2 sec @ 100 VAC
Switchable to Slow Charge
Speed Mode:
0.02 - 0.8 sec @ 230 VAC
0.02 - 1.2 sec @ 120 VAC
0.02 - 1.4 sec @ 100 VAC | | Flash Duration | t0.1 / t0.5
Normal Mode:
Minimum Power: 1/10,000 sec / 1/14,000 sec
Maximum Power: 1/132 sec / 1/390 sec
Speed Mode:
Minimum Power: 1/10,000 sec / 1/14,000 sec
Maximum Power: 1/285 sec / 1/860 sec | | Flash Variability | Over 11 stops in 1/10 or full stop intervals
Choice of joules or percent for LCD display. | | Color Temperature | ECTC technology (Enhanced Color Temperature Control) for constant or specifically adjustable (200K increments) color temperature | | Voltage Stabilization | Yes, +/- 0.3% | | Inputs | 1 x Sync socket
1 x Computer connection for remote control | | Flash Ready Indicator | Visual and audible (can be switched off), activated when 100% of the selected energy is reached | | Distribution | Symmetrical and asymmetrical | | Head Outlets | 3 | | Modeling Light | Accepts 3 x 650 W (200 - 240 V) in optional flash heads
Accepts 3 x 300 W (100 - 120 V) in optional flash heads | | Control | Silicone keypad, illuminated LCD display
Radio remote control, computer control, Wi-Fi app | | Wi-Fi | 802.11 b/g/n
Encryption: Open/WPA/WPA2 | | Triggering | Manual release button, photocell, infrared, RFS or RFS 2 receiver (may be switched off) sync cable, IRX 2 | | Operating Voltage | 100-240 VAC 50/60 Hz, 16 A @ 230 V
100-240 VAC 50/60 Hz, 15 A @ 100 V | | Built-in Slave Cell | Built-in RF 2 receiver, optical and infrared signals | | Additional Functions | t0.1, Sequence, Delay, Interval, Color Temperature, Alternating, Stroboscopic, Memory | | Dimensions | Without Handle:
11.3 x 15.7 x 7.5" (28.8 x 40 x 19 cm) | | Weight | 28.2 lb (12.8 kg) | | | | Package Weight | 33.4 lb | | Box Dimensions (LxWxH) | 22.4 x 13.4 x 9.8" |
