Broncolor Siros 400 S Expert 2-Light

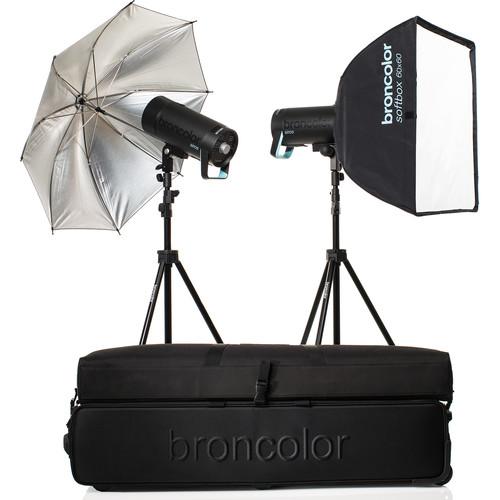

User Manual for Broncolor Siros 400 S Expert 2-Light Kit

• Product category: Monolights Broncolor
• Brand: Broncolor
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Broncolor Monolights

Product description

• Siros 400 S WiFi/RFS 2.1 Monolight Providing a 400Ws output in a compact design, the Siros 400 S WiFi/RFS 2.1 Monolight from Broncolor is a reliable studio flash unit with Wi-Fi connectivity and a built-in RFS 2.1 receiver for wireless control and triggering. It has a 9-stop power range which is adjustable in 1/10 or full stop increments for great control over light output. The Siros S is also quite fast with a flash duration from 1/8000 - 1/1000second and a recycle time of 0.02 - 1.4 seconds depending on power settings. Additionally, the monolight has a halogen modeling light.

  Built into the Siros S is a specialized Speed Mode that speeds up the charging time and flash duration to provide a fast sequence of exposures, up to 50 per second at the fastest setting. Also, the unit has a USB connection for software updates and is fan cooled for temperature control. An integrated reflector and mount are included for adding modifiers to the light.
  • When the Siros is connected to a Wi-Fi network, each light can be identified by a different-color LED and can be easily controlled using the bronControl app for smartphones and tablets
  • With the integrated Broncolor RFS 2.1 receiver, users can use the RFS 2.1 transmitter for remote control from the camera
  • Cut-off technology uses a microprocessor to calculate the flash duration to an output, enabling sequences with up to 50 flashes per second
  • Enhanced Color Temperature Control technology adapts flash voltage and duration in order to achieve a constant color temperature over the entire variation range
  • Individual power distribution means the unit has controllers for each lamp in order to have greater control over the flash power range
  • Speed mode reduces flash duration and charging time while reducing the maximum power in order to achieve a series of rapid exposures without overheating
  • Single rotary control for flash power output setting, a slight turn provides 1/10 stops while a "Twist" function allows for whole stops
  • Internal discharge when power is reduced
  • Grip features double-wall plastic with a special coating for durability and comfort
  • Aluminum stand adapter can be used with the handle to function as a built-in floor stand
  • Standard sync port and built-in photocell are available for more elaborate triggering setups
  • Black aluminum body construction
  • Designed and developed in Switzerland
• Softbox 60 x 60 cm (23.6 x 23.6") This Broncolor Softbox is a 60 x 60 cm (23.6 x 23.6") light modifier that creates an even, diffuse light. This type of soft light is useful in product and portrait photography. The amount of diffusion can be adjusted via a removable baffle and front panel. Also, it is able to accept grids and other light modification accessories.

  Included with this softbox are 4 rods for constructing and attaching the box to a light via an optional speedring. Also, it comes with the interior baffle, a front diffuser panel, and a transport bag for storage.
• Speed Ring for Broncolor Flash Systems This Broncolor Speed Ring is an adapter for mounting Broncolor softboxes to Broncolor flash systems. It features color coding on the rear face for easily assembling the softbox. The speed ring comes with a soft case.
• Umbrella Silver/Black 85 cm (33.5") Start controlling and modifying your light with this 85 cm (33.5") Umbrella Silver/Black from Broncolor. In general, the umbrella will broaden and soften the light, with larger sizes providing an even softer effect. This model features a reflective silver interior with a black backing to provide a crisper, more focused light, revealing structure and detail in your subjects.
• Sync Cable (16') The Broncolor 16' Sync Cable is a heavy duty cable that allows you to trigger your Broncolor flash head with a hard-wired connection. It has a mini pin at one end and a male PC connector at the other end. Although this is a straight cable, the camera end has a coiled section so that the cable doesn't disconnect or pull over the camera if tugged.
• Basic M Stand for Siros Monolights The Basic M Stand for Siros Monolights from Broncolor is a light stand designed specifically for the Siros series of monolights. These stands are included in Siros kits but are also available here as individual replacements.
• Flash Bag 2 for Siros Monolights Store, transport, and protect your Siros Monolights and related accessories with the black Flash Bag 2 from Broncolor. The bag features top and side handles, a zipper closure, and nylon construction. The wheeled Flash Bag 2 has room for 2 Siros monolights with cables and accessories.
• Accessory Bag for Siros Monolights This Broncolor Accessory Bag is designed to hold accessories, such as stands, for the Siros monolights. It features a zipper closure and has handle grips for carrying.

• Flashtube

• Modeling Light

• Power Cord

• Limited 2-Year Warranty

• Front Panel

• Interior Baffle

• 4 x Attachment Rods

• Transport Bag

• Limited 2-Year Warranty

• Soft Case

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Siros 400 S WiFi/RFS 2.1 Monolight

  Maximum Power	2 to 400 Ws
  Power Control	9 Stops in 1/10-Stop Increments
  Flash Duration	t.1: 1/6500 to 1/1000 Sec t.5: 1/13,000 to 1/2200 Sec
  Recycle Time	0.02 to 1.40 Sec ()
  Color Temperature	5750K
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Broncolor

  Type	Tungsten
  Wattage	300 W

  Sync Type	Optical, Radio

  AC Input Voltage	100to240 VAC, 50 / 60 Hz
  Current	5.5 A (Operating)

  Display	None
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 7.1 x W: 5.1 x L: 12.6" / H: 18.0 x W: 13.0 x L: 32.0 cm
  Weight	7.1 lb / 3.2 kg

  Box Dimensions (LxWxH)	13.5 x 9.2 x 8.9"

• Softbox 60 x 60 cm (23.6 x 23.6")

  Size	23.6 x 23.6" (60 x 60 cm)
  Shape	Square
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Accepts Grids	Yes
  Requires Speed Ring	Yes, not included

  Box Dimensions (LxWxH)	22.5 x 8.4 x 2.4"

• Speed Ring for Broncolor Flash Systems

  Compatible Lighting	Broncolor
  Compatible Softbox Shape	Strip
  Number of Mounting Holes	10

  Box Dimensions (LxWxH)	7.85 x 7.75 x 2.65"

• Umbrella Silver/Black 85 cm (33.5")

  Size	33.5" / 85.1 cm
  Interior	Silver
  Exterior	Black
  Weight	8.8 oz / 249.5 g

  Box Dimensions (LxWxH)	22.8 x 4.0 x 2.0"

• Sync Cable (16')

  Box Dimensions (LxWxH)	9.55 x 4.5 x 1.2"

• Basic M Stand for Siros Monolights

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	3
  Maximum Working Height	96.1" / 244 cm
  Minimum Working Height	35.8" / 91 cm
  Air Cushioned	Yes
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Weight	3.3 lb / 1.5 kg

  Box Dimensions (LxWxH)	38.5 x 3.3 x 3.2"

• Flash Bag 2 for Siros Monolights

  Closure Type	Zipper
  Carry and Transport Options	Handle
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	42 x 9 x 7.5" / 106.7 x 22.9 x 19.1 cm

  Box Dimensions (LxWxH)	42.0 x 11.0 x 9.0"

• Accessory Bag for Siros Monolights

  Closure Type	Zipper
  Carry and Transport Options	2 x Hand Strap
  Exterior Dimensions (W x H x D)	40.5 x 4.5 x 8" / 102.9 x 11.4 x 20.3 cm

  Box Dimensions (LxWxH)	39.4 x 7.0 x 5.8"
