Product description - Broncolor Siros Monolight: Quick Look
- Erik Valind demonstrates the broncolor Siros - Overview
- Erik Valind demonstrates the broncolor Siros - The bronControl App

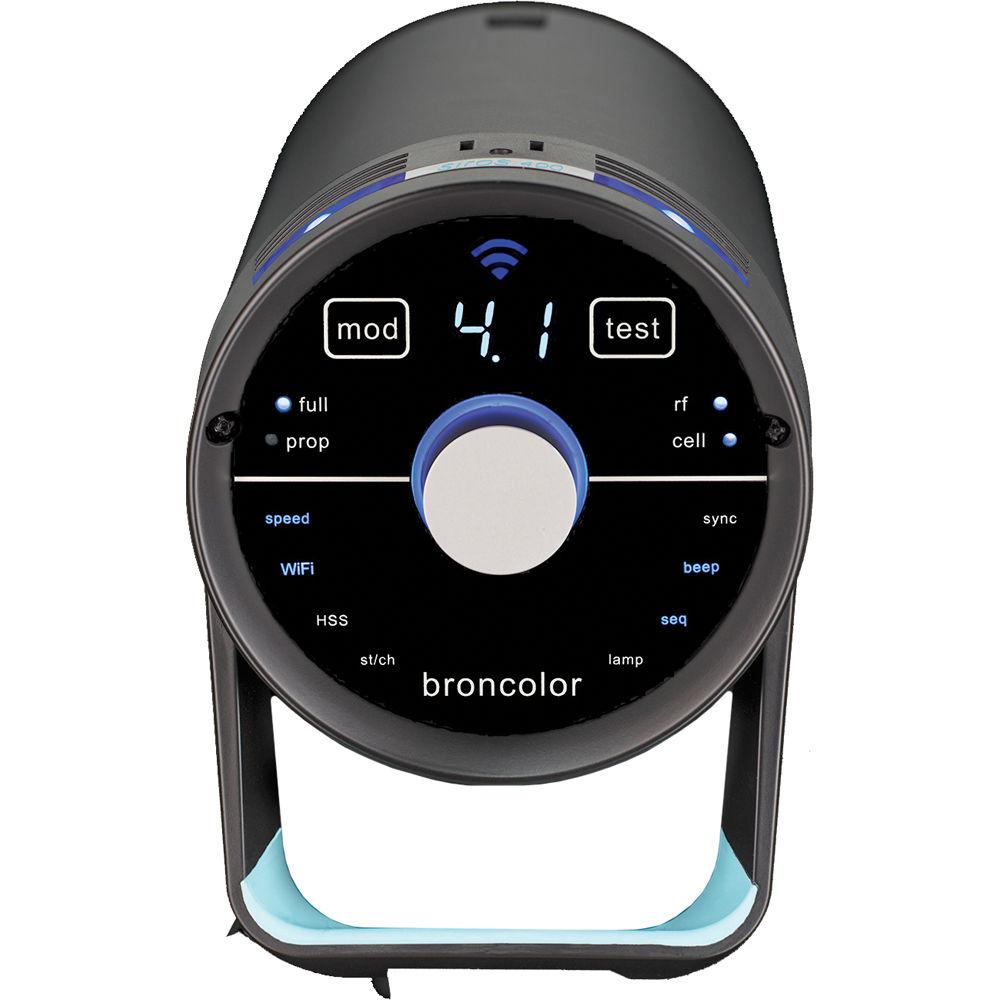

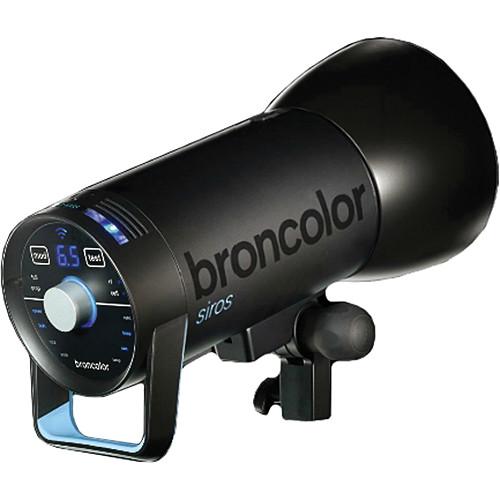

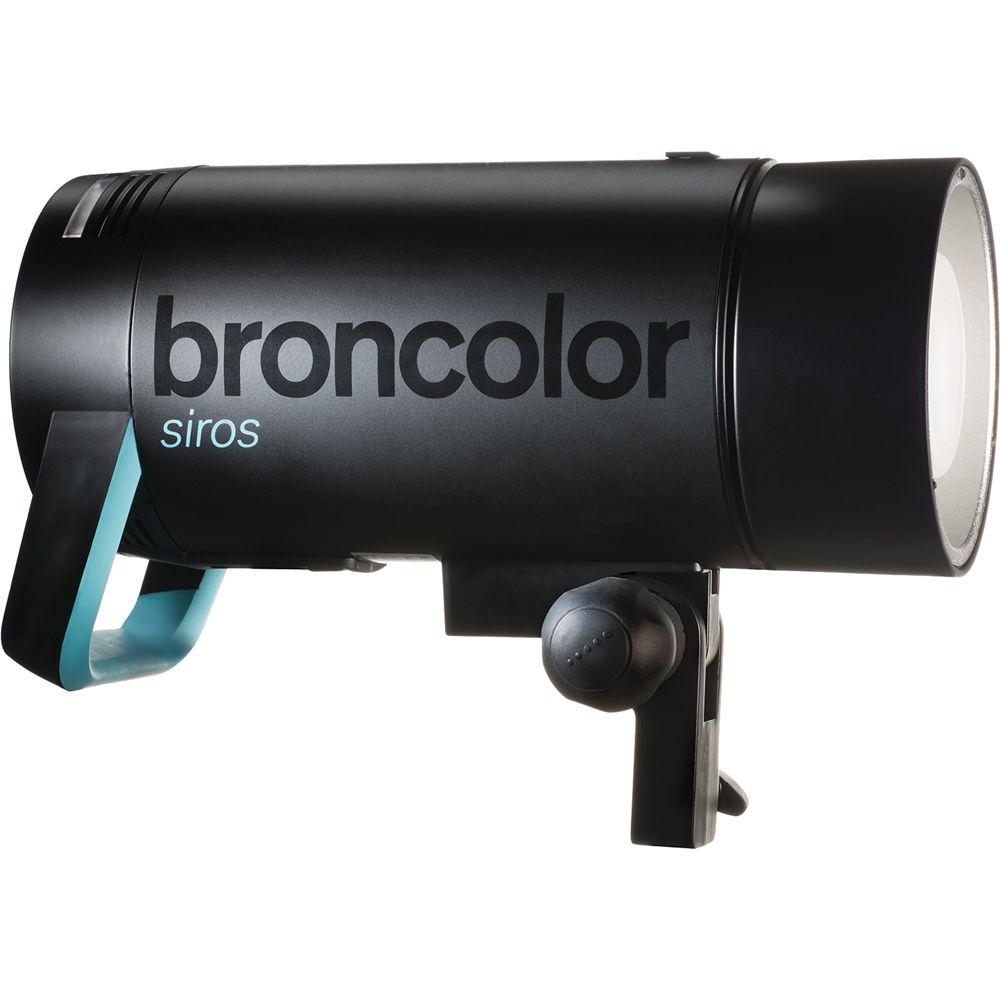

Providing a 400Ws output in a compact design, the Siros 400 S WiFi/RFS 2.1 Monolight from Broncolor is a reliable studio flash unit with Wi-Fi connectivity and a built-in RFS 2.1 receiver for wireless control and triggering. It has a 9-stop power range which is adjustable in 1/10 or full stop increments for great control over light output. The Siros S is also quite fast with a flash duration from 1/8000 - 1/1000second and a recycle time of 0.02 - 1.4 seconds depending on power settings. Additionally, the monolight has a halogen modeling light.
Built into the Siros S is a specialized Speed Mode that speeds up the charging time and flash duration to provide a fast sequence of exposures, up to 50 per second at the fastest setting. Also, the unit has a USB connection for software updates and is fan cooled for temperature control. An integrated reflector and mount are included for adding modifiers to the light. - When the Siros is connected to a Wi-Fi network, each light can be identified by a different-color LED and can be easily controlled using the bronControl app for smartphones and tablets
- With the integrated Broncolor RFS 2.1 receiver, users can use the RFS 2.1 transmitter for remote control from the camera
- Cut-off technology uses a microprocessor to calculate the flash duration to an output, enabling sequences with up to 50 flashes per second
- Enhanced Color Temperature Control technology adapts flash voltage and duration in order to achieve a constant color temperature over the entire variation range
- Individual power distribution means the unit has controllers for each lamp in order to have greater control over the flash power range
- Speed mode reduces flash duration and charging time while reducing the maximum power in order to achieve a series of rapid exposures without overheating
- Single rotary control for flash power output setting, a slight turn provides 1/10 stops while a "Twist" function allows for whole stops
- Internal discharge when power is reduced
- Grip features double-wall plastic with a special coating for durability and comfort
- Aluminum stand adapter can be used with the handle to function as a built-in floor stand
- Standard sync port and built-in photocell are available for more elaborate triggering setups
- Black aluminum body construction
- Designed and developed in Switzerland
In the Box Broncolor Siros 400 S WiFi/RFS 2.1 Monolight Flashtube Modeling Light Power Cord Limited 2-Year Warranty User Manual PDF 3.8mbcqaaevdyzzbd Table of Contents
|
Upload User Manual
Have you got an user manual for the Broncolor Siros 400 S WiFi RFS 2.1 Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBroncolor Siros 400 S Specs | | | Maximum Power | 2 to 400 Ws | | Power Control | 9 Stops in 1/10-Stop Increments | | Flash Duration | t.1: 1/6500 to 1/1000 Sec
t.5: 1/13,000 to 1/2200 Sec | | Recycle Time | 0.02 to 1.40 Sec () | | Color Temperature | 5750K | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Broncolor | | | | Type | Tungsten | | Wattage | 300 W | | | | AC Input Voltage | 100to240 VAC, 50 / 60 Hz | | Current | 5.5 A (Operating) | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 7.1 x W: 5.1 x L: 12.6" / H: 18.0 x W: 13.0 x L: 32.0 cm | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 13.5 x 9.2 x 8.9" |
