User Manual for Broncolor Siros 800 S WiFi RFS 2.1 Monolight Click to enlarge the picture
Contents of the user manual for the Broncolor Siros 800 S WiFi RFS
- Product category: Monolights Broncolor
- Brand: Broncolor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Broncolor Monolights
 |
User manual for the Broncolor Siros 800 S WiFi RFS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Broncolor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Broncolor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Broncolor product will considerably shorten its lifespan!
|
Product description - Broncolor Siros Monolight: Quick Look
- Erik Valind demonstrates the broncolor Siros - Overview
- Erik Valind demonstrates the broncolor Siros - The bronControl App

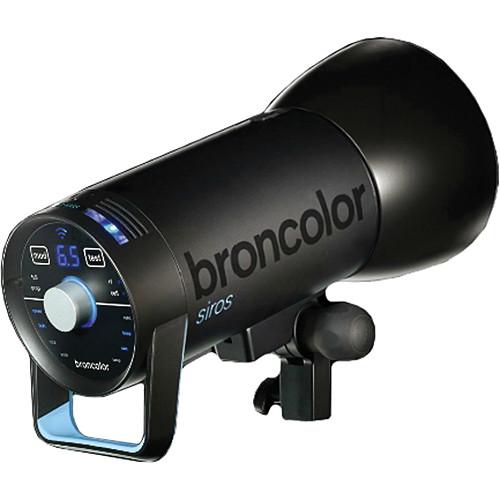

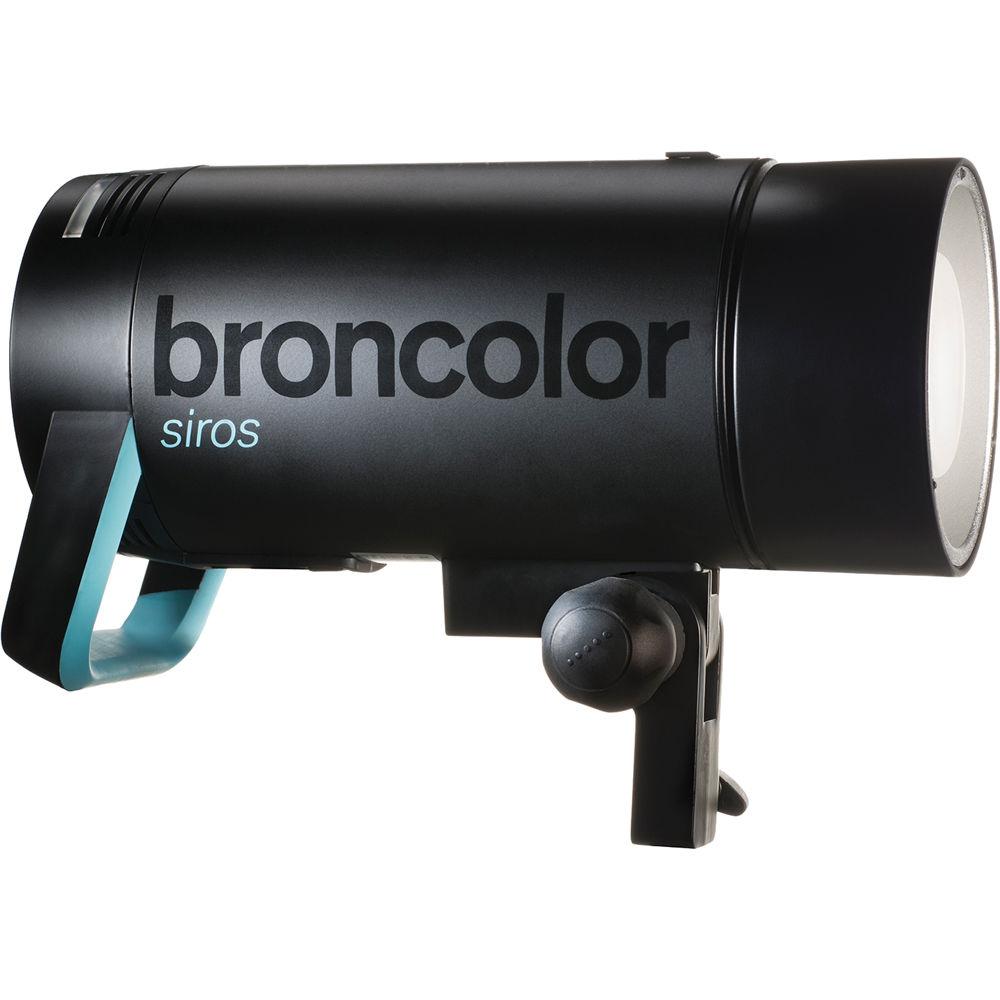

Providing a 800Ws output in a compact design, the Siros 800 S WiFi/RFS 2.1 Monolight from Broncolor is a reliable studio flash unit with Wi-Fi connectivity and a built-in RFS 2.1 receiver for wireless control and triggering. It has a 9-stop power range which is adjustable in 1/10 or full stop increments for great control over light output. The Siros S is also quite fast with a flash duration from 1/8000 - 1/500second and a recycle time of 0.04 - 2.9 seconds depending on power settings. Additionally, the monolight has a halogen modeling light.
Built into the Siros S is a specialized Speed Mode that speeds up the charging time and flash duration to provide a fast sequence of exposures, up to 50 per second at the fastest setting. Also, the unit has a USB connection for software updates and is fan cooled for temperature control. An integrated reflector and mount are included for adding modifiers to the light. - When the Siros is connected to a Wi-Fi network, each light can be identified by a different-color LED and can be easily controlled using the bronControl app for smartphones and tablets
- With the integrated Broncolor RFS 2.1 receiver, users can use the RFS 2.1 transmitter for remote control from the camera
- Cut-off technology uses a microprocessor to calculate the flash duration to an output, enabling sequences with up to 50 flashes per second
- Enhanced Color Temperature Control technology adapts flash voltage and duration in order to achieve a constant color temperature over the entire variation range
- Individual power distribution means the unit has controllers for each lamp in order to have greater control over the flash power range
- Speed mode reduces flash duration and charging time while reducing the maximum power in order to achieve a series of rapid exposures without overheating

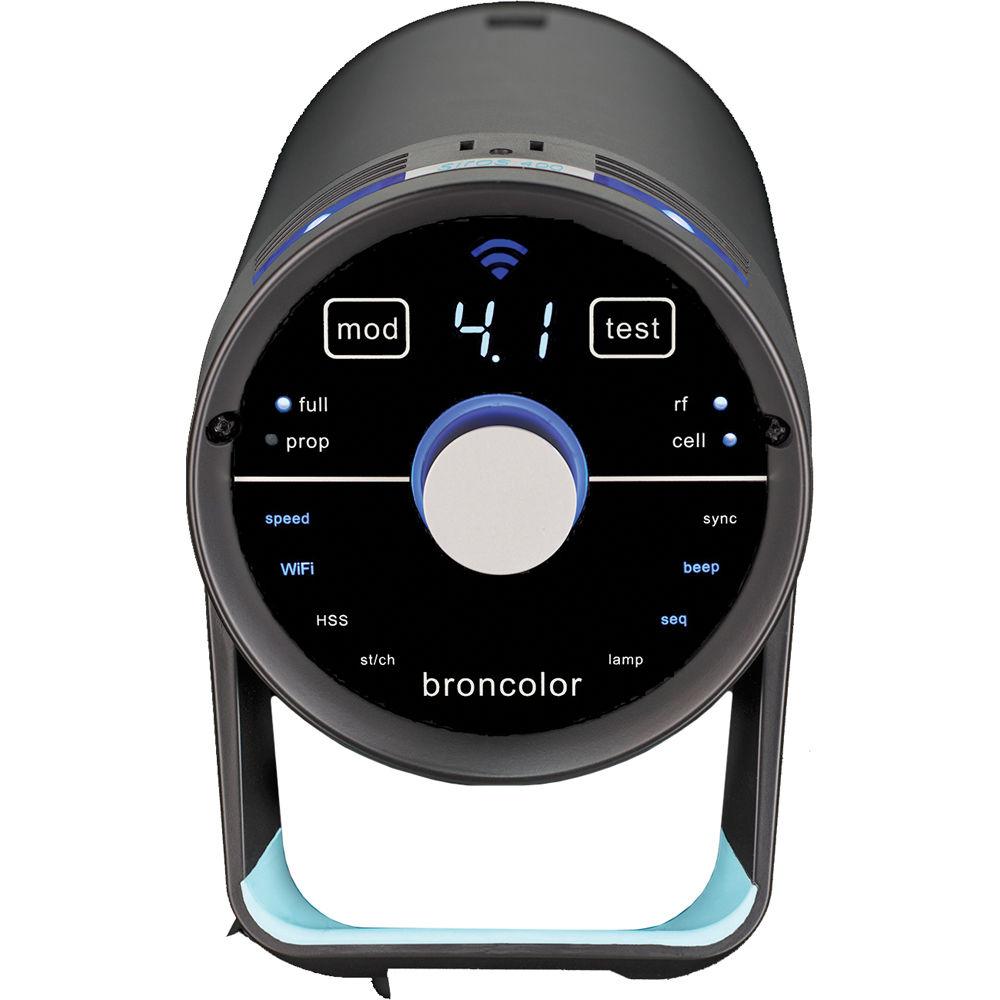

- Single rotary control for flash power output setting, a slight turn provides 1/10 stops while a "Twist" function allows for whole stops
- Internal discharge when power is reduced
- Grip features double-wall plastic with a special coating for durability and comfort
- Aluminum stand adapter can be used with the handle to function as a built-in floor stand
- Standard sync port and built-in photocell are available for more elaborate triggering setups
- Black aluminum body construction
- Designed and developed in Switzerland
In the Box Broncolor Siros 800 S WiFi/RFS 2.1 Monolight Flashtube Modeling Light Power Cord Limited 2-Year Warranty User Manual PDF 3.8mbdqzbbdeyrdvtfeudeuaxfwus Table of Contents
|
Upload User Manual
Have you got an user manual for the Broncolor Siros 800 S WiFi RFS 2.1 Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBroncolor Siros 800 S Specs | | | Maximum Power | 4 to 800 Ws | | Power Control | 9 Stops in 1/10-Stop Increments | | Flash Duration | t.1: 1/4000 to 1/500 Sec
t.5: 1/8000 to 1/1100 Sec | | Recycle Time | 0.04 to 2.90 Sec () | | Color Temperature | 5750K | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Broncolor | | | | Type | Tungsten | | Wattage | 300 W | | | | AC Input Voltage | 100to240 VAC, 50 / 60 Hz | | Current | 5.5 A (Operating) | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 7.1 x W: 5.1 x L: 12.6" / H: 18.0 x W: 13.0 x L: 32.0 cm | | Weight | 7.9 lb / 3.6 kg | | | | Package Weight | 10.9 lb | | Box Dimensions (LxWxH) | 13.5 x 9.2 x 8.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
