User manual
Broncolor Siros L 400Ws Battery-Powered 2-Light

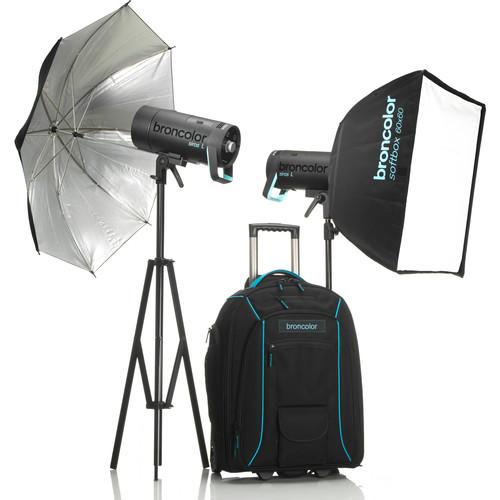

User Manual for Broncolor Siros L 400Ws Battery-Powered 2-Light Outdoor Kit 2

• Product category: Monolights Broncolor
• Brand: Broncolor
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Broncolor Monolights

Product description

• Siros L 400Ws Battery-Powered Monolight The Siros L 400Ws Battery-Powered Monolight from Broncolor is the latest in the Siros series of monolights. Powered by a Li-ion battery, the flash head gets up to 440 full-power flashes on a 70-minute charge. The modeling light is a 25W LED to conserve battery power. Speed is central to the design of the Siros L. Recycling is a lightning fast 0.03 to 1.2 seconds, while normal t0.5 flash duration is as short as 1/11300 sec. There's also a Speed Mode that bypasses the Siros L's Enhanced Color Temperature Control to prioritize short flash durations and fast recycle speeds. The result is a flash duration of 1/19,000 at minimum power: fast enough to freeze water droplets and other stop action effects. The Siros L has a 9-stop variable power range from full power all the way down to 2 Ws. While at higher settings it's possible to out-flash the sun, lower settings allow use of even the widest apertures for your desired effect. All functions are available on the simple, intuitive panel via an ergonomic rotary controller, but you also have access to the menus and controls of up to 6 units using your tablet or smartphone and the free bronControl app. The Siros L features Broncolor HS for syncing at shutter speeds up to 1/8,000s. Broncolor HS requires an RFS2.2 transmitter, available for Canon, Nikon, and Sony cameras. Existing Siros owners should ensure that their lights have the latest user-upgradable firmware, available online at www.bron.ch/sirosfirmwareupdate/.
  Siros L is Battery-Powered
  • A single fully-charged lithium-ion battery stores enough energy for a Siros 400 L to flash more than 440 times, and it does that at maximum power.
  Siros L is Fast
  • In only 0.03 seconds, your Siros L is ready again. The flash duration can as fast as 1/9000 sec (t 0.1) or 1/19000 sec (t 0.5).
  Cut-Off Technology
  • Flash duration and light output are the two decisive factors in light control. A microprocessor in Siros L will calculate the shortest flash duration for a given energy setting.
  Speed Mode
  • In Speed Mode, fast charging and short flash times have absolute priority. In this case, the calculation of constant color temperature (ECTC) is suppressed for quick results.
  Siros L is Simple

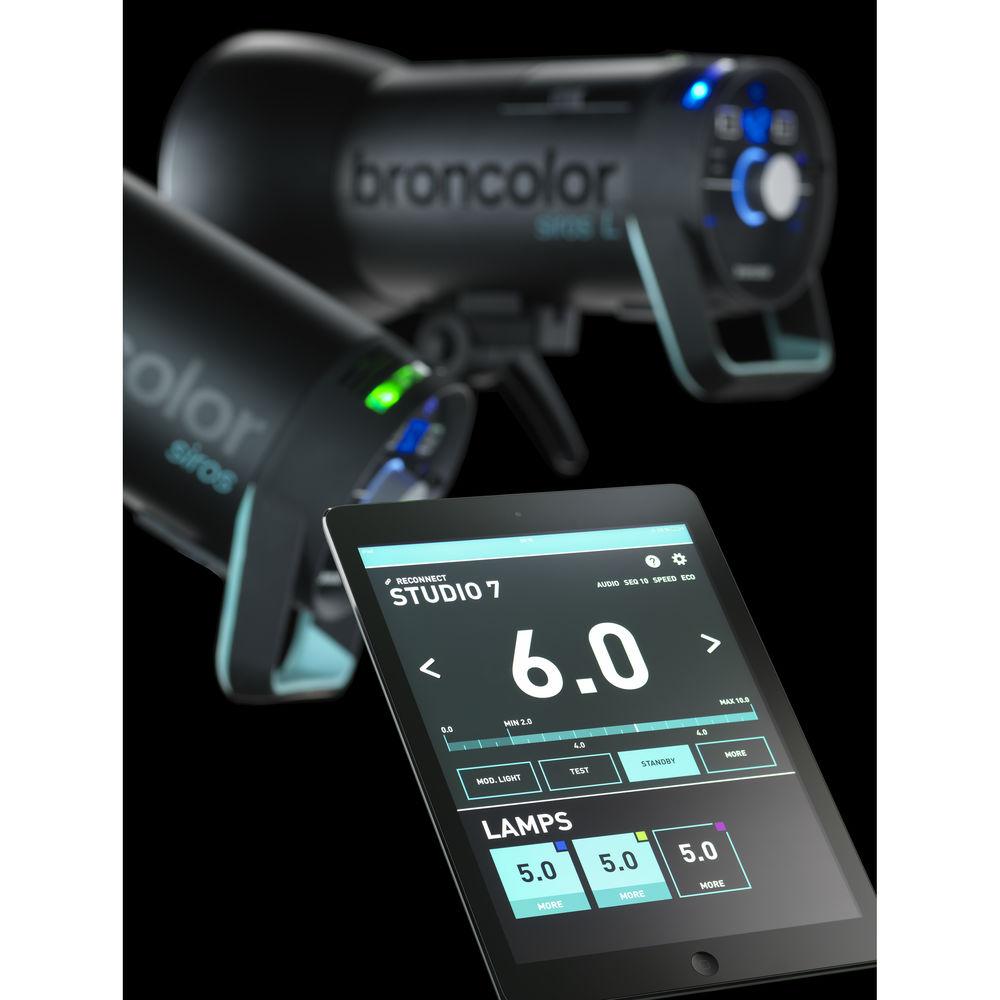

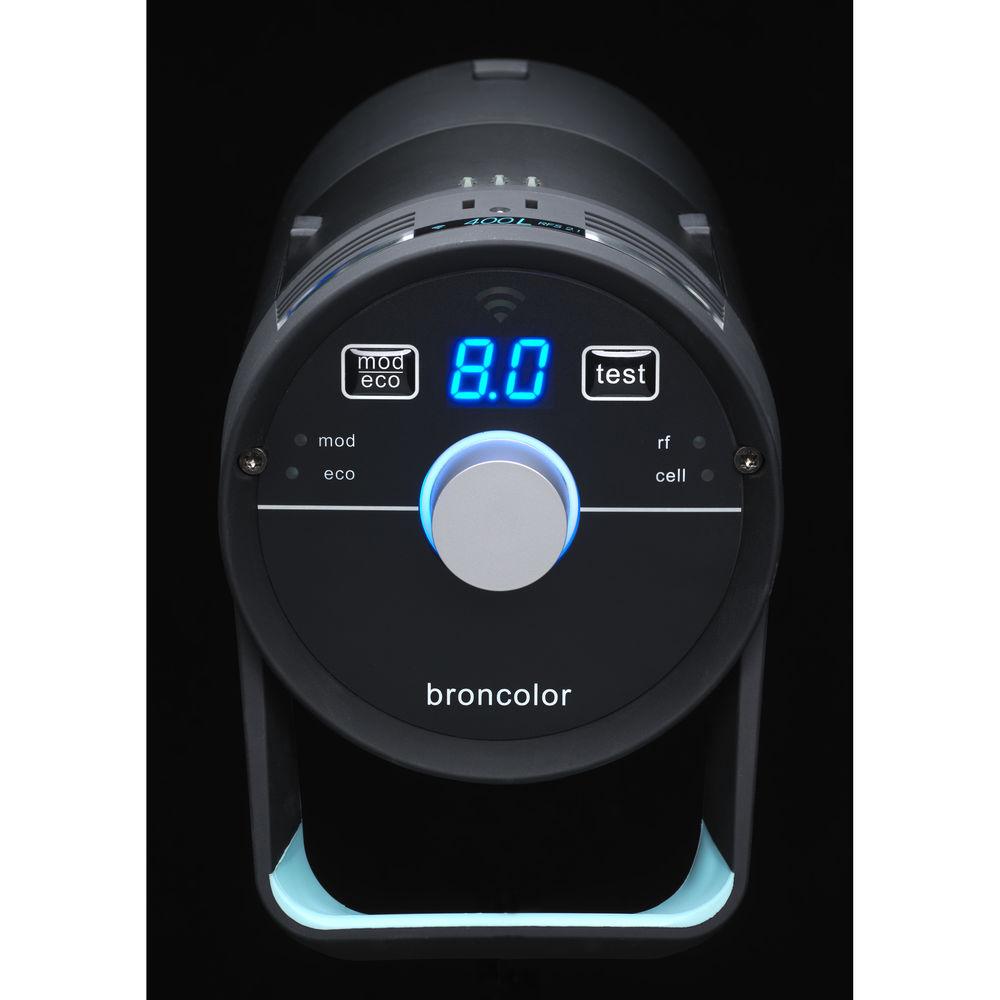

  • Very simple operation using the single rotary controller. Alternatively, you can use the advanced, intuitive app.
  Siros L is Powerful
  • The high light output leaves no photographer standing in the dark. It can even challenge sunshine. And with a control range of 9 stops, you can still use wide-open apertures when needed.
  Siros L is LED
  • With its low power consumption, the 25-watt LED module provides bright modeling light at a color temperature of 3200K. The light characteristics are absolutely comparable with the modeling light from a mains-operated Siros S.
• Charger for Siros L The multi-voltage Charger for Siros L from Broncolor charges the Siros Li-ion battery in 70 minutes.
• Rechargeable Li-Ion Battery for Siros L The Broncolor Rechargeable Li-Ion Battery for Siros L charges in 70 minutes and will get 440 400Ws flashes from a 70-minute charge.
• Umbrella Silver/Black 85 cm (33.5") Start controlling and modifying your light with this 85 cm (33.5") Umbrella Silver/Black from Broncolor. In general, the umbrella will broaden and soften the light, with larger sizes providing an even softer effect. This model features a reflective silver interior with a black backing to provide a crisper, more focused light, revealing structure and detail in your subjects.
• Softbox 60 x 60 cm (23.6 x 23.6") This Broncolor Softbox is a 60 x 60 cm (23.6 x 23.6") light modifier that creates an even, diffuse light. This type of soft light is useful in product and portrait photography. The amount of diffusion can be adjusted via a removable baffle and front panel. Also, it is able to accept grids and other light modification accessories.

  Included with this softbox are 4 rods for constructing and attaching the box to a light via an optional speedring. Also, it comes with the interior baffle, a front diffuser panel, and a transport bag for storage.
• Speed Ring for Broncolor Flash Systems This Broncolor Speed Ring is an adapter for mounting Broncolor softboxes to Broncolor flash systems. It features color coding on the rear face for easily assembling the softbox. The speed ring comes with a soft case.
• Sync Cable (16') The Broncolor 16' Sync Cable is a heavy duty cable that allows you to trigger your Broncolor flash head with a hard-wired connection. It has a mini pin at one end and a male PC connector at the other end. Although this is a straight cable, the camera end has a coiled section so that the cable doesn't disconnect or pull over the camera if tugged.

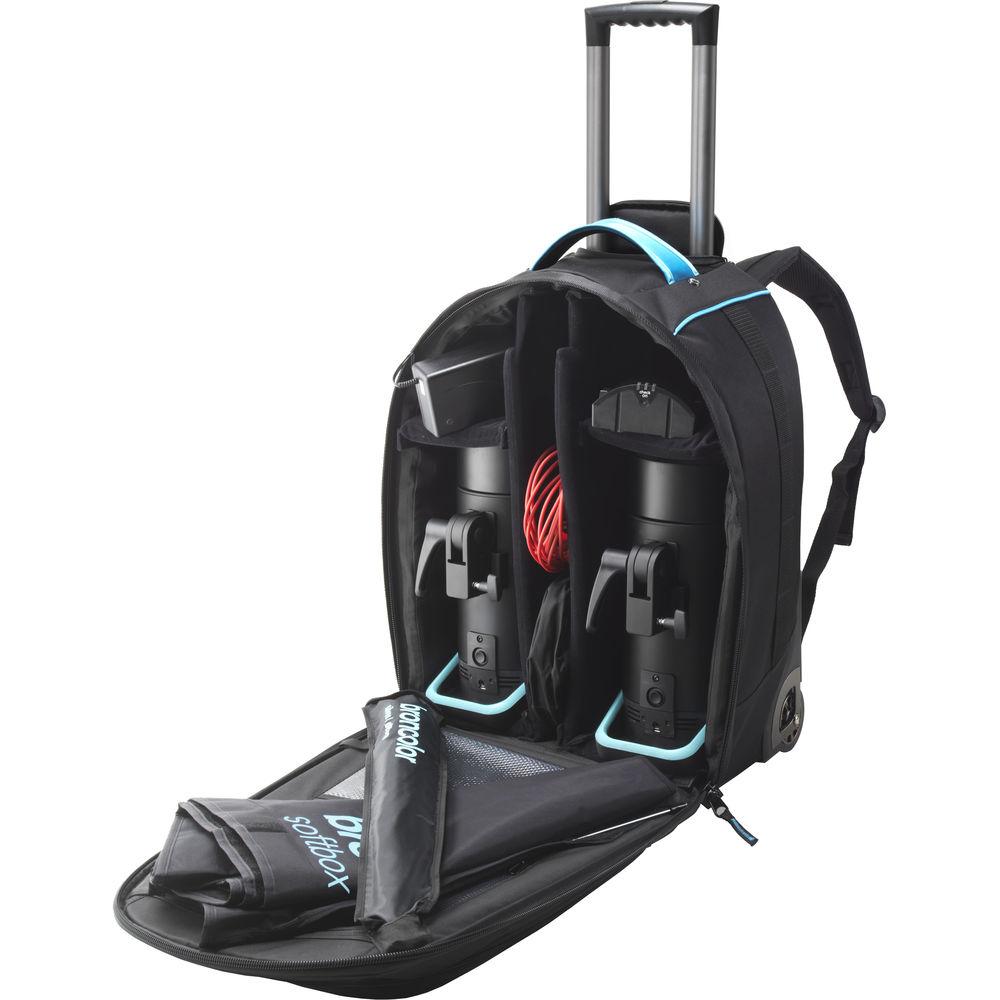

• Outdoor Trolley Backpack The Outdoor Trolley Backpack from Broncolor is specifically designed to carry all camera equipment and accessories.

• Charger for Siros L

• Rechargeable Li-Ion Battery for Siros L

• Flash Tube for Siros L 400 and 800

• Umbrella Reflector for Siros and Siros L Monolights

• Flash Bag 1.1 for Siros L

• Power Cord

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Front Panel

• Interior Baffle

• 4 x Attachment Rods

• Transport Bag

• Limited 2-Year Warranty

• Soft Case

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Factory Warranty

Also Includes

• 2 x Power Cords
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Siros L 400Ws Battery-Powered Monolight

  Maximum Power	2 to 400 Ws
  Power Control	9 Stops in 1/10-Stop Increments
  Flash Duration	t.1: 1/6200 to 1/400 Sec t.5: 1/11,300 to 1/1200 Sec
  Recycle Time	0.03 to 1.9 Sec ()
  Color Temperature	5500K
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Broncolor

  Type	LED
  Wattage	25 W
  Color Temperature	3000K

  Sync Type	Cable, Optical, Radio
  Interface	Micro-USB

  Battery Chemistry	Lithium-Ion
  Maximum Output Voltage	28.8 VDC
  Capacity (mAh)	2500 mAh
  Flashes Per Charge	440 Flashes (Full Power)
  Recharge Time	70 Minutes
  Weight	1.3 lb / 0.6 kg

  Display	None
  Auto Dump	Yes
  Operating Temperature	14 to 140°F / -10 to 60°C
  Dimensions	H: 7.1 x W: 5.1 x L: 12.6" / H: 18.0 x W: 13.0 x L: 32.0 cm
  Weight	6.8 lb / 3.1 kg

  Box Dimensions (LxWxH)	22.8 x 11.4 x 10.3"

• Charger for Siros L

  Box Dimensions (LxWxH)	9.35 x 6.4 x 2.15"

• Rechargeable Li-Ion Battery for Siros L

  Amp-Hours	2.5 Ah
  Capacity (Wh)	72 Wh
  Chemistry	Lithium-Ion
  Flashes Per Charge	440 Flashes (Full Power)

  Box Dimensions (LxWxH)	9.8 x 4.1 x 2.3"

• Umbrella Silver/Black 85 cm (33.5")

  Size	33.5" / 85.1 cm
  Interior	Silver
  Exterior	Black
  Weight	8.8 oz / 249.5 g

  Box Dimensions (LxWxH)	22.8 x 4.0 x 2.0"

• Softbox 60 x 60 cm (23.6 x 23.6")

  Size	23.6 x 23.6" (60 x 60 cm)
  Shape	Square
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Accepts Grids	Yes
  Requires Speed Ring	Yes, not included

  Box Dimensions (LxWxH)	22.5 x 8.4 x 2.4"

• Speed Ring for Broncolor Flash Systems

  Compatible Lighting	Broncolor
  Compatible Softbox Shape	Strip
  Number of Mounting Holes	10

  Box Dimensions (LxWxH)	7.85 x 7.75 x 2.65"

• Sync Cable (16')

  Box Dimensions (LxWxH)	9.55 x 4.5 x 1.2"

• Outdoor Trolley Backpack

  Box Dimensions (LxWxH)	21.5 x 13.2 x 9.8"
