User Manual for Broncolor Siros L 800Ws Battery-Powered Monolight Click to enlarge the picture
Contents of the user manual for the Broncolor Siros L 800Ws Battery-Powered Monolight
- Product category: Monolights Broncolor
- Brand: Broncolor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Broncolor Monolights
 |
User manual for the Broncolor Siros L 800Ws Battery-Powered Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Broncolor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Broncolor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Broncolor product will considerably shorten its lifespan!
|

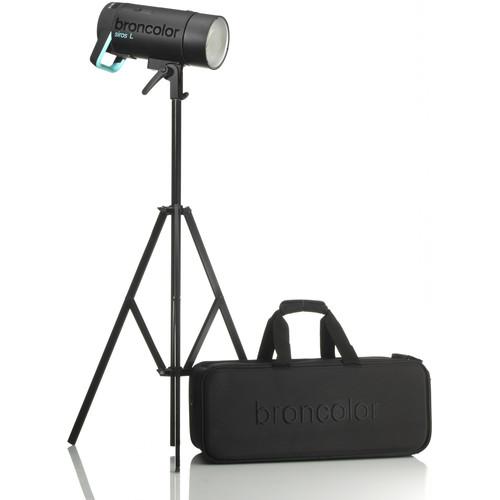

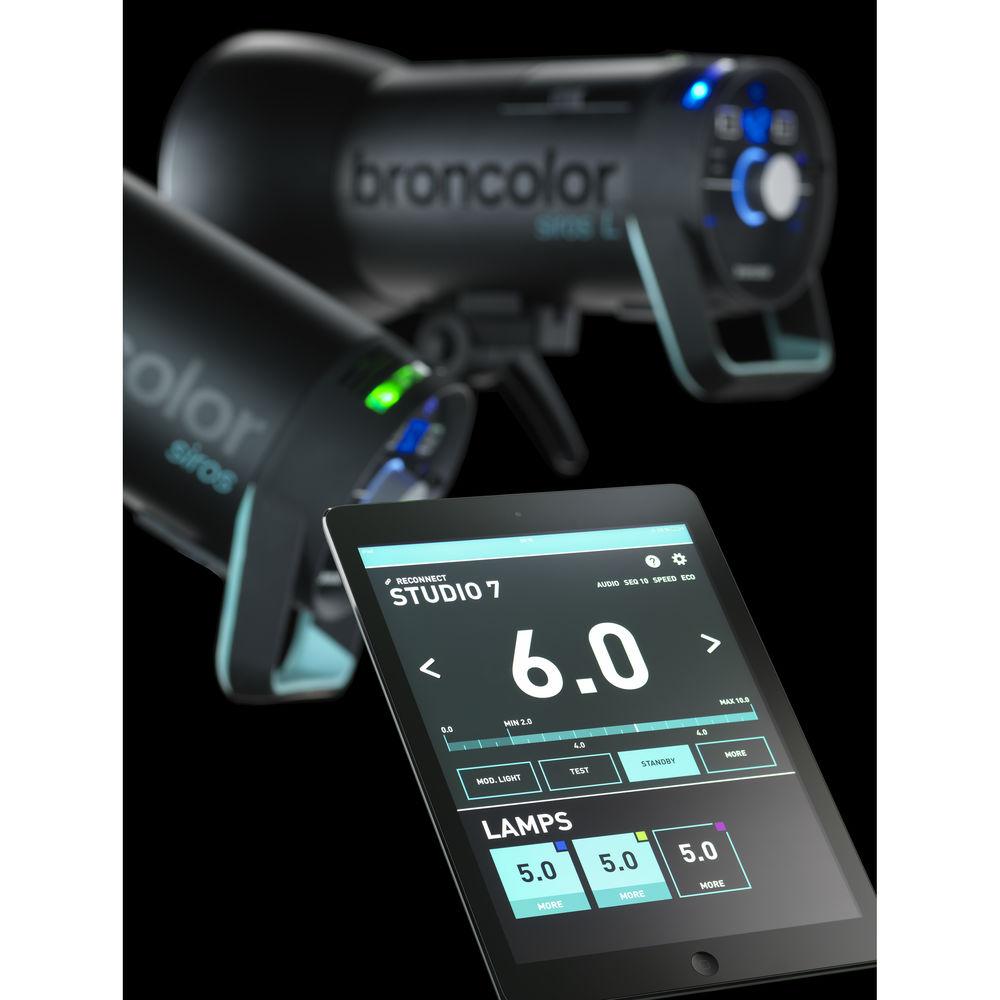

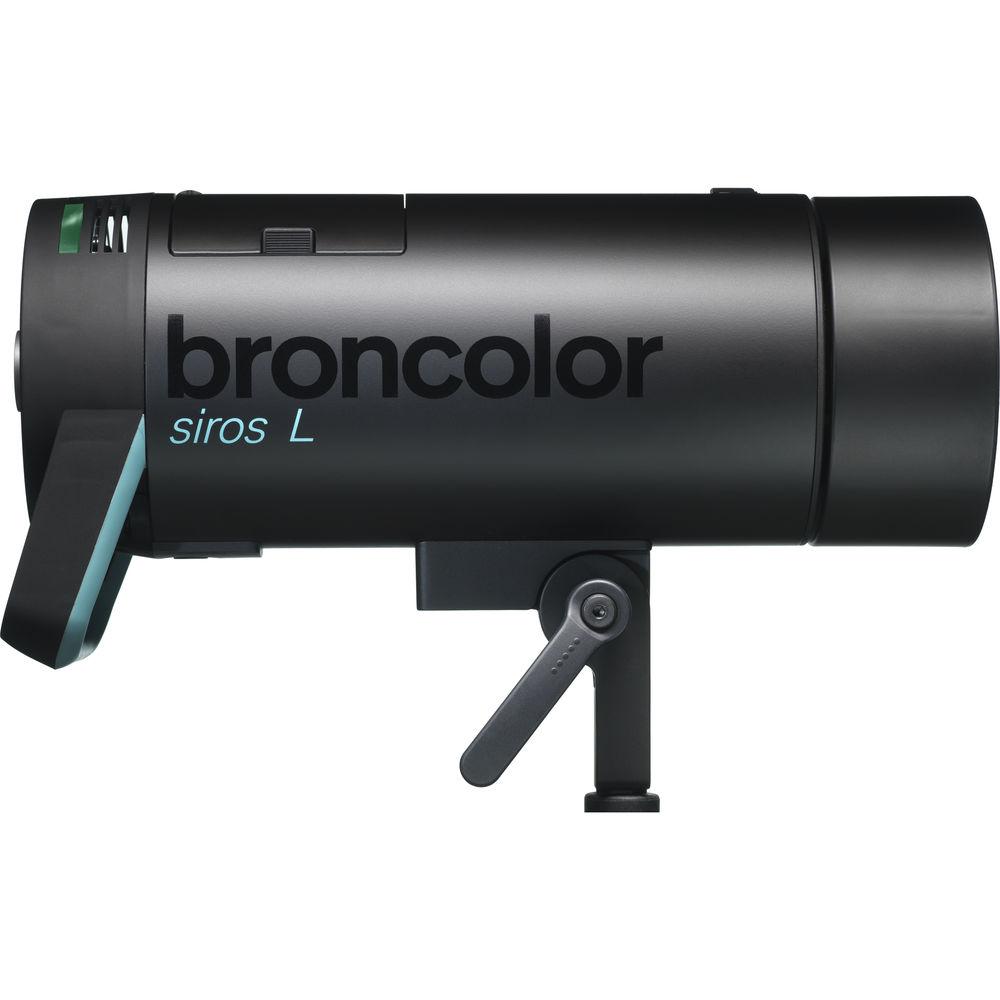

Product description The Siros L 800Ws Battery-Powered Monolight from Broncolor is the latest in the Siros series of monolights. Powered by a lithium-ion battery, the flash head gets up to 440 full-power flashes on a 70-minute charge. The modeling light is a 25W LED to conserve battery power. Speed is central to the design of the Siros L. Recycling is a lightning fast 0.03 to 2.7 seconds, while normal t0.5 flash duration is as short as 1/7400 sec. There's also a Speed Mode that bypasses the Siros L's Enhanced Color Temperature Control to prioritize short flash durations and fast recycle speeds. The result is a flash duration fast enough to freeze water droplets and other stop action effects. The Siros L has a 9-stop variable power range from full power all the way down to 2Ws. While at higher settings it's possible to out-flash the sun, lower settings allow use of even the widest apertures for your desired effect. All functions are available on the simple, intuitive panel via an ergonomic rotary controller, but you also have access to the menus and controls of up to 6 units using your tablet or smartphone and the free bronControl app. Siros L features Broncolor HS for syncing at shutter speeds up to 1/8000s. Broncolor HS requires an RFS2.2 transmitter, available for Canon, Nikon, and Sony cameras. Existing Siros owners should ensure that their lights have the latest user-upgradable firmware, available online at www.bron.ch/sirosfirmwareupdate/. - Siros L is Battery-Powered
- A single fully-charged lithium-ion battery stores enough energy for a Siros 800 L to flash more than 440 times, and it does that at maximum power.
- Siros L is Fast
- In only 0.03 seconds, your Siros L is ready again. The flash duration can as fast as 1/4400 sec (t 0.1) or 1/7400 sec (t 0.5).
- Cut-Off Technology
- Flash duration and light output are the two decisive factors in light control. A microprocessor in Siros L will calculate the shortest flash duration for a given energy setting.
- Speed Mode
- In Speed Mode, fast charging and short flash times have absolute priority. In this case, the calculation of constant color temperature (ECTC) is suppressed for quick results.
- Siros L is Simple

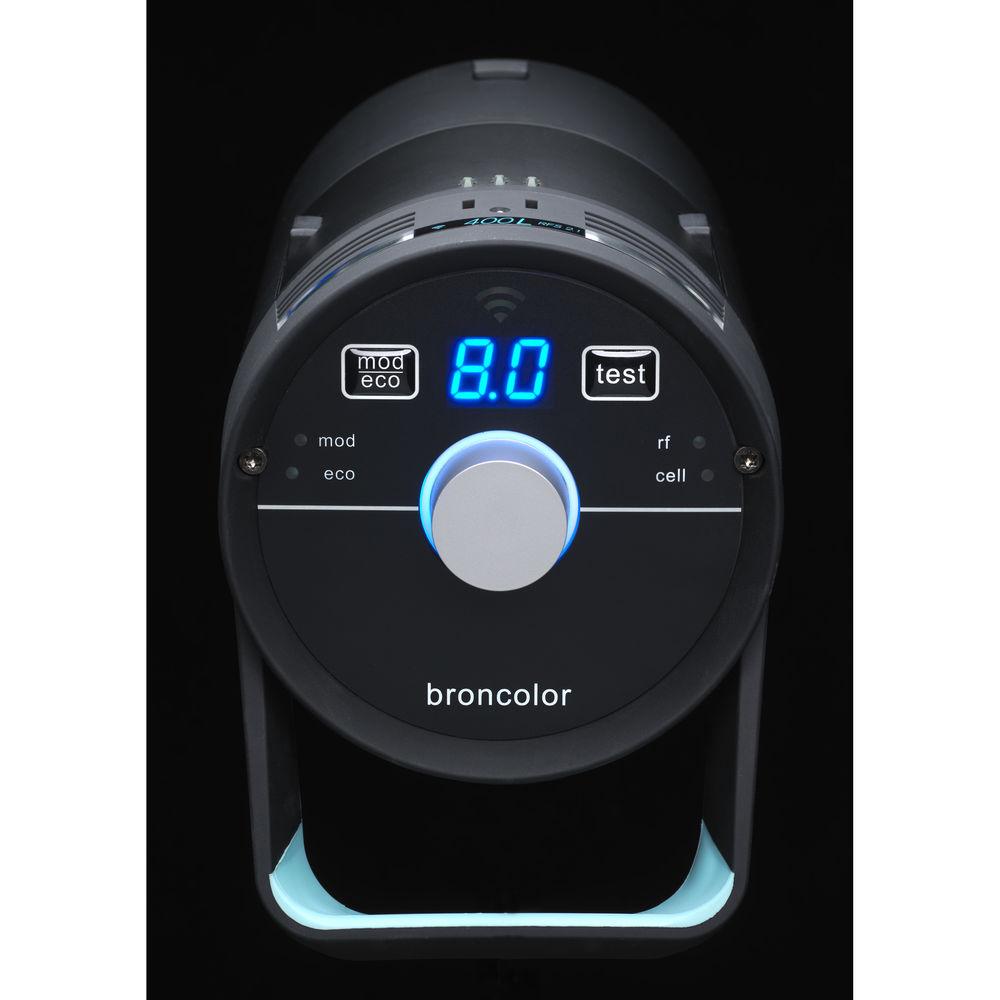

- Very simple operation using the single rotary controller. Alternatively, you can use the advanced, intuitive app.
- Siros L is Powerful
- The high light output leaves no photographer standing in the dark. It can even challenge sunshine. And with a control range of 9 stops, you can still use wide-open apertures when needed.
- Siros L is LED
- With its low power consumption, the 25W LED module provides bright modeling light at a color temperature of 3200K. The light characteristics are absolutely comparable with the modeling light from a mains-operated Siros S.
In the Box Broncolor Siros L 800Ws Battery-Powered Monolight Charger for Siros L Rechargeable Li-Ion Battery for Siros L Flash Tube for Siros L 400 and 800 Umbrella Reflector for Siros and Siros L Monolights Flash Bag 1.1 for Siros L Power Cord Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Broncolor Siros L 800Ws Battery-Powered Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Broncolor Siros L 800Ws Battery-Powered Monolight can be downloaded in PDF format at the link stated below.
Technical parametersBroncolor Siros 800 L Specs | | | Maximum Power | 4 to 800 Ws | | Power Control | 9 Stops in 1/10-Stop Increments | | Flash Duration | t.1: 1/4400 to 1/250 Sec
t.5: 1/7400 to 1/700 Sec | | Recycle Time | 0.03 to 2.7 Sec () | | Color Temperature | 5500K | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Broncolor | | | | Type | LED | | Wattage | 25 W | | Color Temperature | 3000K | | | | Sync Type | Cable, Optical, Radio | | Interface | Micro-USB | | | | Battery Chemistry | Lithium-Ion | | Maximum Output Voltage | 28.8 VDC | | Capacity (mAh) | 2500 mAh | | Flashes Per Charge | 220 Flashes (Full Power) | | Recharge Time | 70 Minutes | | Weight | 1.3 lb / 0.6 kg | | | | Display | None | | Auto Dump | Yes | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | H: 7.1 x W: 5.1 x L: 14.0" / H: 18.0 x W: 13.0 x L: 36.0 cm | | Weight | 8.2 lb / 3.7228 kg
9.3 lb / 4.2222 kg, Including Battery | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 22.5 x 11.5 x 10.3" |
