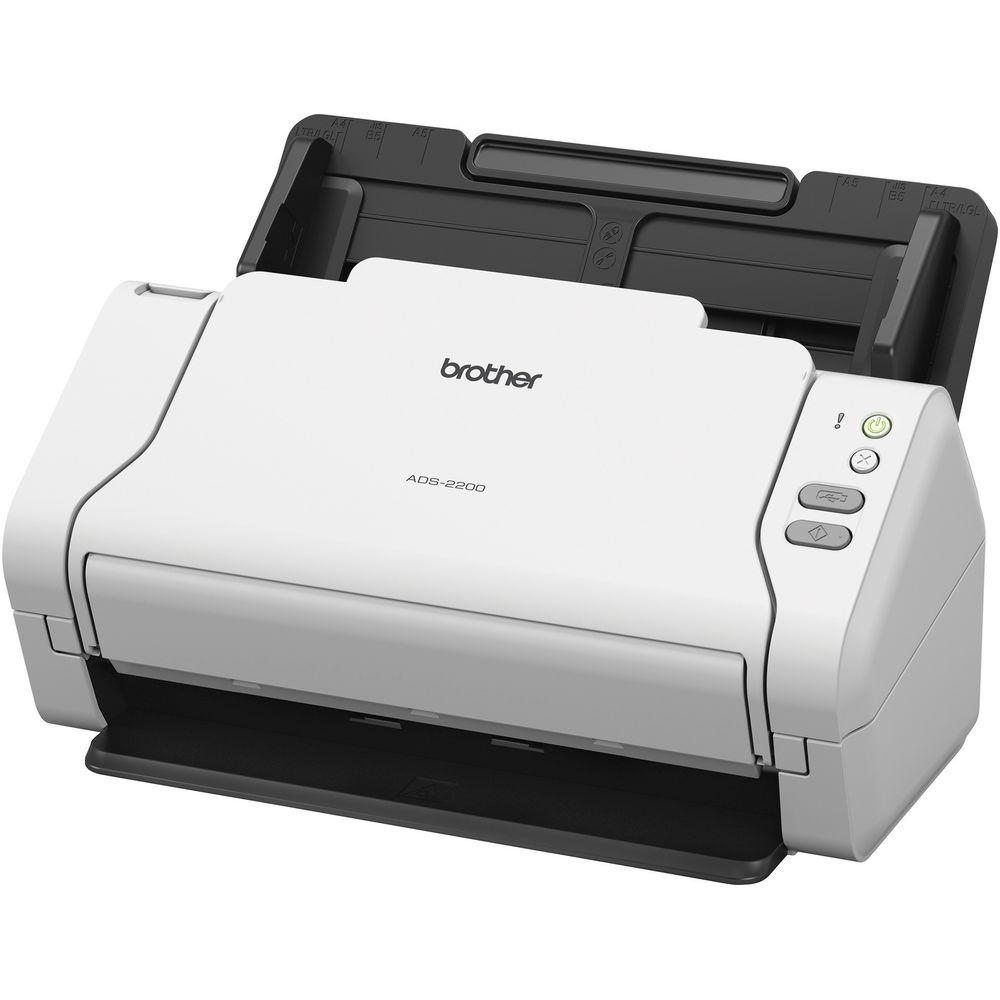

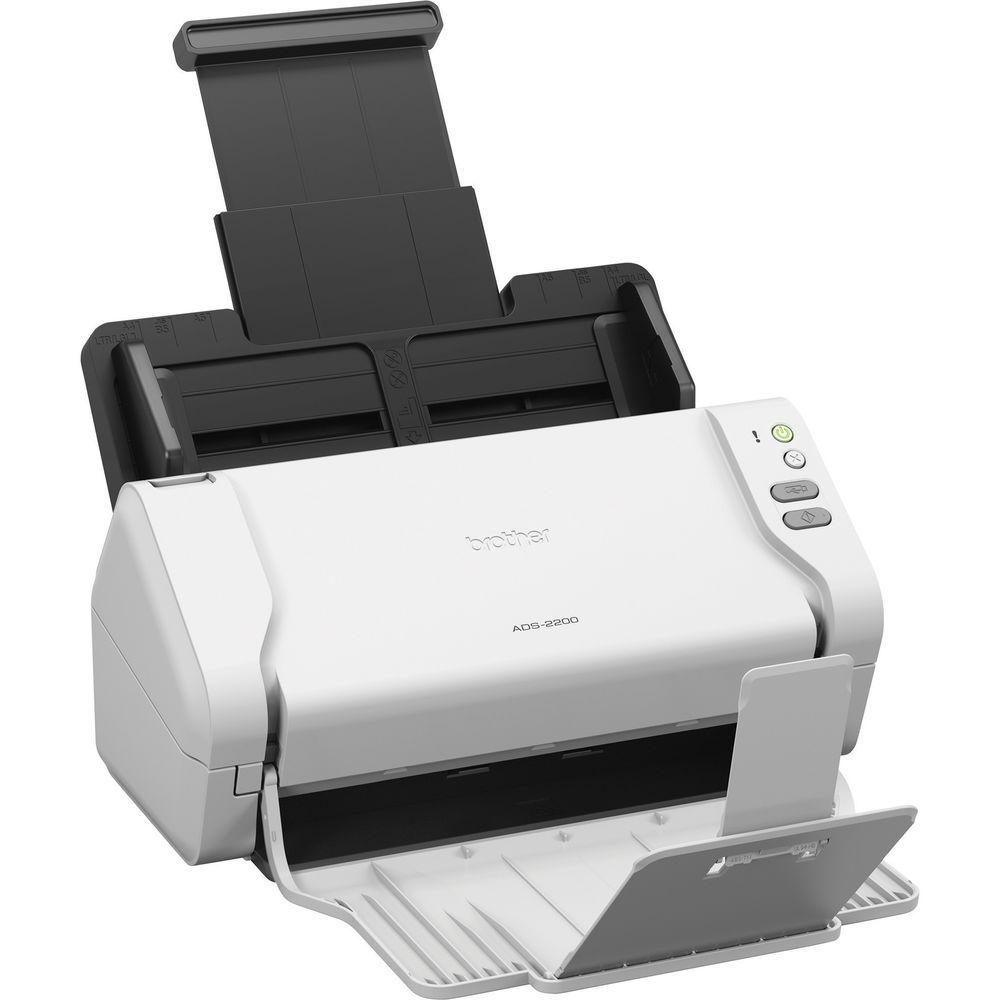

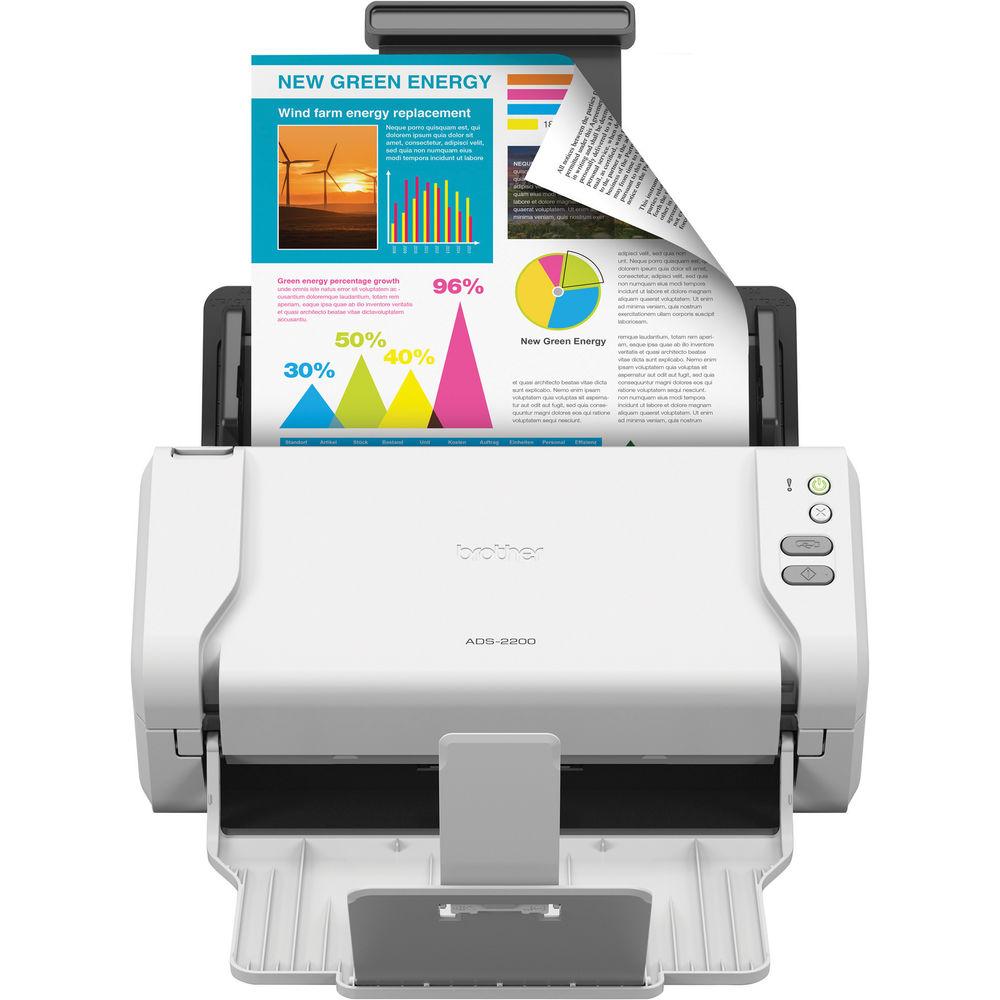

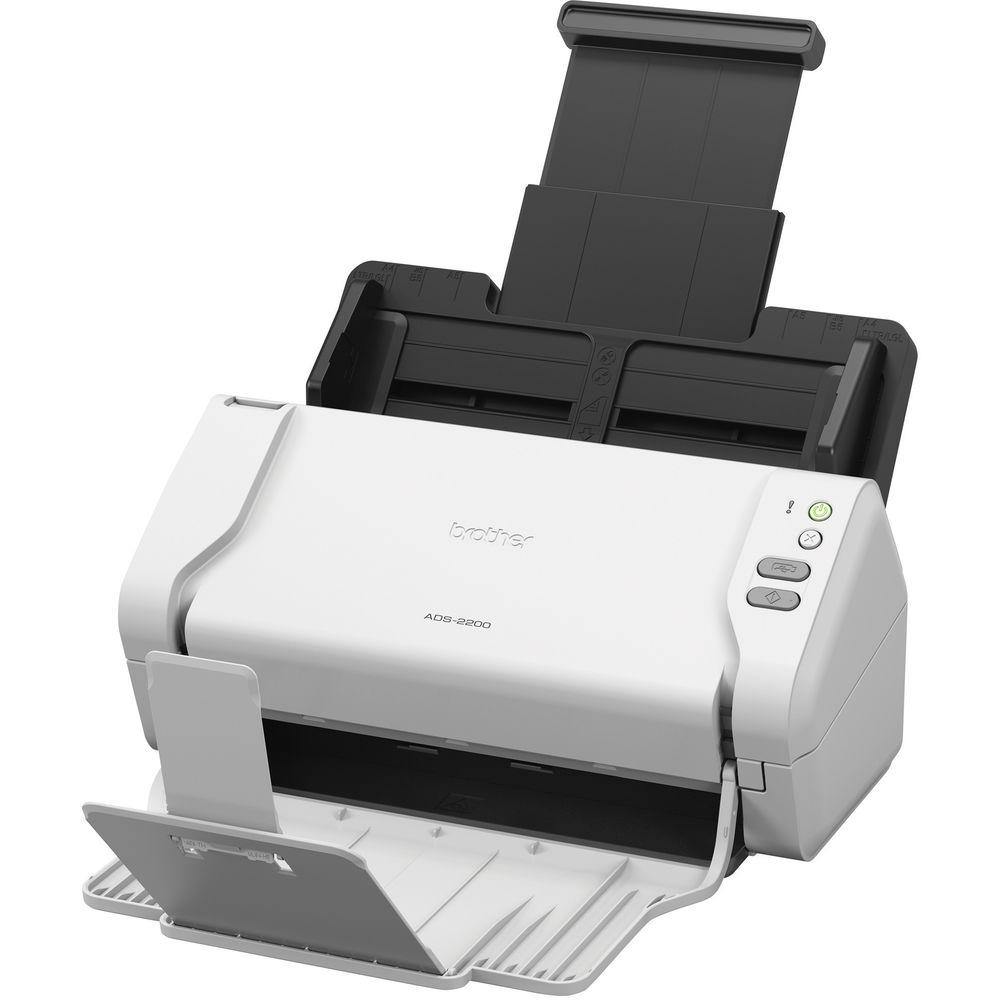

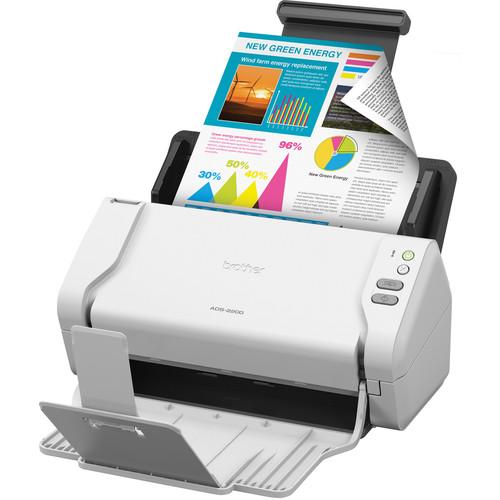

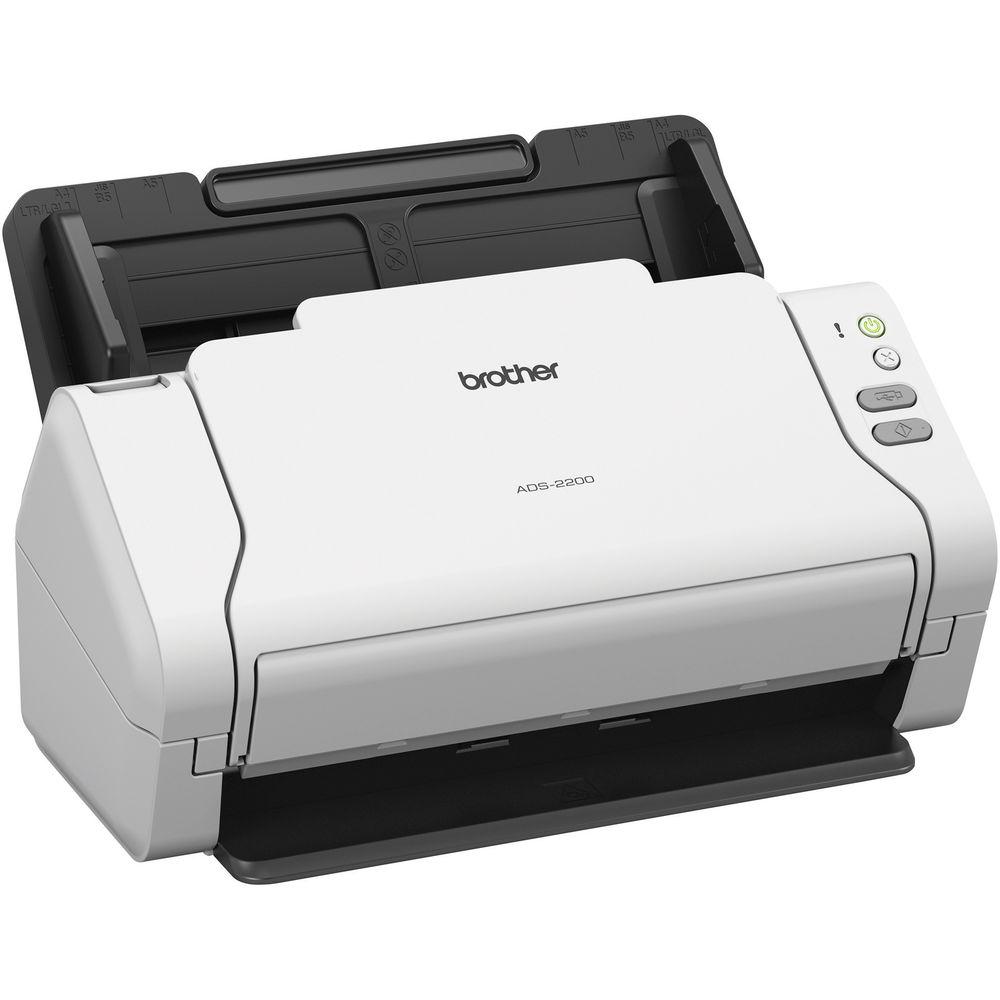

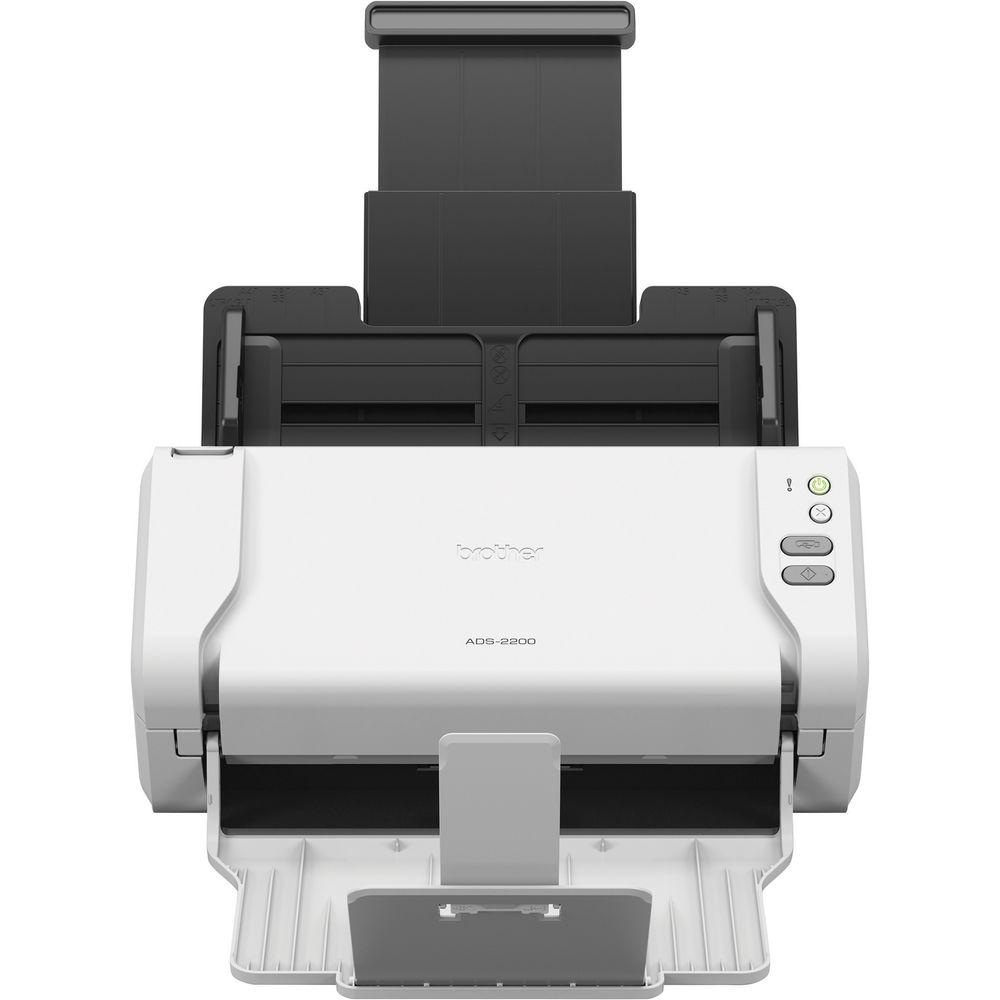

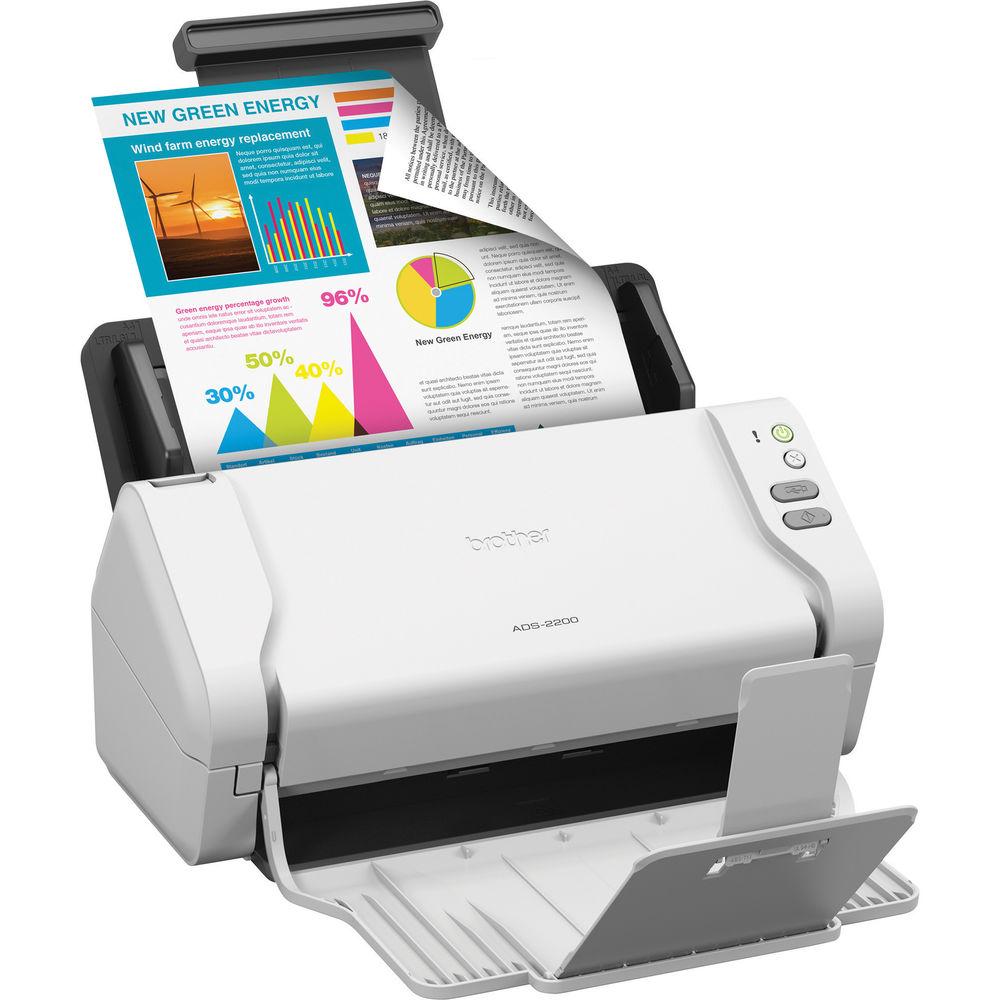

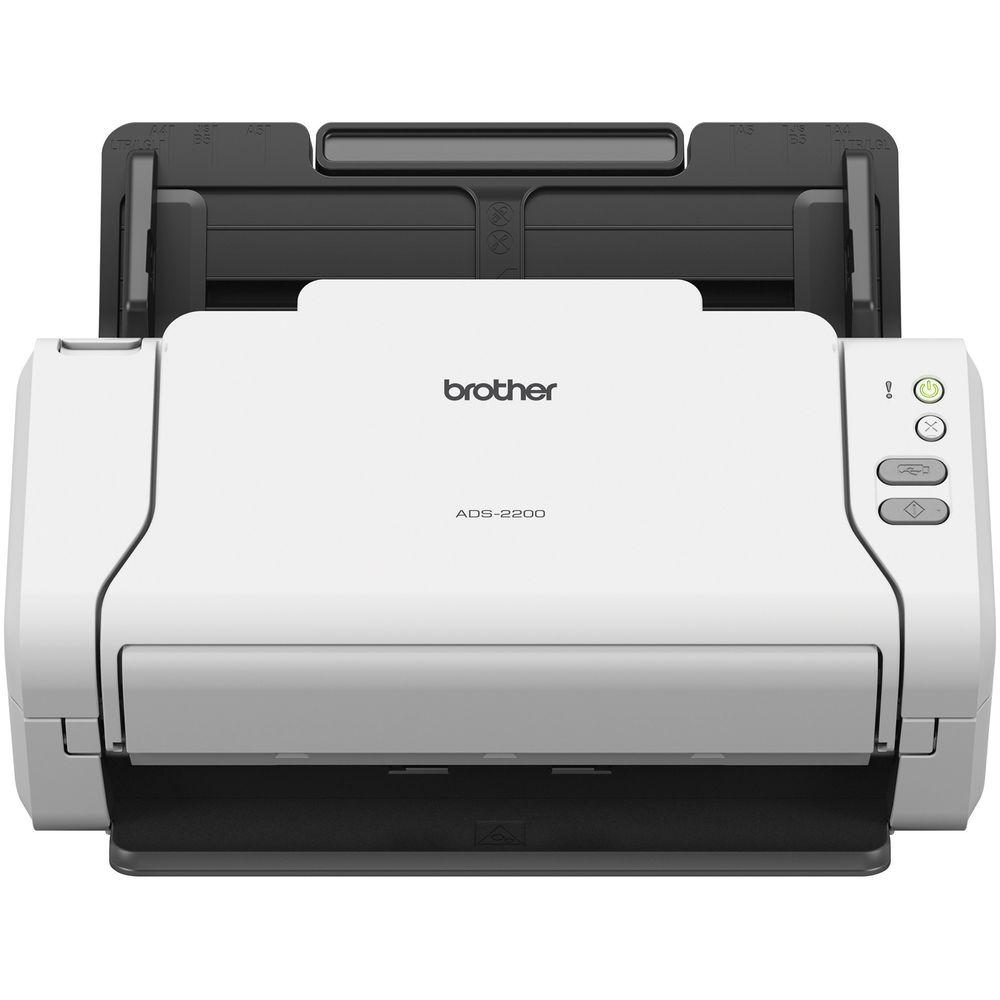

User Manual for Brother ADS-2200 High-Speed Document Scanner Click to enlarge the picture
Contents of the user manual for the Brother ADS-2200 High-Speed Document Scanner
- Product category: Flatbed & Document Scanners Brother
- Brand: Brother
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brother Flatbed & Document Scanners
 |
User manual for the Brother ADS-2200 High-Speed Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brother product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!
|

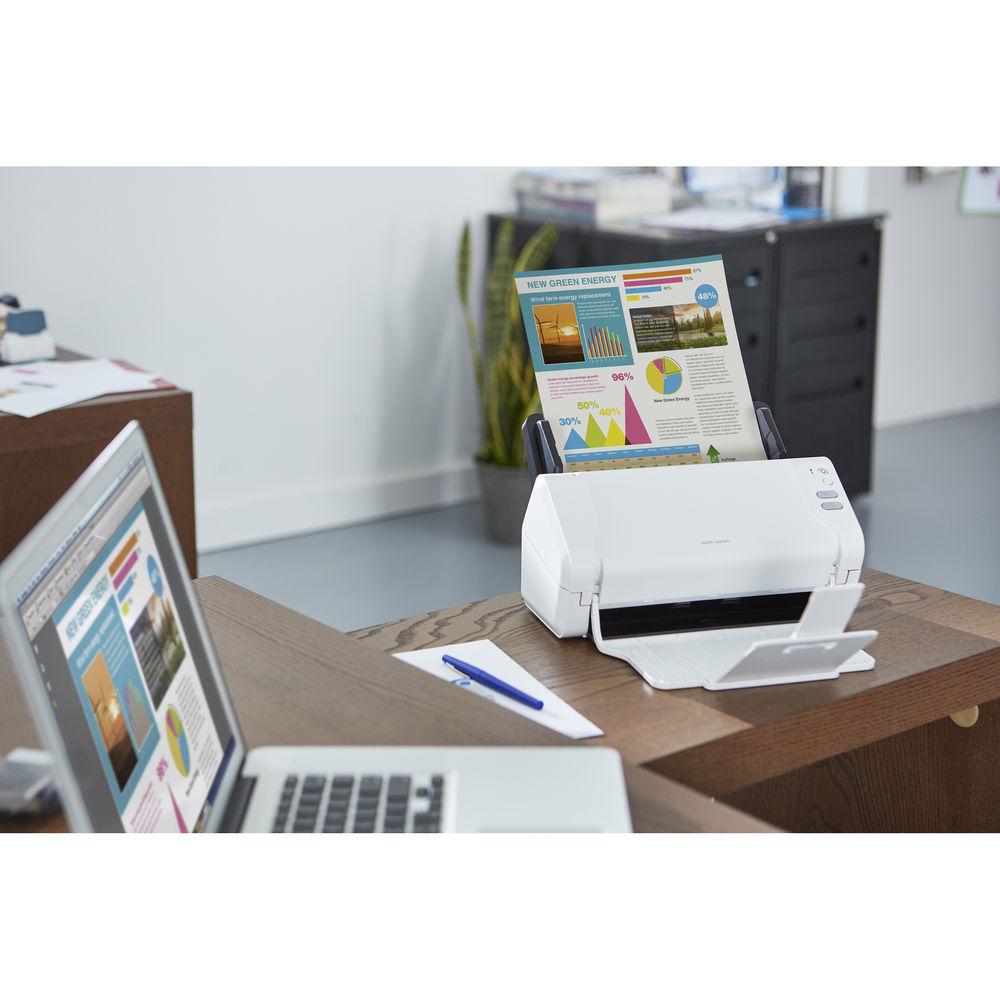

Product description With a small footprint and fast scan speeds, the compact ADS-2200 High-Speed Document Scanner from Brother will make a great addition to a home office or desk with its ability to quickly digitize your files and photos at up to 35 ppm. It can create detailed images with an optical resolution of 600 dpi, which can be interpolated to 1200 x 1200 dpi, and 48-bit internal processing. Along with this, automatic image optimization and included software will provide you with easy-to-read and organized documents, especially when using OCR technology.
Many document types can be handled with the 50-sheet ADF with compatible sizes ranging from 2 x 2" up to 8.5 x 14". A long document scanning mode is available for working with banners up to 34" in length. Also, the ADF has single-pass duplexing capabilities with an impressive speed of 70 ipm. For ease of use, the ADS-2200 has a walk-up USB port for scanning directly to a portable storage device. And, it has USB 2.0 connectivity for working with most computers. - Using Dual CIS image sensors with an optical resolution of 600 x 600 dpi and a max interpolated resolution of 1200 x 1200 dpi, users will enjoy sharp, detailed scans.
- With an internal color depth of 48-bit and output of 24-bit, final scans produced by the ADS-2200 will be vivid and accurate.
- Scan at speeds up to 35 ppm or up to 70 ipm when set to duplexing.
- The 50-sheet ADF can work with various document types, including paper, receipts, photos, business cards, and plastic/embossed cards. This includes sizes ranging from 2 x 2" up to 8.5 x 14", as well as long documents up to 34" in length. Also, plastic cards up to 55 mil thick can be scanned.
- This unit can handle high volumes with a rated daily duty cycle of 3000 scans.
- TWAIN, WIA, ICA, and SANE scan drivers are included.
- Standard USB 2.0 connectivity is available for wired configurations.
- Scan to multiple locations, including file, image, OCR, and USB flash memory drive.
- Advanced features include programmable shortcut buttons, background removal, blank page removal, deskew support, plastic card scanning, color dropout, and the ability to create searchable PDFs.
- An easy-access USB port is available for direct scanning.
- Nuance PaperPort 14SE for Windows, PageManager for Mac, and NewSoft Presto! BizCard OCR.
UPC: 012502648710 In the Box Brother ADS-2200 High-Speed Document Scanner AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother ADS-2200 High-Speed Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother ADS-2200 Specs | Maximum dpi Resolution | 1200 dpi | | Optical Resolution | 600 dpi | | Duplex Speed | 70 ipm (Color) | | Simplex Speed | 35 ppm (Color) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 34" / 86.4 cm | | Color Depth | 48-Bit (Internal)
24-Bit (External) | | Grayscale Bit-Depth | 8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Scan Modes | Color, Grayscale | | Document Feeding | ADF | | Life Expectancy | 3000 Sheets per Day | | Connectivity | USB 2.0 | | Wireless Connectivity | None | | Media Types | Business Card, Embossed Card, Plain Paper, Plastic ID Card, Receipt | | Paper Weight | 11 to 110 lb / 50 to 209 gsm | | Maximum Paper Thickness | 55 mil / 1.1 mm | | Operating System Compatibility | macOS/OS X, Windows, Linux | | Image Sensor | 2 x Contact Image Sensor (CIS) | | Control Panel | 4 Buttons | | Drivers | TWAIN, WIA, ICA, SANE | | Memory | 512 MB | | Duty Cycle | 3000 Scans | | Maximum Sheet Capacity | 50 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR | | Operating Humidity | 20 to 80% | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Humidity | 10 to 90% | | Storage Temperature | 32 to 104°F / 0 to 40°C | | Maximum Power Consumption | 21 W | | AC Input Power | 120 VAC, 60 Hz | | Power Source | AC Adapter | | Dimensions | 11.8 x 5.7 x 7.0" / 30.0 x 14.5 x 17.8 cm | | Weight | 5.9 lb / 2.7 kg | | | | Package Weight | 8.735 lb | | Box Dimensions (LxWxH) | 15.6 x 11.1 x 9.7" |
