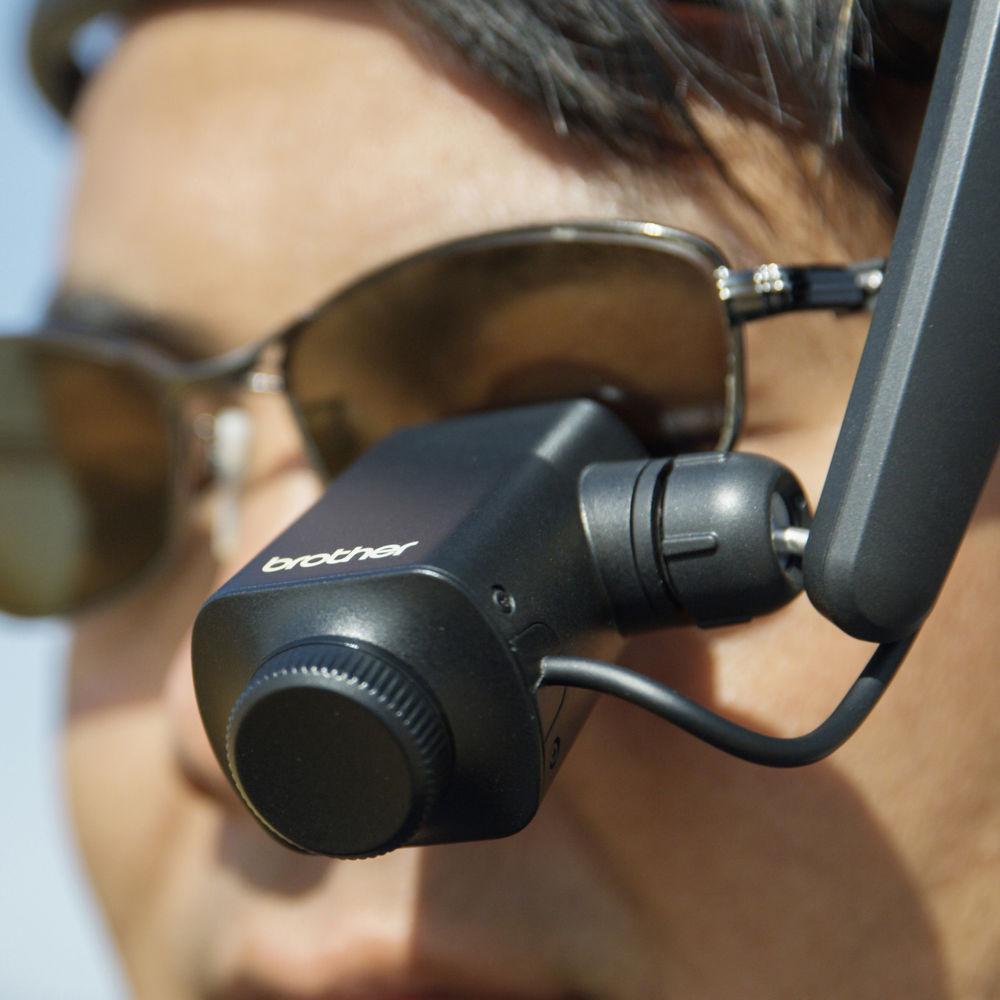

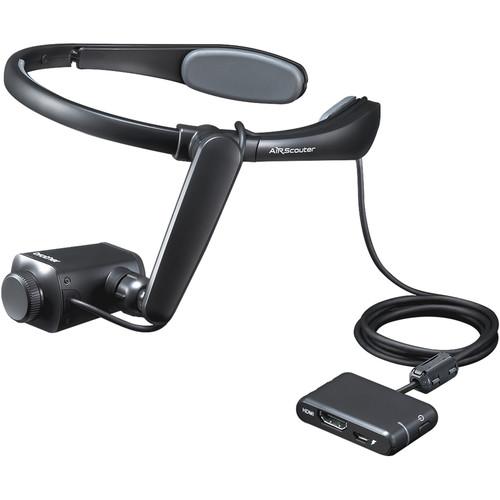

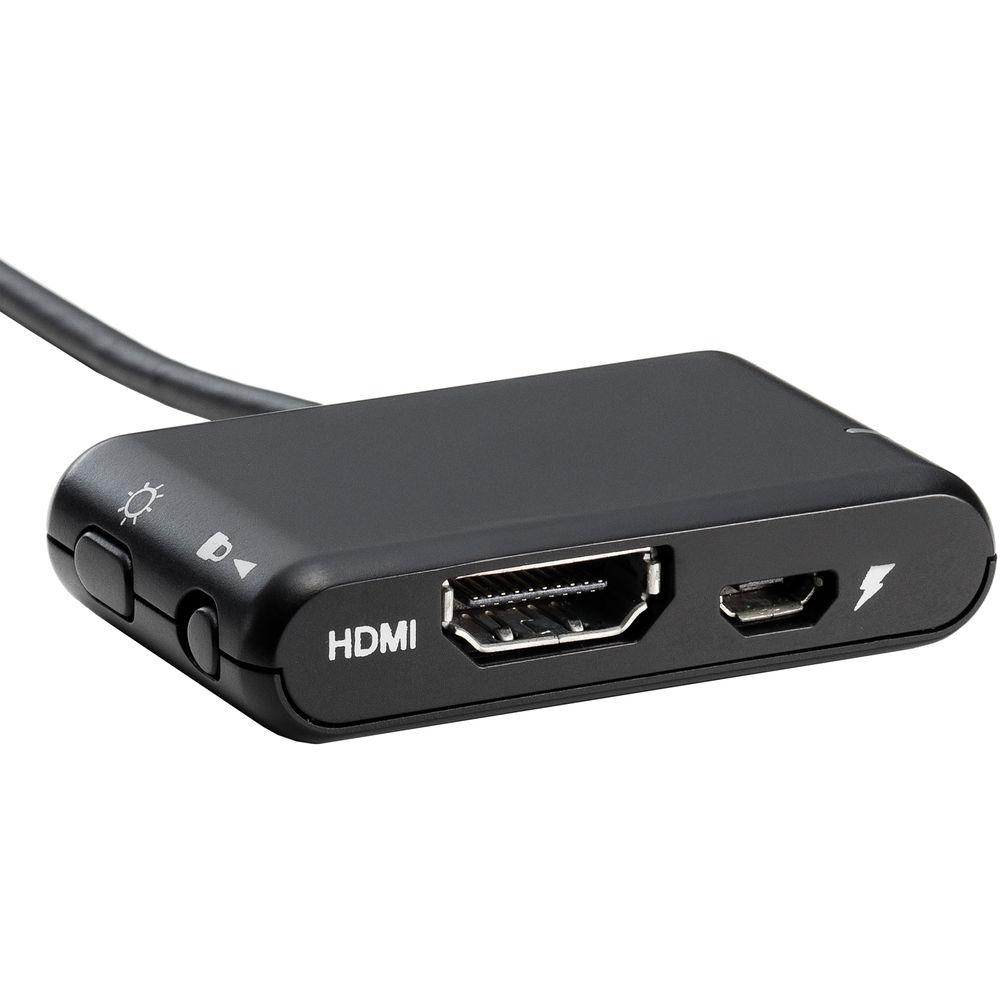

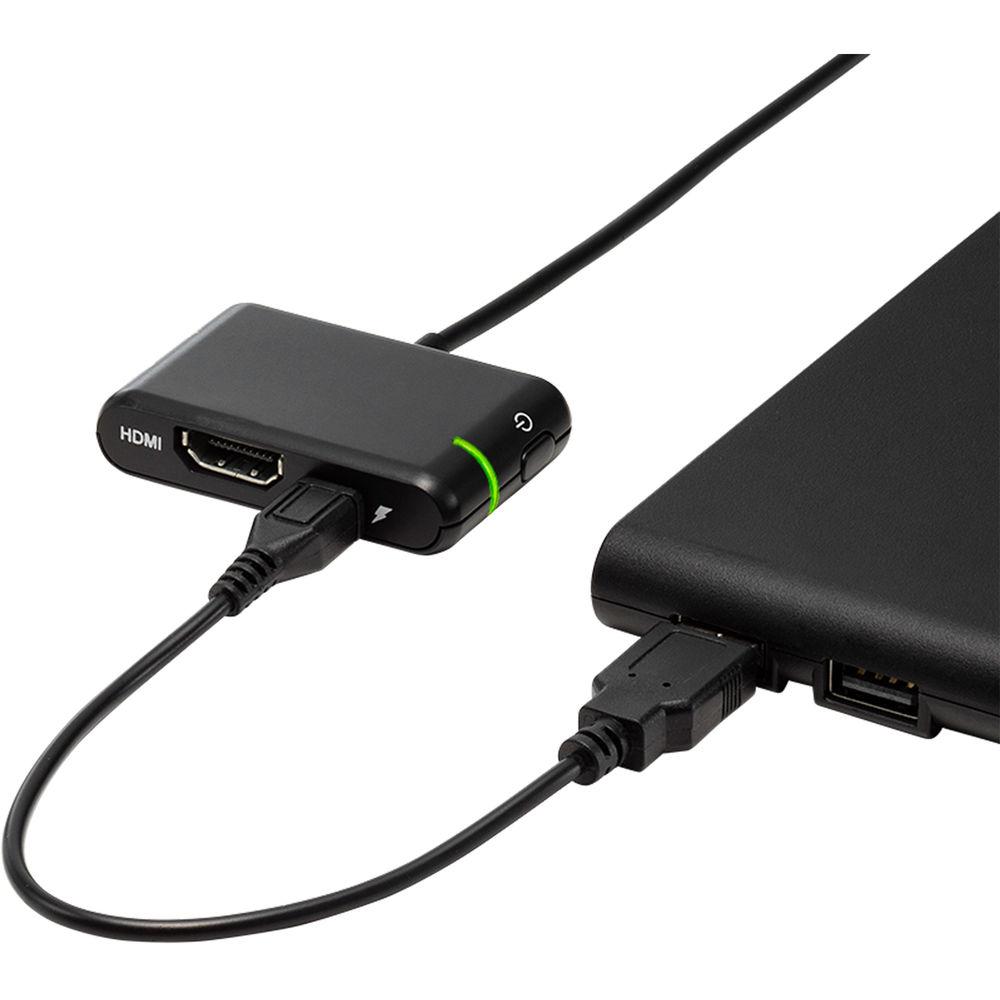

Product description The Brother AiRScouter WD-300C Head-Mounted Display features a 720p HD display mounted on a headband for hands-free monitoring of an HDMI video source. Designed to be used in a range of applications from drone or motorized gimbal operation to security, the headset only sits in front of one eye, allowing you to actively monitor a video feed while maintaining situational awareness or line-of-sight of your drone. The display unit itself sits on an articulating arm for a wide range of adjustments. The compact control unit with the HDMI video and USB power connections sits separately from the headband and can be powered with standard USB batteries for use in the field. - 720p HD Resolution Display

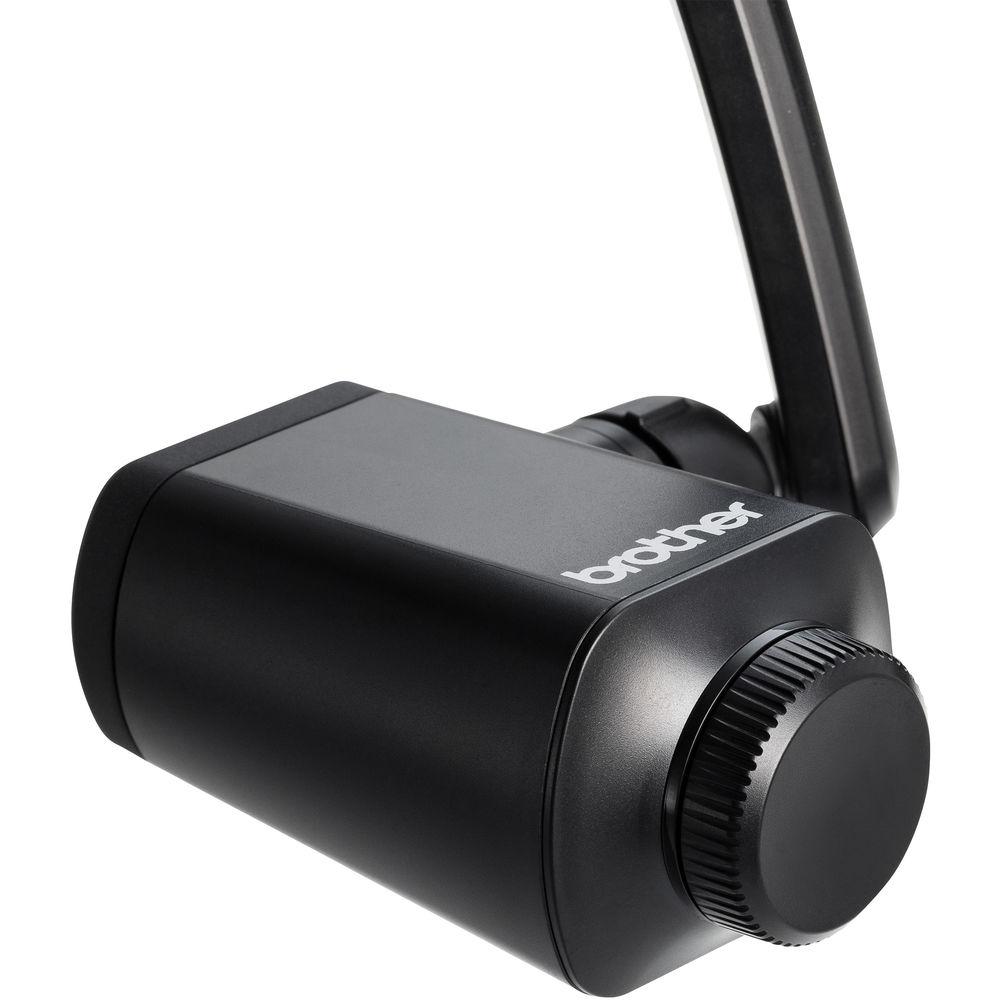

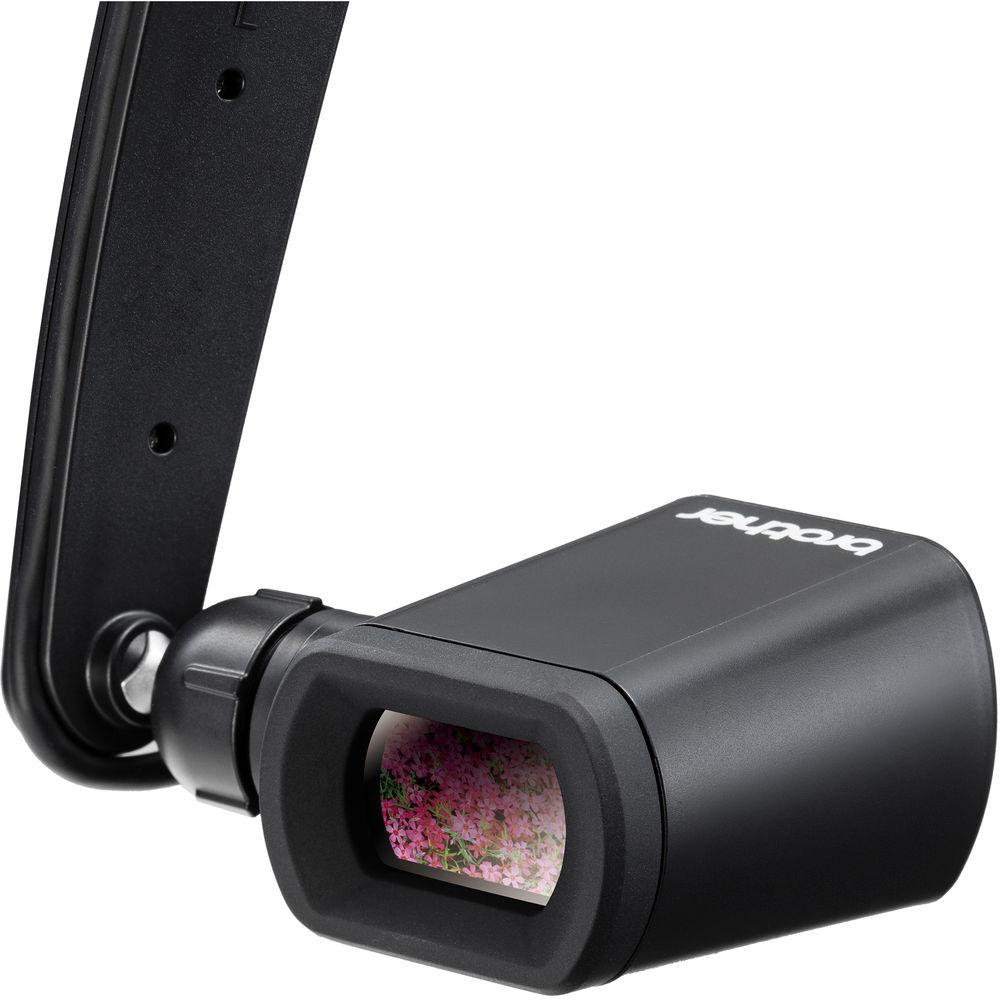

- The AiRScouter WD-300C features a 720p-resolution display with adjustable focus to avoid eye strain.
- HDMI Input
- The full-sized HDMI input accepts 720p HD signals from your video receiver or camera to feed the 720p display in the head unit.
- Adjustable Headband
- The headband fits comfortably and securely on your head, and the flexible arm lets you position the display where it works for you. The display can be attached to either side of the band for right-eyed or left-eyed viewing, and you can wear it the same way with or without glasses.
- FAA-Compliant FPV Piloting
- The design of the AiRScouter WD-300C allows for FPV (first-person view) while still complying with FAA Part 107 regulations by maintaining a visual line of sight (VLOS) with the aircraft.
- IP54-Rated Enclosure
- The unit can be safely used in inclement weather or dusty conditions.
UPC: 012502649014 In the Box Brother AiRScouter WD-300C Head-Mounted Display Display Unit Headband Control Box Articulating Arms for Left and Right Eye Operation Rear Band Cable Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother AiRScouter WD-300C Head-Mounted Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother WD-300C Specs | | | Style | Head unit, monocular (one eye) | | Resolution | 1280 x 720 (720p) | | Number of Colors | 24-bit (8 bits per channel, 16.7 million colors) | | Focus Adjustment | 12" / 30 cm - infinity | | Field of View | Approx. 25.6° | | Virtual Screen Size | Approx. 19" / 48 cm (at 3' / 1 m projected distance) | | | | Video Input | 1 x HDMI type A (up to 720p) | | Power | 1 x USB Micro-B | | | | Power Requirements | USB power source | | Power Consumption | 1.5 W (5 VDC, 0.5 A) | | Functions | Brightness (5 levels)
Screen Rotation (for right or left eye)
Key Lock
Magnifier Mode
Reduce Mode | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 20 to 80% non-condensing | | Dimensions | Head Unit: 10.4 x 7.2 x 1" / 26.4 x 18.3 x 2.6 cm
Control Box: 0.5 x 2.2 x 1.4" / 1.3 x 5.6 x 3.6 cm
Cable: 4.9' / 1.5 m | | Weight | 5.8 oz / 165 g | | | | Package Weight | 1.005 lb | | Box Dimensions (LxWxH) | 12.25 x 8.6 x 2.45" |
