Product description The Brother AirScouter WD-330C Head-Mounted Display features a 720p HD display mounted on a headband for hands-free monitoring of an HD-SDI video source. Designed to be used in a range of applications from drone or motorized gimbal operation to security, the headset only sits in front of one eye, allowing you to actively monitor a video feed while maintaining situational awareness or line-of-sight of your drone. The display unit itself sits on an articulating arm for a wide range of adjustments. The control unit with the video and power connections sits separately from the headband and features a built-in battery for use in the field. You can also power it from a USB power source or the included AC adapter. - 720p HD Resolution Display
- The AiRScouter WD-330C features a 720p-resolution display with adjustable focus to avoid eye strain.
- HD-SDI Input
- Connect to professional HD video equipment without adapters or scalers.
- Versatile Power Options
- The Control Box features an internal battery that lasts up to three hours. In addition, there is an AC adapter included, or you can power from a third-party USB power source. A micro-USB power input is provided.
- Adjustable Headband
- The headband fits comfortably and securely on your head, and the flexible arm lets you position the display where it works for you. The display can be attached to either side of the band for right-eyed or left-eyed viewing, and you can wear it the same way with or without glasses.
- FAA-Compliant FPV Piloting
- Since the AiRScouter WD-330C keeps your field of view open, you can use FPV (first-person view) equipment while maintaining visual contact with your aircraft.

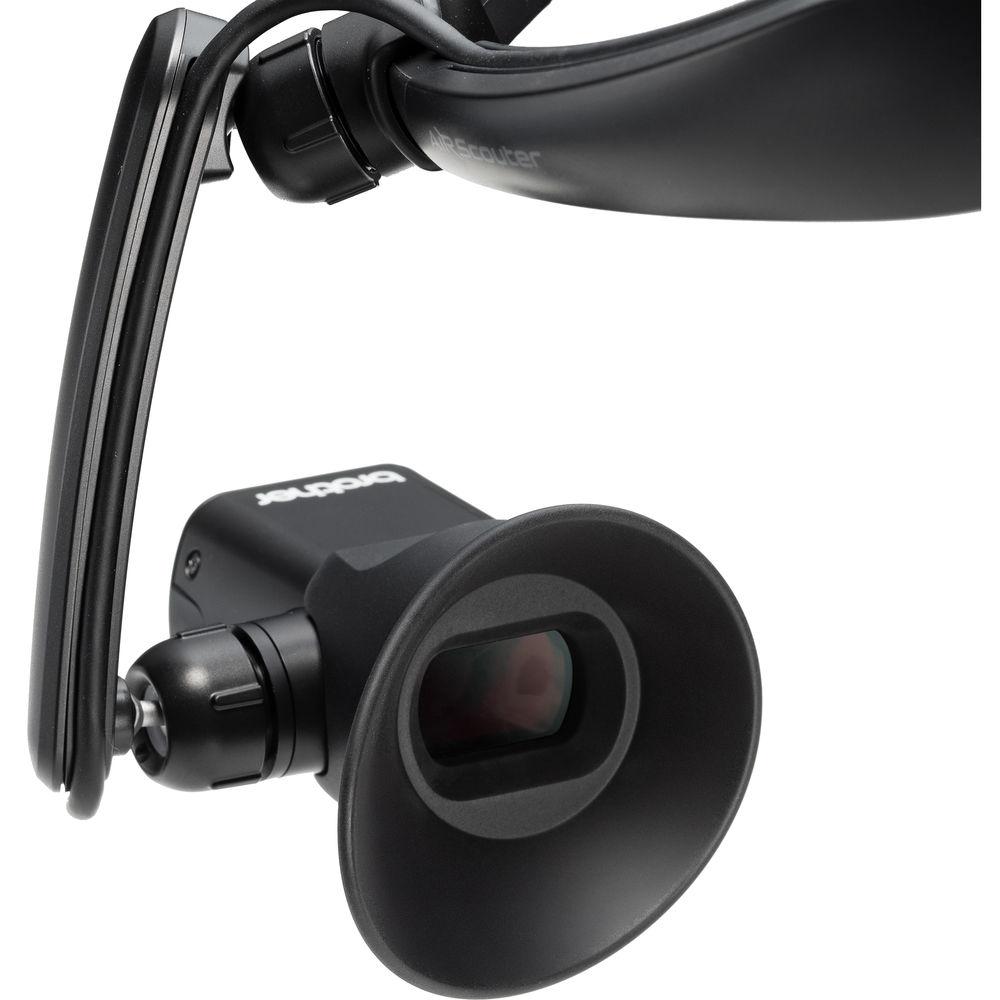

- Removable Eyecup
- Attach the included eyecup to isolate the display when you're working in bright conditions.

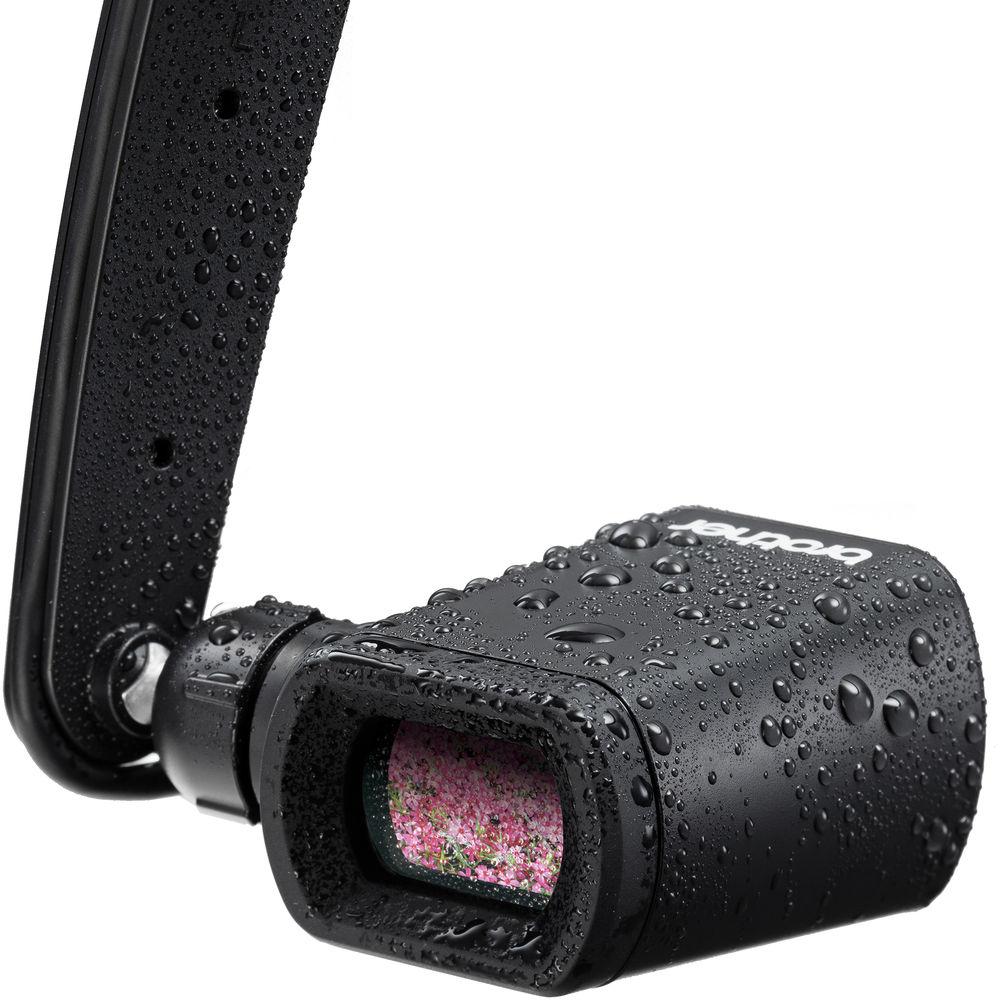

- IP54-Rated Enclosure
- The unit can be safely used in inclement weather or dusty conditions.

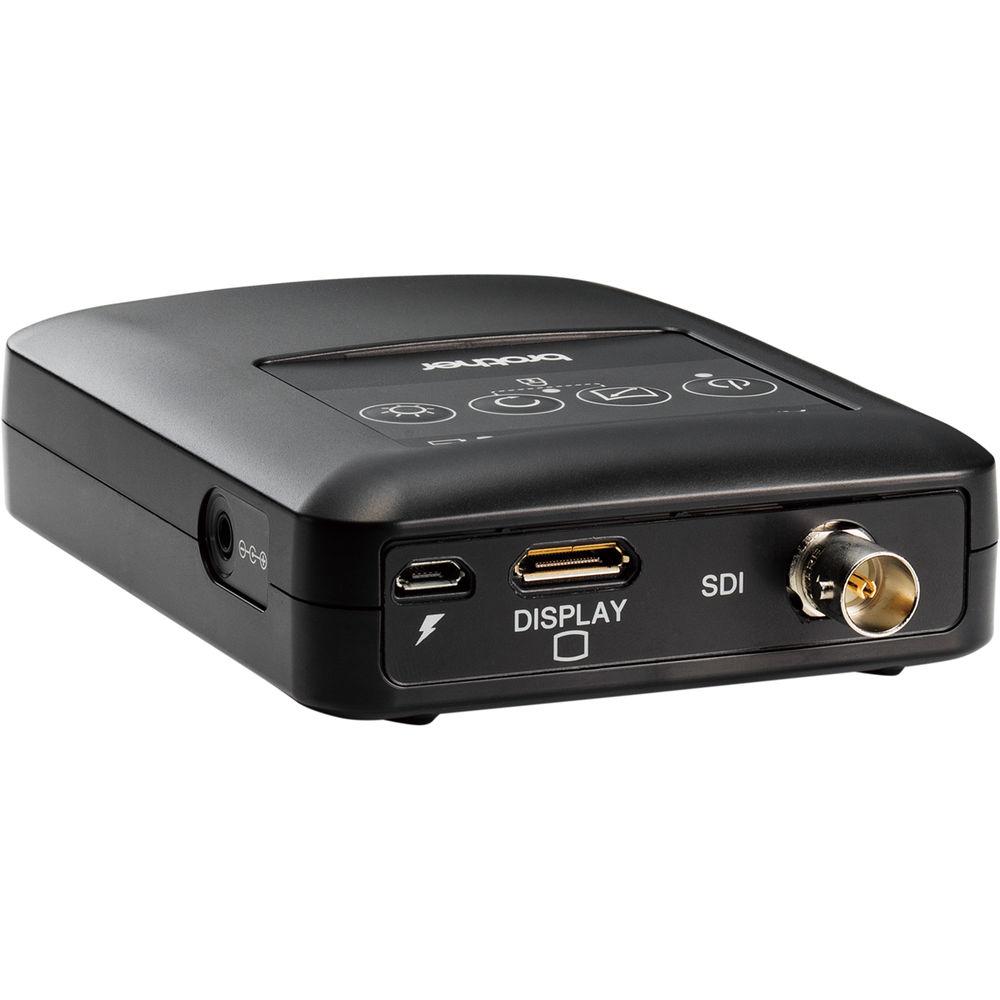

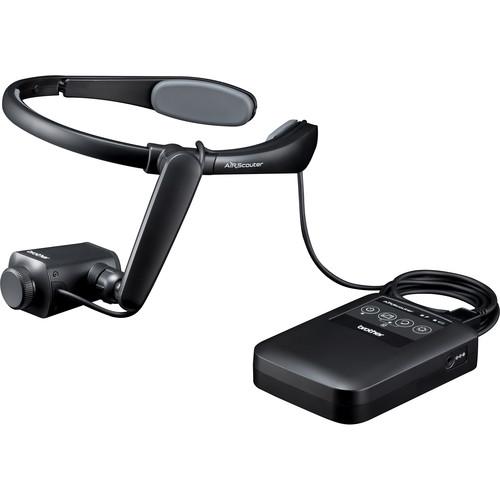

UPC: 012502649007 In the Box Brother AirScouter WD-330C Head-Mounted Display Display Unit Headband Control Box Articulating Arms for Left and Right Eye Operation Rechargeable Battery AC Adapter Rear Band Cable Clip Eyecup Control Box Bag Storage Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother AirScouter WD-330C Head-Mounted Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother WD-330C Specs | | | Style | Head unit, monocular (one eye) | | Resolution | 1280 x 720 (720p) | | Number of Colors | 24-bit (8 bits per channel, 16.7 million colors) | | Focus Adjustment | 12"/30 cm - infinity | | Field of View | Approx. 25.6° | | Virtual Screen Size | Approx. 19" / 48 cm (at 3' / 1 m projected distance) | | | | Video Input | Connector
1 x HD-SDI
Supported Input Resolutions
720p (50, 59.94, and 60 Hz)
1080i (50, 59.94, and 60 Hz)
1080p (23.98, 24, 25, 29.97, and 30 Hz) | | Power | 1 x micro-USB | | | | Chemistry | Lithium-ion | | Charging Temperature | 50 to 95°F / 10 to 35°C | | Battery Life | Up to 3 hours | | | | Power Requirements | AC adapter
Internal battery
USB power source | | Power Consumption | 5 VDC, 1 A, 3 W | | Functions | Brightness (5 levels)
Screen Rotation (for right or left eye)
Key Lock
Magnifier Mode
Reduce Mode
Monochrome Mode | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 20 to 80% non-condensing | | Dimensions | Head Unit: 10.4 x 7.2 x 1.3" / 26.4 x 18.3 x 3.2 cm
Control Box: 4.9 x 3.3 x 1.1" / 12.9 x 8.4 x 2.9 cm
Cable: 6.6' / 2 m | | Weight | Head Unit: 5.3 oz / 150 g
Control Box: 7.1 oz / 200 g | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 14.7 x 10.8 x 3.6" |
