Product description

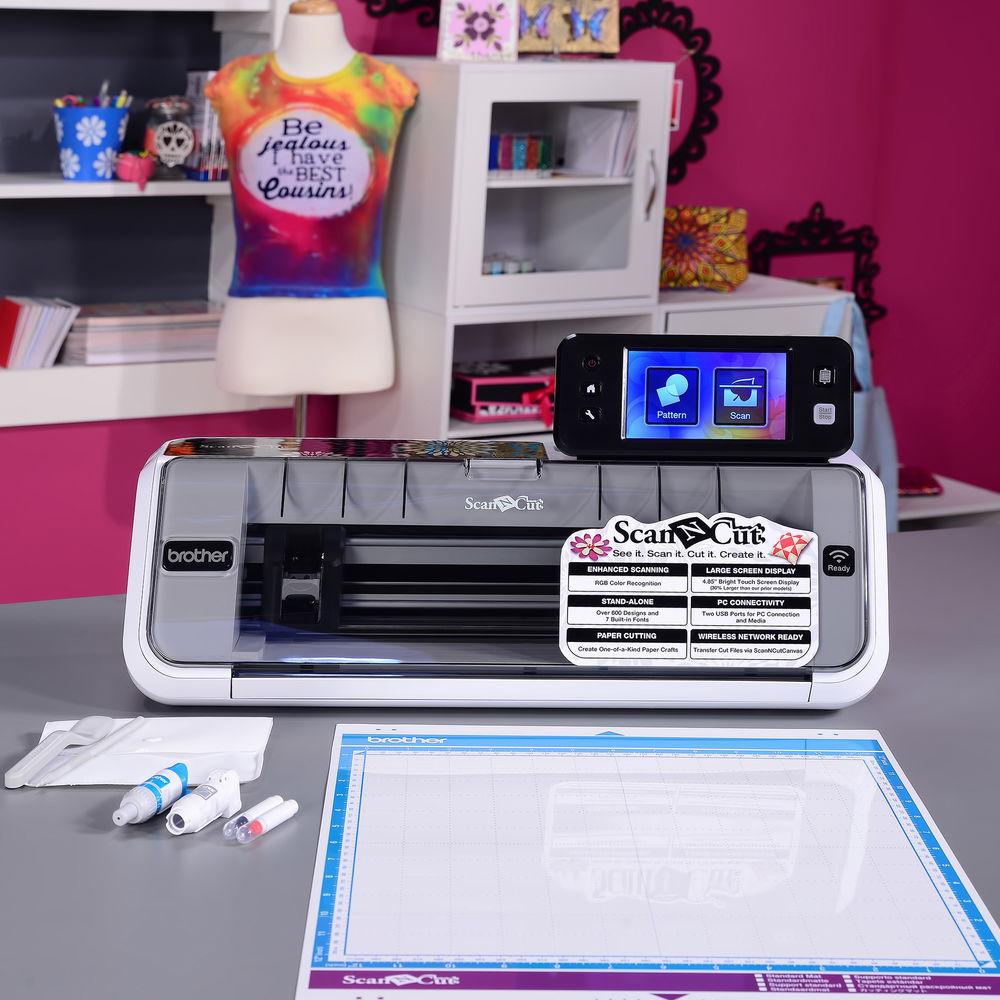

Scan, cut, draw, and so much more with the CM350 ScanNCut 2 Cutting Machine from Brother. The machine features a TFT 4.85" touch screen display; a 300 dpi built-in scanner; easy-to-operate on-screen editing; 631 built-in designs, patterns, and fonts; and background and scan cut data. There's also direct cut, welding, pen draw, and seam allowance and sewing guidelines. Craftspeople will appreciate the space saving auto layout capabilities, scan and save data, and the ScanNcutCanvas cloud-based application.
    Basic Specs
  • Easy to operate buttons
  • Holder: Easy to set/removable
  • Stylus: For on-screen edits
  • Adjustable auto shutdown
  • 1MB or 60 pockets of machine memory
  • Up to 300 pieces of patterns in one cutting data
  • Wireless network with activation (activation card not included)
    Crafting Workspace
  • Work area: 11.68 x 11.76"
  • Optional extended work area: 11.68 x 23.76"
  • Standard blade: max 1.0mm (may vary)
  • Deep blade: max 1.5mm (may vary)
  • Blade depth adjustment: 12 Levels
  • Cutting Speed: 5 levels
  • Cutting Material: max 1.5mm (may vary)
  • Paper: Printer/scrapbook/cardstock/velum/tracing/poster board
  • Fabric: Thin cotton/flannel/felt
  • Others: Magnet/sticker or seal
    Scanning
  • Size: 12 x 12"
  • Image Type: full color
  • Speed: 20 sec/mat
  • Resolution: 300 dpi
  • Recognition Type: Grayscale/color
  • Background Adjustment: Darker/lighter
  • Direct Cut: Frame types (11)
  • Scan-to-Cut-Data: Detection types: Outline, region, line (thinning), save after detection, deletion area, threshold converting 5 levels
  • Scan to USB: 8 formats and custom
  • USB Output File Format: 300/250/200/150/100 dpi as JPEG data
    General
  • Languages: English/German/French/Dutch/Italian/Spanish/Russian/Japanese/Portuguese
  • Opening Screen: On/Off
  • Test Cut Function: 4 patterns for test
  • Buzzer: On/Off
  • Cut Area: Able to change by drag/drop operation
  • Mat Preview: Grid measurement
  • Built-In Designs: 531
  • Built-In Quilt Patterns: 100
  • Built-In Fonts: 7
  • Drag and Drop Function: Select/move designs on the LCD touch screen display using the stylus
  • Add Patterns: Add other designs
  • Enlargement Reduction Feature: Designs can be enlarged or reduced
  • On-Screen Editing Functions: Size (height), sizing (width), duplicating, lock or unlock aspect ratio, pattern rotation in 1-degree increments, mirroring, seam allowance on/off, unifying, welding, group deleting/group selecting, auto layout by rearranging patterns: rotate at any angle, rotate patterns O° or 180°, without rotating, moving, magnifying, undoing, SVG file readability
  • Seam allowance width: 7 Levels
  • Pattern spacing/pattern interval: 10 levels
UPC: 012502642428 In the Box Brother CM350 ScanNCut 2 Cutting Machine
  • Instruction Guide
  • Standard Cut Blade Holder
  • Standard Cut Blade
  • Standard 12x12" Mat
  • 2 Color Pen Set (Red & Black)
  • Pen Holder
  • Spatula
  • Touch Pen
  • Accessory Pouch
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Brother CM350 ScanNCut 2 Cutting Machine in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Brother CM350 Specs

    Display Size & Type Color LCD Touch Screen Display: 4.85" / 12.3 cm
    3 viewing angles
    DPI 300
    Scanning Speed Speed: 20 sec/mat
    Scanning Size 12 x 12" / 30.48 x 30.48 cm
    USB Output USB Output File Format: 300/250/200/150/100 dpi as JPEG data
    Power Supply Global AC adapter

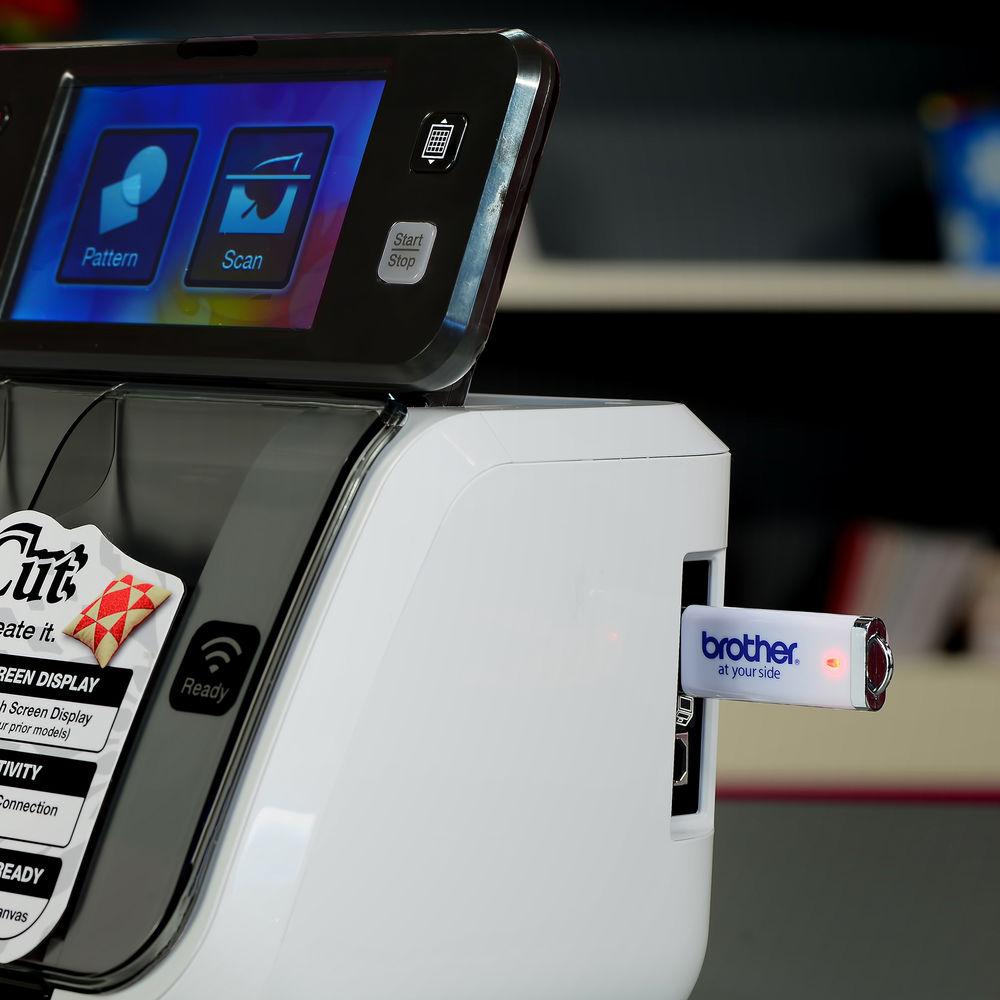

    USB 2 USB Slots (High-Speed port for flash drive and port for USB cable and PC)
    Weight With Handles: 8.6 lb / 3.9 kg
    Package Weight 12.9 lb
    Box Dimensions (LxWxH) 22.677 x 10.236 x 10.158"
