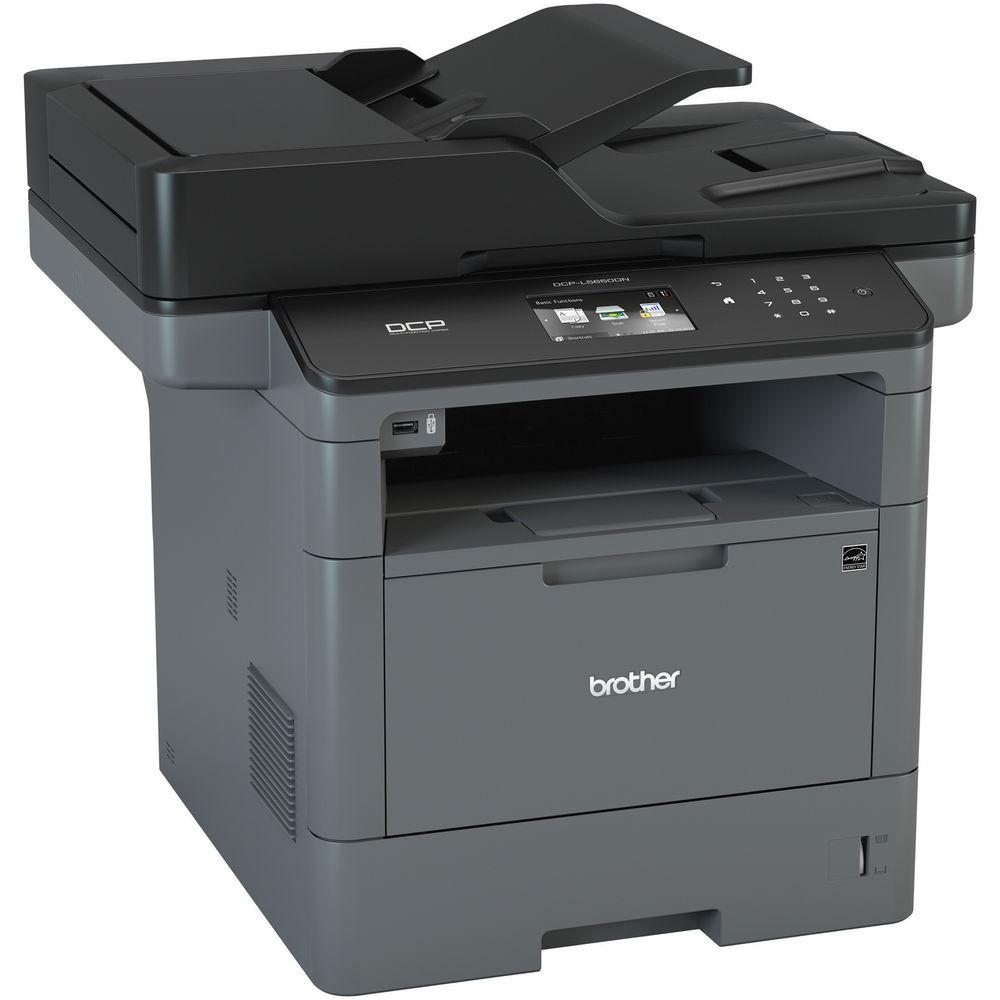

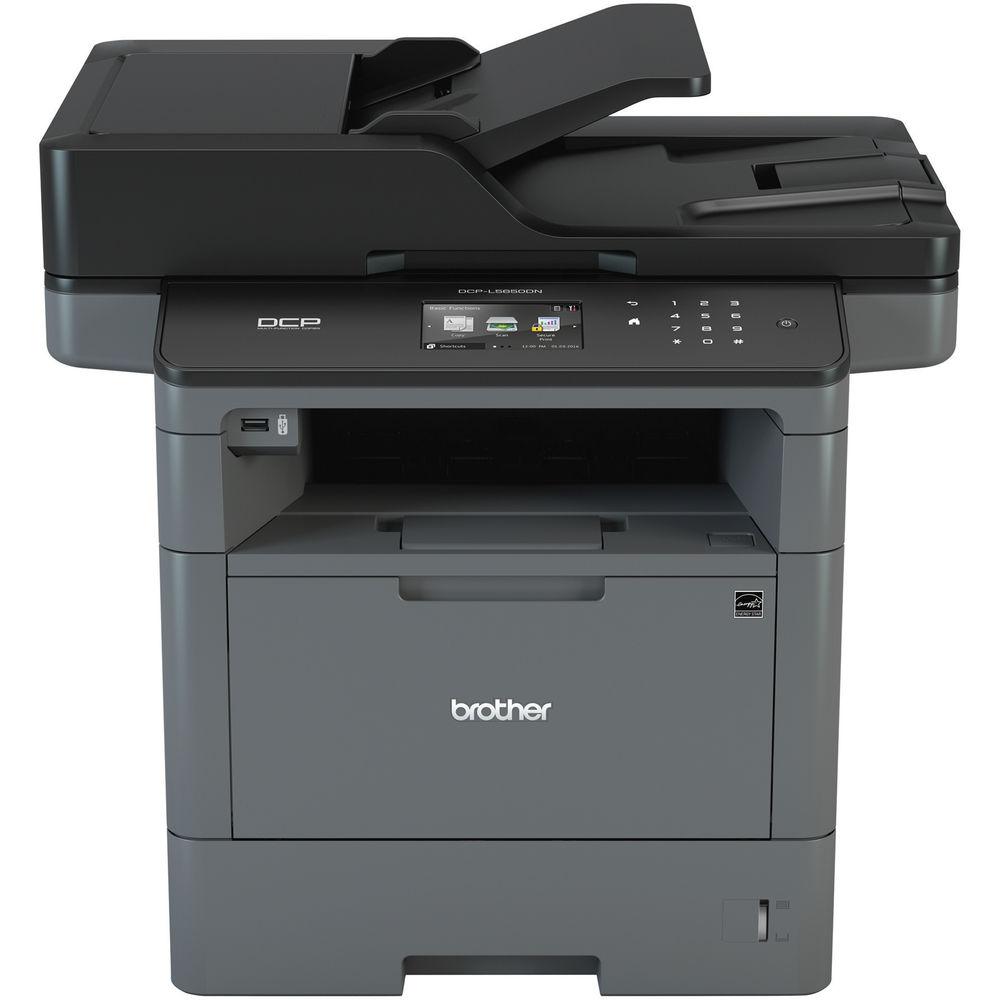

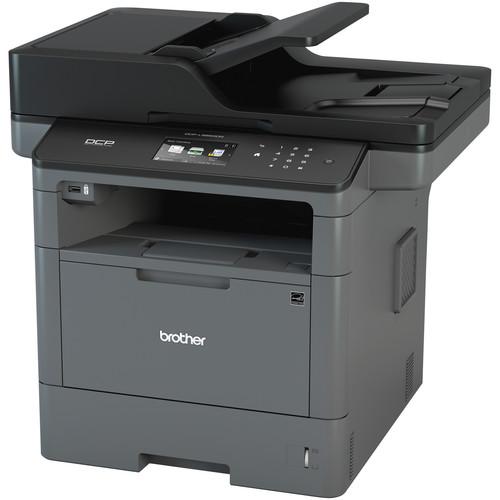

User Manual for Brother DCP-L5650DN All-in-One Monochrome Laser Printer Click to enlarge the picture
Contents of the user manual for the Brother DCP-L5650DN All-in-One Monochrome Laser Printer
- Product category: Laser Printers Brother
- Brand: Brother
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brother Laser Printers
 |
User manual for the Brother DCP-L5650DN All-in-One Monochrome Laser Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brother product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!
|
Product description Speed, features, and networking blend together in the DCP-L5650DN All-in-One Monochrome Laser Printer from Brother to provide small workgroups and homes with a single option for their printing, scanning, and copying needs. This model boasts and exceptional print speed of 42 ppm along with a resolution of 1200 x 1200 dpi for sharp documents and automatic duplexing to save paper. Scanning and copying is possible thanks to the integration of a 70-sheet ADF and a large legal-sized flatbed scanning unit that can capture images at an optical resolution of 1200 x 1200 dpi. Also, it has an impressive scan speed of 28 ipm in simplex and 56 ipm in duplex for monochrome which slows slightly during color scanning to 20 ipm and 34 ipm in simplex and duplex, respectively.
In order to speed up use, the DCP-L5650DN is equipped with a large 3.7" color touchscreen for quickly swiping through all the settings. It also offers a USB host port for direct printing and scanning. Paper is handled by either a standard 250-sheet input tray or a versatile 50-sheet multipurpose tray and the total capacity can be expanded to 1,340 sheets with optional trays. Additionally, it features both USB 2.0 and Ethernet connectivity for easily implementing the printer in your working area. - Duplexing for copies and scans is handled in a single pass
- Scan resolution can be interpolated to maximum of 19200 x 19200 dpi
- Scan to capability includes file, image, OCR, email, SSH server, USB SharePoint, cloud services, email servers, network folders, and more
- When networked, the printer can print via a mobile device using Apple AirPrint, Google Cloud Print 2.0, Brother iPrint&Scan, Cortado Workplace, or Mopria
- Web Connect feature provides direct access to Google Drive, Evernote, OneDrive, OneNote, Dropbox, Box, Facebook, Flickr, and Picasa Web Albums
- Monthly duty cycle of 50,000 pages with a recommended monthly volume of 3,500 pages
UPC: 012502641971 In the Box Brother DCP-L5650DN All-in-One Monochrome Laser Printer TN820 Standard Toner Cartridge DR820 Drum Unit Power Cord Installation CD-ROM Limited 1-Year Warranty Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother DCP-L5650DN All-in-One Monochrome Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother DCP-L5650Dn Specs | Functions | Print, scan, copy | | | | Printing Technology | Black & white laser technology | | Maximum Resolution | 1200 x 1200 dpi | | Print Speed | 42 ppm | | Print Color | Monochrome | | Duplex Printing | Yes | | Printer Duty Cycle | Monthly: 50,000 pages
Recommended Monthly Volume: 3,500 pages | | | | Type | Flatbed, ADF | | Optical Resolution | Flatbed: 1200 x 1200 dpi | | Interpolated Resolution | 19200 x 19200 dpi | | Scan Speed | Black: 28 ipm simplex / 56 ipm duplex
Color: 20 ipm simplex / 34 ipm duplex | | Maximum Scan Size | Flatbed & ADF: 8.5 x 14" / 21.6 x 35.6 cm | | Duplex Scanning | Yes, single-pass | | Scanner Features | Scan To: File, image, email, OCR, FTP, SSH server (SFTP), USB, SharePoint, Cloud (Web Connect), email server, network folder (CIFS), easy scan to email | | | | Copy Resolution | 1200 x 600 dpi | | Copy Speed | 42 cpm | | Reduction/Enlargement | 25-400% in 1% increments | | Number of Copies | Up to 99 | | Duplex Copying | Yes, single-pass | | Copy Features | Sorting, N-in-1, ID copy | | | | Paper Handling | Input tray
Multipurpose tray
Automatic document feeder | | Paper Sizes | Up to 8.5 x 14" / 21.6 x 35.6 cm | | Paper Capacity | Input Tray: 250 sheets
Multipurpose Tray: 50 sheets
ADF: 70 sheets
Output Tray: 150 sheets face down, 1 sheet face up | | | | Interface | USB 2.0
Ethernet
USB host (front) | | OS Compatibility | Windows, Mac OS, and Linux | | Memory | 512 MB | | Printer Language | PCL6, BR-Script3, IBM ProPrinter, Epson FX, PDF v1.7, XPS Version 1.0 | | Security Features | Secure Function Lock, Active Directory, Enterprise Security (802.1x), Slot Lock, Secure Print, SSL/TLS, IPSec | | | | Display | 3.7" / 9.4 cm color touchscreen | | Power Requirements | 120 VAC, 50/60 Hz | | Dimensions | 19.5 x 16.8 x 19.1" / 49.5 x 42.7 x 48.5 cm | | Weight | 37.6 lb / 17.1 kg | | | | Package Weight | 46.0 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 20.0" |
