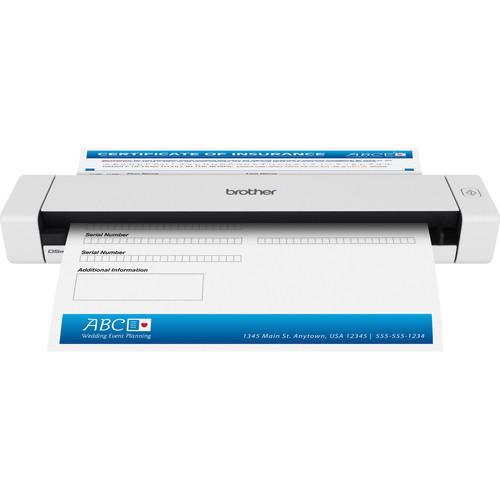

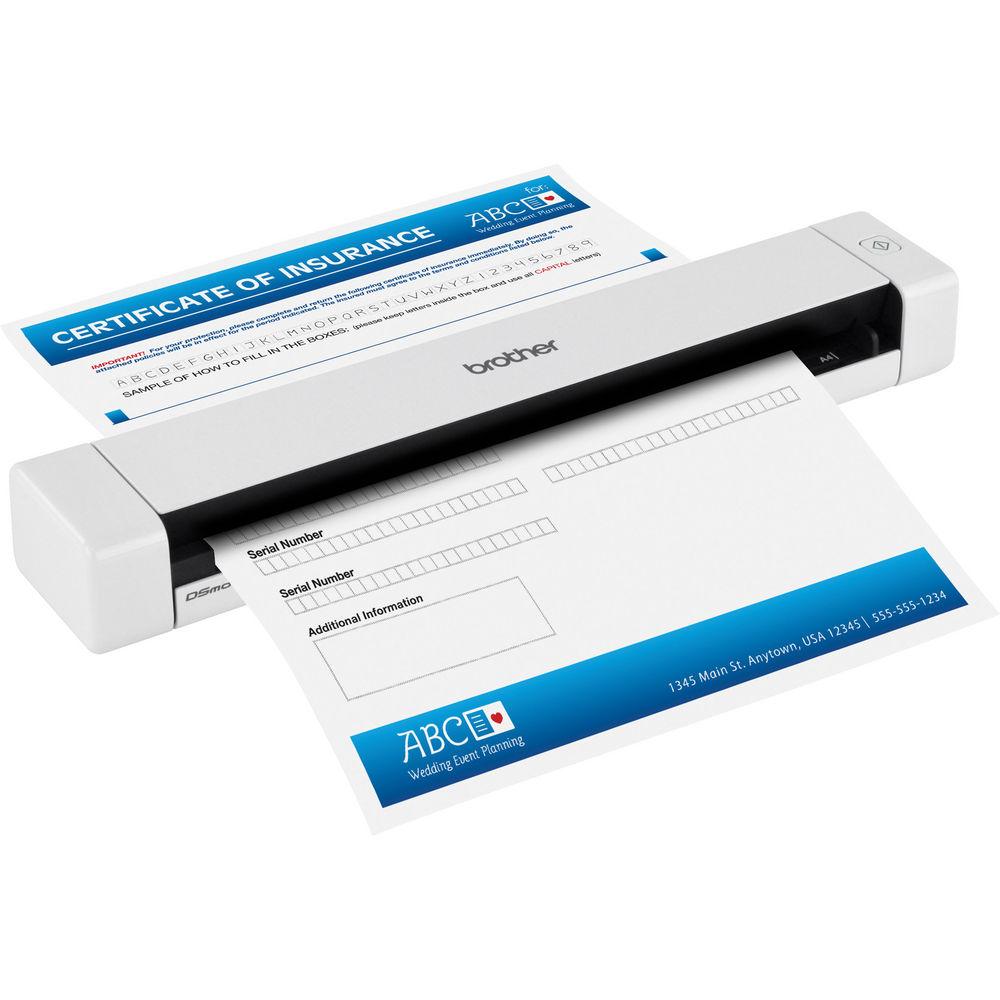

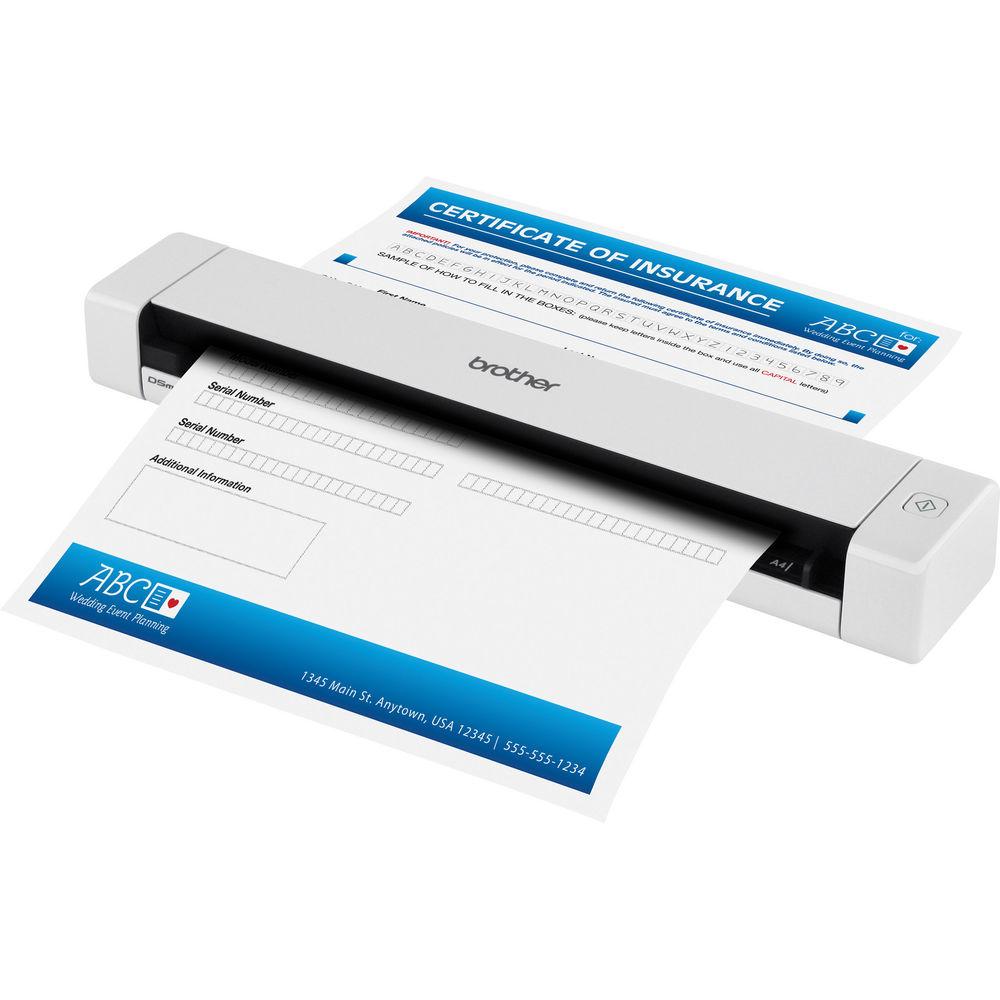

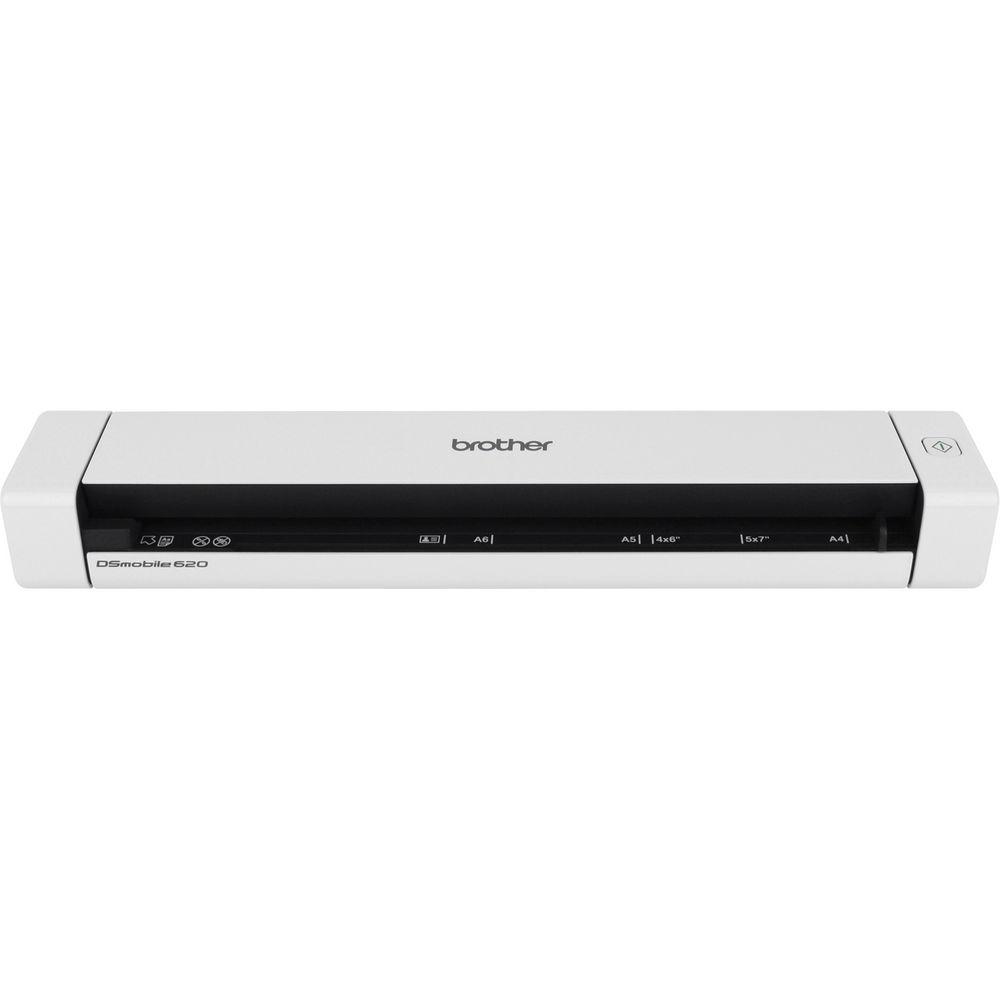

User Manual for Brother DS-620 Mobile Document Scanner Click to enlarge the picture
Contents of the user manual for the Brother DS-620 Mobile Document Scanner
- Product category: Portable Scanners Brother
- Brand: Brother
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brother Portable Scanners
 |
User manual for the Brother DS-620 Mobile Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brother product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!
|
Product description The DS-620 Mobile Document Scanner from Brother scans your documents and other important papers on the go. The 600 x 600 dpi sensor scans documents at up to 8 ppm and can handle pages up to 8.5 x 32". It can also handle photos, receipts, business cards, and plastic ID cards. A single USB cord connects to your computer and powers the scanner, no batteries or wall outlet needed. The included PaperPort (Windows) and PageManager (Mac) organize your digitized files and convert your documents into editable text or into a searchable PDF file. Also included is Presto BizCard which scans business cards and imports the contact information directly into Microsoft Outlook or other contact management software. - Scan up to 8 pages per minute in both color and black / white
- Compact and lightweight; under 12" long and less than 1 lb
- Optical resolution 600 x 600 dpi
- Scan documents, photos, receipts, business cards, plastic ID cards, and more, from business card size up to 8.5 x 32"
- OCR software converts your scans into editable text
- Includes software for managing your scanned documents and business cards
- Powered via included USB cable, no wall outlet required
- Windows, Mac, and Linux compatible
UPC: 012502635437 In the Box Brother DS-620 Mobile Document Scanner Micro USB Cable Soft Carrying Bag Carrier Sheet Calibration Sheet Cleaning Cloth Nuance PaperPort 12SE (Windows) Presto PageManager 9 (Mac) Presto BizCard 6 Button Manager V2 (Windows) DSmobileCapture Quick Setup Guide Product Registration Sheet Limited 1-Year Warranty Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother DS-620 Mobile Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother DS-620 Specs | Image Sensor | Contact image sensor (CIS) | | Optical Resolution | 600 x 600 dpi | | Interpolated Resolution | 1200 x 1200 dpi | | Bit Depth | Color: 24-bit
Grayscale: 8-bit (256 levels)
Monochrome: 1-bit | | Media Types | Plain paper
Receipt
Photo paper
Business card
Plastic / laminated cards | | Scan Area | Paper: 2.2 x 3.5 to 8.5 x 32.0" (5.59 x 8.89 to 21.59 x 81.28 cm)
Plastic Card: 1.57 x 1.57 to 3.4 x 3.4" (3.99 x 3.99 to 8.63 x 8.63 cm) | | Media Weight | 16 to 28 lb | | Media Thickness | Receipt: 1.57 to 31.5 mil (0.04 to 0.8 mm)
Plastic Card: up to 31.5 mil (0.8 mm) | | Paper Capacity | 1 sheet | | Scan Modes | 24-bit color
8-bit (256 levels) gray scale
1-bit monochrome | | Duplex Scanning | No | | Features | Plastic card scanning, scan to file, scan to image, scan to OCR, scan to searchable PDF, scan to email (Windows only), scan to FTP (Windows only), scan to shared folder (Windows only), scan to printer (Windows only) | | Scan Speed | Up to 8.0 ppm | | Duty Cycle | Up to 100 pages per day | | Computer Interface | USB 2.0 | | Cable Length | 4.0' (1.22 m) | | OS Compatibility | Windows: XP, Vista, Windows 7, Windows 8
Mac: OS X v10.6.x to 10.8.x
Linux | | Scanner Drivers | TWAIN
SANE | | Power Source | USB bus-power | | Power Consumption | Maximum: 2.5 W
Ready: 1.0 W | | Temperature / Humidity | Operating Temperature: 41 to 95°F (5 to 35°C)
Operating Humidity: 15% to 85% | | Dimensions (WxDxH) | 11.4 x 2.1 x 1.4" (29.0 x 5.3 x 3.6 cm) | | Weight | 14.08 oz (399.2 g) | | | | Package Weight | 2.03 lb | | Box Dimensions (LxWxH) | 13.95 x 9.25 x 2.6" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
