User Manual for Brother DS-820W Wireless Mobile Document Scanner Click to enlarge the picture
Contents of the user manual for the Brother DS-820W Wireless Mobile Document Scanner
- Product category: Portable Scanners Brother
- Brand: Brother
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brother Portable Scanners
 |
User manual for the Brother DS-820W Wireless Mobile Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brother product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!
|

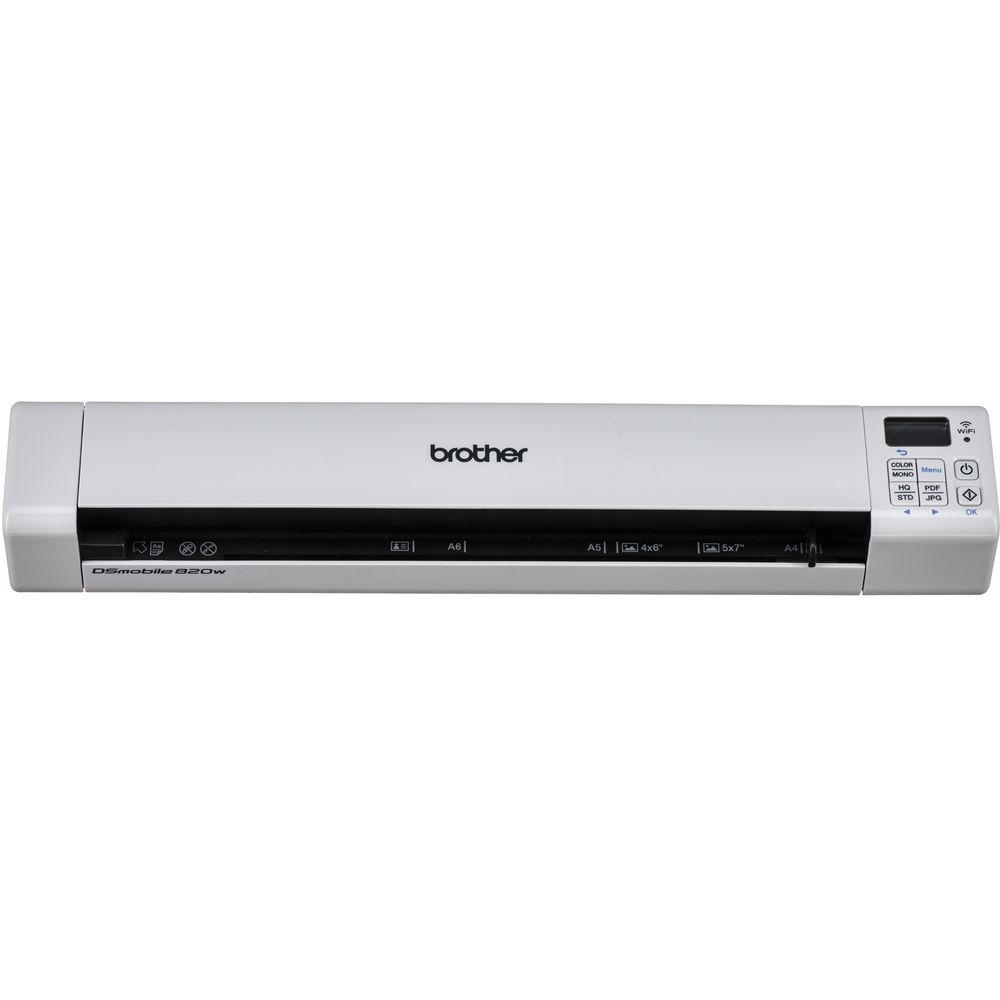

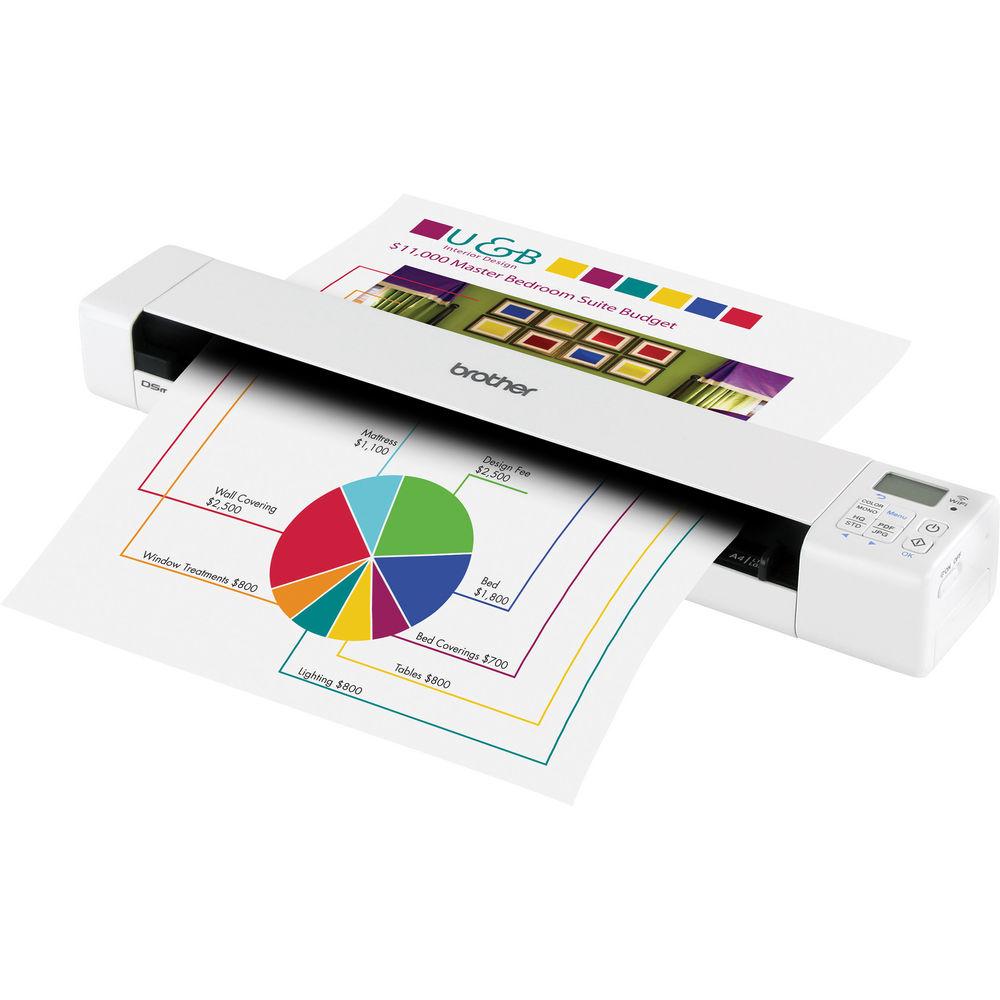

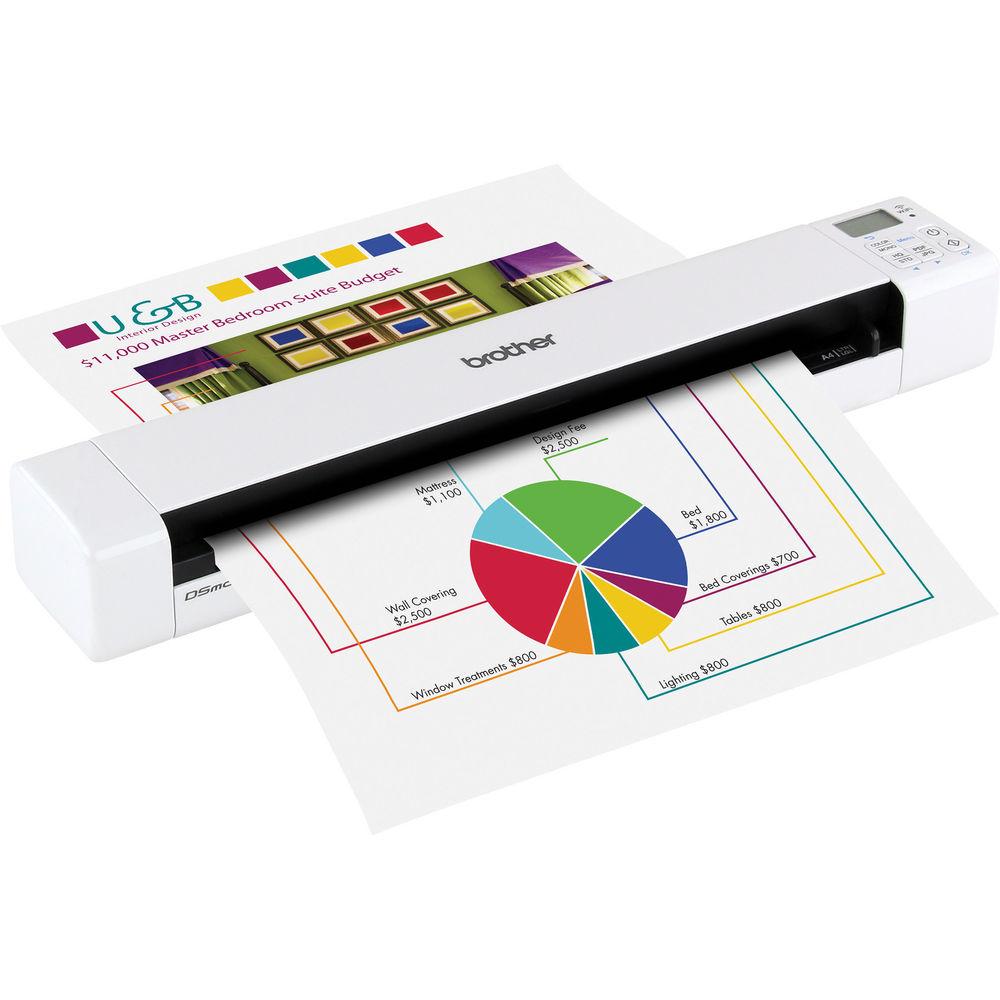

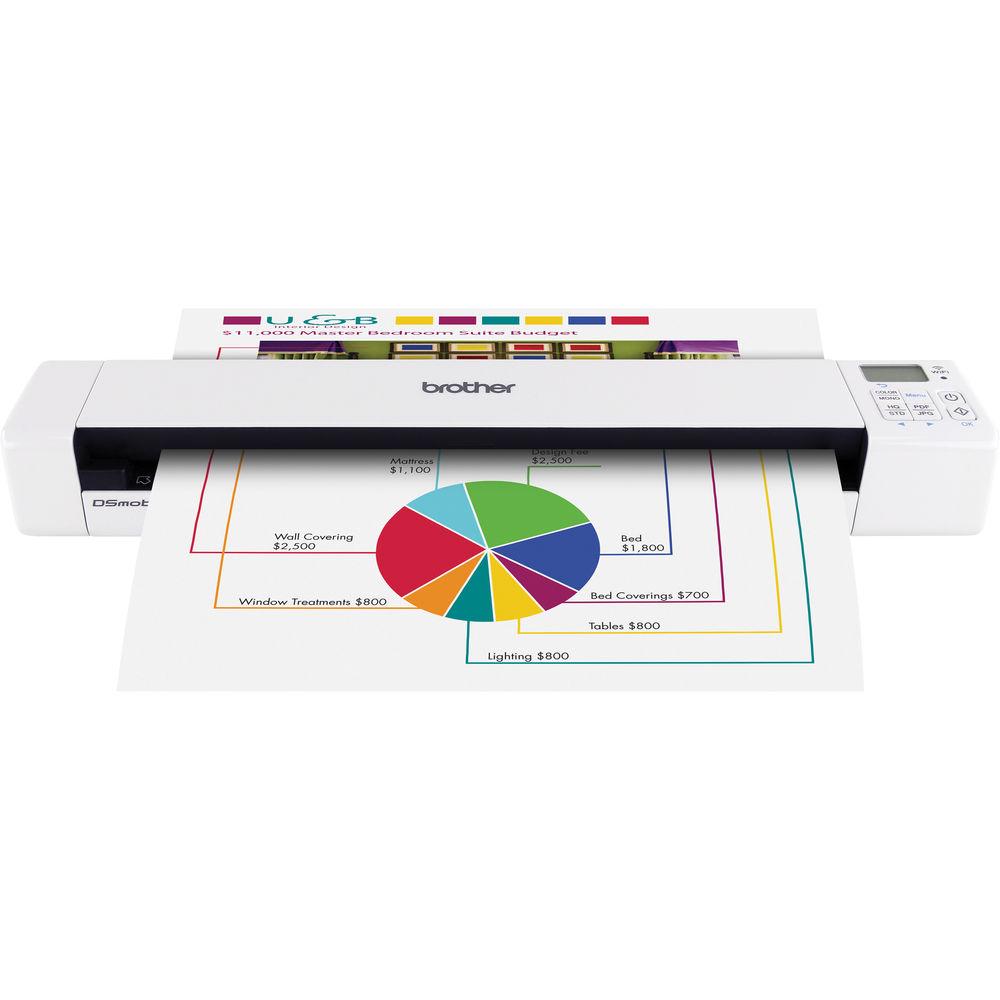

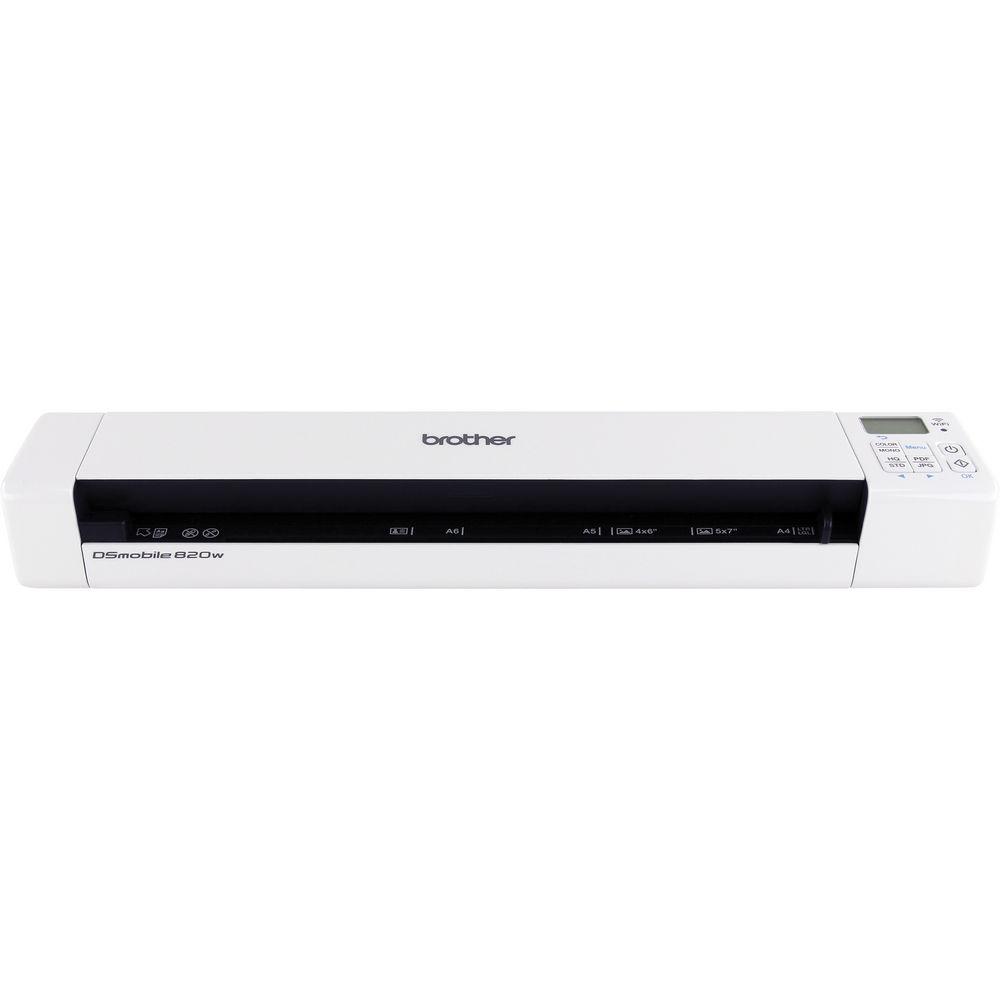

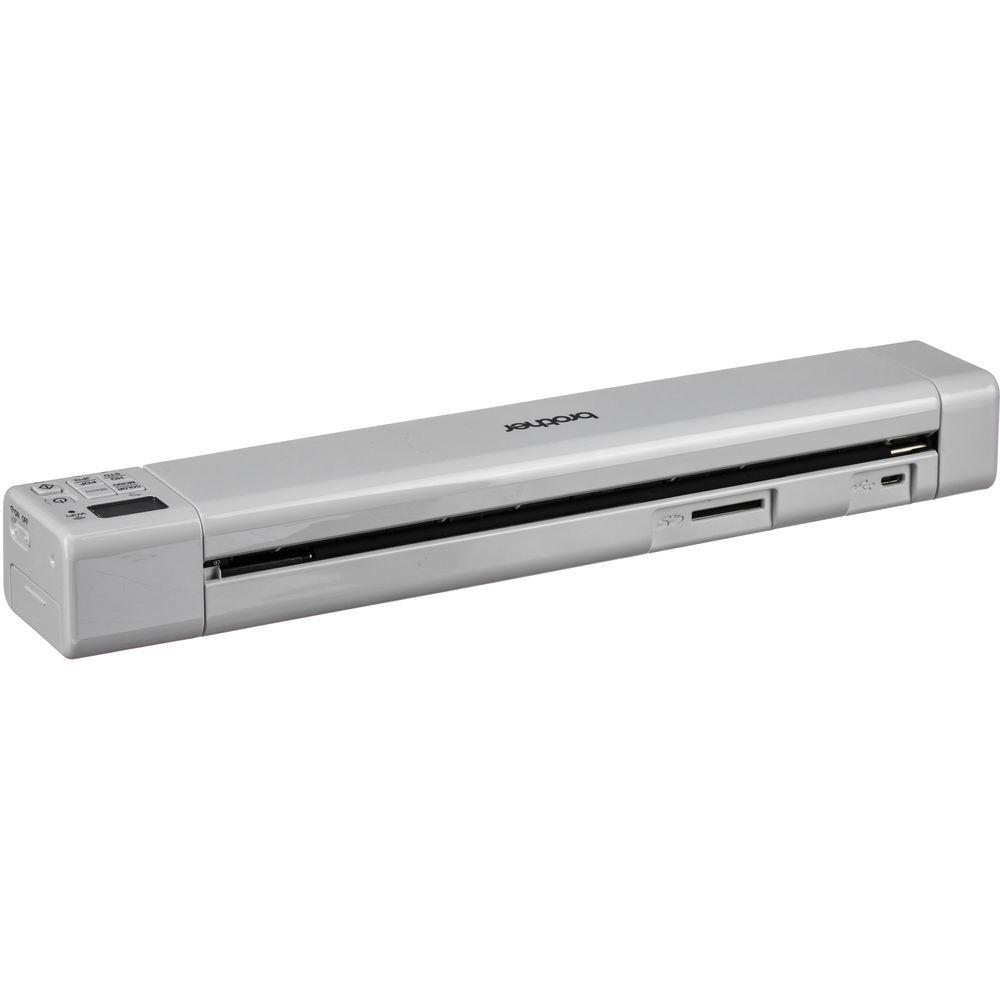

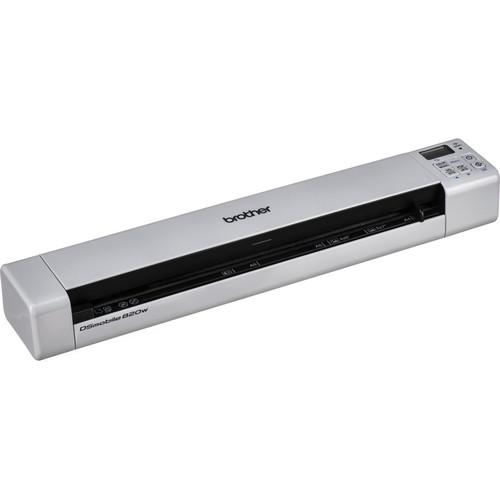

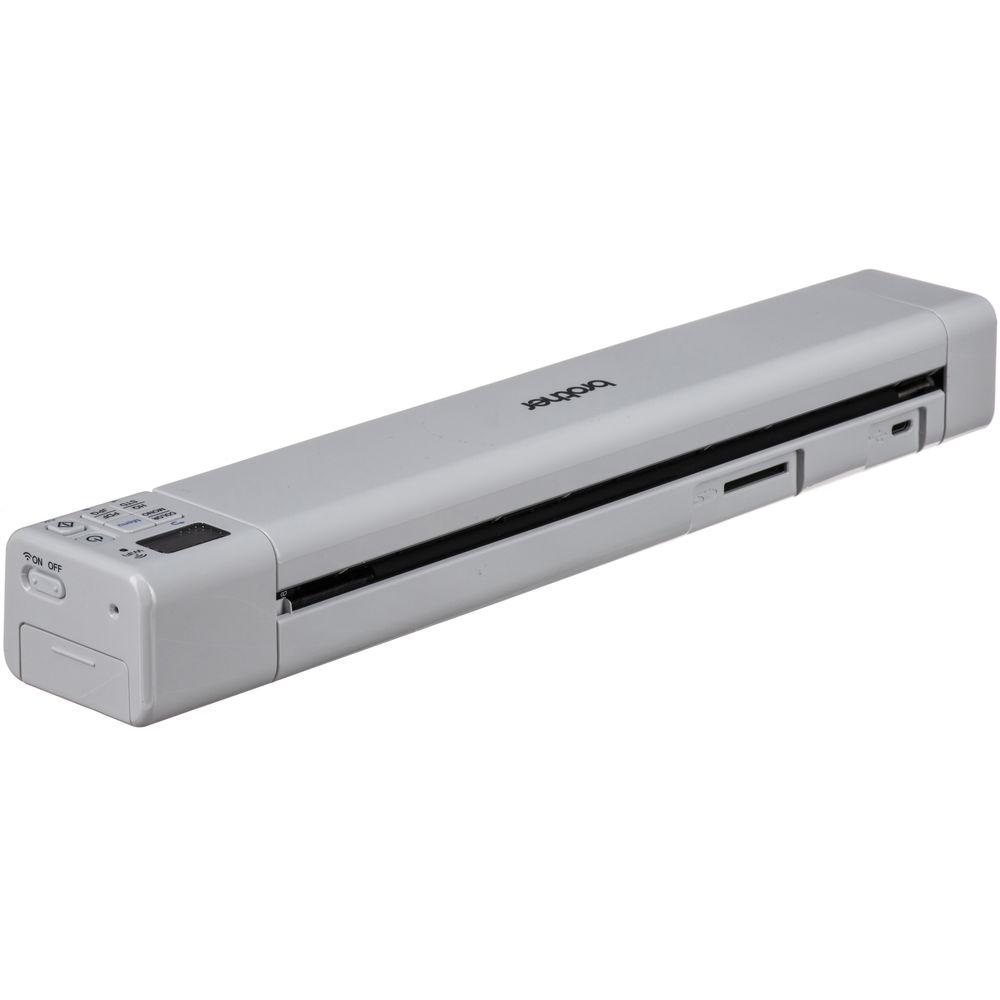

Product description The DS-820W Wireless Mobile Document Scanner from Brother scans your documents and other important papers on the go. The 600 x 600 dpi sensor scans documents at up to 8 ppm and can handle pages up to 8.5 x 32". It can also handle photos, receipts, business cards, and plastic ID cards. A single USB cord connects to your computer and powers the scanner, no batteries or wall outlet are needed. The scanner's built-in Wi-Fi connectivity lets you transfer files to your computer, Apple, or, Android device wirelessly. Additionally, the included 4 GB SD card can be used to scan files without a computer or mobile device. When you're scanning wirelessly, or to an SD card, the included lithium-ion battery powers the scanner. The included PaperPort (Windows) and PageManager (Mac) organize your digitized files and convert your documents into editable text or into a searchable PDF file. Also included is Presto BizCard which scans business cards and imports the contact information directly into Microsoft Outlook or other contact management software. - Scan up to 8 ppm in both color and black / white
- Wirelessly scan to a computer, or to an Apple or Android mobile device
- Powered by rechargeable Li-ion battery or USB cable (both included)
- LCD display and dedicated scan-settings keys enable easy operation and customization
- Multiple scan-to options, including file, image, email (Windows only), FTP (Windows only), shared folder (Windows only), and print (Windows only)
- Includes software for desktop document management, OCR, receipt organization, and business card management
- BR-Receipts organizes your scanned receipts and exports a report to Quicken or QuickBooks
- TWAIN driver enables easy setup to scan documents into a variety of applications. SANE driver available via download
- Compatible with Windows, Mac, and Linux
- Free phone support for the life of the product
UPC: 012502635765 In the Box Brother DS-820W Wireless Mobile Document Scanner Micro USB Cable 4 GB SD Memory Card Soft Carrying Bag Lithium-ion Rechargeable Battery Carrier Sheet Calibration Sheet Cleaning Cloth Nuance PaperPort 12 SE for Windows Presto! PageManager 9 for Mac Presto! BizCard 6 DSmobileCapture Button Manager V2 for Windows BR-Receipts Quick Setup Guide Electronic User's Manual Limited 1-Year Warranty Manual PDF 4.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother DS-820W Wireless Mobile Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother DS-820W Specs | Scan Sensor | Contact image sensor (CIS) | | Optical Resolution | 600 x 600 dpi | | Interpolated Resolution | 1200 x 1200 dpi | | Bit Depth | Color (Internal): 48-bit
Color (External): 24-bit
Grayscale (Internal): 16-bit
Grayscale (External): 8-bit | | Media Types | Plain paper
Plastic card
Receipts | | Scan Area | Paper: 2.2 x 3.5 to 8.5 x 32.0" (5.59 x 8.89 to 21.59 x 81.28 cm)
Plastic Card: 1.57 x 1.57 to 3.4 x 3.4" (3.99 x 3.99 to 8.63 x 8.63 cm) | | Paper Capacity | 1 sheet | | Scan Modes | Scan to file, scan to image, scan to OCR, scan to email (Windows only), scan to FTP (Windows only), shared folder (Windows only), scan to printer (Windows only) | | Duplex Scanning | No | | Scan Speed | 8.0 ppm at 300 dpi | | Duty Cycle | Up to 100 pages per day | | Interface | Hi-speed USB 2.0
Wireless 802.11b/g/n | | OS Compatibility | Windows: Windows 8, Windows 7, Vista, XP (Home, Pro)
Mac: OS X 10.6.x, 10.7, 10.8
Linux | | Scanner Drivers | TWAIN | | Power Source | USB bus-power
Rechargeable lithium-ion battery | | Power Consumption | Maximum: 2.5 W
Ready: 1.0 W | | Dimensions (WxDxH) | 12.1 x 2.1 x 1.6" (30.7 x 5.3 x 4.1 cm) | | Weight | 15.52 oz (440 g) | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 13.8 x 9.1 x 2.7" |
