User manual

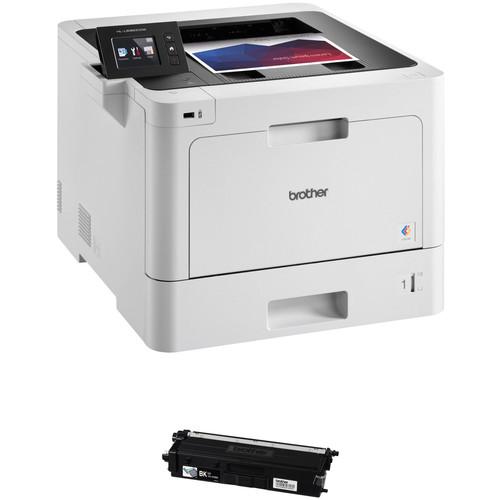

Brother HL-L8360CDW Color Laser Printer with

User Manual for Brother HL-L8360CDW Color Laser Printer with TN433BK High Yield Black Toner Kit

• Product category: Laser Printers Brother
• Brand: Brother
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Brother Laser Printers

Product description

• Brother HL-L8360CDW Color Laser Printer Make sure your workgroup can handle large print jobs without issue with the HL-L8360CDW Color Laser Printer from Brother. With print speeds up to 33 ppm, this unit will blaze through jobs with ease. Documents can be created in full color and with high quality thanks to a 2400 x 600 dpi equivalent print resolution. Users will also benefit from automatic duplexing and built-in Wi-Fi with NFC connectivity, which enables a variety of mobile printing options.

  The HL-L8360CDW has both a 50-sheet multipurpose tray and a standard 250-sheet input tray. This setup allows for the use of a variety of media from 3 x 5" up to 8.5 x 14". Another advantage of this model is ease of use, thanks to an intuitive 2.7" color touchscreen LCD. Also, it has a front USB port for direct printing from a portable drive. Additionally, it comes with USB 2.0 and Ethernet connectivity as well as the Wi-Fi and NFC.
  • First print out time of 15 seconds.
  • Monthly duty cycle is rated at 60,000 pages with a recommended monthly volume of 4000 pages.
  • Supports Apple AirPrint, Google Cloud Print 2.0, Brother iPrint&Scan, Mopria, Cortado Workplace, Wi-Fi Direct, and NFC for mobile printing. Also, has web connect options for Google Drive, Evernote, OneDrive, OneNote, Box, and Dropbox. Various Brother cloud apps are also available, including Office Print.
  • One-push wireless setup through Wi-Fi Protected Setup.
  • Toner Save mode.
  • Input capacity can be increased though the use of optional paper trays.
  • Advanced security features include an integrated NFC card reader and Active Directory support.
  • This printer is ENERGY STAR certified and EPEAT Bronze rated and has a typical energy consumption value of 1.9 kWh/week.
  UPC: 012502646426
• Brother TN433BK Black High-Yield Toner Cartridge Make sure you are prepared with a spare TN433BK Black High-Yield Toner Cartridge from Brother so that you are always ready to print. This cartridge is rated with a yield of approximately 4500 pages.
  Compatible Printers
  • HL-L8260CDW
    HL-L8360CDW
    HL-L8360CDWT
    MFC-L8610CDW
    MFC-L8900CDW
  UPC: 012502646044

• HL-L8360CDW Color Laser Printer yfwbuqtvxczxuwstrxzaq
• TN431BK Black Standard-Yield Toner Cartridge
• TN431C Cyan Standard-Yield Toner Cartridge
• TN431M Magenta Standard-Yield Toner Cartridge
• TN431Y Yellow Standard-Yield Toner Cartridge
• DR431CL Drum Unit
• Power Cord
• Software and Documentation CD-ROM
• Limited 1-Year Warranty

• TN433BK Black High-Yield Toner Cartridge

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Brother HL-L8360CDW Color Laser Printer

  Functions

  Print

  Printing Technology	Laser
  Maximum Resolution	2400 x 600 dpi
  Print Speed	Simplex: 33 ppm Duplex: 7 ppm
  First Print Out Speed	15 seconds
  Duplex Printing	Yes
  Ink Palette	Black Cyan Magenta Yellow
  Ink Cartridge Configuration	4 individual cartridges
  Duty Cycle	Monthly: 60,000 pages Recommended Monthly Volume: Up to 4,000 pages
  Printer Language	PCL 6 BR-Script3 PDF v1.7 XPS

  Paper Handling	Input Tray 1 Multipurpose Tray Output Tray
  Paper Sizes	Input Tray 1: Up to 8.5 x 14" / Up to 21.6 x 35.6 cm Multipurpose Tray: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm
  Paper Weight	Input Tray 1: 16-28 lb / 60 to 105 gsm Multipurpose Tray: 16-43 lb / 60 to 163 gsm
  Paper Capacity	Input Tray 1: 250 sheets Multipurpose Tray: 50 sheets Output Tray: 150 sheets

  Interface	USB 2.0 Ethernet Wi-Fi NFC
  Direct Printing	USB port Wi-Fi Direct NFC Apple AirPrint Google Cloud Print Brother iPrint&Scan Mopria Cortado Workplace
  Processor	800 MHz
  Memory	512 MB
  Compatible Operating Systems	Windows Mac OS X, macOS Linux

  Control Panel	2.7" / 6.75 cm touchscreen LCD
  Acoustic Noise	Pressure Emissions Printing: 49 dB(A) Quiet Mode: 44 dB(A) Ready: Inaudible Power Emissions Printing: 6.6 B(A) Quiet Mode: 6.0 B(A) Ready: Inaudible
  Power Requirements	110-120 VAC, 50/60 Hz
  Power Consumption	Maximum: 1190 W Printing: 600 W Printing (Quiet Mode): 350 W Ready: 75 W Sleep: 9.5 W Deep Sleep: 1.4 W Power Off: 0.02 W
  Operating Conditions	Temperature: 50 to 90°F / 10 to 32°C Humidity: 20 to 80%
  Storage Conditions	Temperature: 32 to 104°F / 0 to 40°C Humidity: 10 to 90%
  Dimensions (WxDxH)	17.4 x 19.1 x 12.3" / 44.1 x 48.6 x 31.3 cm
  Weight	48.1 lb / 21.8 kg

  Box Dimensions (LxWxH)	24.0 x 22.0 x 20.5"

• Brother TN433BK Black High-Yield Toner Cartridge

  Yield Type	High
  Color	Black
  Black Page Yield	4500 Pages
  Compatibility	Brother HL-L8260CDW Brother HL-L8360CDW Brother HL-L8360CDWT Brother MFC-L8610CDW Brother MFC-L8900CDW

  Box Dimensions (LxWxH)	13.4 x 7.25 x 5.5"
