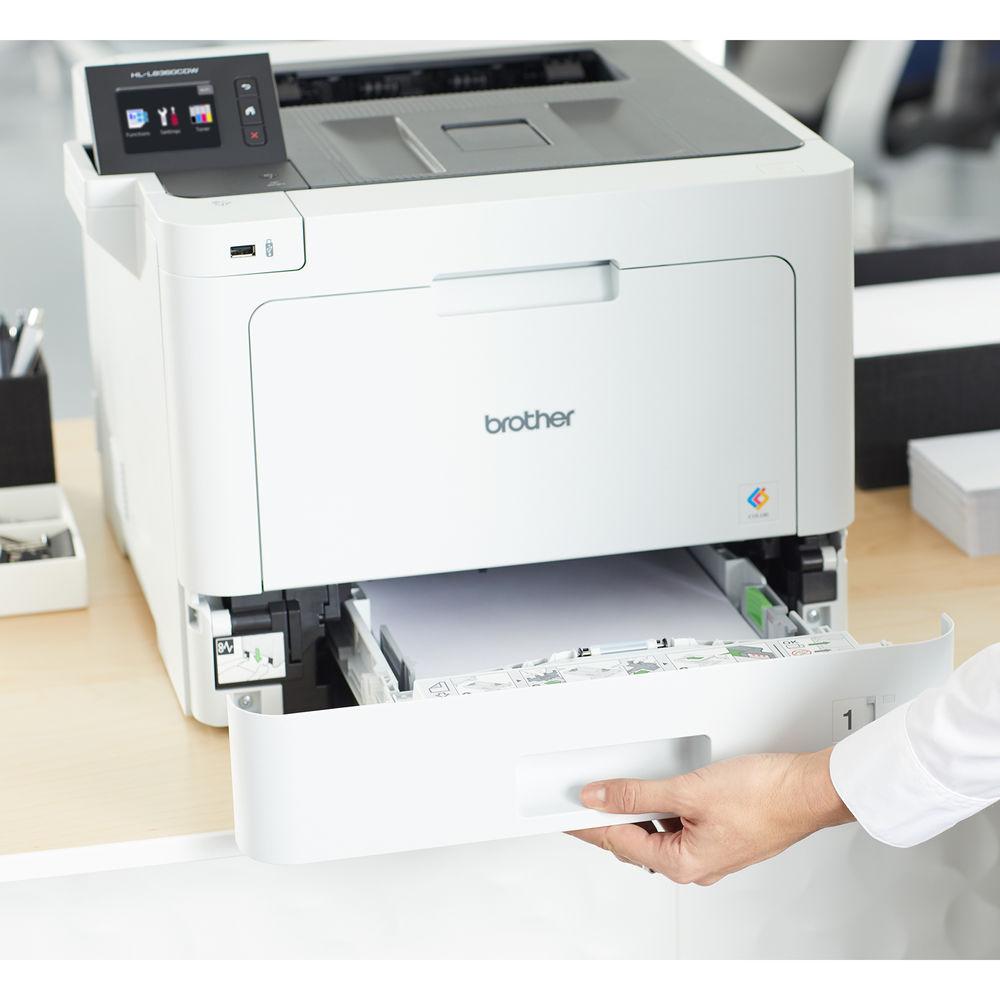

User Manual for Brother HL-L8360CDWT Color Laser Printer Click to enlarge the picture
Contents of the user manual for the Brother HL-L8360CDWT Color Laser Printer
- Product category: Laser Printers Brother
- Brand: Brother
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brother Laser Printers
 |
User manual for the Brother HL-L8360CDWT Color Laser Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brother product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!
|

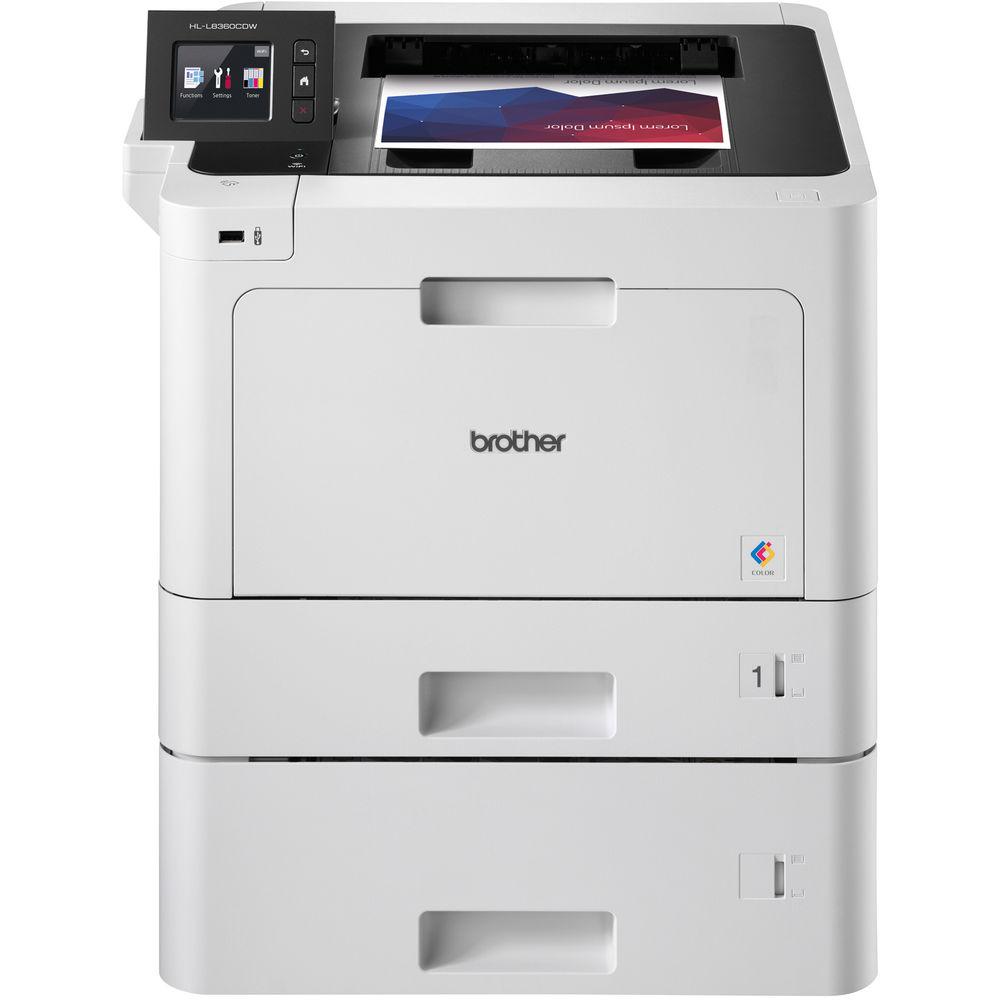

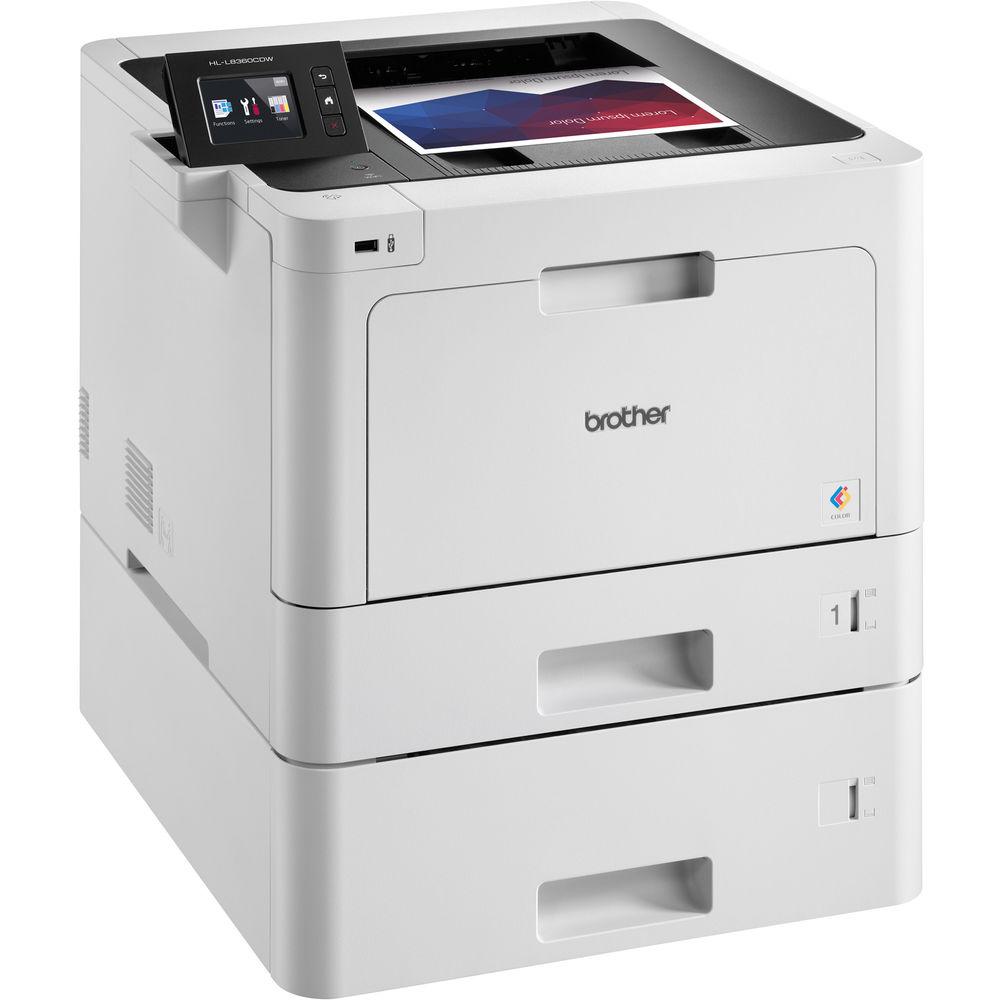

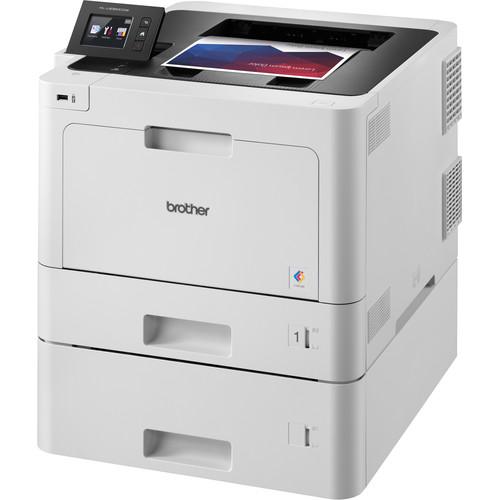

Product description Make sure your workgroup can handle a large volume of print jobs without issue with the HL-L8360CDWT Color Laser Printer from Brother. With print speeds up to 33 ppm and being equipped with an additional 500-sheet input tray, this unit can blaze through jobs with ease. Documents can be created in full color and with high quality thanks to a 2400 x 600 dpi print resolution. Users will also benefit from automatic duplexing and built-in Wi-Fi with NFC connectivity, which enables a variety of mobile printing options.

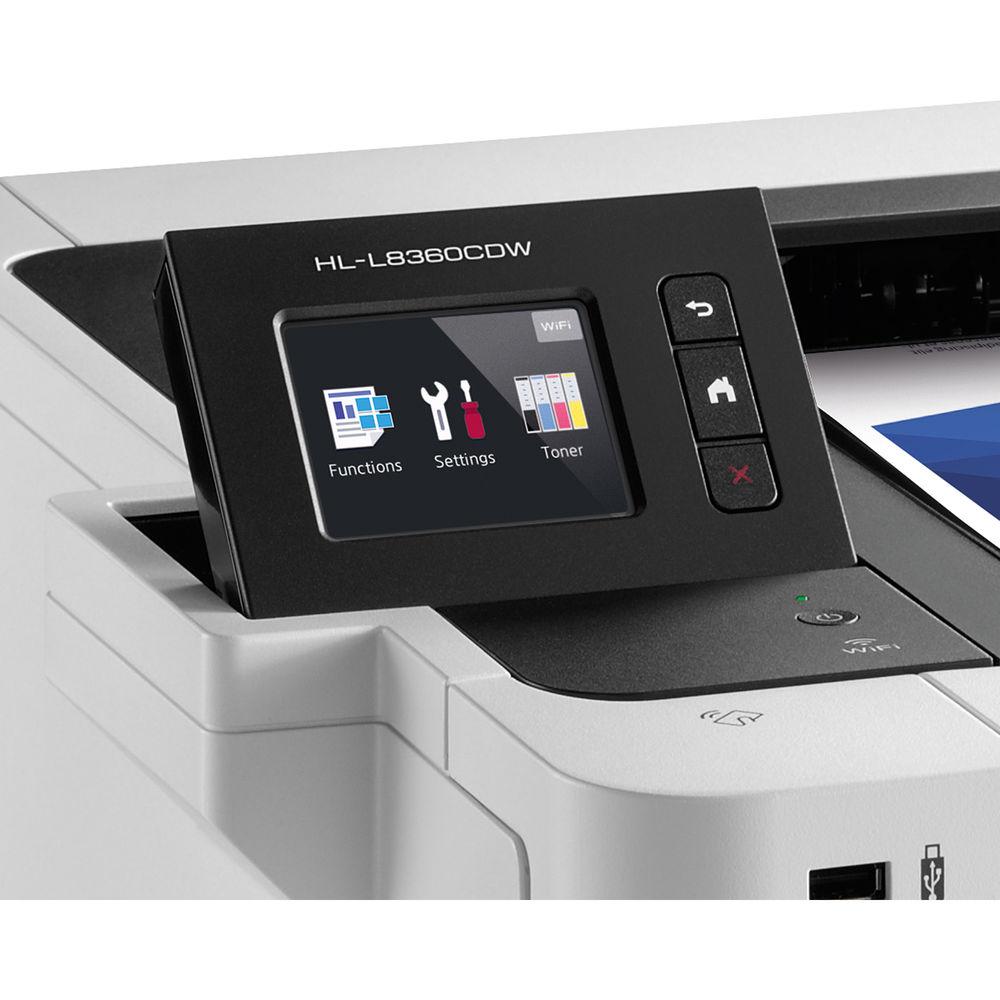

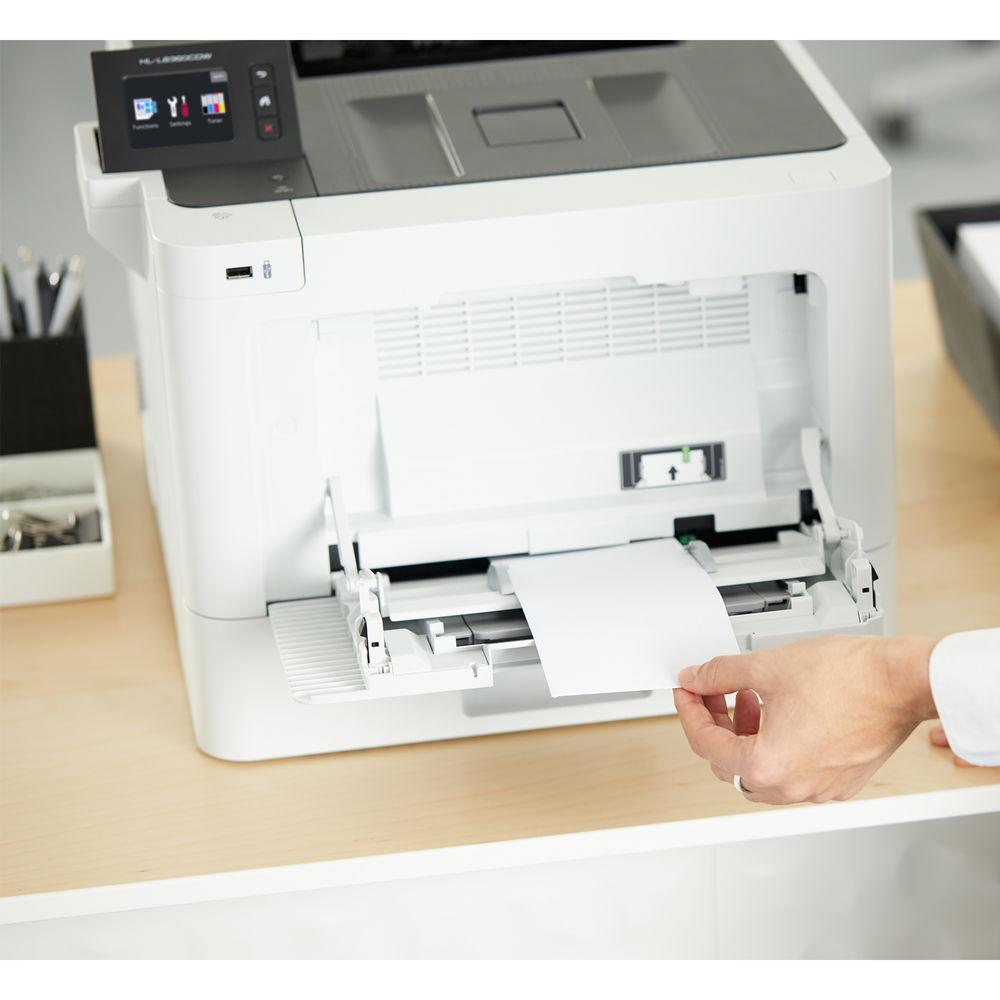

Along with the 500-sheet input tray, the HL-L8360CDWT has a 50-sheet multipurpose tray and a standard 250-sheet input tray. This setup allows for the use of a variety of media from 3 x 5" up to 8.5 x 14". Another advantage of this model is ease of use, thanks to an intuitive 2.7" color touchscreen LCD. Also, it has a front USB port for direct printing from a portable drive. Additionally, it comes with USB 2.0 and Ethernet connectivity as well as the Wi-Fi and NFC. - First print out time of 15 seconds.
- Monthly duty cycle is rated at 60,000 pages with a recommended monthly volume of 4000 pages.

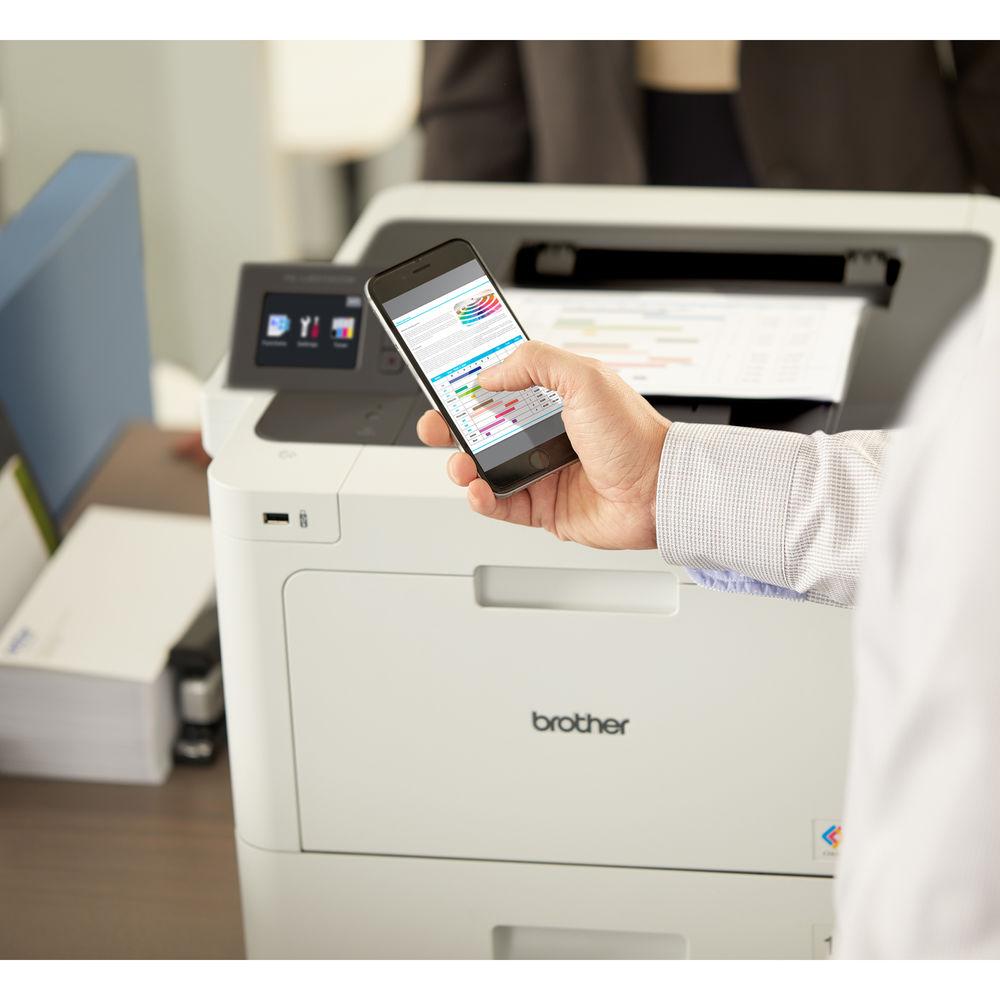

- Supports Apple AirPrint, Google Cloud Print 2.0, Brother iPrint&Scan, Mopria, Cortado Workplace, Wi-Fi Direct, and NFC for mobile printing. Also, has web connect options for Google Drive, Evernote, OneDrive, OneNote, Box, and Dropbox. Various Brother cloud apps are also available, including Office Print.
- One-push wireless setup through Wi-Fi Protected Setup.
- Input capacity can be increased though the use of optional paper trays.

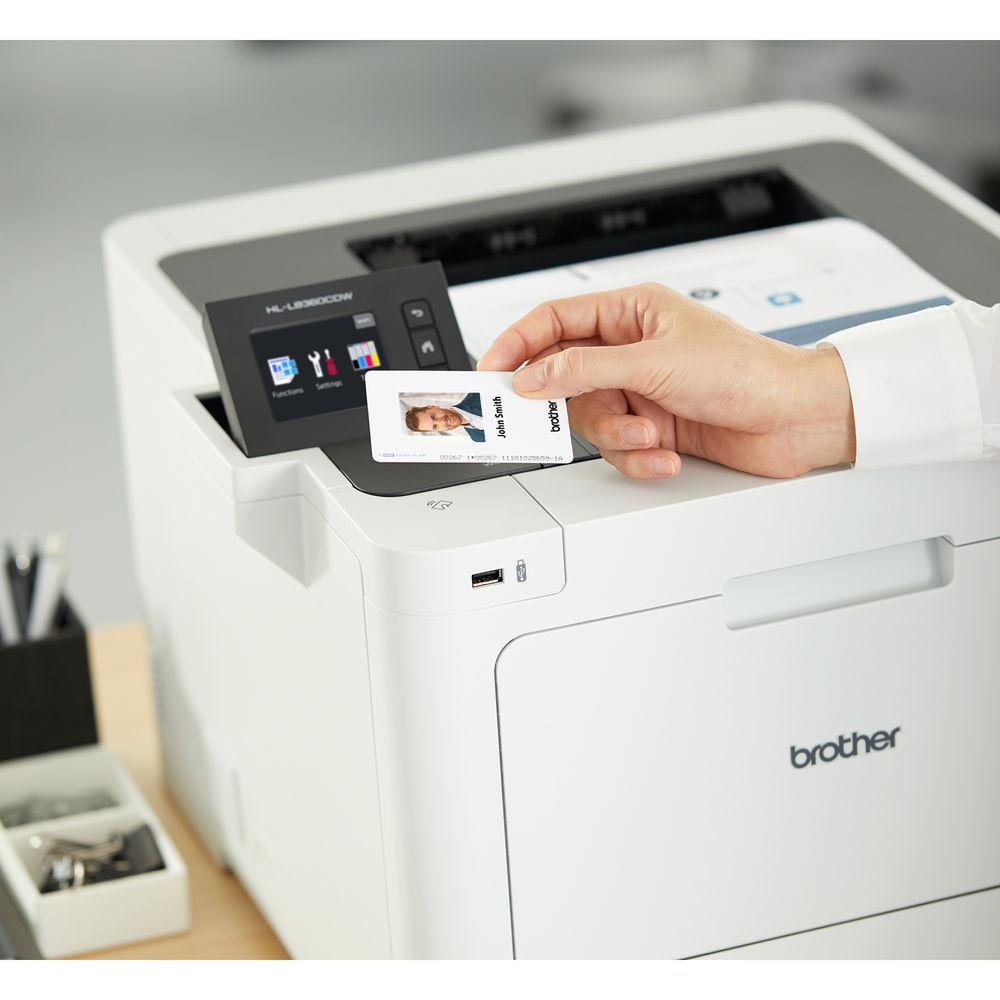

- Advanced security features include an integrated NFC card reader and Active Directory support.
- This printer is ENERGY STAR certified and EPEAT Bronze rated and has a typical energy consumption value of 1.9 kWh/week.

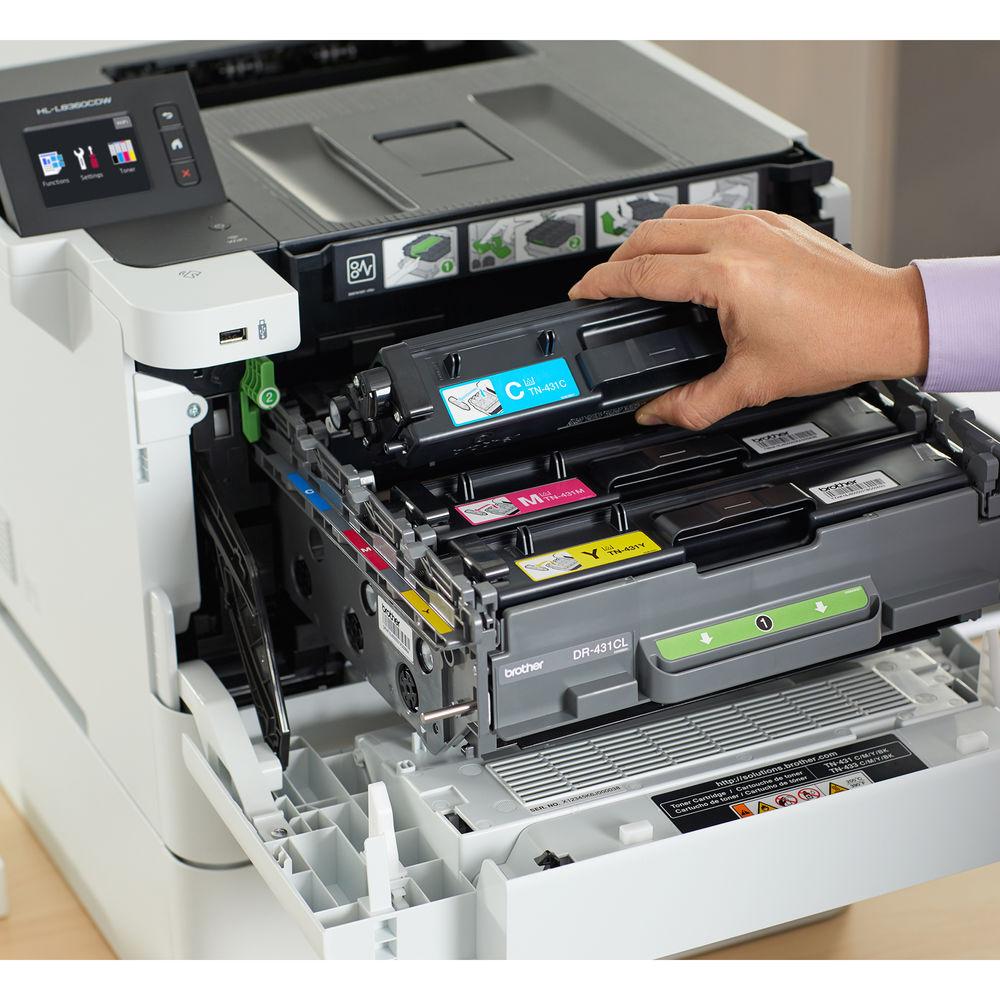

UPC: 012502646433 In the Box Brother HL-L8360CDWT Color Laser Printer TN431BK Black Standard-Yield Toner Cartridge TN431C Cyan Standard-Yield Toner Cartridge TN431M Magenta Standard-Yield Toner Cartridge TN431Y Yellow Standard-Yield Toner Cartridge DR431CL Drum Unit Power Cord Software and Documentation CD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother HL-L8360CDWT Color Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother HL-L8360CDWT Specs | | | Printing Technology | Laser | | Maximum Resolution | 2400 x 600 dpi | | Print Speed | Simplex: 33 ppm
Duplex: 7 ppm | | First Print Out Speed | 15 seconds | | Duplex Printing | Yes | | Ink Palette | Black
Cyan
Magenta
Yellow | | Ink Cartridge Configuration | 4 individual cartridges | | Duty Cycle | Monthly: 60,000 pages
Recommended Monthly Volume: Up to 4,000 pages | | Printer Language | PCL 6
BR-Script3
PDF v1.7
XPS | | | | Paper Handling | Input Tray 1
Input Tray 2
Multipurpose Tray
Output Tray | | Paper Sizes | Input Tray 1: Up to 8.5 x 14" / Up to 21.6 x 35.6 cm
Input Tray 2: Up to 8.5 x 14" / Up to 21.6 x 35.6 cm
Multipurpose Tray: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm | | Paper Weight | Input Tray 1: 16-28 lb / 60 to 105 gsm
Input Tray 2: 16-28 lb / 60 to 105 gsm
Multipurpose Tray: 16-43 lb / 60 to 163 gsm | | Paper Capacity | Input Tray 1: 250 sheets
Input Tray 2: 500 sheets
Multipurpose Tray: 50 sheets
Output Tray: 150 sheets | | | | Interface | USB 2.0
Ethernet
Wi-Fi
NFC | | Direct Printing | USB port
Wi-Fi Direct
NFC
Apple AirPrint
Google Cloud Print
Brother iPrint&Scan
Mopria
Cortado Workplace | | Processor | 800 MHz | | Memory | 512 MB | | Compatible Operating Systems | Windows
Mac OS X, macOS
Linux | | | | Control Panel | 2.7" / 6.75 cm touchscreen LCD | | Acoustic Noise | Pressure Emissions
Printing: 49 dB(A)
Quiet Mode: 44 dB(A)
Ready: Inaudible
Power Emissions
Printing: 6.6 B(A)
Quiet Mode: 6.0 B(A)
Ready: Inaudible | | Power Requirements | 110-120 VAC, 50/60 Hz | | Power Consumption | Maximum: 1190 W
Printing: 600 W
Printing (Quiet Mode): 350 W
Ready: 75 W
Sleep: 9.5 W
Deep Sleep: 1.4 W
Power Off: 0.02 W | | Operating Conditions | Temperature: 50 to 90°F / 10 to 32°C
Humidity: 20 to 80% | | Storage Conditions | Temperature: 32 to 104°F / 0 to 40°C
Humidity: 10 to 90% | | Dimensions (WxDxH) | 17.4 x 19.5 x 17.5" / 44.1 x 49.5 x 44.5 cm | | Weight | 62.7 lb / 28.4 kg | | | | Package Weight | 90.3 lb | | Box Dimensions (LxWxH) | 34.0 x 32.0 x 23.5" |
