User Manual for Brother ImageCenter ADS-2800W Wireless Desktop Scanner Click to enlarge the picture
Contents of the user manual for the Brother ImageCenter ADS-2800W Wireless Desktop Scanner
- Product category: Flatbed & Document Scanners Brother
- Brand: Brother
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brother Flatbed & Document Scanners
 |
User manual for the Brother ImageCenter ADS-2800W Wireless Desktop Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brother product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!
|

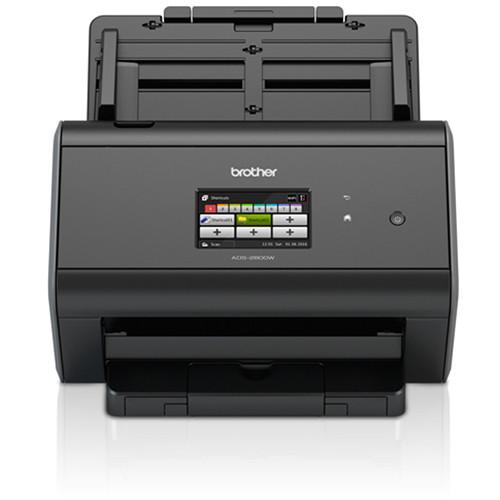

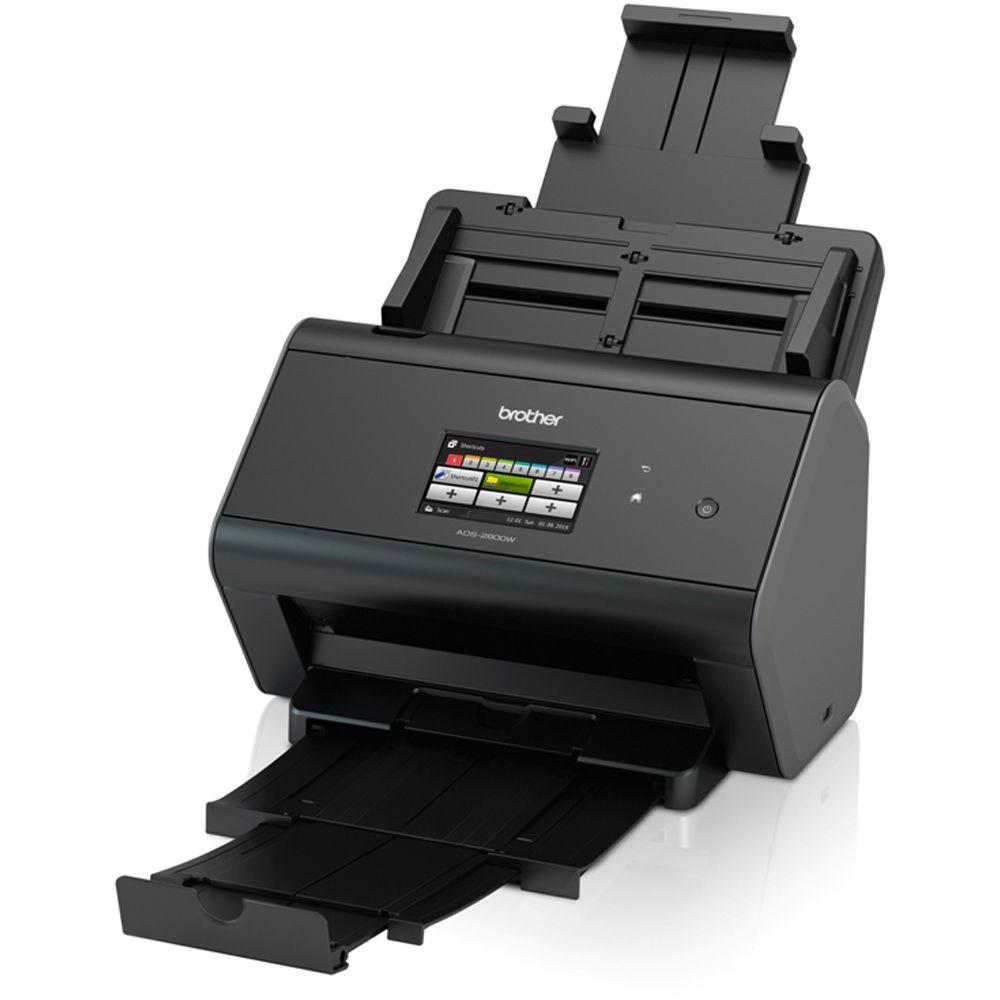

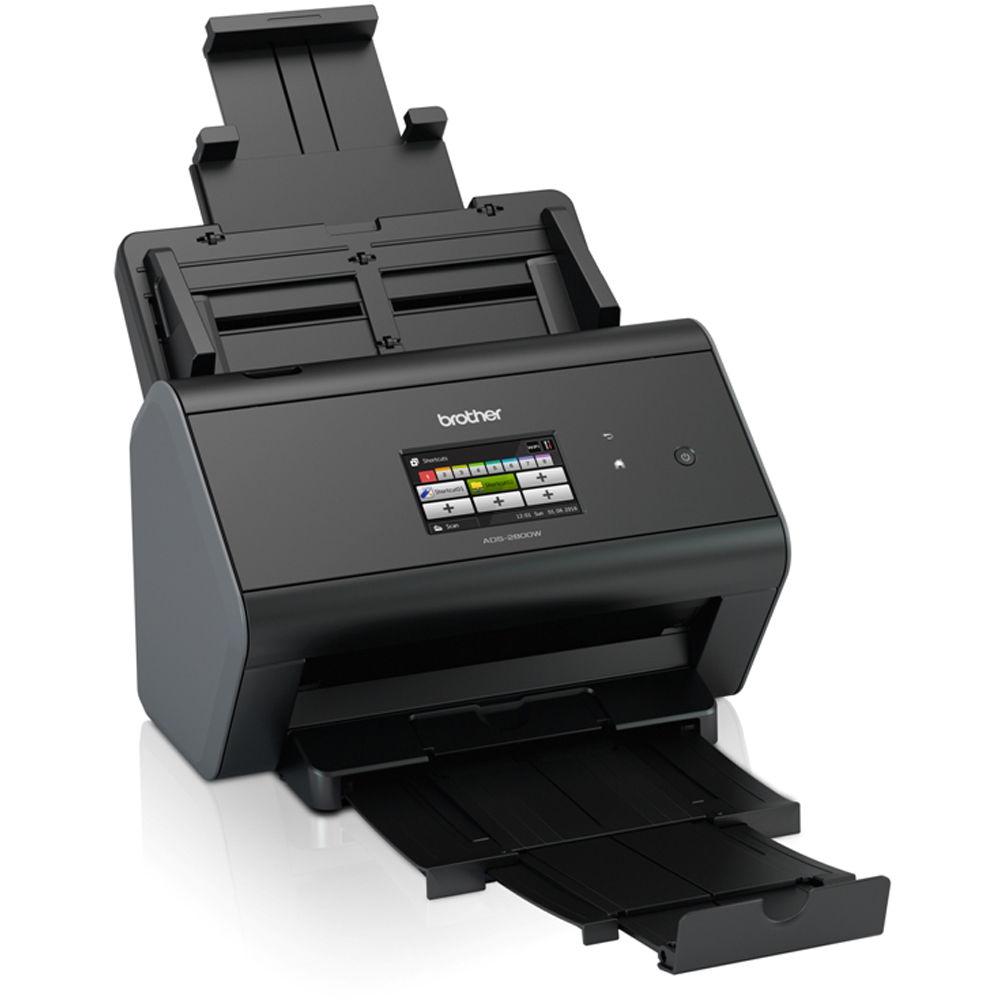

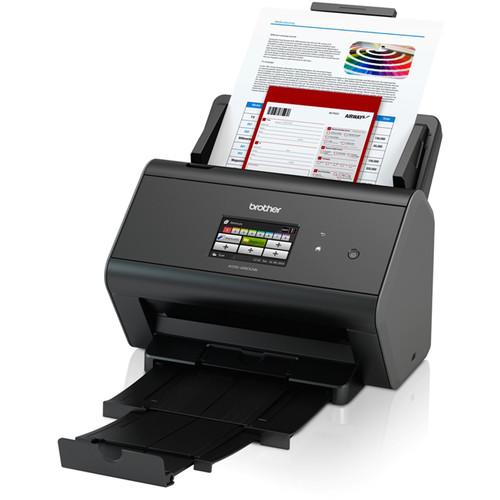

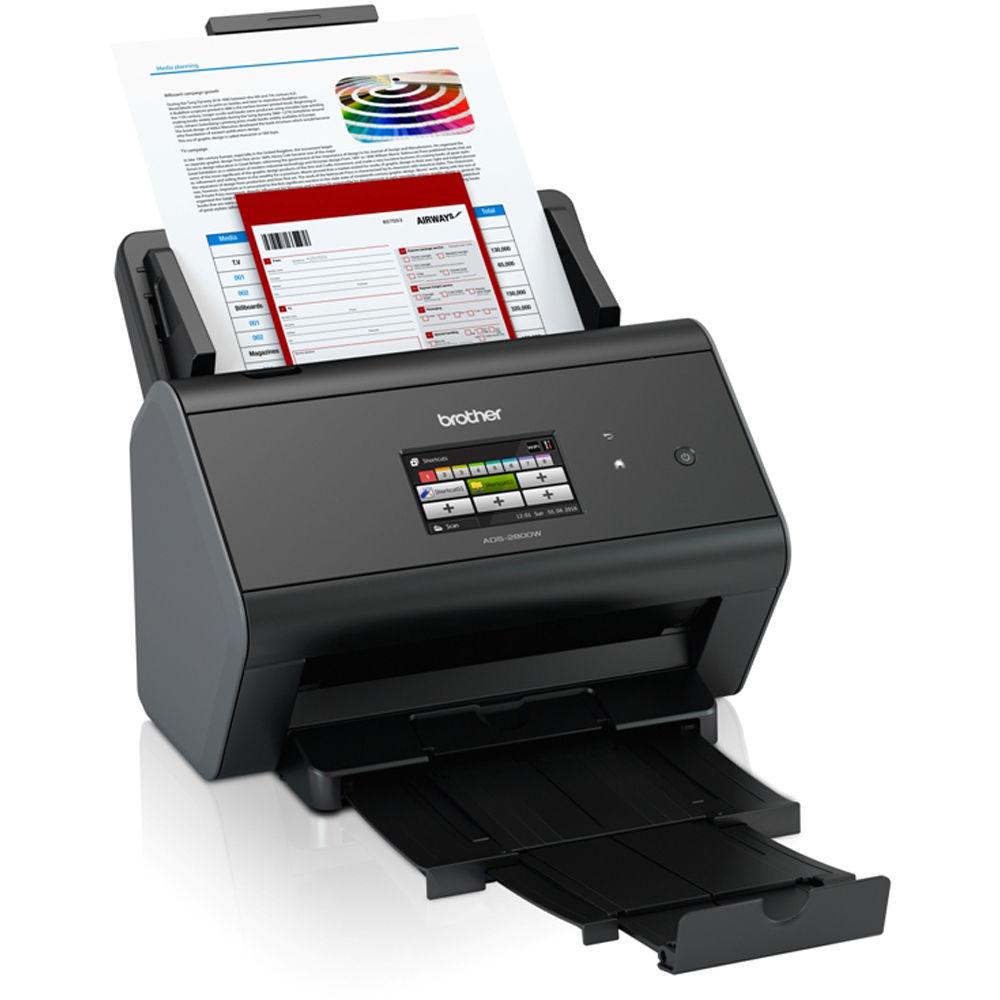

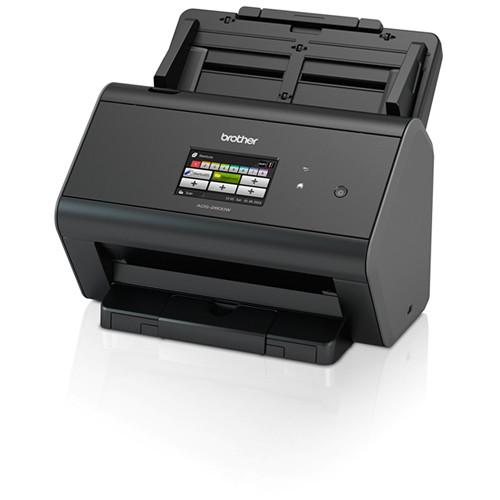

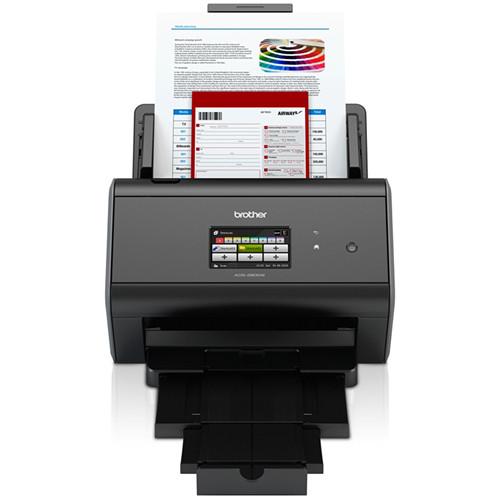

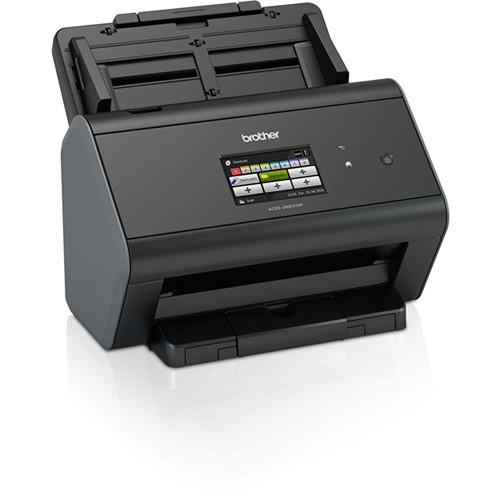

Product description Designed to handle the needs of medium-to-large workgroups and packing in complete networking functionality, the ImageCenter ADS-2800W Wireless Desktop Scanner from Brother will greatly simplify and improve any team's scanning capabilities. Offering speeds of up to 30 ppm as well as single-pass duplexing at up to 60 ipm, this scanner will dramatically improve productivity. It also has an optical resolution of 600 x 600 dpi which can be interpolated to 1200 x 1200 dpi for sharp, high-res images. Along with this the unit is very versatile as it is able to scan documents ranging in size from 2 x 2.76" up to 8.5 x 196".
Documents are handled via a 50-sheet automatic document feeder while a 3.7" color touchscreen permits intuitive operation. A USB direct port is also available for scanning directly to a flash drive and the unit has support for a variety of different drivers and software, including Kofax VRS and TWAIN. Designed to last, it has a rated daily duty cycle of 2,500 scans and for maximum compatibility it has USB 2.0 and Ethernet along with Wi-Fi connectivity. - Daily duty cycle of 2,500 scans
- Scan-to options include file, image, email, email server, FTP, cloud services, OCR, network, USB flash drive, and mobile devices
- 2-in-1 mode can allow scanning of 11 x 17" documents and Continuous Scan can scan an unlimited number of pages into a single file
- Business cards, embossed plastic cards, receipts, photos, and other specialized documents up to 196" in length can be scanned
- TWAIN, WIA, ICA, ISIS, and SANE driver support
- Advanced imaging features include auto deskew, hole punch removal, background and blank page removal, multi-feed detection, and more
- Advanced security features including Secure Function Lock, SSL, Enterprise Security, network user authentication, and corporate email address lookup via Active Directory
- Runs on 110-120 VAC power
- Includes ABBYY FineReader Sprint v12, ABBYY PDF Transformer+ (Windows), Nuance PaperPort 14 SE (Windows), and Brother Control Center software
UPC: 012502642787 In the Box Brother ImageCenter ADS-2800W Wireless Desktop Scanner USB Cable AC Adapter Carrier Sheet Installation DVD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother ImageCenter ADS-2800W Wireless Desktop Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother ADS-2800W Specs | Maximum dpi Resolution | 600 dpi | | Duplex Speed | 60 ipm (Color) | | Simplex Speed | 30 ppm (Color) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 196" / 497.8 cm | | Color Depth | 24-Bit (External)
30-Bit (Internal) | | Grayscale Bit-Depth | 8-Bit (Internal) | | Single Pass Duplex | Yes | | Multi-Feed Detection | Yes | | Document Feeding | ADF | | Operating System Compatibility | macOS/OS X, Windows, Linux | | Control Panel | LCD Touchscreen | | Drivers | TWAIN, WIA, ISIS, ICA, SANE | | Duty Cycle | 2500 Scans | | Maximum Sheet Capacity | 50 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR | | Operating Humidity | 20 to 80% | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Maximum Power Consumption | 27 W | | AC Input Power | 120 VAC, 60 Hz | | Dimensions | 12.1 x 10.2 x 9.8" / 30.7 x 25.9 x 24.9 cm | | Weight | 10.00 lb / 4.5 kg | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 15.0 x 13.0 x 10.0" |
