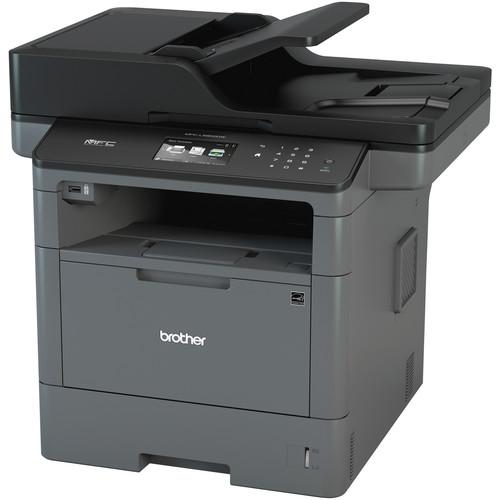

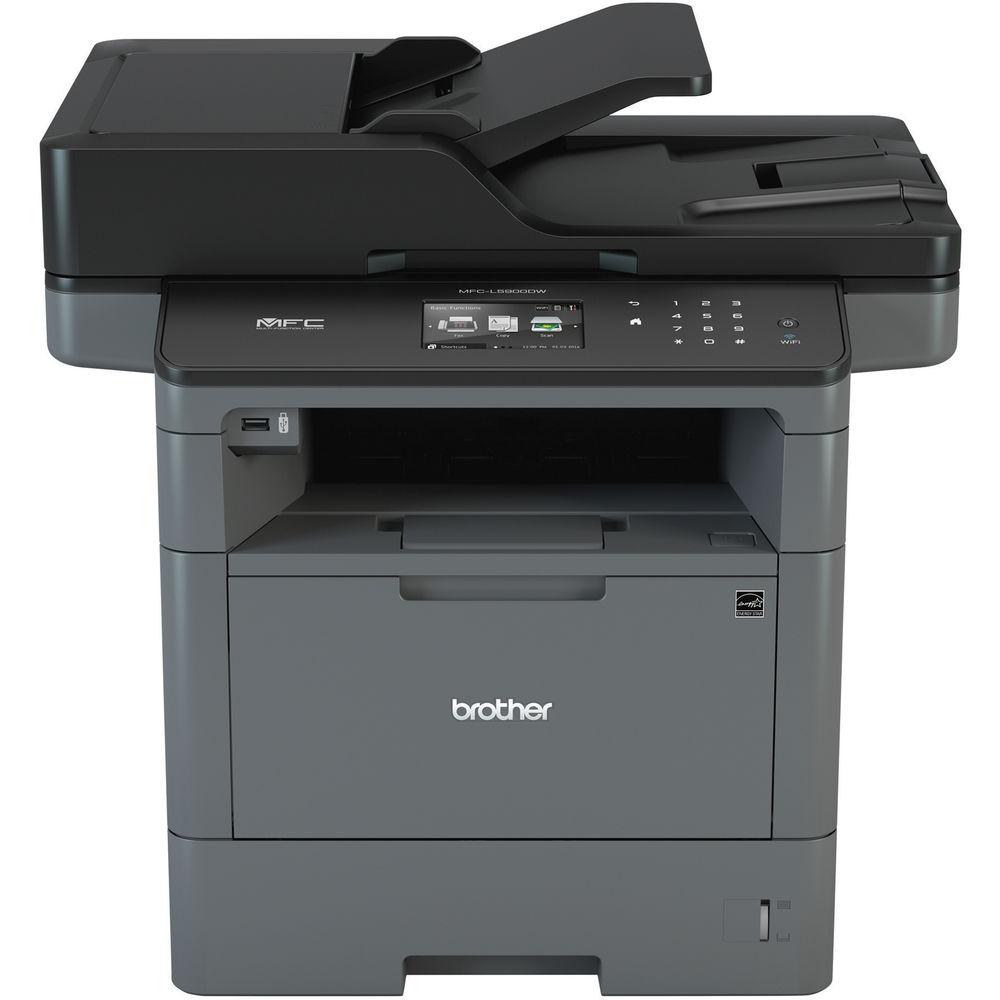

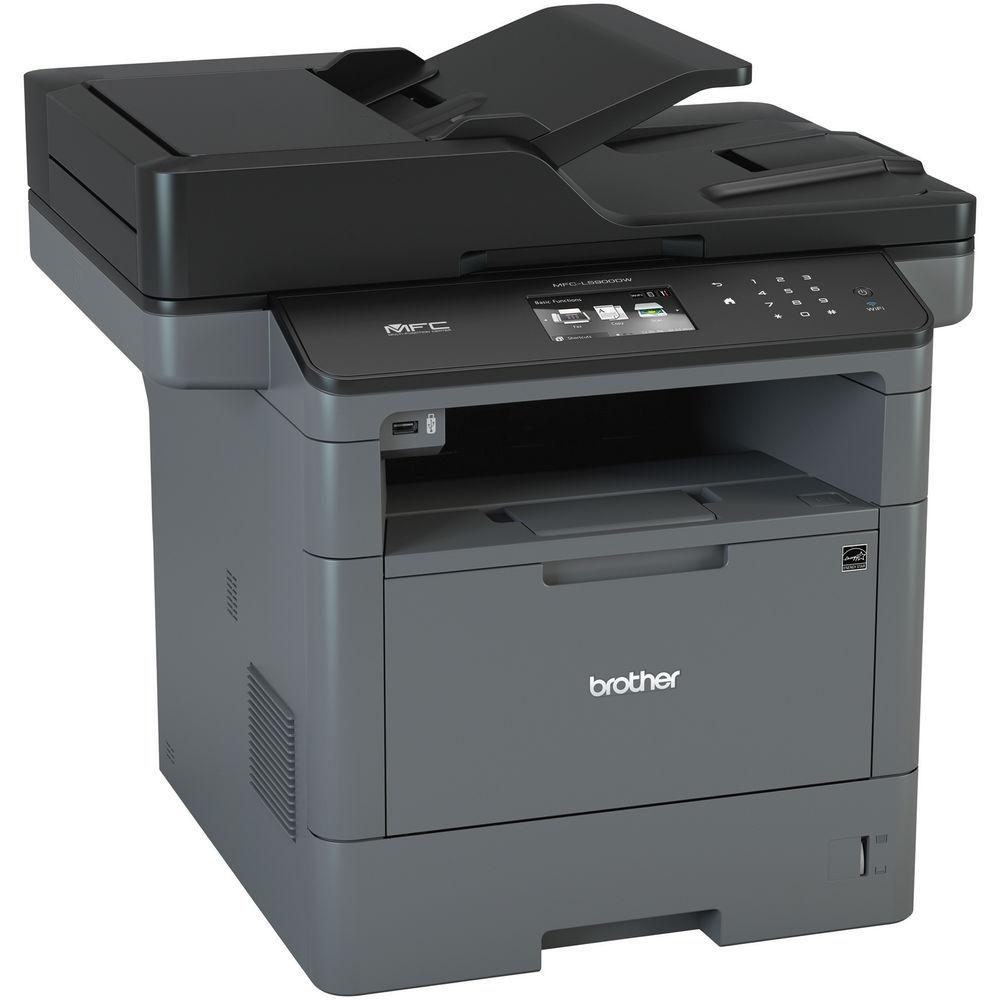

Brother MFC-L5900DW All-in-One Monochrome Laser Printer

Search your instruction manual in PDF to download

User Manual for Brother MFC-L5900DW All-in-One Monochrome Laser Printer

Click to enlarge the picture
Brother MFC-L5900DW All-in-One Monochrome Laser Printer Contents of the user manual for the Brother MFC-L5900DW All-in-One Monochrome Laser Printer
  • Product category: Laser Printers Brother
  • Brand: Brother
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Brother Laser Printers

Brother MFC-L5900DW All-in-One Monochrome Laser Printer Brother MFC-L5900DW All-in-One Monochrome Laser Printer
User manual for the Brother MFC-L5900DW All-in-One Monochrome Laser Printer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Brother product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!



Product description

High-volume small-to-medium workgroups looking for one piece of equipment to fill all of their needs can look to the MFC-L5900DW All-in-One Monochrome Laser Printer from Brother to help them print, scan, copy, and fax documents. This quick, wireless-capable printer has an exceptional print speed of 42 ppm, which also applies to copy speed, and it has a resolution of 1200 x 1200 dpi. Users will also be able to easily produce documents ranging in size up to 8.5 x 14" with ease using either the 250-sheet main input tray or the 50-sheet multipurpose tray.

Both a 70-sheet ADF and a large legal-size flatbed are available for scanning and copying. Scanning benefits from a great optical resolution of 1200 x 1200 dpi and it can work in simplex at 28 ipm in black or 20 ipm in color. Single-pass duplex scanning is possible at impressive rates of 56 ipm in black and 34 ipm in color. For ease of use, there is a 3.7" color touchscreen for checking status and manipulating settings. A USB port on the front can be used for direct printing and scanning and the printer does have standard USB 2.0 and Ethernet connections. In addition to this, the MFC-L5900DW has Wi-Fi connectivity for wireless access from a computer or mobile device.
  • Duplexing for copies and scans is handled in a single pass
  • Scan resolution can be interpolated to maximum of 19200 x 19200 dpi
  • Input capacity can be expanded to 1,340 sheets using optional trays
  • Scan to capability includes file, image, OCR, email, SSH server, USB SharePoint, cloud services, email servers, network folders, and more
  • When networked, the printer can print via a mobile device using Apple AirPrint, Google Cloud Print 2.0, Brother iPrint&Scan, Cortado Workplace, or Mopria
  • Web Connect feature provides direct access to Google Drive, Evernote, OneDrive, OneNote, Dropbox, Box, Facebook, Flickr, and Picasa Web Albums
  • Monthly duty cycle of 50,000 pages with a recommended monthly volume of 3,500 pages
UPC: 012502642039 In the Box Brother MFC-L5900DW All-in-One Monochrome Laser Printer
  • TN820 Standard Toner Cartridge
  • DR820 Drum Unit
  • Telephone Line Cord
  • Power Cord
  • Installation CD-ROM
  • Limited 1-Year Warranty
  • Brochure PDF 2.4mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Brother MFC-L5900DW All-in-One Monochrome Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Brother MFC-L5900Dw Specs

    Functions Print, scan, copy, fax
    Printing Technology Black & white laser technology
    Maximum Resolution 1200 x 1200 dpi
    Print Speed 42 ppm
    Print Color Monochrome
    Duplex Printing Yes
    Printer Duty Cycle Monthly: 50,000 pages
    Recommended Monthly Volume: 3,500 pages
    Type Flatbed, ADF
    Optical Resolution Flatbed: 1200 x 1200 dpi
    Interpolated Resolution 19200 x 19200 dpi
    Scan Speed Black: 28 ipm simplex / 56 ipm duplex
    Color: 20 ipm simplex / 34 ipm duplex
    Maximum Scan Size Flatbed & ADF: 8.5 x 14" / 21.6 x 35.6 cm
    Duplex Scanning Yes, single-pass
    Scanner Features Scan To: File, image, email, OCR, FTP, SSH server (SFTP), USB, SharePoint, Cloud (Web Connect), email server, network folder (CIFS), easy scan to email
    Copy Resolution 1200 x 600 dpi
    Copy Speed 42 cpm
    Reduction/Enlargement 25-400% in 1% increments
    Number of Copies Up to 99
    Duplex Copying Yes, single-pass
    Copy Features Sorting, N-in-1, ID copy
    Modem 33.6 kbps
    Memory 500 pages
    Fax Features PC Fax capability
    Paper Handling Input tray
    Multipurpose tray
    Automatic document feeder
    Paper Sizes Up to 8.5 x 14" / 21.6 x 35.6 cm
    Paper Capacity Input Tray: 250 sheets
    Multipurpose Tray: 50 sheets
    ADF: 70 sheets
    Output Tray: 150 sheets face down, 1 sheet face up
    Interface USB 2.0
    Ethernet
    802.11b/g/n Wi-Fi
    1 x USB host (front)
    Mobile Printing Features Apple AirPrint, Google Cloud Print 2.0, Brother iPrint&Scan, Cortado Workplace, Mopria, Wi-Fi Direct
    OS Compatibility Windows, Mac OS, and Linux
    Memory 512 MB
    Printer Language PCL6, BR-Script3, IBM ProPrinter, Epson FX, PDF v1.7, XPS Version 1.0
    Security Features Secure Function Lock, Active Directory, Enterprise Security (802.1x), Slot Lock, Secure Print, SSL/TLS, IPSec
    Display 3.7" / 9.4 cm color touchscreen
    Power Requirements 120 VAC, 50/60 Hz
    Dimensions 19.5 x 16.8 x 19.1" / 49.5 x 42.7 x 48.5 cm
    Weight 38 lb / 17.2 kg
    Package Weight 46.5 lb
    Box Dimensions (LxWxH) 24.0 x 23.0 x 21.0"

    Rating

    76% users recommend this product to others. And what about you?
    Rating: 3.8 of 5

    This product has already been rated by 04 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Brother MFC-L5900DW All-in-One Monochrome Laser Printer

    Subject: Won't power back on after attempting an update
    Date: 30.11.2022 02:50:37Name: John
    Working fine then printer asked for an update. Went to update now printer won't power back on. Screen is black.
    Thanks for any help possible.
    Post reply

    Subject: Mfc printer L-5900DW
    Date: 07.06.2022 16:55:34Name: Marty
    The machine will turn on then stops after 10 to 15 seconds with a big red X on the screen
    Post reply

    Subject: faded pages
    Date: 27.05.2022 05:00:11Name: Cynthia Hubberd
    I have pages that are printing with part of the page (towards the center vertically) very very faded. It has printed a little over 18000 pages. I have a new toner cartridge in and the drum has 52% life left. The fuser and laser unit has 91% life left. The PF Kit MP had 100% life and the PF Kit 1 has 94% left. Can't figure out what the problem is. Thank you in advance.
    Post reply

    Subject: Black smudges on paper after printing
    Date: 08.02.2021 14:59:19Name: Darla
    What do we do about the smudges on paper? We changed the toner and it started getting smudges on paper. We have tried the green slide button and cleaning. What next????
    Post reply
