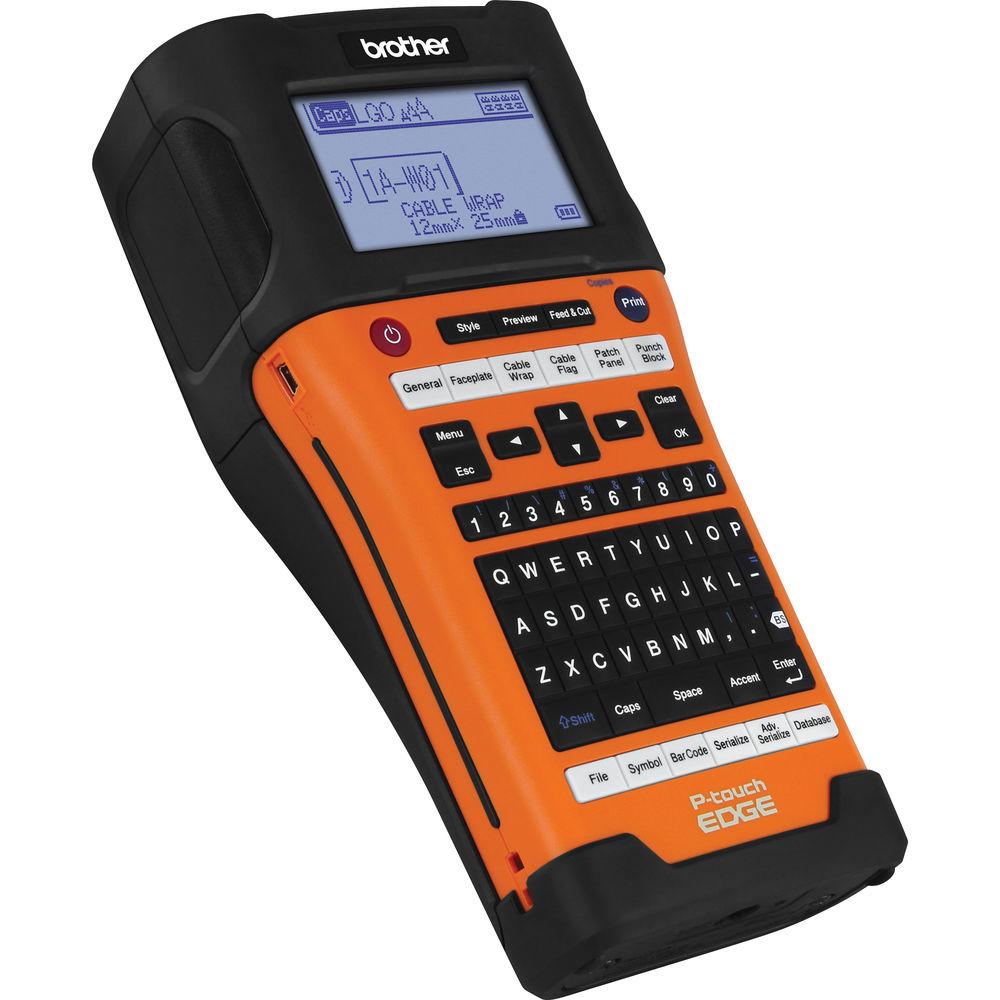

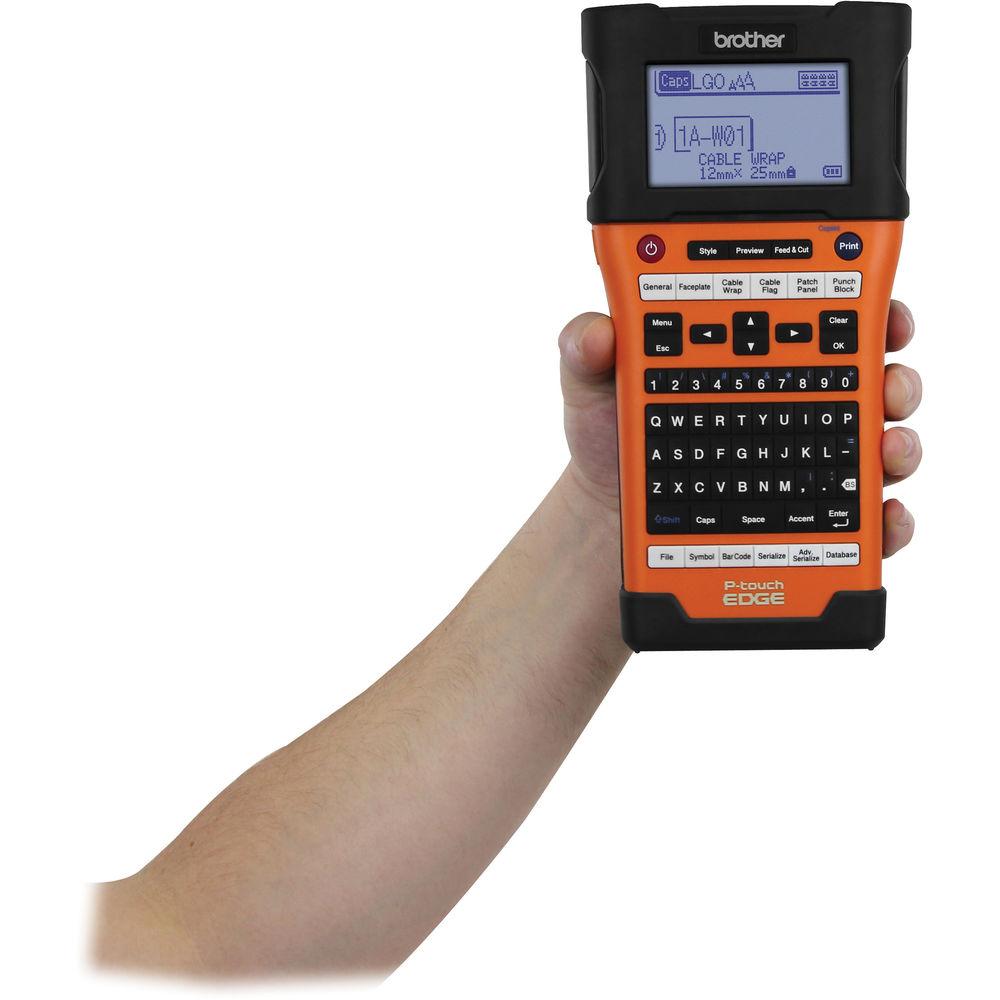

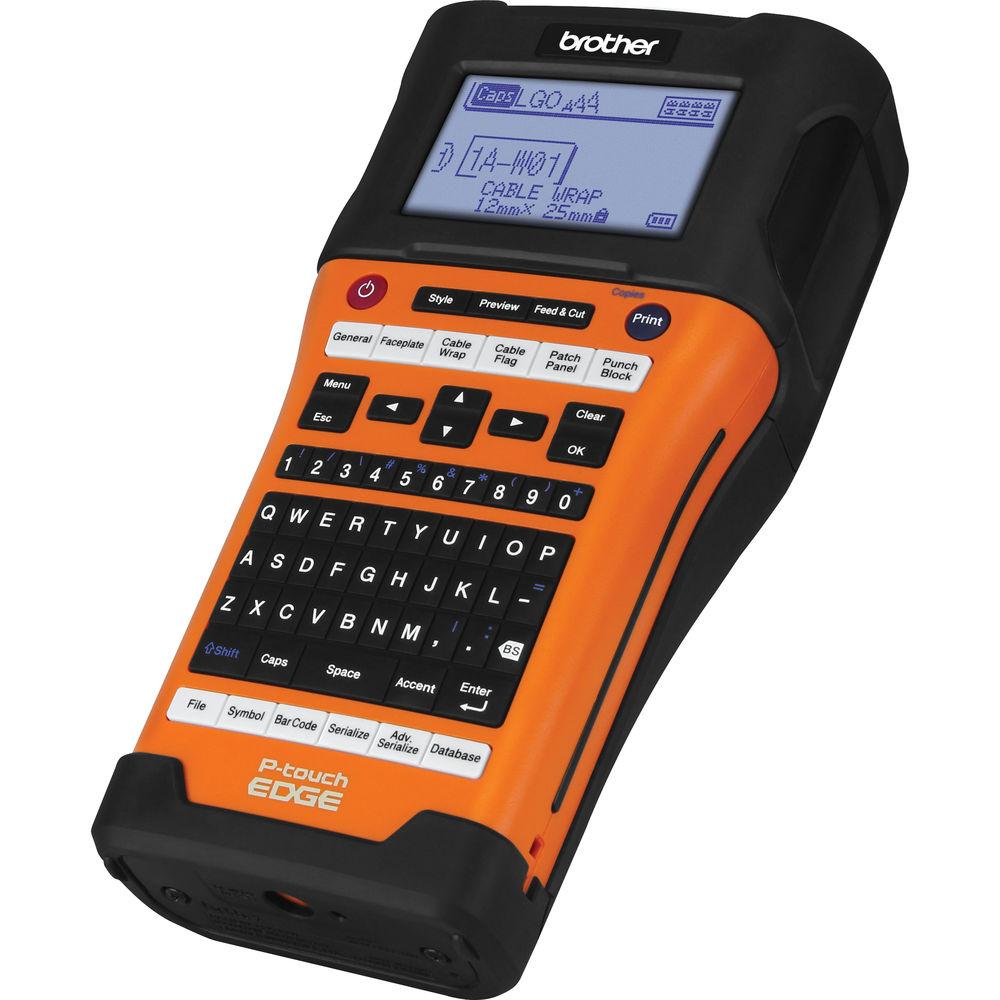

User Manual for Brother PT-E500 Industrial Handheld Labeling Tool Click to enlarge the picture
Contents of the user manual for the Brother PT-E500 Industrial Handheld Labeling Tool
- Product category: Label Printer Brother
- Brand: Brother
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brother Label Printer
 |
User manual for the Brother PT-E500 Industrial Handheld Labeling Tool contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brother product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!
|
Product description Featuring laminating thermal transfer technology, the PT-E500 Industrial Handheld Labeling Tool from Brother will help you fill numerous labeling needs. It works with tape sizes from 3.5 to 24mm and it has a print resolution of 180 dpi for sharp text. Produce labels quickly while on-site thanks to the included rechargeable Li-ion battery and a speed of 0.8" per second or 1.2" per second when plugging into AC power. Further improving usage is the inclusion of a built-in automatic cutter, a QWERTY keyboard, and a large 15-character, 2-line backlit LCD.

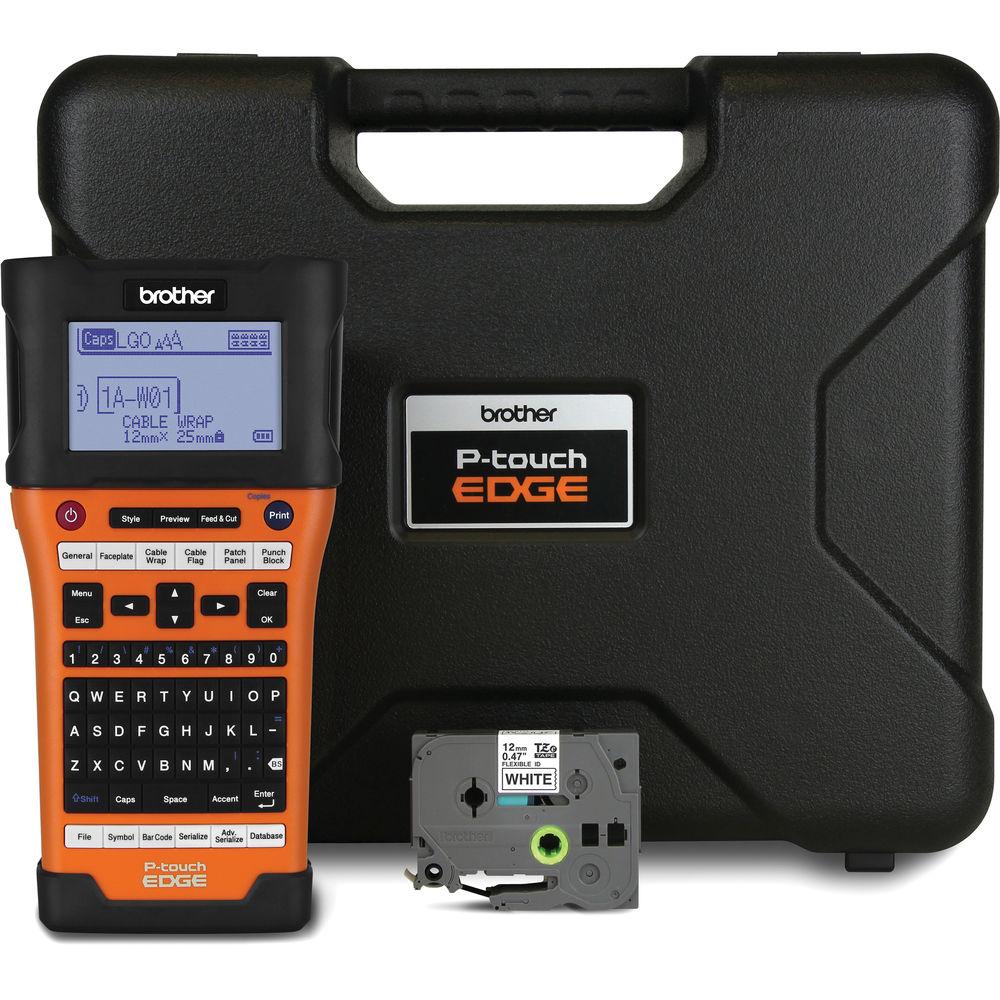

A USB port is available for computer connectivity which works with the included design software to print from databases and make custom labels. Smart labeling application keys enable quick printing for specific applications, such as cabling, faceplates, patch panels, and more, and it has advanced serialized options. Additionally, it is compatible with a variety of HGe and TZE tapes along with the HSe heat shrink tubing that is smear resistant. UPC: 012502635987 In the Box Brother PT-E500 Industrial Handheld Labeling Tool BAE001 Rechargeable Li-Ion Battery Pack (7.2V, 1900mAh) ADE001 AC Power Adapter TZeFX231 Flexible ID Tape (Black on White, 0.47" x 26.2') Carrying Case Software CD-ROM Limited 2-Year Warranty Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother PT-E500 Industrial Handheld Labeling Tool in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother PT-E500 Specs | | | Type | Portable Tape Label Printer with Keyboard | | Print Resolution | 180 dpi | | Print Speed (Seconds) | 0.79" / 20 mm per Second (Battery)
1.2" / 30 mm per Second (Power Adapter) | | Maximum Printable Height | 0.7" / 18 mm | | Maximum Printable Lines | 7 | | Number of Copies | 99 | | Label Length Settings | 1 to 39.3" / 25 to 999 mm | | Horizontal Alignment Options | Left, Right, Center, Justified | | | | Printing Technology | Thermal Transfer | | Color Type | Black | | Operating System Support | Windows, macOS/OS X | | Cutter Type | Automatic | | Special Functions | Auto Numbering, Rotate Printing, Text Insert, Vertical Printing | | | | Wired Connections | USB Type-A | | | | Number of Fonts | 14 | | Number of Font Sizes | 9 | | Number of Styles | 10 (Fonts) | | Number of Frames | 6 | | Built-In Symbols | 384 | | Built-In Designs/Templates | 7 | | | | Backlit Display | Yes | | Display Information Capacity | 2-Line, 15 Characters | | | | Tape Family | HGe, HSe, TZe | | Supported Tape Sizes | 0.14" / 3.5 mm, 0.24" / 6 mm, 0.35" / 9 mm, 0.47" / 12 mm, 0.71" / 18 mm, 0.94" / 24 mm | | Maximum Tape Length | 26.2' / 8 m | | | | Linear Barcodes Supported | Codabar, Code 128, Code 39, EAN-13, EAN-8, GS1 DataBar, GS1-128, Interleaved 2 of 5, Laser Barcode, POSTNET, UPC-A, UPC-E | | Matrix Barcodes Supported | Aztec Code, Data Matrix, MaxiCode, PDF417, QR Code | | | | Battery Type | 1 x Rechargeable Pack | | | | Dimensions | 4.9 x 3.7 x 9.8" / 12.4 x 9.4 x 24.9 cm | | Weight | 2 lb / 0.9 kg (without Tape and Battery) | | | | Package Weight | 6.99 lb | | Box Dimensions (LxWxH) | 15.4 x 13.3 x 5.2" |
