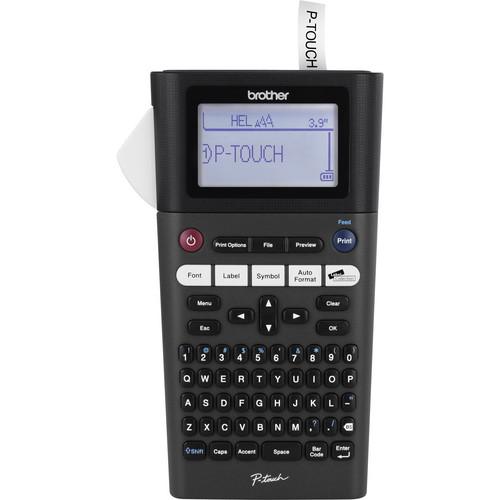

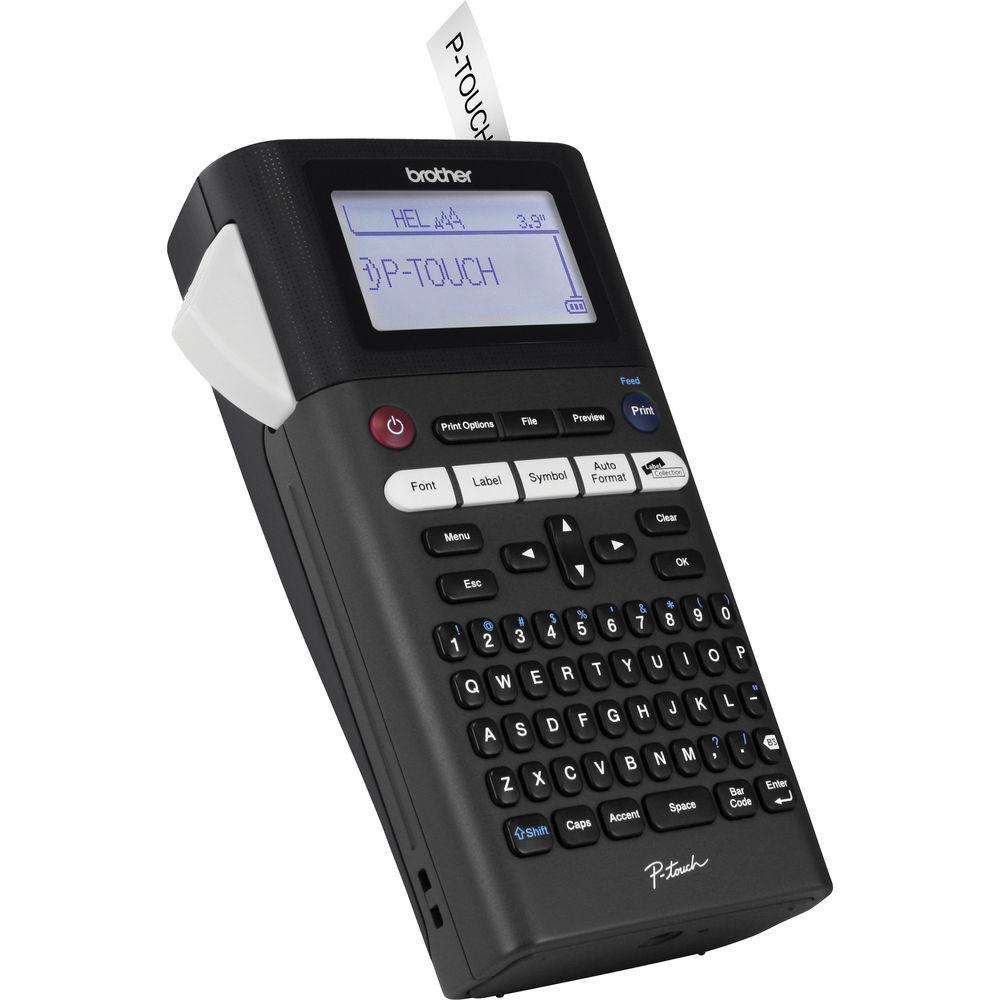

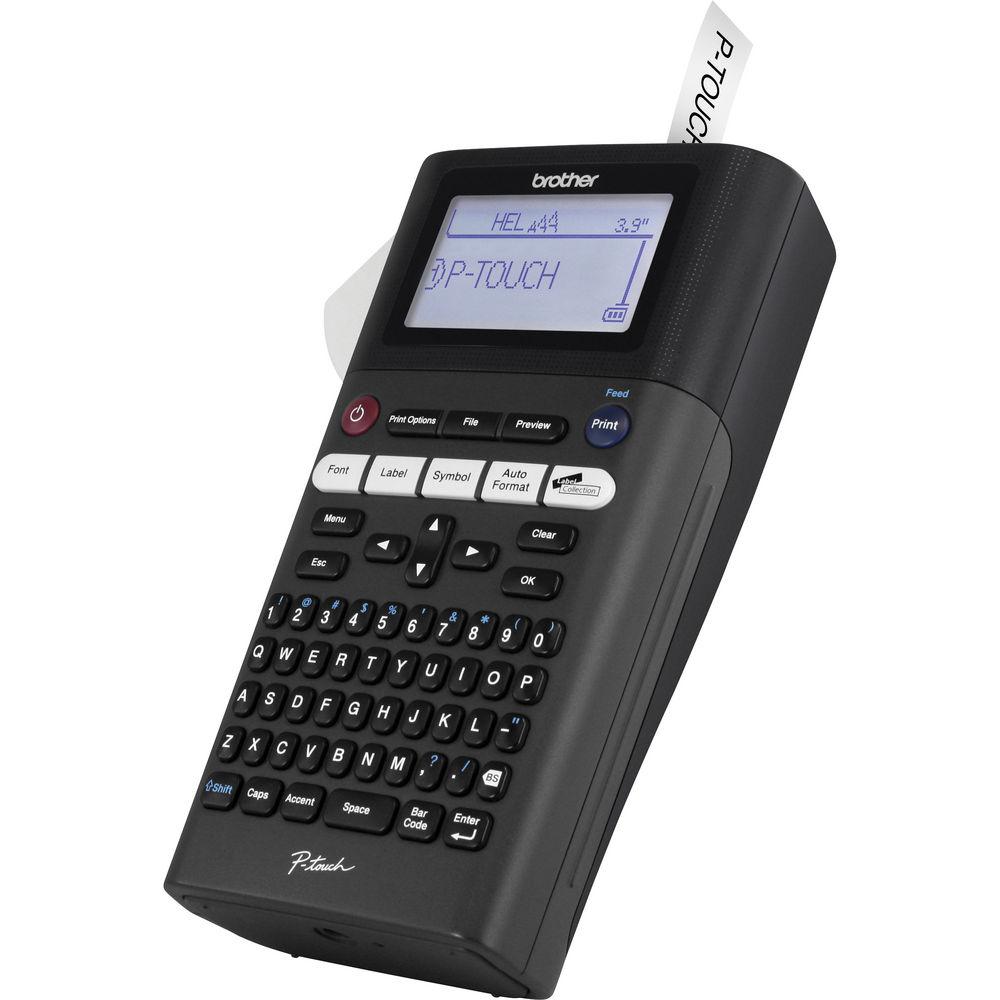

User Manual for Brother PT-H300 One-Touch Handheld Labeler Click to enlarge the picture
Contents of the user manual for the Brother PT-H300 One-Touch Handheld Labeler
- Product category: Label Printer Brother
- Brand: Brother
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brother Label Printer
 |
User manual for the Brother PT-H300 One-Touch Handheld Labeler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brother product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!
|
Product description The Brother PT-H300 Rechargeable Handheld Labeler provides an easy way to customize your own labels. The QWERTY keyboard makes text entry easy while function buttons provide easy access to formatting and other features. Additionally, the graphical 3-line backlit LCD display allows you to preview your labels before printing them. The labeler can output up to 5 lines of text and includes layout options such as center and right justification, vertical printing, and mirror printing. The PT-H300 styling and formatting options include 7 font sizes up to 42 point, 14 fonts, and 10 font styles including bold, outline, shadow, and italic. You can also print common barcode formats including UPC-A, UPC-E, EAN13, and CODE39. The 50-label internal memory provides an easy way to quickly reprint commonly used labels. The labeler weighs only 1.5 lb and includes a wrist strap for easy portability. Because the labeler runs on AA batteries it can be used anywhere, even if there's no outlet nearby. An optional rechargeable battery is also available (not included). The labeler is compatible with all laminated TZe series tapes up to 0.7" wide including both indoor and outdoor tapes. - Create durable labels for indoor or outdoor use
- Print multiple lines of text and graphics per label
- Convenient 1-touch keys for quick, easy label formatting
- Preview your work on the large Vivid Bright display
- Powered by AA batteries or optional Li-ion rechargeable battery (Li-ion battery not included)
- Pre-designed label templates
- Hundreds of built-in symbols, fonts, frames, and barcodes
- Internal memory holds up to 50 labels
UPC: 012502634966 In the Box Brother PT-H300 One-Touch Handheld Labeler Black on White Laminated "TZe" Starter Tape (0.7" x 13.1') 6 x AA Batteries Wrist Strap User's Guide Limited 2-Year Warranty User Manual PDF 11.1mbeuvffwcd Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother PT-H300 One-Touch Handheld Labeler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother PT-H300 Specs | | | Type | Portable Tape Label Printer with Keyboard | | Print Resolution | 180 dpi | | Print Speed (Seconds) | 0.79" / 20 mm per Second | | Maximum Printable Height | 0.62" / 15.8 mm | | Maximum Printable Lines | 5 | | Number of Copies | 9 | | Label Length Settings | 1.18 to 11.81" / 30 to 300 mm | | Horizontal Alignment Options | Left, Right, Center, Justified | | | | Printing Technology | Thermal Transfer | | Color Type | Black | | Cutter Type | Manual | | Special Functions | Auto Formats, Auto Numbering, Mirror Printing, Text Insert, Vertical Printing | | | | Number of Fonts | 15 | | Number of Font Sizes | 8 | | Number of Styles | 10 (Fonts) | | Number of Frames | 99 | | Built-In Symbols | 617 | | Built-In Designs/Templates | 25 | | Memory Locations | 50 | | | | Backlit Display | Yes | | Display Information Capacity | 3-Line, 15 Characters | | | | Tape Family | TZe | | Supported Tape Sizes | 0.14" / 3.5 mm, 0.24" / 6 mm, 0.35" / 9 mm, 0.47" / 12 mm, 0.71" / 18 mm | | Maximum Tape Length | 26.2' / 7.99 m | | | | Linear Barcodes Supported | Codabar, Code 128, Code 39, EAN-13, EAN-8, GS1-128, Interleaved 2 of 5, UPC-A, UPC-E | | | | Dimensions | 8.4 x 5.2 x 2.6" / 21.3 x 13.2 x 6.6 cm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 3.08 lb | | Box Dimensions (LxWxH) | 13.5 x 9.8 x 4.0" |
