User Manual for Brother QL-820NWB Professional Ultra Flexible Label Printer Click to enlarge the picture
Contents of the user manual for the Brother QL-820NWB Professional Ultra Flexible Label
- Product category: Label Printer Brother
- Brand: Brother
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brother Label Printer
 |
User manual for the Brother QL-820NWB Professional Ultra Flexible Label contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brother product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!
|

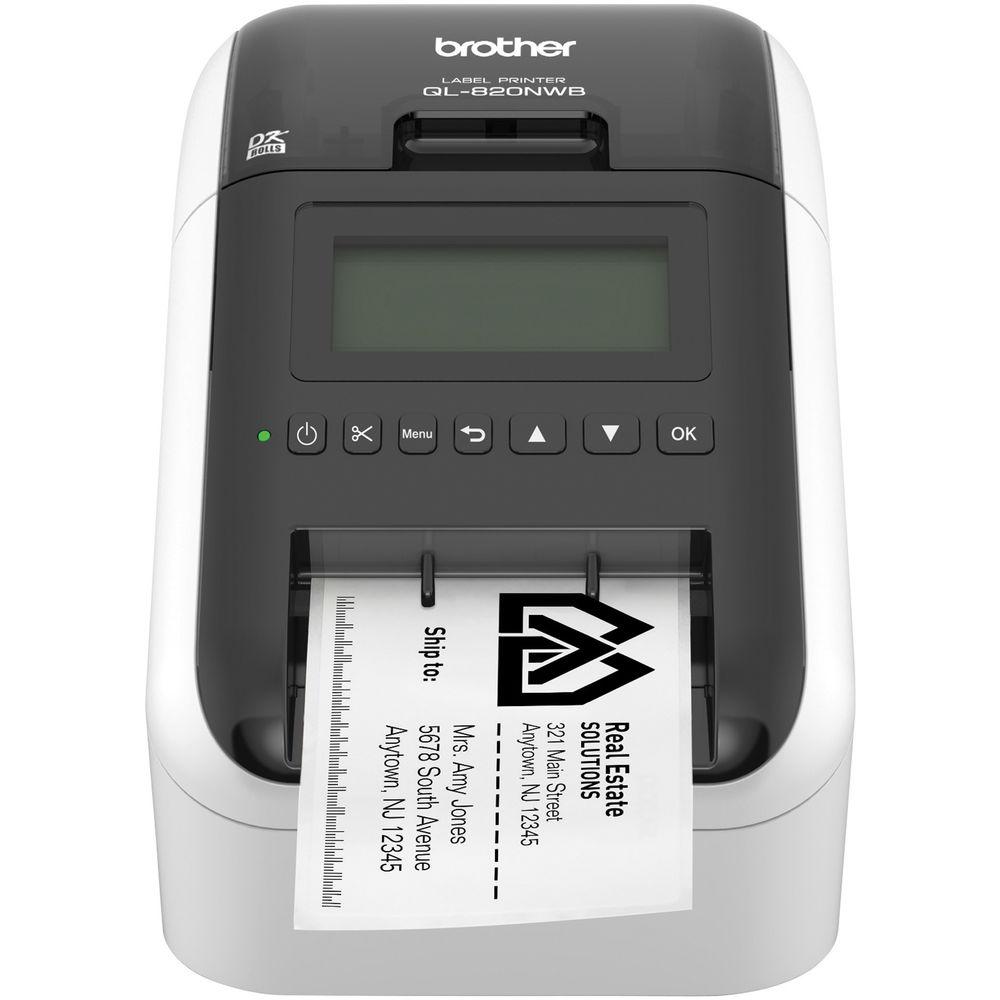

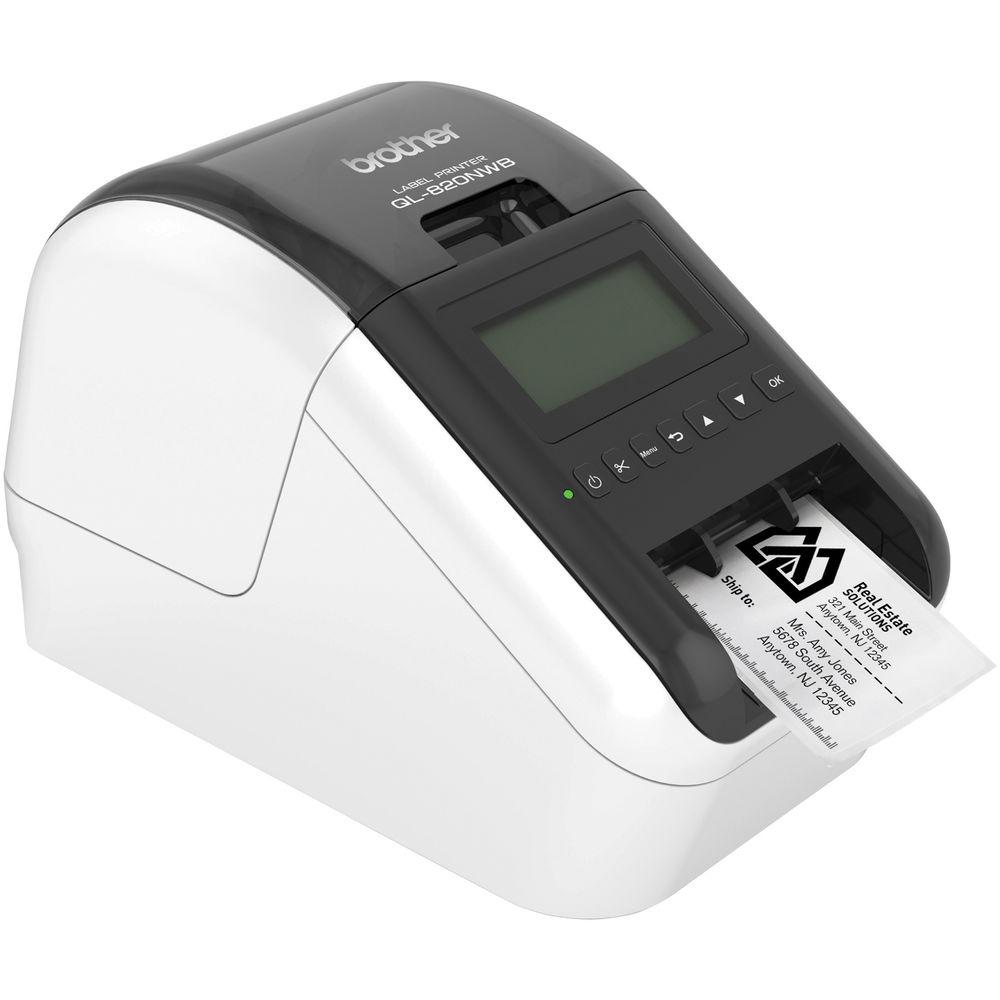

Product description The Brother QL-820NWB Professional Ultra Flexible Label Printer offers flexible connectivity, including Bluetooth, Ethernet, 802.11b/g/n Wi-Fi, and Wireless Direct interfaces. Also equipped with a USB Host interface, the Brother QL-820NWB can be used with a peripheral, such as a scanner. The QL-820NWB allows you to print black and red labels using DK-2251 or cost-effective paper labels for packages, envelopes, file folders, name badges, postage, and more. It can print up to 110 standard address labels per minute with black text at 300 dpi. An auto cutter allows for printing one or multiple labels at a time, eliminating wasted label sheets. The backlit monochrome LCD screen allows for standalone use. Add an optional lithium-ion battery for a complete mobile solution. Easy to integrate with free software development kits. Uses genuine Brother DK drop in labeling supplies. Features - The QL-820NWB features Bluetooth wireless technology, Ethernet, 802.11b/g/n Wi-Fi, and Wireless Direct interfaces
- Print Black/Red labels using DK-2251
- Create cost-effective paper labels for packages, envelopes, file folders, name badges, banners, and more
- Prints up to 110 labels per minute
- Print labels wirelessly using AirPrint and Brother iPrint&Label app download
- Convenient, drop-in tape rolls with no ink or toner required
- Easy to integrate and manage on a network using Brother's network management tools and free software development kits
- High-resolution (300 x 600 dpi) printing for crisp text and graphics
- Prints easy-peel, rounded-corner labels
- Prints on continuous-length paper and film tapes for banners and signs up to 3' long
- Use the automatic cutter for precise cuts after each label is printed or to create custom-sized labels
- Windows and Mac compatible
UPC: 012502646341 In the Box Brother QL-820NWB Professional Ultra Flexible Label Printer Software USB Cable AC Adapter DK-1201 Die-Cut Standard Address Labels (100 Labels) DK-2251 2.4" (62mm) Continuous Length Black/Red on White Paper Type (16.4'/5m) Limited 2-Year Warranty & Replacement Service Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother QL-820NWB Professional Ultra Flexible Label Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother QL-820NWB Specs | | | Type | Desktop Label Printer | | Print Resolution | 300 x 600 dpi | | Print Speed (Label) | 110 Labels per Minute | | Maximum Printable Width | 2.3" / 5.8 cm | | Number of Copies | 9999 | | | | Printing Technology | Direct Thermal | | Color Type | Black | | Operating System Support | Windows, macOS/OS X | | Cutter Type | Automatic | | Special Functions | Date/Time Stamp Support, Mirror Printing, Rotate Printing, Vertical Printing | | | | Bluetooth Version | 2.1 + EDR | | Wi-Fi | Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz) | | Wired Connections | USB Type-A, RJ45 | | | | Built-In Symbols | 1379 | | Built-In Designs/Templates | 256 | | | | Display Type | Monochrome | | Backlit Display | Yes | | | | Maximum Tape Length | 3' / 0.9 m | | Maximum Label Width | 2.4" / 61 mm | | | | Linear Barcodes Supported | Codabar, Code 128, Code 39, EAN-13, EAN-8, GS1 DataBar, GS1-128, Interleaved 2 of 5, Laser Barcode, POSTNET, UPC-A, UPC-E | | Matrix Barcodes Supported | Aztec Code, Data Matrix, MaxiCode, PDF417, QR Code | | Database Files Supported | csv, txt, mdb, xls, Microsoft SQL | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | | | Dimensions | 5.0 x 5.7 x 9.2" / 12.7 x 14.5 x 23.4 cm | | | | Package Weight | 5.71 lb | | Box Dimensions (LxWxH) | 11.75 x 9.0 x 7.25" |
