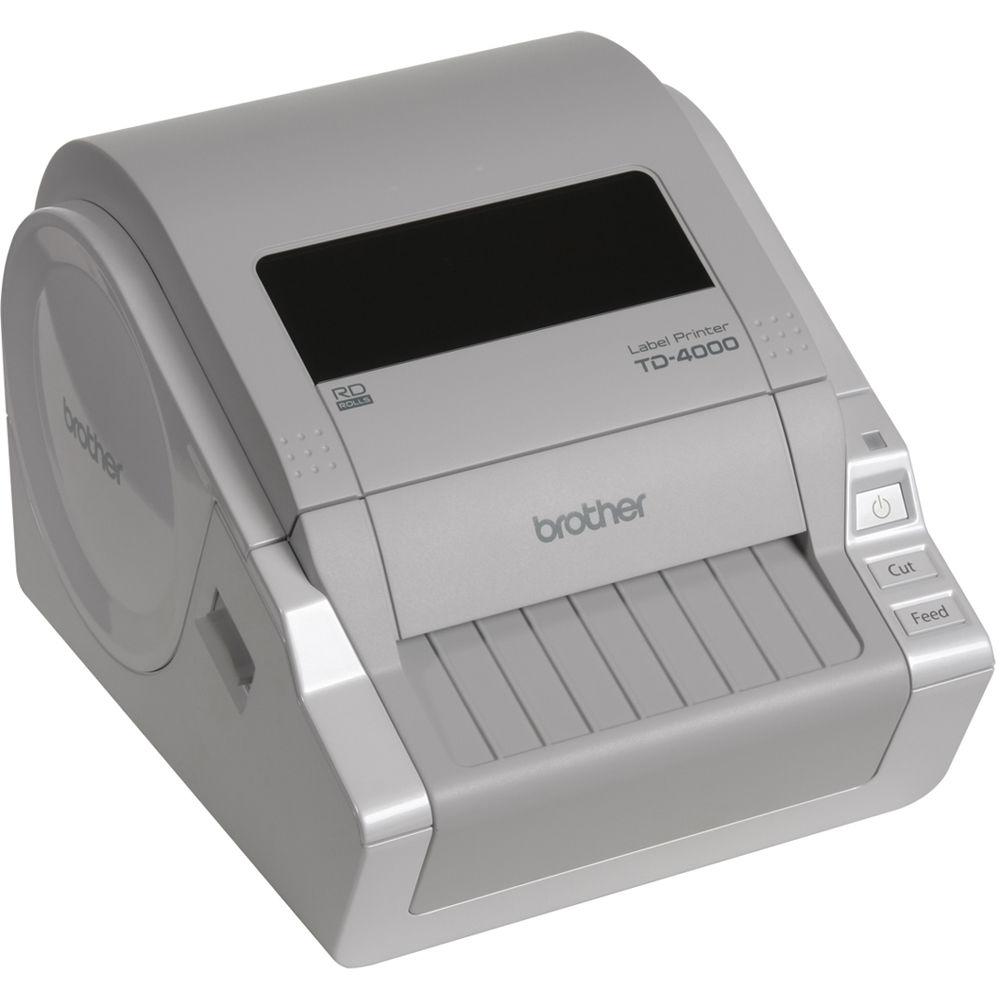

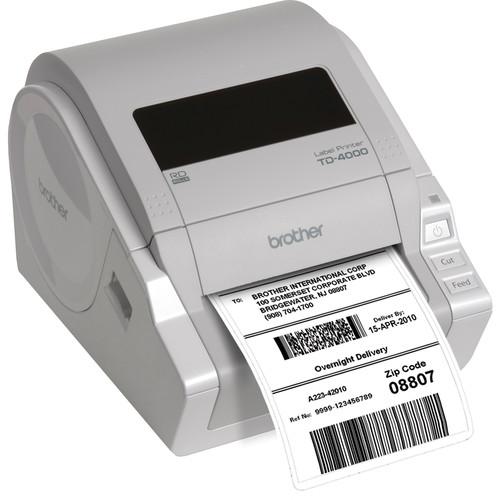

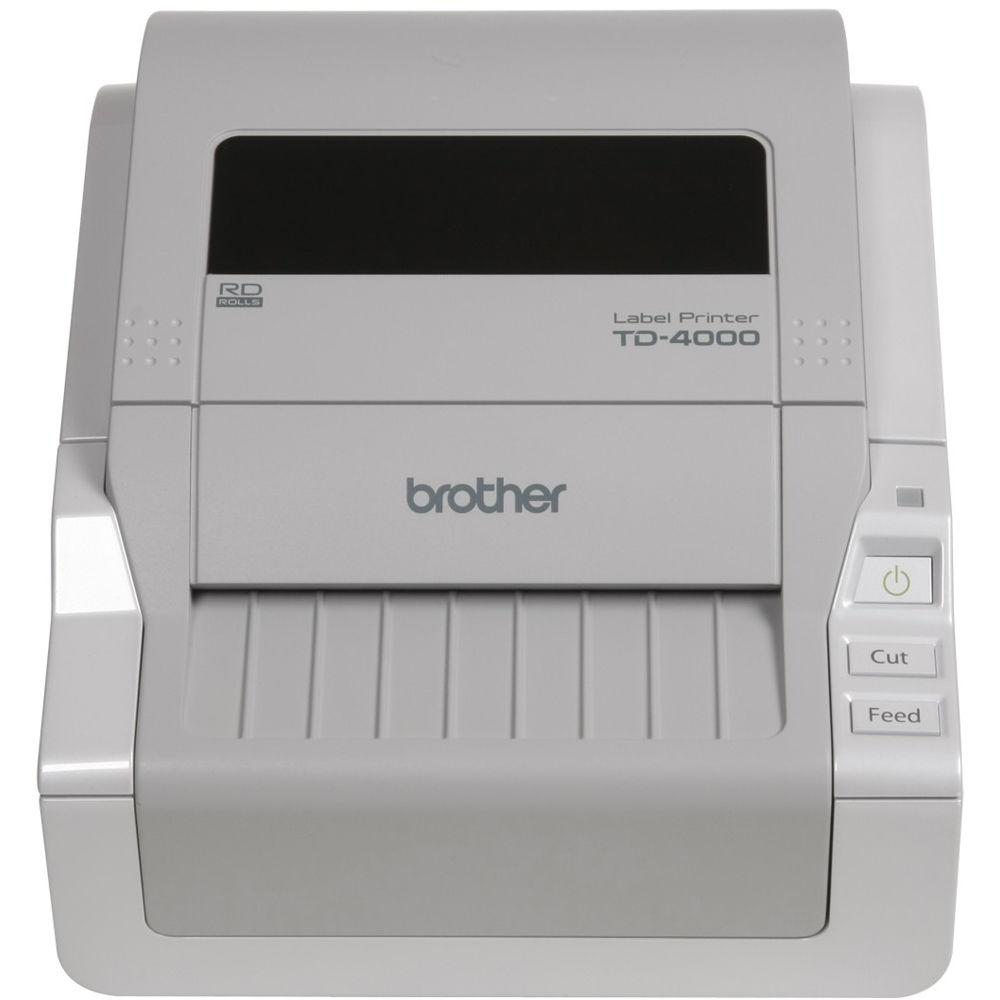

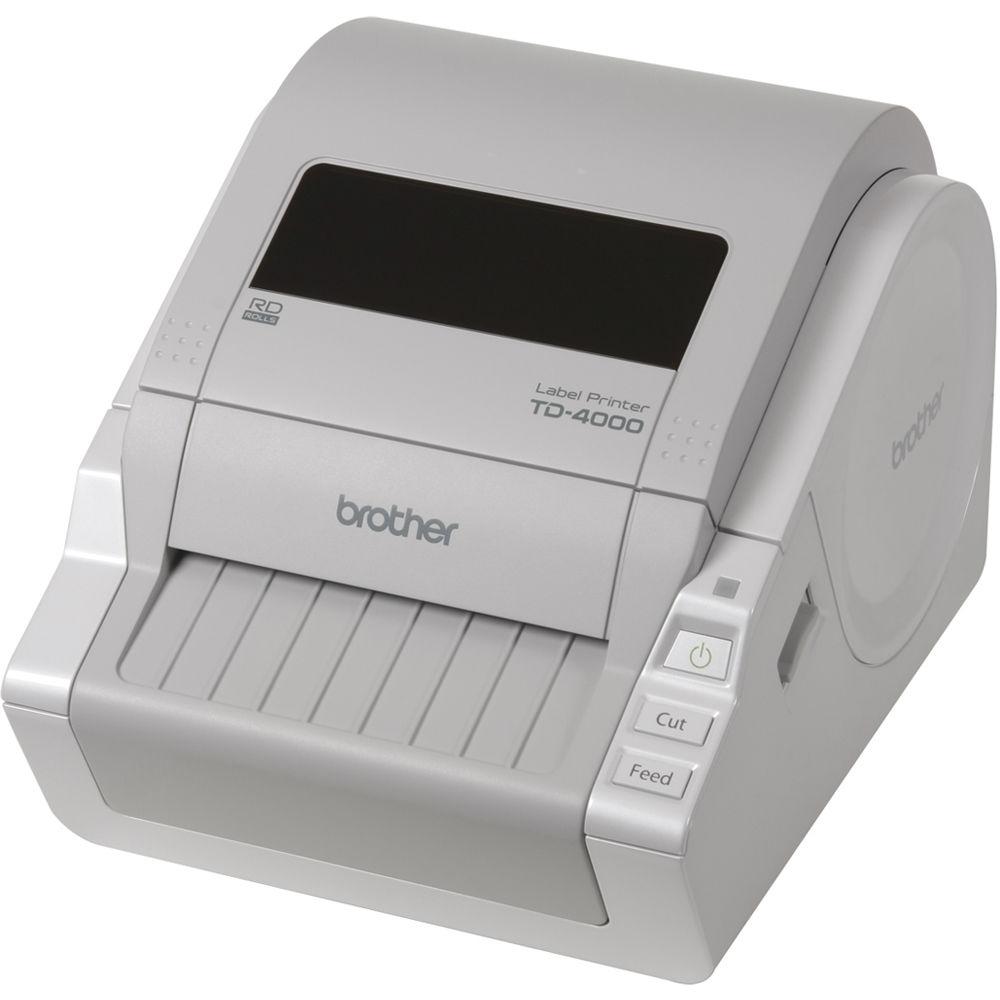

User Manual for Brother TD-4000 Desktop Bar Code Printer Click to enlarge the picture
Contents of the user manual for the Brother TD-4000 Desktop Bar Code Printer
- Product category: Label Printer Brother
- Brand: Brother
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brother Label Printer
 |
User manual for the Brother TD-4000 Desktop Bar Code Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brother product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!
|
Product description The Brother TD-4000 Desktop Bar Code Printer is a cost-effective way to print out labels, receipts, and tags all at your desktop. This true GDI printer is compatible with Windows operating systems, including Windows 7, and comes packaged with Brother's PT-Editor software. This application allows you to add bar codes, lines, curves and more to your printouts. In addition, the TD-4000 can be linked to a Microsoft Excel or Access database file or SQL server. The printer is also compatible with third party Windows-based software apps. Along with numerous design options, the TD-4000 also features a fast print speed of 4.3 inches per second. Other features include an automatic cutter, a 1-year limited warranty, and toll free customer support. - High performance, 4" wide desktop bar code printer
- Uses genuine Brother or most medium/high sensitivity direct thermal label, receipt and tag media
- Fully compatible with Windows OS computers, including Windows 7
- Bundled with PT-Editor print application design software
- Prints high quality 300 dpi text, graphics and bar codes
- Fast, host based printing - up to 4.3 ips
- Reliable built-in automatic cutter
- USB 2.0 and RS-232C serial interface connectivity

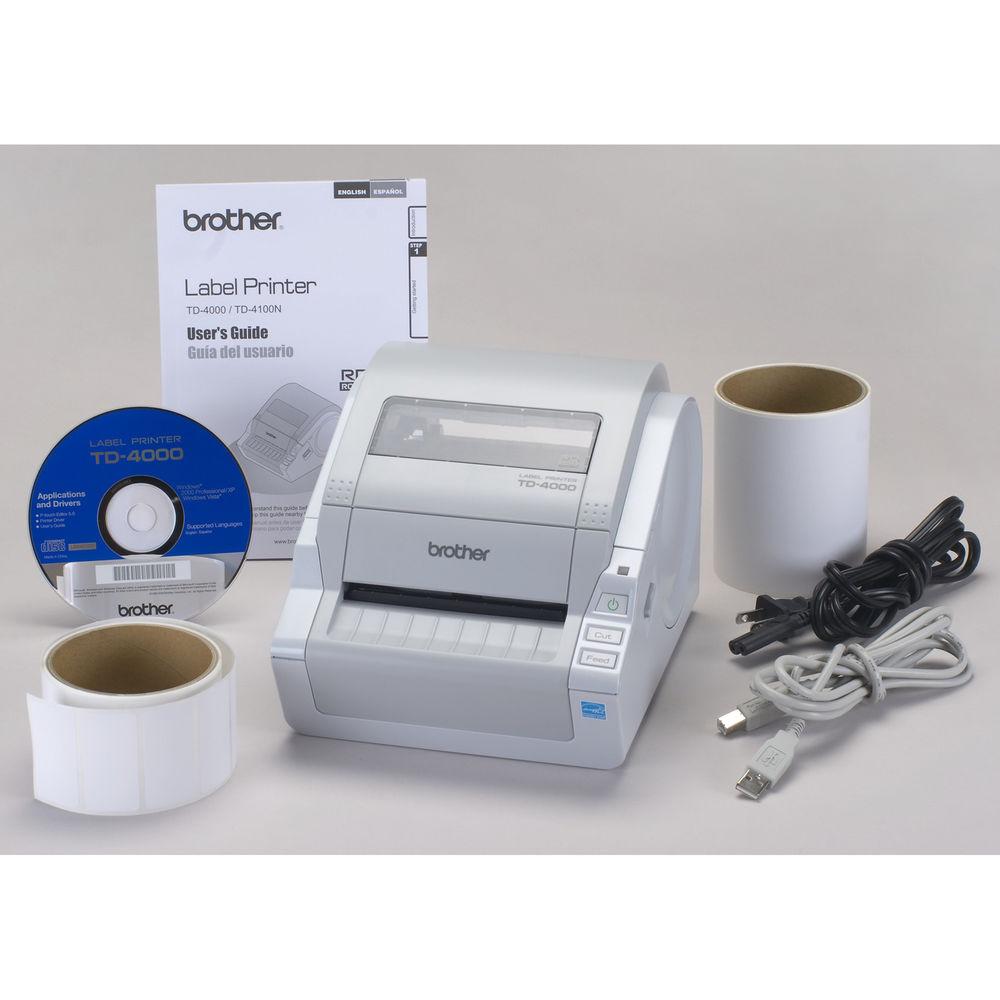

UPC: 012502623540 In the Box Brother TD-4000 Desktop Bar Code Printer Power Cord USB Cable CD RD Starter Roll - Continuous Length Label (7mm or 22.97') RD Starter Roll - 250 2 x 1" (50.8 x 25.4mm) Labels User Guide 1-Year Limited Warranty User Manual PDF 5.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother TD-4000 Desktop Bar Code Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother TD-4000 Specs | | | Type | Desktop Label Printer | | Print Resolution | 300 x 300 dpi | | Print Speed (Seconds) | 4.29" / 109 mm per Second | | Maximum Printable Height | 1" / 25.4 mm | | Maximum Printable Width | 3.88" / 98.6 mm | | Number of Copies | 9999 | | | | Printing Technology | Direct Thermal | | Color Type | Black | | Operating System Support | Windows | | Cutter Type | Automatic | | Special Functions | Date/Time Stamp Support, Mirror Printing, Rotate Printing, Vertical Printing | | | | Wired Connections | USB Type-A, DB-9 | | | | Built-In Symbols | 1379 | | Built-In Designs/Templates | 99 | | | | Maximum Label Width | 4.13" / 105 mm | | Supported Roll Size | 4" / 101.6 mm (Diameter) | | | | Linear Barcodes Supported | Codabar, Code 128, Code 39, EAN-13, EAN-8, GS1 DataBar, GS1-128, Interleaved 2 of 5, Laser Barcode, POSTNET, UPC-A, UPC-E | | Matrix Barcodes Supported | Data Matrix, MaxiCode, PDF417, QR Code | | Database Files Supported | csv, txt, mdb, xls, Microsoft SQL | | | | AC Input Power | 120 VAC, 60 Hz at 1.8 A | | | | Dimensions | 6.8 x 9.0 x 6.2" / 173.0 x 229.0 x 158.0 mm | | Weight | 4 lb / 1.9 kg (without Roll) | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 14.1 x 9.7 x 9.2" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
