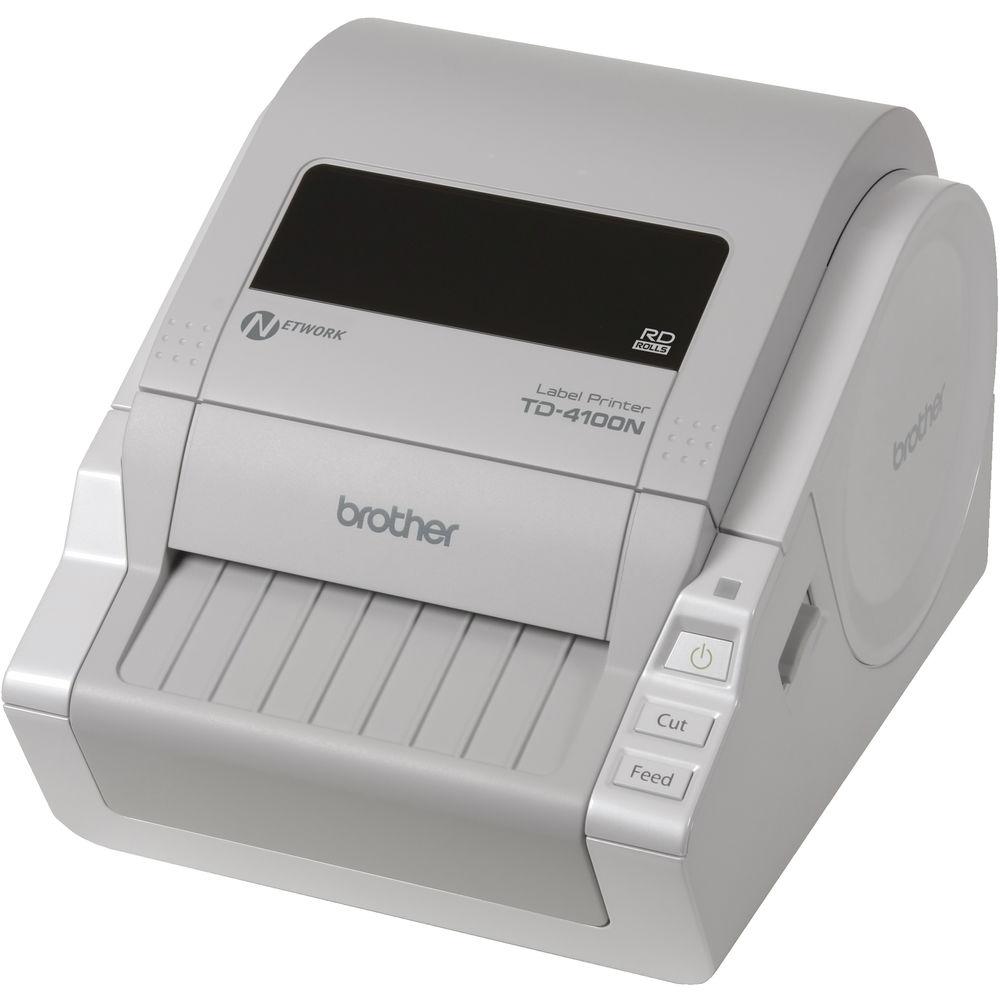

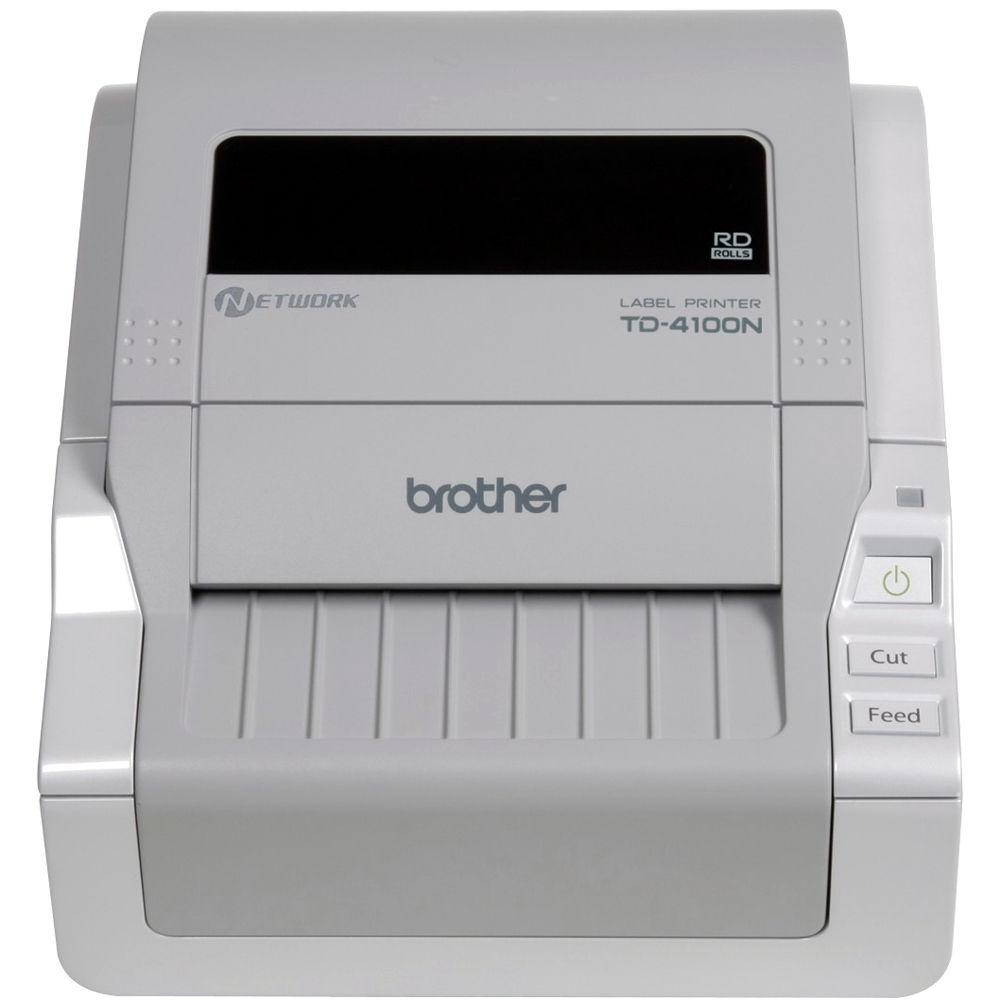

User Manual for Brother TD-4100N Desktop Bar Code Network Printer Click to enlarge the picture
Contents of the user manual for the Brother TD-4100N Desktop Bar Code Network
- Product category: Label Printer Brother
- Brand: Brother
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brother Label Printer
 |
User manual for the Brother TD-4100N Desktop Bar Code Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brother product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!
|

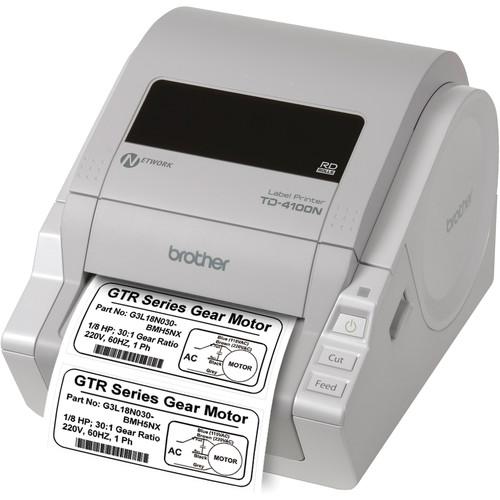

Product description The Brother TD-4100N Desktop Bar Code Network Printer is a cost-effective way to print out labels, receipts, and tags all at your desktop. This GDI printer is compatible with Windows operating systems, including Windows 7, and comes packaged with Brother's PT-Editor software for increased customization options. The TD-4100N can also be linked to a Microsoft Excel or Access database file or SQL server, and is also compatible with third party Windows-based software apps. In addition, the TD-4100N features Ethernet connectivity for expanded, web-based, capabilities. Along with numerous design options, the TD-4100N also features a fast print speed of 4.3 inches per second, an automatic cutter, and toll free customer support. - High performance, 4" wide desktop bar code printer
- Uses genuine Brother or most medium/high sensitivity direct thermal label, receipt and tag media
- Fully compatible with Windows OS computers, including Windows 7
- Bundled with PT-Editor print application design software
- Prints high quality 300 dpi text, graphics and bar codes
- Fast, host based printing - up to 4.3 ips
- Reliable built-in automatic cutter
- 10/100 Base-TX Ethernet, USB 2.0 and RS-232C serial interface connectivity

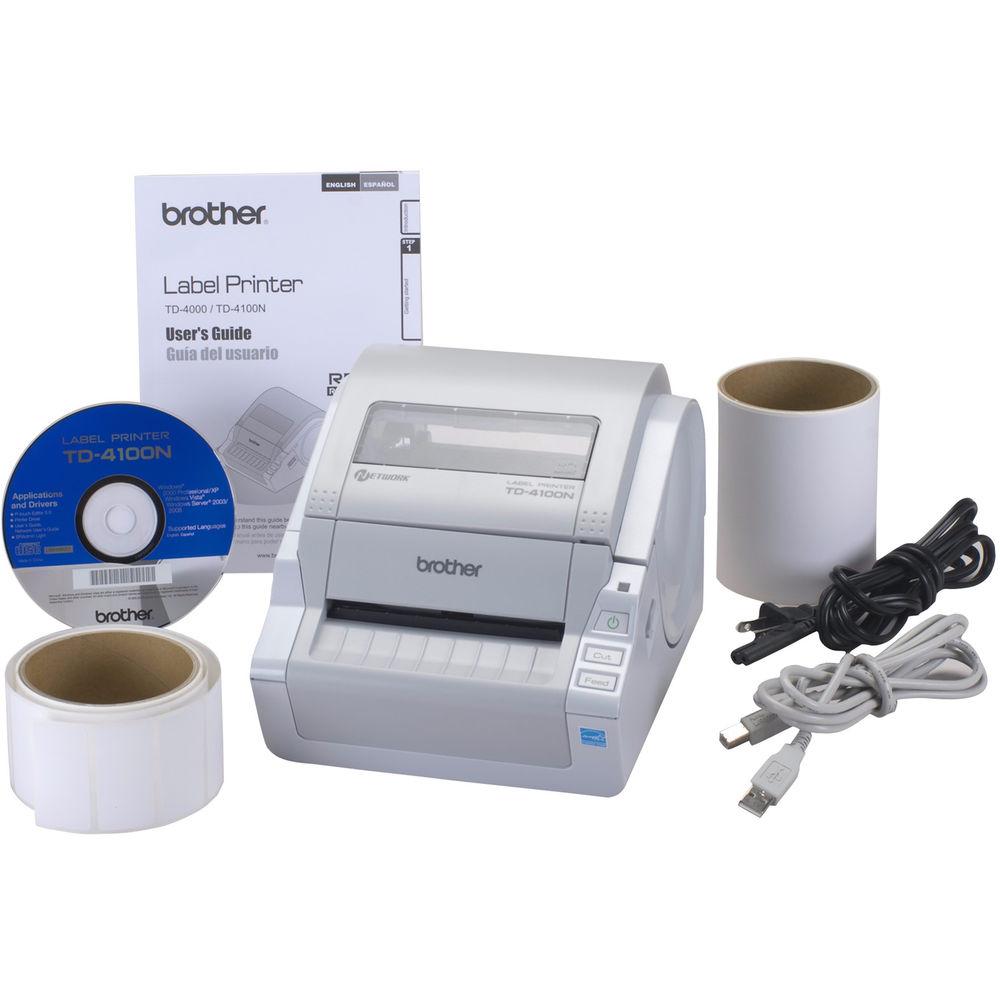

UPC: 012502623564 In the Box Brother TD-4100N Desktop Bar Code Network Printer Power Cord USB Cable CD RD Starter Roll - Continuous Length Label (7m or 22.97') RD Starter Roll - 250 2 x 1" (50.8 x 25.mm) Labels User Guide 1-Year Limited Warranty User Manual PDF 5.4mbvrrvatdxardtucwydbtszcbftuuuezuvfu Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother TD-4100N Desktop Bar Code Network Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother TD-4100N Specs | Color | Grey/white | | Operation Modes | PC connected: dumb printer, template Connected to host Peripheral: serial interface | | Status Indicator | LED (3 colors) | | Cutter | Automatic (built-in) | | Cutter Life | Approximately 300,000 cuts (liner only) Approximately 150,000 cuts (label and liner) | | Print Speed | 1.24 ips (109mm/sec) | | Printing Method | Direct thermal | | Sensor | Fixed transmissive location: edge | | Media Type | Drop-in roll or fanfold (rear slot) continuous label or paper, die cut labels, tag stock | | Tape Sizes | Maximum roll size - outside diameter: 4" (101.6mm) | | Maximum Tape Width | With adhesive: 0.003-0.007" (0.076-0.178mm) Without adhesive: 0.003"-0.006" (0.076-0.153mm) | | Maximum Print Size | Width: 3.88 x 1" (98.6 x 25.4mm) Length: 1" (25.4mm) | | Control Panel | On/off, feed, cut | | Maximum Resolution | 300 x 300 dpi (12 x 12 dots/mm) | | Fonts | ESC P: Helsinki, Letter Gothic Template Bitmap and outline: Helsinki, Brussels, Letter Gothic | | Font Styles | ESC P: 21, 28, 44, 56, 88, 120 dots Template (bitmap): 21, 28 dots Template (outline): 35 - 380 dots (20 sizes) | | Printer Emulations | Raster, ESC P, Template | | Memory | 2MB | | Memory for Transferred Data | Up to 99 template files | | Symbols for Windows | 1379 | | Mirror Printing | Yes | | Vertical Printing | Yes | | Rotate Printing | Yes | | Date/Time Stamp | Through PC | | Multiple Copies | Up to 9,999 Copies (PT-Editor) | | Bar-Code Types | Linear: Code39, ITF (I-2/5), UPC-A, UPC-E, EAN8, EAN13, Codabar (NW-7), Code128, UCC/EAN128, Postnet, Laser Bar Code, ISBN-2, ISBN-5, GS1 DataBar (RSS) 2-Dimensional: PDF417, QR Code, Micro QR Code, Data Matrix, Maxicode | | Microsoft Word Add-In | Office 2000/2003/2007 | | Database File Compatibility | .csv, .txt, .mdb, .xls and Microsoft SQL server | | Software | BRadmin Light 1.14, P-touch PT-Editor 5.0, Transfer Manager 2.1, Transfer Express, Library 2.1 | | Power Switch | Mechanical | | Networking | 10/100 print server built-in | | Interface | USB (1.1 or 2.0), Serial (RS-232C), Ethernet 10/100 Base-TX | | Compatibility | PC | | Operating System | Windows 2000 Professional/XP/7, Windows Vista | | Power Requirements | 120VAC, 60Hz, 1.8A Energy Star compliant | | Dimensions | 6.8 x 9.0 x 6.2" / 173 x 229 x 158mm | | Weight | 4 lb / 1.85kg Without RD roll | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 14.3 x 9.7 x 9.0" |
